Vacuum heat film coater machine GN-HCM1025

FOB Reference Price:Get Latest Price
US $4,000-20,000 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Type:
Coating Machine
Condition:
New
Application:
Machinery & Hardware
Automatic Grade:
Semi-Automatic
Driven Type:
Electric
Voltage:
220V/110V
Power:
1200W
Packaging Type:
Wooden box
Packaging Material:
Wood
Place of Origin:
Shandong, China (Mainland)
Brand Name:
Gelon
Model Number:
GN-HCM1025
Dimension(L*W*H):
L560mm*W410mm*H450mm
Weight:
65KG
Certification:
CE
Coating speed:
0~100mm/s
Max stroke:
250mm
Vacuum plate:
Al plate with vacuum
Dimension of plate:
L365mm*W200mm*H30mm
Adjustable range of blade:
0.01~3.5mm
Heating furnace:
room~200℃,digital temperature controller,precision ±1℃
After-sales Service Provided:
Engineers available to service machinery overseas
Supply Ability
Supply Ability:
1000 Set/Sets per Month
Packaging & Delivery
Packaging Details
Export standard package of Battery Coating Machine
Port
Qingdao
Lead Time :
within 15 days after payment
Product Description

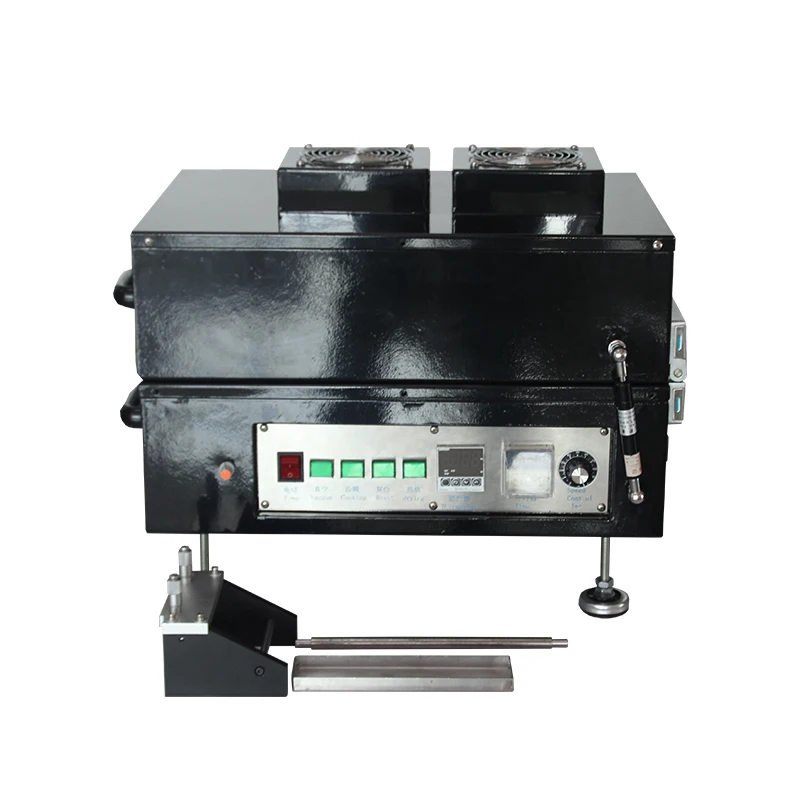

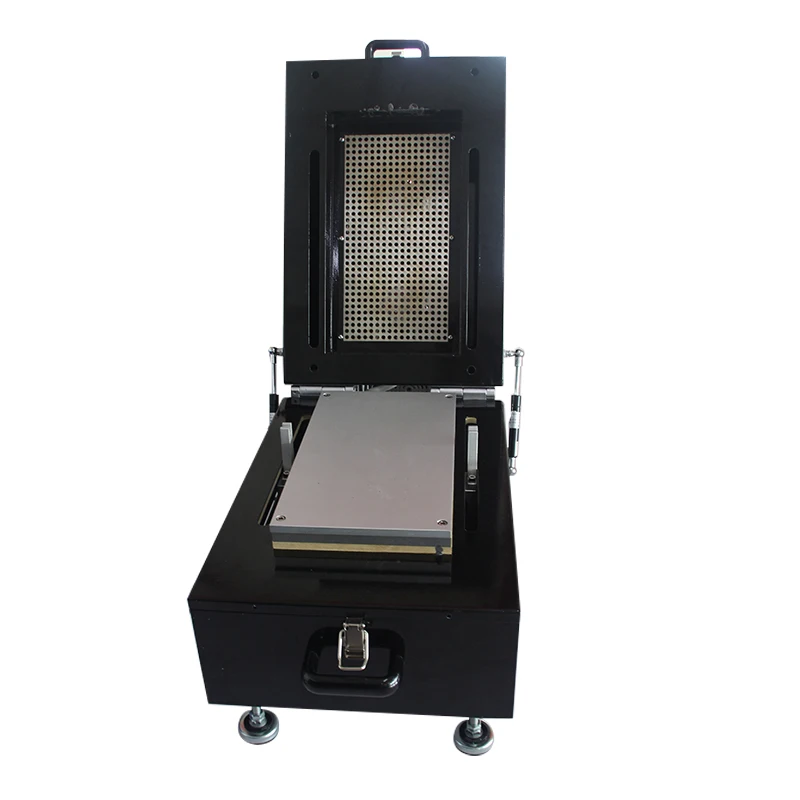

 Vacuum heat film coater machine GN-HCM1025

Product Introduction:

This product is widely used in a variety of high temperature coating research, such as ceramic film, crystal film, battery material film, special nano-film, to adapt to the future high temperature conditions, the development of film technology. The machine through the uniform drive precision film device, to achieve smooth, uniform coating effect. The substrate is fixed by vacuum adsorption, so that the substrate has no wrinkles during the coating process, so that the coating is smoother. After coating, the cover can be heated and dried on the film, temperature control accuracy of ± 1 ℃. Particularly suitable for the preparation of solid electrolyte and lithium battery pole pieces.

Technical Parameters

*Coating speed:0~100mm/s;
*Max stroke:250mm;
*Vacuum plate:Al plate with vacuum;
*Dimension of plate:L365mm×W200mm×H30mm;
*Adjustable range of blade:0.01~3.5mm;
*Heating furnace:room~200℃,digital temperature controller,precision ±1℃

power: 220VA frequency 50Hz / 60Hz,

Net weight;65KG

Outer Size: L560mm×W410mm×H450mm;
