Variable 50hz 22kw ac drive 3 phase frequency inverter VFD motor control 220V 380v controller inverter

Feedback Ratings
  • 1-9 Pieces
    $450.00
  • 10-29 Pieces
    $448.00
  • 30-49 Pieces
    $444.00
  • >=50 Pieces
    $442.92
Output Power:
22KW
- +
available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
5 day(s) after payment received
Customization:
Customized logo (Min. Order: 10 Pieces)
Customized packaging (Min. Order: 10 Pieces)

More

Supporting to print client's label (Min. Order: 10 Pieces) Less
Contact Supplier
Samples - $448.00 /Piece, 1 Piece (Min. Order): Buy Samples
Loading... Add To Cart
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Jiangsu, China (Mainland)
Brand Name:
MOCHUAN
Model Number:
MH200G4T22GS
Output Type:
Triple
Size:
452*290*212*494mm
Weight:
20KG
Input Voltage:
AC380V±15%
Output Voltage:
AC380V±15%
Type:
AC-DC-AC
Output Frequency:
0-3200HZ
Output Current:
45A
Output Power:
22KW~45KW
Control Type:
V/F,open loop vector control
Carried Frequency:
16 KHz
Communication Interface:
RS485
Technical support:
direct english enginner
Voltage:
0~400V

Packaging & Delivery

Selling Units:
Single item
Single package size:
44X47X30 cm
Single gross weight:
22.0 kg
Package Type:
Single PP bag+ fix foam+ hardness outer cartion NO MOQ, Accept OEM
Picture Example:
package-img
package-img
Lead Time :
Quantity(Piece) 1 - 1 2 - 20 21 - 50 >50
Est. Time(days) 5 10 15 To be negotiated
Video Description
Pay Attention

MH200/ MH300 series vfd support OEM!!!

Certificate
Certificate Number
CE2013-PDS8020S
Origanization
CCIC Southern Electronic Product Testing
Declare the product
inverter
Date & Time
04/12/2013
Test Standard
EN61800-5-1:2007
Certificate for
LVD directive 2006/95/EC

Kindly reminder:

All our certifications are REAL ONE.

NOT FAKE, NOT FAKE, NOT FAKE!!!


PLEASE CONTACT US TO SHOW YOU!!!


WORLD-WIDE CUSTOMERS COMMEND & FEEDBACK

Here is some of comments from our world-wide customers.

You can check all the comment at our company profile by www.mochuan.en.alibaba.com " company profit"-"Rating& Rewiews" Then you can see all comments from our clients.


( Know please, all our customer comments are real one, NOT FAKE.)

TRUST YOU WILL LIKE OUR SERVICE, QUALITY AND PRICE

Alibaba.com suppliers platform show that:

1. We never got any complain.

2. More than 5000 customers contacted us.

3. Star supplier with more than 10000 points.

Our Advantage
Product Description
MH200 series Basic Function
Max Frequency
V/F control, 0-3200Hz
Carrier Frequency
0.5KHz-16KHz(the carrier frequency can be adjusted automatically according to the load charateristic
Input Frequency
Digital setting: 0.01Hz, analog setting; Max frequency x0.025%
Control way
V/F control
Starting Torque
0.5Hz/150%(SVC); 0Hz/180%(FVC)
Speed Range
1:100(SVC); 1:1000(FVC)
Steady Speed Precision
±0.5%(SVC); ±0.02%(FVC)
Torque Control Precision
±5%(FVC)
Overload Capacity
150% rated current 60s; 180% rated current 3s.
Torque Increase
Automatic torque enhancement; Manual torque improvement 0.1%-30.0%
V/F Curve
3ways: linea; multipoint; N-power V/F curve(1.2-power, 1.4-power, 1.6-power, 1.8-power 2.0-power)
V/F Separate
2ways: full separation, semi-detached
Acceleration Deceleration
Linear or S-curve pluse deteleration. Four acceleration and the range decelertion time 0.0~6500.0s.
DC Brake
DC brake frequency: 0.00Hz-50.00Hz
Brake time: 0.0s~36.0s
Braking action current value: 0.0%~100.0%
Inching Control
Inching frequency range: 0.00Hz~50.00Hz
Inching deceleration time: 0.0s~6500.0s
Simple PLC, Multistage
Through bulit-in PLC or control terminal to realize Max 16 speed running
Built-in PID
To realize the process control closed-loop control system
Automatic Voltage Regulation(AVR)
When the grid voltage changes, to keep output constant voltage
Overpressure loss rate control
Automatic limit of current voltage during operation to prevenet overcurrent overvoltage to stop
Fast Current Limiting Funcation
Maximum reduce overcurrent failure to protect the frequency converter narmal run
Torque limitation and control
Feature of evavator, automatic limiation of torque during operation to prevent frequency overcurrent to stop, Closed-loop vector made can realize torque control.

Rich Extensibility& Terminals: There are different extended cards for I/O point, CAN, Profibus and simple PLC.

Caution of Usage:

1.The avaliable voltage specification are: 3phase 380Vac input output; 3phase 220VAC input output; 1phase 220VAC input 3phase 220VAC output.
2. Frequency converter can not be used as voltage inverter or converter. But its input voltage can be(±15% DC540V for 3phase 380V devices, ±15% DC3110V for 3phase ac220VAC devices.
3. Power range: from 0.2KW-450KW
Feature

Built-in Simple PLC Function:

To realize cycle operation at Max 16-segment constant time and speed.

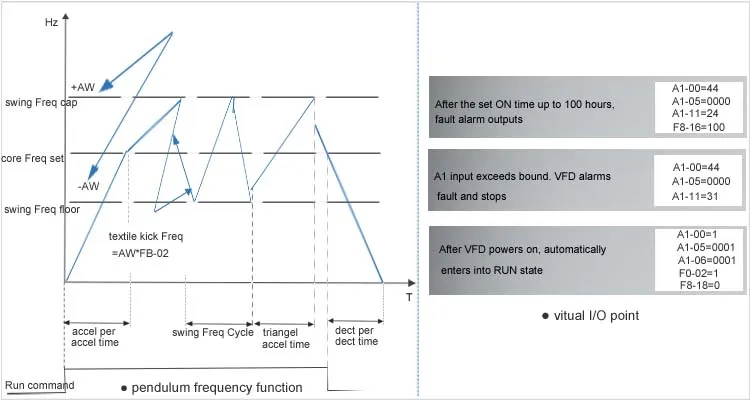

Pendulum Frequency Function& Vitual I/O: pendulum frequency function can improve coiling's densityin textile and chemical fier manufacturing industry; Through asy setting, inner logical control and can be customized.

Multi-motors switch function: It can save 4pcs motor parameters, one frequeny converter can be divided time to control 4pcs motor.

We still have more on feature. If you want to learn more, please contact us. We will send you.
Related Products

If wanna get more details, just click the picture to have its description.

Besides 3phase ac pmsm motor and vfd. we still support HMI, PLC and Position Swith. If you need, please contact us.

Hot Promotion


Hot Promotion


1. Buy 20pcs GET 1pcs in FREE.
2. Try one sample to get 10$
3. Support 7Days refund without any CONDITIONS.
4. Refund all the items did not sold out within 6months.

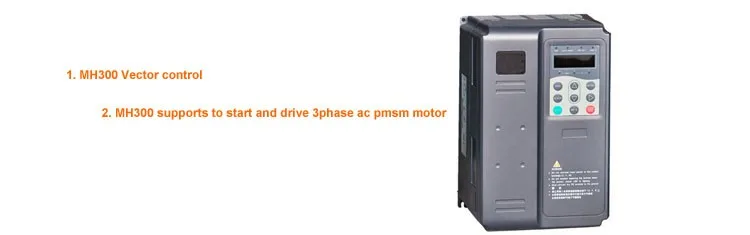

If V/F control is not you ask, please contact us, We still have vector type, whole catalogue and price wait YOU.
