Variable float guide rod plastic rota flow meter

  • 10-99 Sets
    $18.00
  • >=100 Sets
    $6.00
Quantity:
- + Sets available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
10 day(s) after payment received
Contact Supplier
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Shanghai, China
Brand Name:
BINGO
Model Number:
VAF-2510G
Max Pressure:
1MPa/150psig
Medium type:
water
Maximum temperature:
≤80°C/176°F
Body material:
UPVC
Float material:
ABS
Probe:
SS304

Packaging & Delivery

Selling Units:
Single item
Single package size:
45X45X30 cm
Single gross weight:
10.0 kg
Package Type:
FOR Variable float guide rod plastic rota flow meter.
Lead Time :
10

Variable float guide rod plastic rota flow meter



Product Description

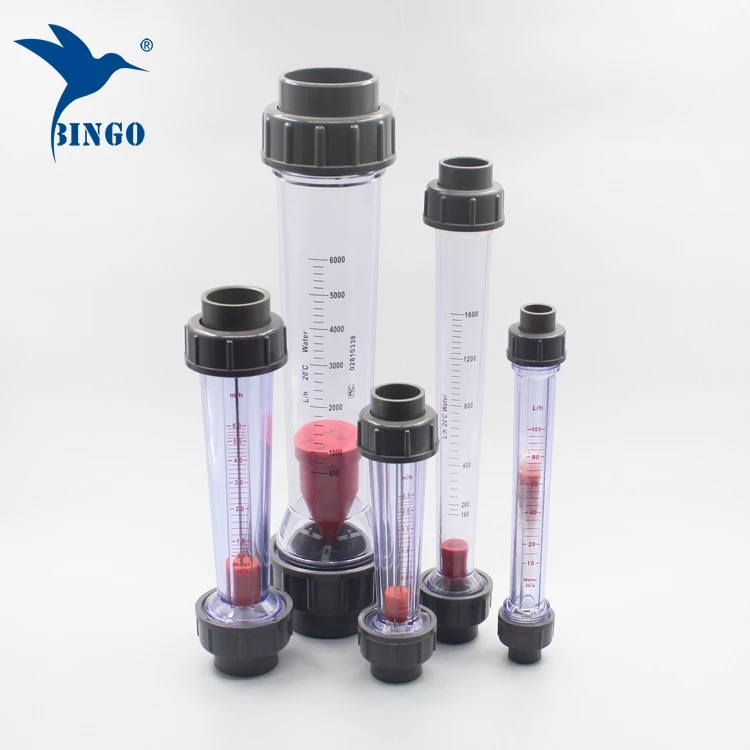

 VAF-25 Series Piping type Flowmeter

VAF-25 series  plastic flowmeter, PC body, fittings made of PVC ABS or SS floats capable of withstanding higher temperatures, thread joint and panel-mounted fittings are easy to install, economical and endurable.

Model

Measuring range

Medium

Remarks

VAF-2510G

1-10GPM/5-35LPM

Water

Circular

VAF-2516G

2-16GPM/10-60LPM

VAF-2520G

2-20GPM/10-70LPM

VAF-2510G-S

1-10GPM/5-35LPM

Square

VAF-2516G-S

2-16GPM/10-60LPM

VAF-2520G-S

2-20GPM/10-70LPM

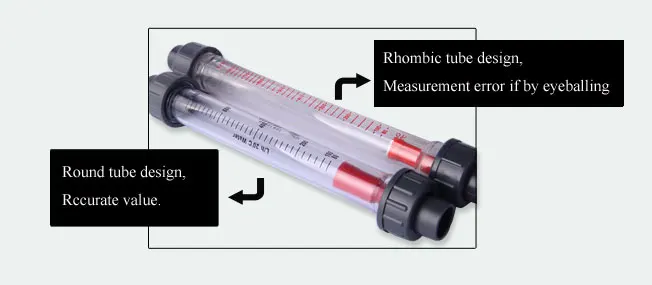

Special designs

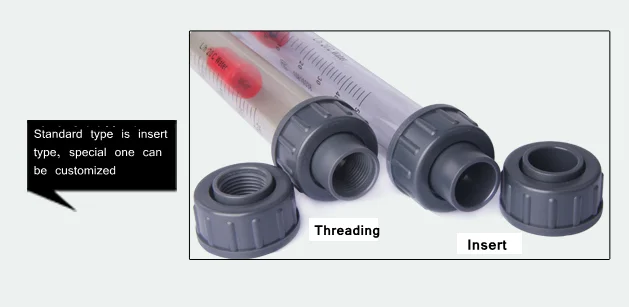

Connections




Technical Parameters



Normal flowmeter

GPM

0.1-1

0.2-2

1-5

1-10

2-16

2-20

4-40

6-60

10-100

50-150

50-200

Measuring range

LPM

0.5-4

1-7

2-18

5-35

4-60

10-70

15-150

25-250

50-350

190-550

200-750

Accuracy

±04%FS

Repeatability

±0.25%FS

Range ration

10:1

10:1

5:1(10:1)

10:1

8:1

10:1

10:1

10:1

10:1

3:1

4:1

Maximum pressure

1MPa/150psig

Maximum temperature

≤80°C/176°F

Body material

Acrylic

Float material

316 Stainless steel(≥150GPM 304Stainless steel)

Guide rod material

316 Stainless steel( ≥ 150GPM 304Stainless steel)

Fastening screw material

Copper

Tube connection material

UPVC,ABS(Nonpoisonous),(Can be made of stainless steel or copper chromium)

Upper and lower adapter bearing

F46

O Shape sealing rin

Silicon rubber
