Vector Optics Taurus 5-30x56 First Focal Plane Tactical Riflescope Reticle High Quality Hunting Scope

Feedback Ratings
  • 1-2 Pieces
    US $449.00
  • 3-9 Pieces
    US $395.12
  • >=10 Pieces
    US $369.99
Quantity:
- + Pieces available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
8 day(s) after payment received
Customization:
Over 50 Pieces - Customized logo More
Contact Supplier
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Shanghai, China (Mainland)
Brand Name:
Vector Optics
Model Number:
SCFF-14 Hunting Riflescope
Type:
Rifle Scope
Maximum Output Power:
0
Hunting Riflescope:
Hunting Riflescope

Packaging & Delivery

Selling Units:
Single item
Single package size:
35X15X12 cm
Single gross weight:
2.0 KG
Package Type:
Individual fine retail box
Lead Time :
Quantity(Piece) 1 - 1 2 - 5 6 - 20 >20
Est. Time(day) 8 10 12 To be negotiated
Video Description
Company Information














Product Description





Vector Optics Taurus 5-30x56 First Focal Plane Military Tactical Riflescope

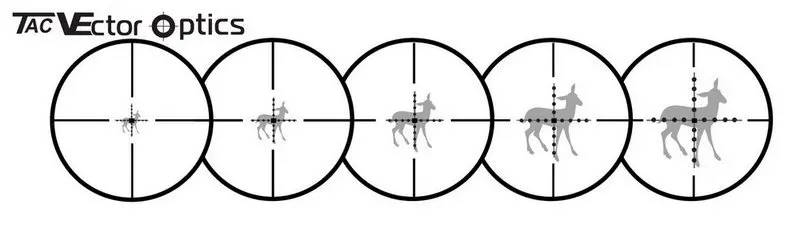

FFP Brief Introduction: Most scopes have the reticle fitted in the second focal plane (near the eyepiece). While, presently it has always been the practice to fit the reticle in the first focal plane (the reticle increases its size when change the magnification from low to high). Each system has its advantages.



The advantage with telemetric reticles (like rangefinder & Mil-dot etc) is that the target image and distance between dots remains constant even when changing magnification. It is the system that is widely used by the TOP military suppliers now.

FFP Reticle Illustration.jpg

Brief Info

Diamond Clear Image, Long Eye Relief, First Focal Plane Etched MPX1 Glass Reticle with Germany Tech, Turret Lock,

1/10 MIL Adjust, 30mm Monotube, Illumination, Side Focus, w/ Lens Cap, Honeycomb Sunshade, Tactical Rings



The advantage with telemetric reticles (like rangefinder & Mil-dot etc) is that the target image and distance between dots remains constant even when changing magnification. It is the system that is widely used by the TOP military suppliers now.

Detailed SPEC
Model
SCFF-11 Taurus
Magnification
5-30x
Objective Lens Dia
56mm
Ocular Lens Dia
36mm
Ocular Lens Length
60mm
Exit Pupil
11.0-1.8mm
Optics Coating
Diamond Fully-Multi
Field of View
20.43-3.51 feet @ 100 yards
Eye Relief
100mm (4 inch)
Length
398mm (15.6 inch)
Weight
813g (28.7 ounce)
Tube Dia.
30mm harmmer-forged
Click Value
1/10 MIL, 1cm, 0.1 MRAD
Elevation Range
≥12MIL (40MOA)
Windage Range
≥12MIL (40MOA)
Parallax Adjustment
20 Yds to infinite
Reticle
Etched Glass MPX1
Illumination
6 levels red
Battery
CR2032( not included )

30mm hammer-forged aluminum monotube design

Side focus mark: 20, 25, 30, 40, 50, 75, 100, 200, 300, 500, 900 and infinite

Shock tested to 1000g, water proof and fully nitrogen purged

Turret lock sytem. Pull to adjust, press to lock. Two extra elevation turrets marked 1cm and 0.1 MRAD

High quality 6061 T6 aircraft greade aluminum

Diopter compensation from fast-focus eyepiece  -2 to +1.5

Including items: 30mm tactical picatinny rings (default) or devetail mount ring (on request only), cleaning cloth, instruction,  lens cap, honeycomb filter sunshade, packed in nice retail box





Accessories

VO Paragon 1.2-6x24IR Acom 8.jpg





Retail Packaging

VO Paragon 1.2-6x24IR Acom 6.jpg





Packaging Details
