Voice over E1 60 channel (FXS/FXO) Telephone PCM Multiplexer

Feedback Ratings
US $1200.00 / Piece | 1 Piece (Min. Order)
Quantity:
- + Pieces available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
1 day(s) after payment received
Contact Supplier
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Jiangsu, China (Mainland)
Brand Name:
photel
Model Number:
PT-50T 2510
E1 number:
16E1
E1 interfaces:
75Ω or 120ohm
Power supply:
AC+DC,DC+DC,AC/DC
LED Alarm:
support
ETH number:
4*10/100M
voice port:
FXO/FXS/4WE&M/HOT/MAG
OEM:
Support
NMS software:
Support
Warranty period:
2years

Packaging & Delivery

Selling Units:
Single item
Single package size:
60X43X30 cm
Single gross weight:
4.6 kg
Package Type:
standard export package
Lead Time :
1
Introduction

PT-50T 2510 PCM Equipment

PT-50T 2510 adopts 2.5U height standard 19" rack mountable chassis for exchange office. The powerful switching matrix provides 256 x256 non-blocking cross connections. System supports maximum 96 x E1, and 96 x 64Kbps channels with the expansion chassis. Various network cards, such as PDH, E1 and TDMoIP (Ethernet) uplink card are available for fitting different networks requirement.

System designs with reliability enhancement, such as redundancy controller, 1+1 uplink and dual power supply. It can configure for point to point or point to multipoint networking with different type of transport media; and it can execute D/I (drop/insert) function by cross connection matrix as well.

PT-50T 2510 is managed by the powerful NMS system for real time monitoring, local / remote diagnostic and alarm control. System software can be downloaded remotely through the management control center without engineer on site.

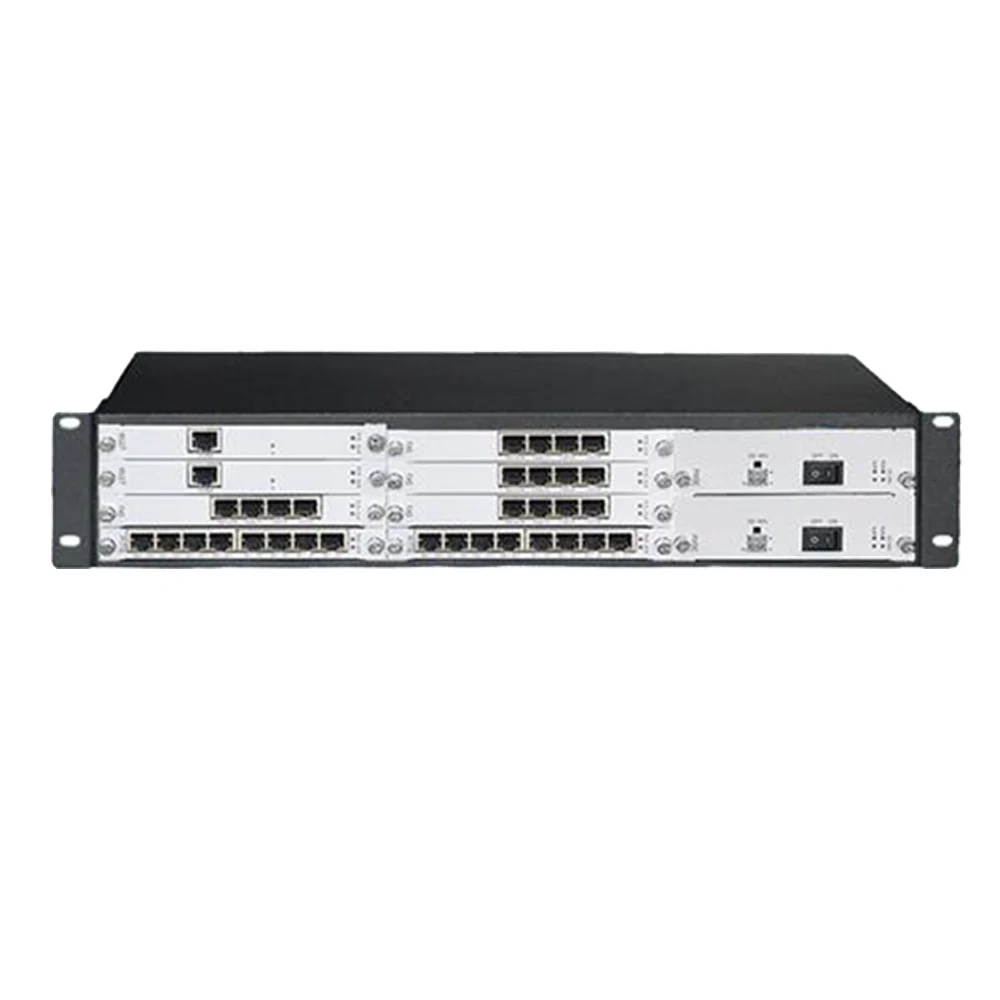

Detailed Image

PT-50T 2510

2.5U high  19inch shelf

It supports E1,Fiber,IP uplink.

Two Master control slots

Two Power slots

Six service slots


Main Features

 Enhanced redundant and hot swappable design for controller, network interface and power supply;
 Versatile concentration platform, support E1, PDH and TDMoIP networking;
 Reliable system design with redundant controller, 1+1 optical link protection and dual power supply;
 Powerful 256 x 256 non-blocking matrixes for 96 x E1 cross connection;
 Synchronous data module includes 64Kbps co-directional, N×64Kbps data interface;
 Asynchronous data module with RS232 and RS485 interface;
 Voice module includes FXO, FXS, Hotline, Magneto, Carrier-wave and 2/4-wire E&M interface;
 Data modules include RS232、RS485、V35、G703;
 Total 10 slots: 2 fixed slot for Master control card, 2 fixed slot for Power supply, 6 slots for service business;
 NMS port: RS232 or Ethernet interface;
 Upgrade firmware and software remotely;
 Power supply with AC220V or DC-48V, or AC220V + DC-48V.

Specifications
E1 Interface
 Optical interface
ETH interface (10/100M)
 Power Supply
Bit rate: 2048Kbps ± 50ppm
Bit rate: 150Mbps ± 50ppm
Interface rate: 10/100Mbps, auto
Input voltage: -48Vdc and/or 220Vac
Code type: HDB3 code, G.703 standard
Output optical power: ≥-15dBm
Standard: IEEE 802.3, IEEE 802.1Q (VLAN)
Voltage range: -36Vdc ~ -74Vdc, 165Vac~265Vac
Input impedance: 75Ω or 120Ω (optional)
Receiving sensitivity: ≤-35dBm
Connector: RJ45
Power consumption: <10W
Frame structure: G.704, G.706
Optical wavelength: 1310nm/1550nm
Operation Environment
Compression law: G.711
Optical interface connecter: SFP/LC
Working temperature: -10°C ~ 50°C
Level: ±2.37V ±10%
Working humidity: <=90 % (non condensed)
