WC67K-63T1600mm CNC Synchronized Press Brake Robotic Metal Bending Hydraulic Press Brake Forming

Feedback Ratings
  • 1 Sets
    $12,000.00
  • >=2 Sets
    $11,200.00
Model Number:
WC67K-63T1600
- +
available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
20 day(s) after payment received
Contact Supplier
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Place of Origin:
Anhui, China (Mainland)
Brand Name:
AOXUAN
Material / Metal Processed:
Carbon Steel
Automation:
Automatic
Extra Services:
End Forming
Certification:
ce
Certificates:
CE&ISO
Product name:
CNC Press Brake,press break machine,Hydraulic press brake
Color:
Customized
Type:
CNC Hydraulic
Usage:
Metal Sheet Bending
Application:
Stainless Plate Bending
Material:
Q235
Warranty:
2 Years
Model:
WC67K-63T1600
Voltage:
220V/380V/415V/440V/customized
Machine Type:
Press Brake
Raw Material:
PIPE
Power:
CNC
After-sales Service Provided:
Engineers available to service machinery overseas

Packaging & Delivery

Selling Units:
Single item
Single package size:
1700X1100X1700 cm
Single gross weight:
1500.0 kg
Package Type:
1. Outside package is standard export wooden case. 2. Inside package is stretch film with three layers winding in surface to avoid crash during the transportation. 3. As the clients requests. apply to :WC67K-63T1600mm CNC Synchronized Press Brake Robotic Metal Bending Hydraulic Press Brake Forming
Lead Time :
Quantity(Set) 1 - 1 >1
Est. Time(days) 20 To be negotiated
Product Description

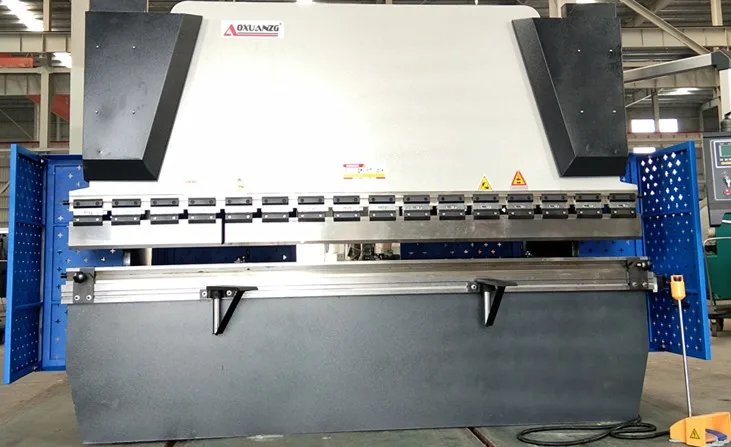

WC67K-63T1600mm CNC Synchronized Press Brake Robotic Metal Bending Hydraulic Press Brake Forming

Product Application

Main Features:
1--Special numeric-control system is fitted with mainframe of the bending machine.
2--Multi-work-stop programming function is able to achieve an automatic operation and continues positing of multi-step procedures, as well as an automatic precision adjustment for positions of rear stopper and gliding block.
3--The machine is provided with bend counting function, for a real-time display of processing quantity and power-failure memory of positions od stopper and gliding block, as well prccedures and paremeters.
4--Imported ball bearing lead screw and linear guide rail are used for rear stopper, to ensure the positioning precision of rear stopper, for processing precision of machine to be higher.
1. ESUNTUN E21 CNC SYSTEM
2. SIEMENS OR SCHNEIDER ELECTRONIC ELEMENTS
3. GERMANY REXORTH HYDRAULIC SYSTEM
4. USA SUNNY OIL PUMP
5. SIEMENS MOTOR
6. CHINA JIANHU CYLINDER HAS CHROMATE TREATMETN
7. PUNCH AND DIES: T8A
8. SECTION PUNCH AND DIES AVAIALABE IF THE CLIENT NEEDS SMALL SLIP PUNCH BENDING
9. BACK-GAUGE: ALLOY HIGH QUALITY STANDARD
10. PIPES : ANTI-RUST PHOSPHORIZATION PIPES WITH BOTH INSIDE AND OUTSIDE ANTI-RUST TREATED
11. PIPE CONNECTOR: HIGH QUALITY CONNCTOR FROM SHANGHAI COMPANY WITH HIGH QUALTY SEAL INSIDE TO PREVEND THE LEAKAGE OF THE HYDRAULC OIL.
12. REAR DOOR WITH OPEN-DOOR POWER-OFF FUNCTION FOR SECURITY
13. BOTH ENTRANCE AND EXIST OF THE HYDRAULIC OIL TANK, FILTER IS EQUIPPED.
14. MECHANICAL PUNCH RELEASE CLAMP

Detailed Images


Name: Fast clip

Quick change of mold

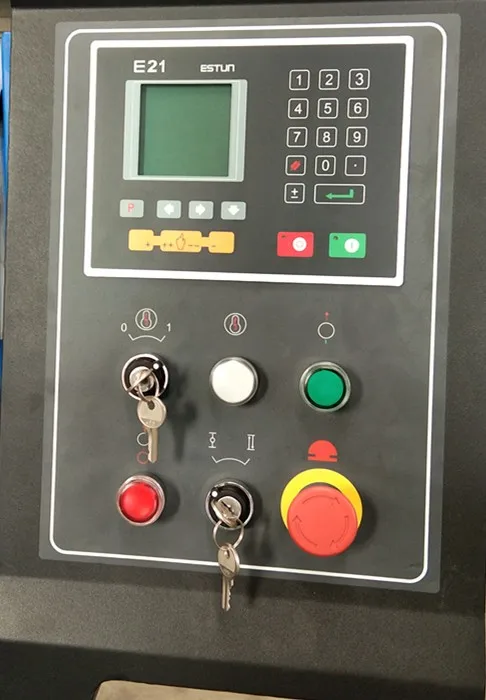

Name: ESTUN E21 system
Brand: ESTUN
Original: CHINA
1. ESTUN is jointed company by HOLLAND DELEM AND CHINA ESTUN
2. ESTUN E21can control X axis working into position accurately
3. ESTUN E21 will work better accompany with FREQUENCY TRANSFORMER. FREQUENCY TRANSFORMER is not the standard components ,optional.
4. Can programme the software for future usage and has memory
5. Can set up different steps in one programme.
6. Timer can control the bending time
7. Control X/Y two axis
8. The operation manual is available
9. The install manual is available


Name:Servo motor

Brand: Schneider
Original: France
Double servo motor can make the control speed, position accuracy is very accurate, can convert voltage signal into torque and rotational speed to drive control object.

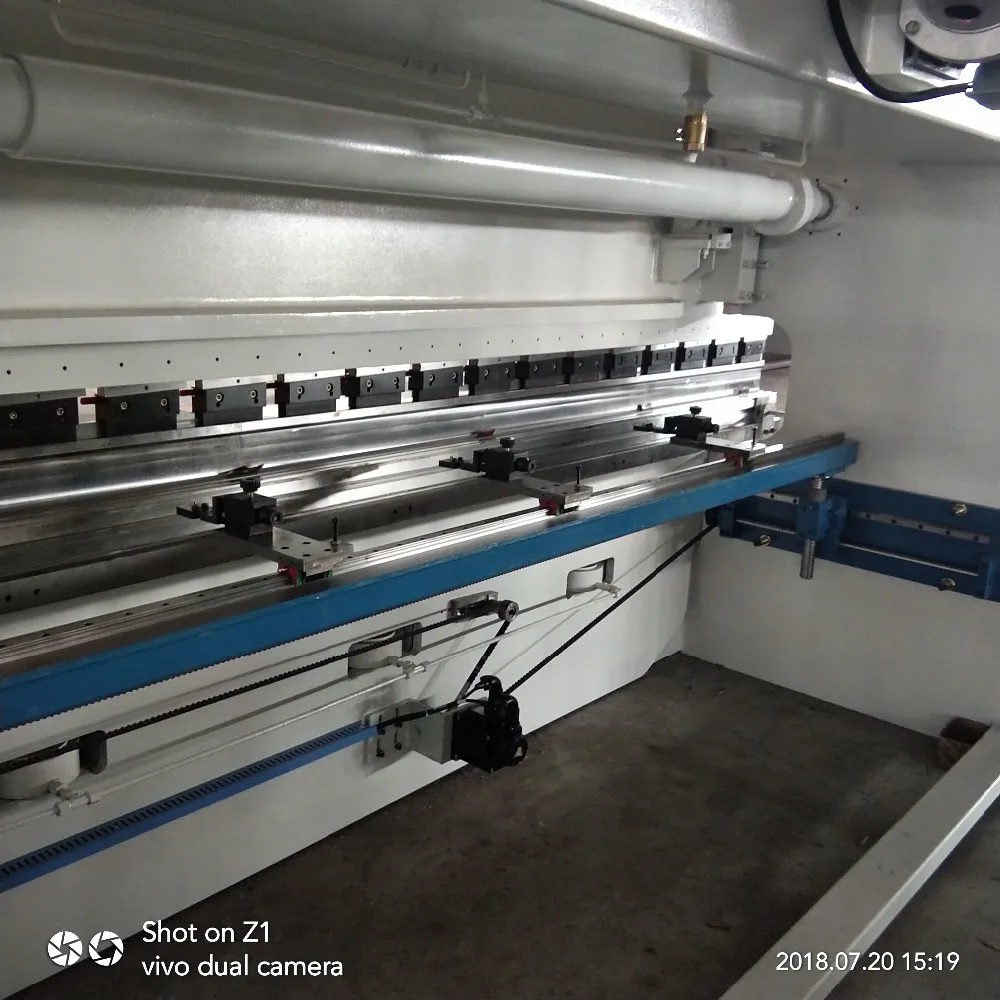

Name: ball screw and rod
Brand: HIWIN
Original: TAIWAN
Back gauge adopt imported ball screw,in order to guarantee the precision of positioning of back gauge and improve the precision of processing ,positioning±0.02mm,repeat positioning, long life with high stability,high speed


Name: hydraulic pump
Brand: SUNNY
Original: U.S.A
International famous hydraulic pump, low noise and high durability,high visibility and good stability with long service life.

Name: Hydraulic system
Brand: Bosch REXROTH
Original:Germany
International famous hydraulic system,good stability with long service life.


Name: Card casing
Brand: EMB
Original:Germany
Convenient post-maintenance with beautiful shape.


Name: Electrical parts
Brand: Schneider
Original:French
Safe and reliable,strong anti-jamming capability with high precision.

Light Curtain

Protect personal safety

Hydraulic Crowing

Achieve higher bending accurancy


Name: Main Motor
Brand: Siemens
Original:German
German famous brand motor improves the lifespan and the machine working in lownoise environment

Tooling and C-gap

Machine with one set standard toolings with upper punch segmented and multi-V die in one pc.
C-throat gap high strength.

Certifications
Our Company
Our Service
FAQ

Q:How about your machine quality?

A:Our machines distribute worldwide to about 50 countries where there are metal plate industry ,there are Brilliante machines.And where there are our machines,there are good reputation and terminal user satisfaction.
Q:The machine price can be more discount?
A: We think about our price level,we are sure to provide quality=price and price=quality ,the matched price and acceptable for the clients and durable for our machines.We welcome your negotiate with us and get a good satisfaction. and Increase the order quality or long-term cooperation in the future will get our discount.
Q: Where is your factory?
A:We located in Ma'anShan City, Our factory is particularly close to Nanjing, about an hour, if you are to visit the factory .We can pick you up at the airport.Welcome to visit our factory!
