Washable 865--965MHz RFID UHF Laundry Tag for textile linen garment clothing tracking

  • 1000-4999 Pieces
    $0.35
  • 5000-9999 Pieces
    $0.32
  • 10000-49999 Pieces
    $0.30
  • >=50000 Pieces
    $0.25
Model Number:
Textilechip 048
$
- +
available
Textilechip 043
$
- +
available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
3 day(s) after payment received
Customization:
Customized logo (Min. Order: 10000 Pieces)
Customized packaging (Min. Order: 10000 Pieces)

More

Graphic customization (Min. Order: 10000 Pieces) Less
Samples: $0.01 /Piece, 1 Piece (Min. Order): Buy Samples
Contact Supplier
Samples - $0.01 /Piece, 1 Piece (Min. Order): Buy Samples
Loading... Add To Cart
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Shanghai, China
Brand Name:
Zanrun
Product name:
UHF RFID Textile Laundry Tag
Material:
50/50 polycotton
Size (Length*Width*Thickness):
70*15*1.5mm, 75*11*1.5mm or customized dimensions
Weight:
0.4g to 0.5g
Frequency:
865MHz to 965MHz (or customizable)
Protocol:
ISO18000-6C/EPC Class1 Gen2
Reading Distance:
0-10m (depends on reader)
Working Temperature:
+210℃ (up to 60 seconds) for ironing
Pressure Dewatering:
up to 60 bar for 80 seconds
Application:
Textile, linens laundry management

Packaging & Delivery

Selling Units:
Single item
Single package size:
7X1.5X0.15 cm
Single gross weight:
0.001 kg
Package Type:
1.Packaging: 500 PCS per plastic bag, 10/15/20/25 bags per carton box. 2. OEM service available, please contact us for detailed information.
Picture Example:
package-img
package-img
Lead Time :
Quantity(Pieces) 1 - 10000 10001 - 50000 50001 - 100000 >100000
Est. Time(days) 3 5 10 To be negotiated
Video Description
Product Description

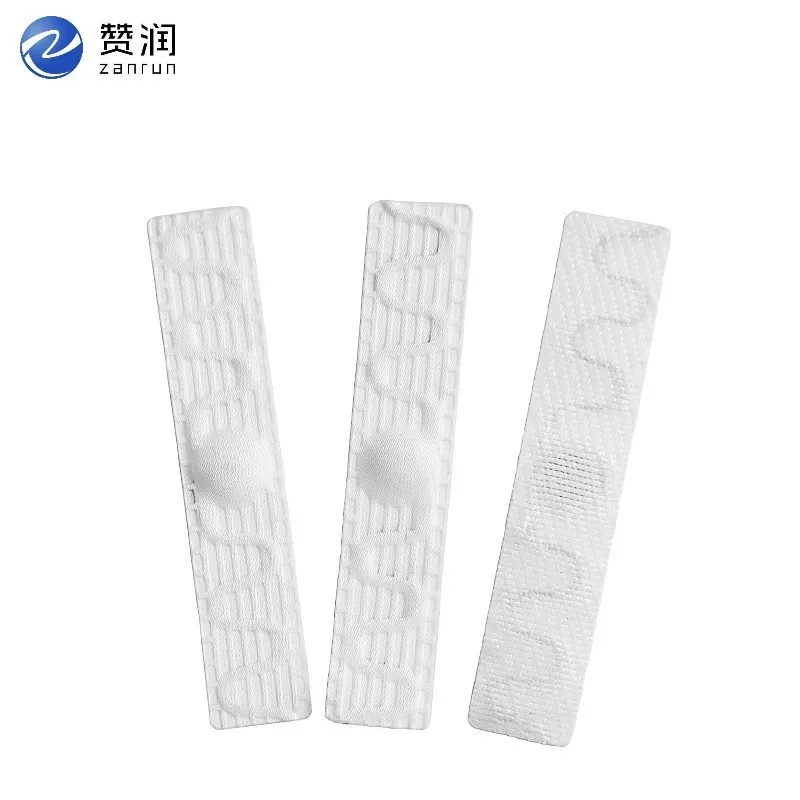

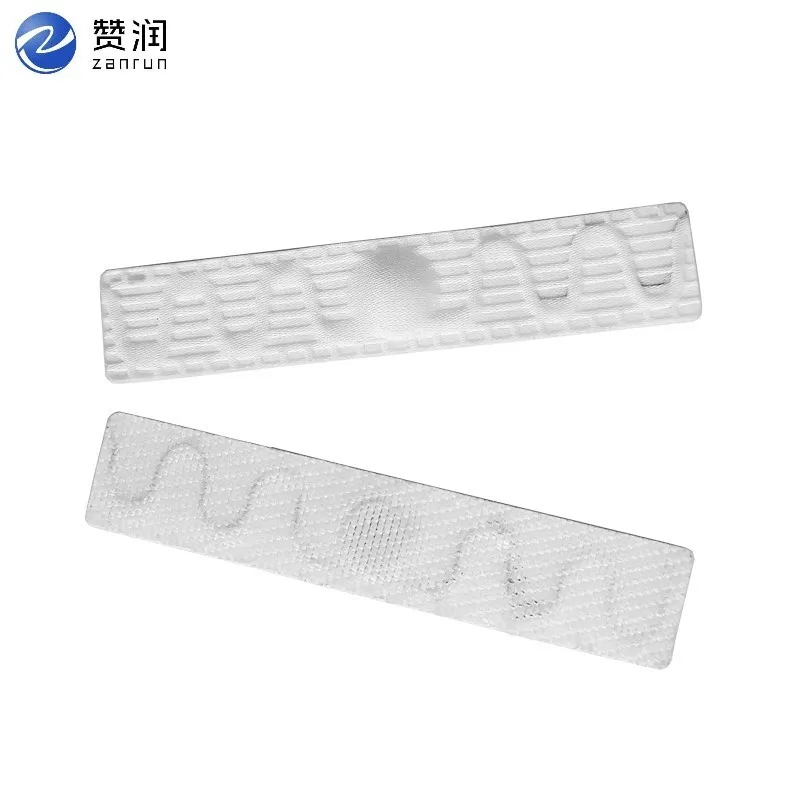

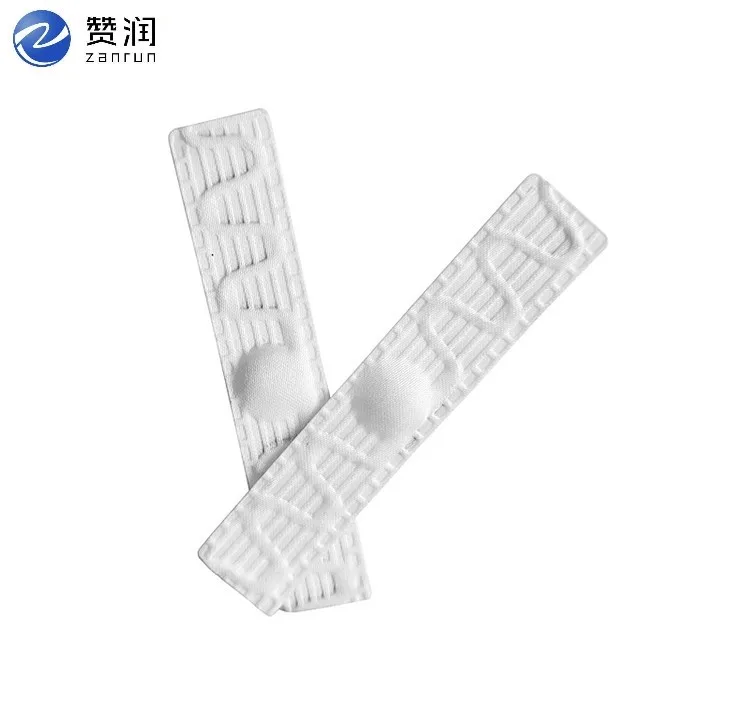

Washable 865--965MHz UHF RFID Textile Laundry Tag


Zanrun Textilechip UHF RFID Laundry Tag is a washable, small, flexible, high read performance and durable RFID tag product series, which is specially designed for the tracking and management of textiles, linens, garments and clothes in large-volume and high-duty industrial laundry environments. It can be easily installed to your textiles in 3 ways: sewn inside, pouchable, and heat-sealable.


Textilechip series features its excellent bulk read performance and outstanding durability: at least 200 washing cycles for up to 60 bar pressure dewatering process, and suitable for autoclave sterilization in industrial laundries.


Products Name
RFID UHF Textile RFID Laundry Tag
Material
50/50 polycotton

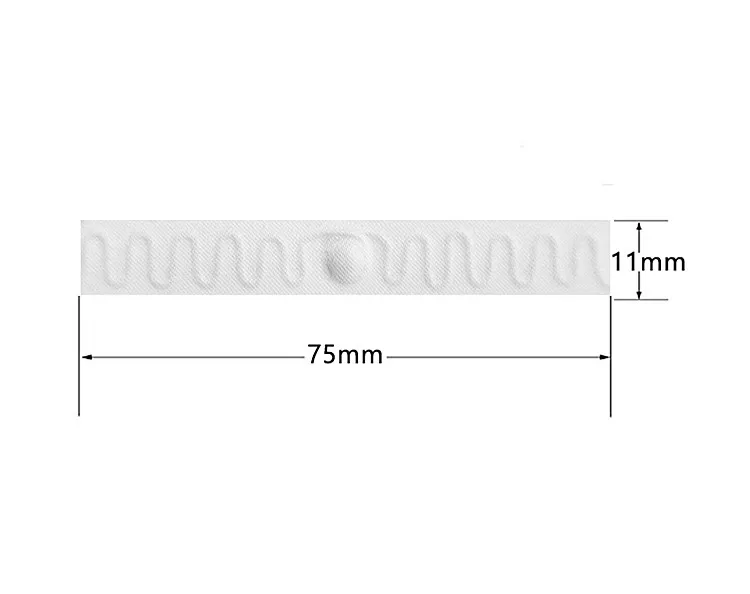

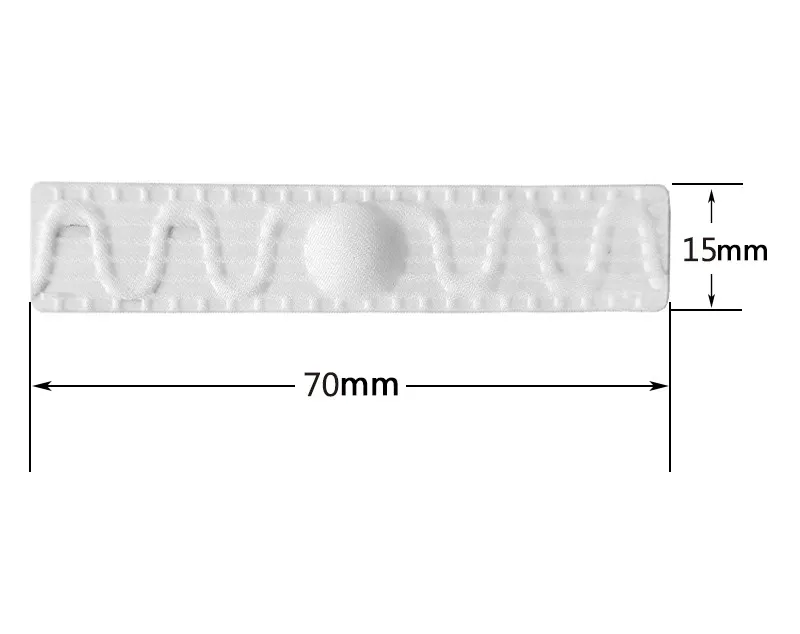

Size (length*width*thickness)
70*15*1.5 mm or 75*11*1.5 mm or other customized dimensions
Tag Weight (approx.)
0.4g to 0.5g
Reading distance
Up to 6 meters(19 feets) or longer for normal fixed reader
2 meters or longer for normal handheld reader
Frequency
865 - 965 MHz (or customizable)
Protocol
ISO/IEC 18000-6C , EPC Class 1 Gen 2
EPC Memory Capacity
128 bits
Tag Warranty
at least 200 washing cycles for pressure dewatering
500 washing cycles for tumbler spin-dewatering
Operating Power
Passive, operates through antenna's RF field
Storage Temperature
-40℃ to +120℃
Typical Washing Cycle
Washing:                        +100℃, 200 minutes
Drying:                            +180℃, 15 minutes
Ironing:                           +210℃, 60 seconds
Water Extractor:            60 bar for 80 seconds
Autoclave
Air Removal:                  +100℃, 5 minutes, 0.1 bar
Sterilizing:                      +140℃, 10 minutes, 3.25 bar
Drying:                            +45℃, 15 minutes, 0.2 bar
Chemical Resistance
All chemicals common to washing processes
Sample availability
Free samples available upon request.

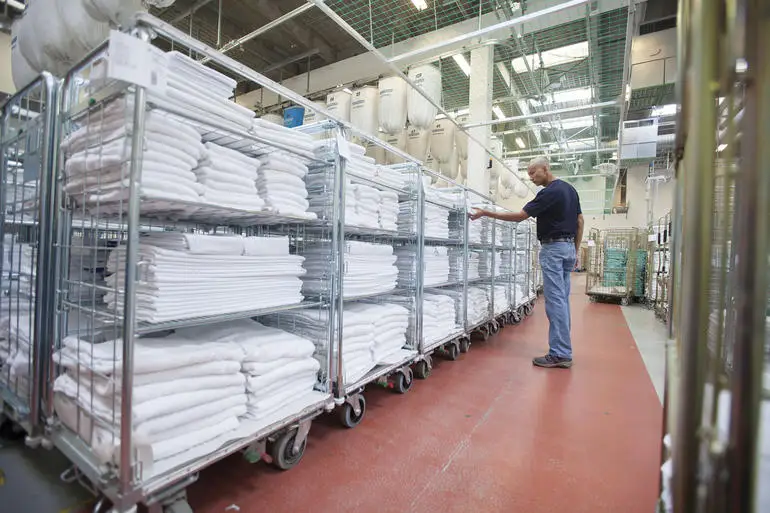

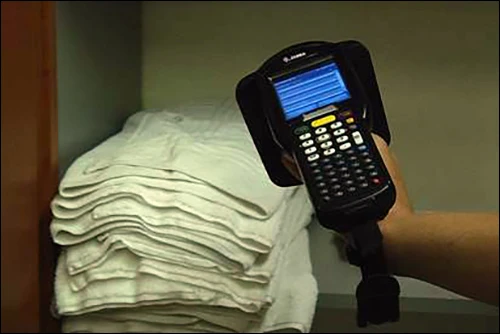

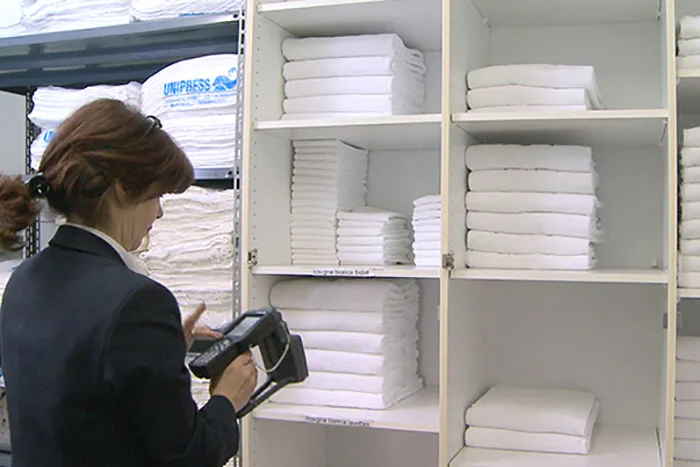

Product Applications


1. Workwear and uniforms laundry management


2. Hospital and healthcare linens laundry management


3. Hotel and rental flat linens laundry management


4. Daily-cleaning textiles (mops, mats, etc.) laundry management


5. Personal garments and clothes of laundry service

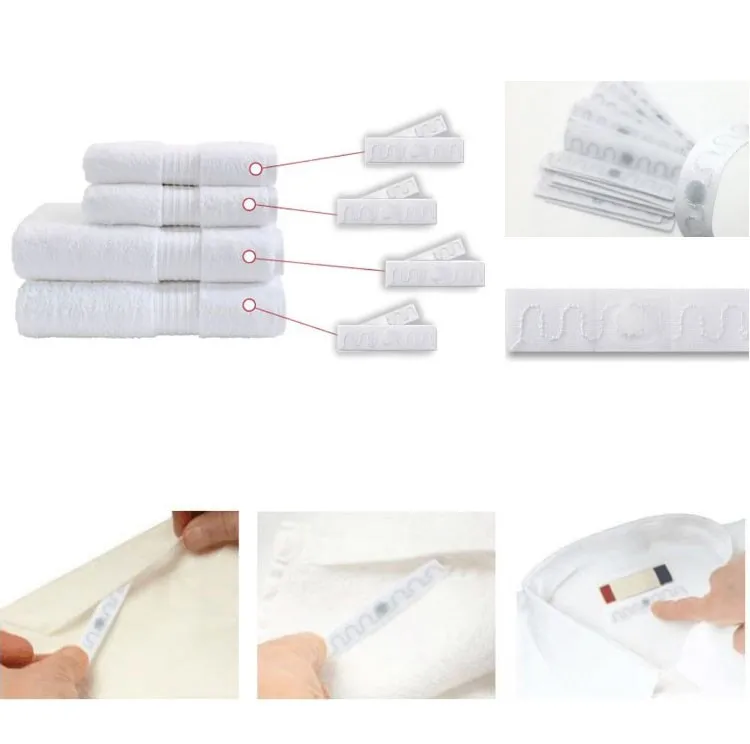

How to install it?

1. You can put the tag into a pouch, and sew the pouch below the seam of your textile.

2.  The tag can be sewn into the edge hem area of your textile by yourself, or by the textile manufacturer.

3. The tag can be heat-sealed or patched onto your textile by patching equipment.

Please contact with us for more details about our tag installation instruction.
Related Products
Packing & Delivery

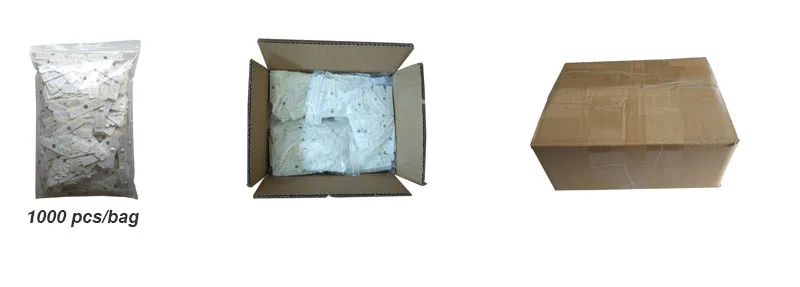

Packaging Information

250pcs or 500pcs per carton box, customized package avaliable (logo printable on package)

Lead Time & Delivery


1. 2-3 working days for sample order, 7-10 working days for mass production order.
2. OEM service available.

Our Company

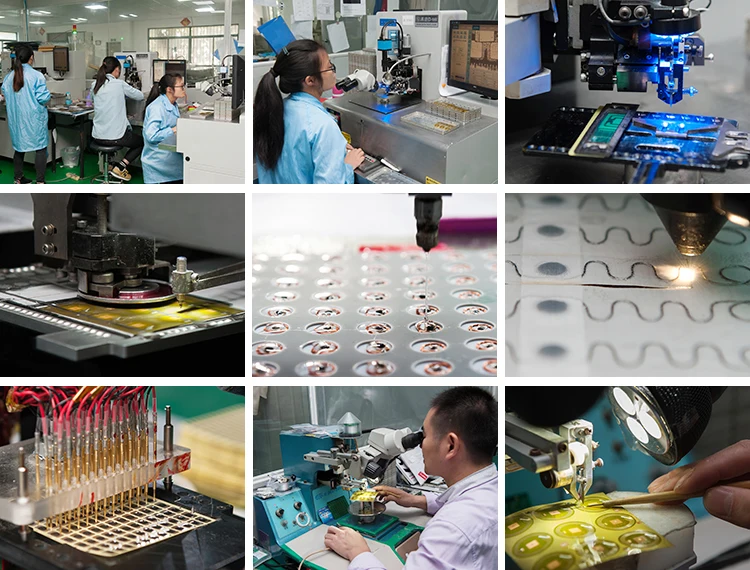

Our Production Lines


Our Certification and Awards


Our Exhibitions

Our Service
FAQ

1. Q: Are you manufactory or trade company?


A: We are a integration of both manufacturing and trade company, which has been specializing in R&D design, manufacturing, sales and customer sevice of RFID solutions for more than 14 years.

2. Q: Can I get technical support from you?

A: 100 percent sure, our technical and customer service teams are fully equiped with product expertise and are ready to support your demands.

3. Q: Can I choose from all the chip types?

A: Yes, we provide a full range of chip types, recommend according to your requests about working frequency (LF/HF/UHF), data capacity, and protocol, etc.

4. Q: Can you customize shape, color, material for me, etc?

A: Sure, we can provide customizable products according to your requests about shapes, sizes, colors, materials, packaging types, etc. Just ask!

5. Q: Will the encoding/programming be done by ourselves or by your company?

A: We can provide blank tag for your own encoding/pre-programming, or we can do it for you if you asked.
