Waterproof 5A 12V/24V automatic identification mppt solar charge controller

Feedback Ratings
  • 1-9 Pieces
    US $9.50
  • 10-49 Pieces
    US $9.20
  • >=50 Pieces
    US $8.80
Quantity:
- + Pieces available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
5 day(s) after payment received
Contact Supplier
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Shanghai, China (Mainland)
Brand Name:
mppt solar charge controller
Model Number:
mppt solar charge controller
Application:
Charger Controller, Solar Thermal
Rated Voltage:
12V 24V
Maximum Current:
5A
Product:
waterproof contoller
Usage:
solar system controller
Test:
Integrated self test
Indicator:
LED
Weight:
200g
Certification:
CE & ISO & RoHS
Pipe Material:
PVC
Type:
Non-Pressure
OEM:
Available

Packaging & Delivery

Selling Units:
Single item
Single package size:
12X11X8 cm
Single gross weight:
0.9 kg
Package Type:
Standard export package for solar charge controller
Lead Time :
Quantity(Piece) 1 - 50 >50
Est. Time(day) 5 To be negotiated

Waterproof 5A 12V/24V automatic identification mppt solar charge controller

Product Description

This product is the new generation of intelligent solar recharge controller. The industrial product design reliability, with super stability and high life-span.

  •  The department example product automatic identification system voltage 24V and 12V
  •  The controller is used to protect battery, avoid solar battery overcharge wants and load output
  •  Adopted MCU control, five charging and discharging LED indicator, capacity state
  •  With strong charger, balanced filling and floating filling 3-sectional series PWM temperature compensation function
  •  Automatic detection and tracking outside and battery temperature, the built-in temperature compensation function
  •  Have overall electronic protection, it has the overcharge put, overload, short-circuit, answer the reverse, etc
  •  Has the TVS lightning protection, no jump line design, can enhance the system reliability and durability
  •  Parameter setting with power lost save functions, namely system model and control parameters and other important data are stored in chip inside, fell after power not to lose, and makes the system more reliable
  •  All control all adopt industrial-class chips and precision components, can in cold, high temperature, humid environment normal operation

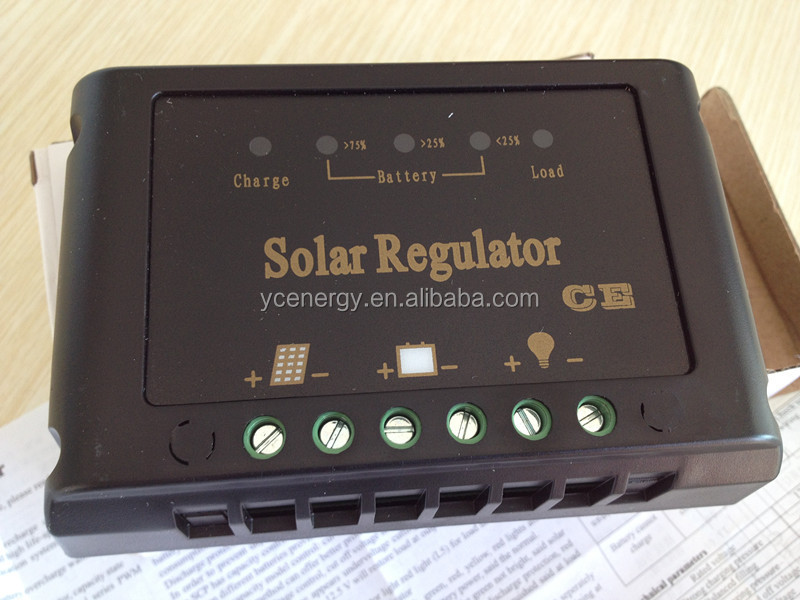

controller 2

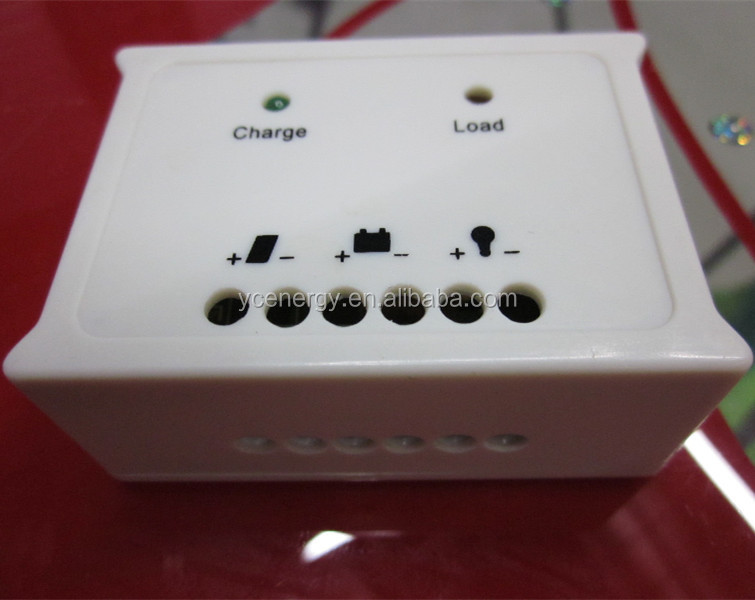

solar controller 1.jpg

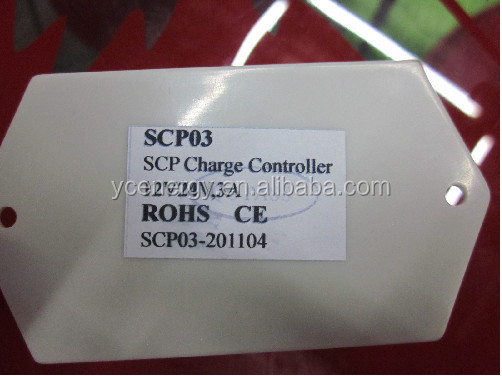

Solar controller 2.jpg



Rated Voltage12V/24V automatic identification
Rated charge current1A2A3A5A10A15A20A
Rated load current1A2A3A5A10A15A20A
Max. wire diameter2.5mm²4mm²
No load losses<2mA4mA
Direct charge voltage14.8V/29.6V14.8V/29.6V
Bakanced filling14.5V/29V14.5V/29V
Float charge voltage13.7V/27.4V13.7V/27.4V
Over discharge voltage11V/22V±0.211V/22V±0.2
Charge recover voltage12.5V/25V±0.212.5V/25V±0.2
Over voltage protection15.5V/31.5V15.5V/31.5V
Weight50g200g
Size82*45*26118*78*32
Temperature compensation-3mV/℃/2V
Working temperaturefrom -40 ℃ to 60 ℃
Protection gradeIP56

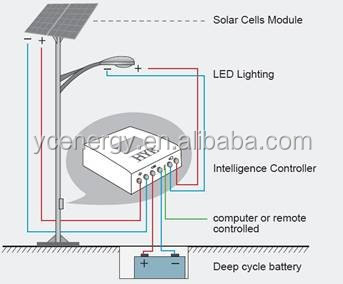

solar street light.jpg

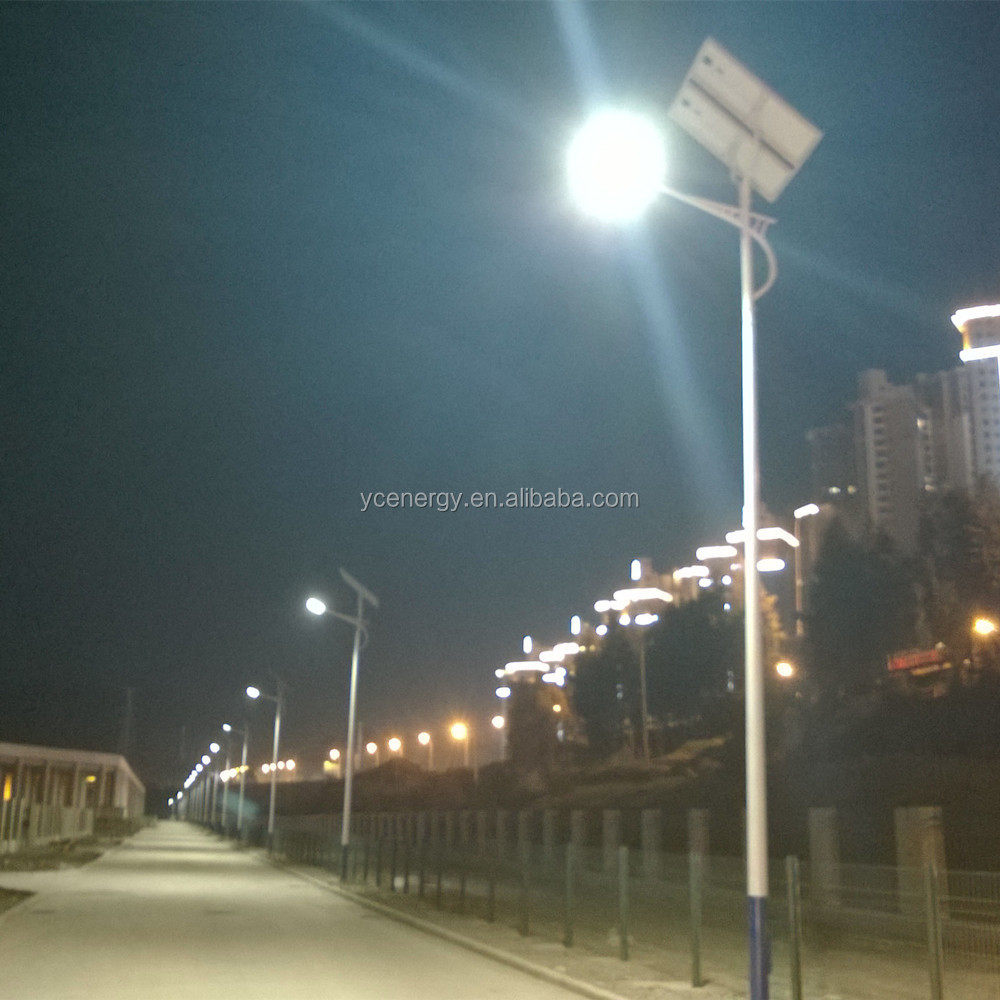

solar street light 37

What we supply?

Customize solar water pump system

Customize solar street light system

Customize home solar system

Customize grid tie solar system

application

Any question about mppt solar charge controller or other products, please feel free to contact Sunny
