Waterproof Flexible led light strip SMD2835 China wholesale

Feedback Ratings
  • 20-49 Rolls
    US $108.00
  • 50-99 Rolls
    US $105.00
  • 100-199 Rolls
    US $100.00
  • >=200 Rolls
    US $90.00
Support Dimmer:
Yes
Color:
Warm White
Wattage:
4.5W
Emitting Color:
Warm White
Model Number:
SP2835H60WW
- +
available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
15 day(s) after payment received
Customization:
Customized logo (Min. Order:: 100 Rolls)
Customized packaging (Min. Order:: 100 Rolls)

More

Graphic customization (Min. Order:: 200 Rolls) Less
Contact Supplier
Report Suspicious Activity
Overview
Quick Details
Light Source:
LED
Item Type:
Light Strips
LED Light Source:
SMD2835
Type:
Flex LED Strips
Input Voltage(V):
AC100-130V;AC220-240V
Lamp Power:
6w/m
Lamp Luminous Flux(lm):
300LM/m
CRI (Ra>):
80
Color Temperature(CCT):
W/NW/WW
Working Temperature(℃):
-20 - 50
Working Lifetime(Hour):
50000
Lamp Body Material:
Copper
Certification:
CCC, CE, CQC, EMC, FCC, LVD, PSE, RoHS, REACH, SASO, VDE
Emitting Color:
White
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
SBARTA or OEM Brand
LED strip light:
220V strip lights 2835 3000k
LED Chip:
Samsung/ Epistar / San'an
FPC width:
6mm width copper PCB board
LED Type:
SMD2835
Cutting length:
0.5meter,1meter
Warranty:
2 years
IP Rating:
IP65
LED quantity:
60led/m
Dimension:
W10.5*H7.5mm
wholesale christmas light:
2835 smd led strip light

Packaging & Delivery

Selling Units:
Single item
Single package size:
33X33X15.5 cm
Single gross weight:
9.5 kg
Package Type:
Pakcage for Waterproof Flexible led light strip SMD2835 China wholesale: 100meters per roll, each roll per carton
Lead Time :
Quantity(Roll) 1 - 20 21 - 100 101 - 500 >500
Est. Time(day) 15 20 25 To be negotiated

Waterproof Flexible led light strip SMD2835 China wholesale

1. two to five years warranty



2.Accept OEM service, can print your own logo both on the cables and packages boxes or blister packages



3.A professional manufacturer of high voltage led strip lights



Product Description

>> Specifications:



Item  SP2835H60.220V
LED Type 2835 SMD LED (22~24LM/LED)
Rated lifetime of LED (h)  50,000
LED Quantity (units/m)  60
Input Voltage (V)  220-240 AC
Frequency (Hz)  50
Driver Mode  Constant voltage
Certification  CE,RoHS
Color Temperature (K)  3000,4000,6500
Dimmable  Dimming by dimmer
Max.Wattage (W/m)   6
Power Consumption (W/m)  4.5
Beam Angle  120
Min. Cutting Unit (LEDs)  60
Min. Cutting Length(mm)  1,000
Min. Bending Dia (mm)  80
Protection Rating   IP65
Ambient Temp.  -20℃ to +40℃ ( 25℃-best fit )
Sectional Dimension (mm)  Width14.5 x Thickness7.5
Length per Roll  100m/328ft
Package Quantity  Pack of 1 roll + 1pc power cord + 200pcs clips
Package G.W.(kg)  9.5
CBM  0.017
Warranty (years)  2





>> Description:

  • Super bright. 60 units 2835 SMD LEDs per meter, the brightness of 2835 LEDs is 3 times as 3528 version.
  • Waterproof. IP65 rating. Can be used in outdoor.
  • Easy Installation. Power plug included.Plug and play without wiring.
  • Components Saving. Can be directly connected into main supply, no power adapter, transformer or driver is required.
  • Flexible. Slim, compact and flexible PCB strip. Applicable for bendable or angled patterns, or in continuous rows.
  • Cuttable and linkable. It can be cut to length along the cutting marks, without damaging the rest strips.
  • High Voltage. Low voltage drop. More little light attenuation, well-distribute lighting in the whole 50 m strips.
  • Reduce re-lamp frequence. Long lifespan. Save effort and labour costs on changing lights frequently.
  • Widely applicable. Not only be cut in sections, but also can maximum run 50 meters with only one power plug.
  • Eco-Friendly. No lead or mercury Application: It is convenient and cost-saving for large outdoor projects.
  • Application. Perfect mood lighting solution in house, office, club, shop, pub,restaurant,hotel,etc.



Details

>> Details Show



X2

Cutting Mark



• 1000mm/section

• cut and connect conveniently

• same spacing



    Point of weld



   • pulling force >20N

   • add tin wire reinforce the tension

   • smooth and uniform

X1

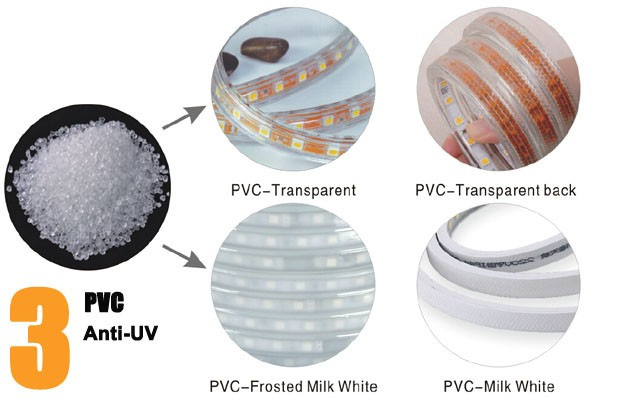

  Anti-UV PVC



 • light transmittance >90%

 • flame retardant rating V2

 • RoHS 2.0, UL94V2

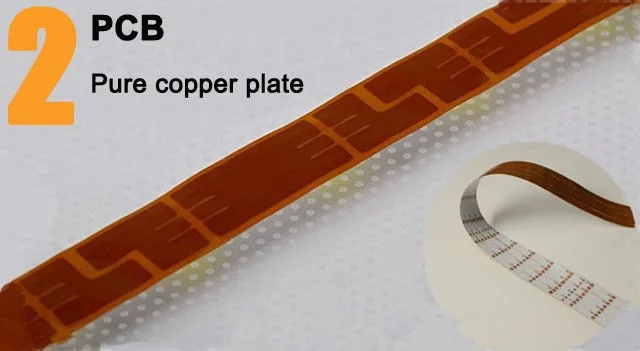

Pure Copper Plate,better conductivity,better ductility,10 mm width double coating FPC board
silicone waterproof flexible led strip
Anti-UV PVC with high light transmittence,avoid getting yellow,not brittling
silicone waterproof flexible led strip

>> Details Show


Following these step to fix the strips.

silicone waterproof flexible led strip

If you need cut the strip,please do like these and make sure the section smooth.silicone waterproof flexible led strip

If you have any doubt, please contact our online service,we will help you soon.



Company Information

>> Company Profile:



            SHENZHEN SPARTA OPTOELECTRONICS CO.,LTD, established in 2011, focus on the development and manufacturering of flexible led strip lights. We have our own independent laboratory with advanced testing equipments and experienced R&D engineers.  As the OEM supplier for Panasonic, Philips and Opple, we  have our unique resources, advanced equipments, skillful processing techniques and strict quality control,which would guarantee us to be a stable and reliable supplier for flexible led strip lights. All our products with the certificates of CQC,CB,TUV-mark,CE,RoHS,ERP,FCC,ETL,UL,PSE,SAA and ISO9001:2015.

_03



>> Certifications:

  • ISO9001:2015  NO.NOA157158
  • CE-EMC   No.POCE17070514TCE
  • CB            No.SE-85590
  • ETL          Control Number 5004987
  • PSE          No.17042155001
  • ERP          No.LCS130802053TS
  • RoHS        No.LCS1111243152R
  • S-Mark      No.1700833
  • IPX5          Ref No.WSCT-EA1601057A
  • CE             NO.50362900
  • CB             No.16079267001
  • FCC           No.50062377001
  • ERP           No.50066086001
  • EMC          No.50062375001
  • TUV-Mark  No.50365900
  • RoHS         No.0164071049b
  • PAHS         No,0164071049c

_04

>> Production Flow:

  • 3 times 100% inspectiion
  • 2 times  Sampling inspection

 Sparta-led-strip-light

Payment & Delivery

>> Payment:

For your financial security, please contact our customer service personnel before payment to confirm payment method and account number.





>>Delivery:

  • Goods will be shipped within 5-15 working days after receiving payment.
  • It will takes approximately 5-10 working days by Express,DHL/TNT/UPS/Fedex/EMS etc.
  • Please check your delivery address is right.
  • Tranking number and finished goods pictures will be emailed.
  • Please feel free to contact us,we will try our very best to resolve any problems with you

_05

FAQ

Q:Are you a manufacturer?

A:Yes,we have more than 100 staff in the first production and QC line.W have 9 SMD meachines, 2 reflow soldering, 6 extruding machines, 2 plastic injection mechines, own professional laboratory, and other machine lines.



Q:How do you control quality?

A:Sparta focus on Led strip light only.We control quality by a strict flowing systerm,ISO9001:2015 standard,from material such as LED chip,FPCB,and PVC to ever-improving structure and well-trained QC staff.



Q:Can you send us sample?

A:We can send 0.5 to 1 meter of one single color for free.The freight cost need to be collected.



Q:Do you have MOQ?

A: MOQ 1000meters each model.For color jacket and other non-standard products,MOQ depends on your requirment.



Q:What is the delivery time?

A: 9-35 days for less than 50,000meters.The factory practical production schedule shall prevail.



Q:What about your standard packing and shipment?

A: 110V/220V led strip light:Plastic reel with strong carton box.12V/24V tape light:Plastic reel in ESD bag with strong carton.

Customized packing is available.

Ship by air,sea,expree such as Fedex, DHL, TNT, UPS are suggested.



Q:What's your payment term?

T/T, Paypal, L/C at sight are acceptable.



Q:What is your conventional color temperature?

A:Warm white: 3000±200K

     Natural white:4000±200K
     Pure white: 5000K±300K
     Cool white:6500K±500K

Other color can be customized at MOQ 5000meters.


Q: What is your conventional color rendering index (CRI,Ra)?
A: CRI 80.

CRI 90,CRI 95 can be customized at MOQ 5000meters.



Q:What is the input voltage range of your led strip?
A: AC100-130V for 110V led strip

    AC220-240V for 220V led strip

Other color can be customized at MOQ 5000meters.



Q:Can we have Multiple Listee of your cETLus certification ?

A:Yes. After that,you can show your company information on the product and package,without any information of SPARTA.



Q: Can you offer OEM or ODM service?
A: Yes, we offer OEM and ODM service for some international famous brand since 2014.



More FAQs about product function and application, please email or call us right now !
