Weix cheaper Tungsten carbide CNC machinary sharpening straight hand HRC45 2flutes ball nose end millings for metal cutter

$1.68 - $63.42 / Piece | 10 Pieces (Min. Order)
Diameter:
3mm 4mm 5mm 6mm 8mm 10mm 12mm 14mm 16mm 18mm 20mm
Overall Length:
50mm
$1.68
- +
available
60mm
$
- +
available
75mm
$
- +
available
All 6 Options
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
7 day(s) after payment received
Customization:
Customized logo (Min. Order: 1000 Pieces)
Customized packaging (Min. Order: 1000 Pieces)

More

Graphic customization (Min. Order: 1000 Pieces) Less
Contact Supplier
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Jiangsu, China
Brand Name:
WEIX, OEM
Model Number:
HD2B
Material:
Carbide, Tungsten carbide
Type:
End Mill
Coating:
AlTiN
Precision:
0.005-0.01mm
Diameter:
0.5-20mm
Machine Type:
Milling Maching
Overall length:
50~150mm
Suitable:
Mold&Die
Controlling Model:
CNC Tooling System
Application:
CNC Process
Flute:
2-6 Flutes
Product Name:
ball nose end milling

Packaging & Delivery

Selling Units:
Single item
Single package size:
15X15X5 cm
Single gross weight:
0.300 kg
Package Type:
individual plastic tube per pc, small white box per 10 pcs,
Picture Example:
package-img
Lead Time :
Quantity(Pieces) 1 - 100 >100
Est. Time(days) 7 To be negotiated
Product Description

WEIX manufactured HRC 45HRC 45 2flutes ball nose end mill ball milling


Suitable for:
Suggest cutting HRC45 degrees within the steel material.

Suitable processing material: carbon steel, alloy steel, tool steel, hardened and tempered steel and steel parts hrc40-below


Note:

Mix &Match model no. in one batch is acceptable.
For distributor,we can label your brands on cutters and plastic box.
Mix &Match coating of tools in one batch is acceptable.
AlTiN,TiAlN,TiSiN,TiN,DLC (Diamond like coating),Nano, Diamond for you to choose

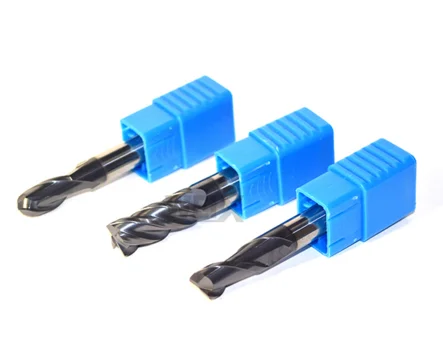

Package include:1PC/ 2 flutes Solid Carbide Ball nose End Mill with plastic tube


Detailed Images
Packing & Delivery
Application
Super raw materail
Details
HRC 45
HRC 55
HRC 60
HRC 65
Grade
YG10X
YG10.2 &
WF25(Taiwan)
K44 &
K40(German)
H10F
(Sweden)
Grain Size
(µm)
0.7
0.6
0.5
0.5
Co content%
10
10
12
10
Flexural Strength
N/mm2

3200

4000

4300

4300
Coating
Details
TiN
TiAlN
AlTiN
CrN
TISIN
Nano Blue
DLC
Color
Golden yellow
Purple
Black
Silver lustre
antique brass
Dazzle blue
Dazzle black
HV
2300
3200
3400
2000
3600
42(GPA)
1000~4000
Thickness/µm
0.4
0.5
0.5
0.5
0.4
0.4
0.5-2.0
Friction
coefficient
0.4
0.35
0.4
0.5
0.45
0.4
0.05
MAX Temperature
500
800
900
700
1000
1200
400
Description
cost-effective
General
High speed

Hige HRC
Processing copper, titanium, mold
Processing copper, titanium, mold
General High Speed Cutting
non-ferrous metals

graphite and plastics
