WiFi and Bluetooth Gateway Compatible with AWS, Azure Google Cloud

  • 1-999 Units
    $60.00
  • >=1000 Units
    $49.00
Quantity:
- + Units available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
3 day(s) after payment received
Customization:
Customized logo (Min. Order: 100 Units)
Contact Supplier
Report Suspicious Activity
Overview
Quick Details
Model Number:
G1 WiFi and Bluetooth Gateway
Brand Name:
Minew
Place of Origin:
Guangdong, China
Scanning & concurrently process:
200 BLE devices per second
Range:
up to 300 meters in open space
Storage temperature:
-40℃ to 85℃
Size:
150x150x36mm
Net Weight:
180g (without battery)
Accessory:
1x USB cable, mental fixing and screws
Power supply (Vcc):
Max. 5.5 Volts, DC
Voltage ripple:
+/- 2%
Operating temperature:
-25℃ to 65℃
Humidity:
Max 95%, Non condensing, relative humidity

Packaging & Delivery

Selling Units:
Single item
Single package size:
17X24X5 cm
Single gross weight:
0.5 kg
Package Type:
WiFi and Bluetooth Gateway: Standard Package
Lead Time :
Quantity(Unit) 1 - 10 >10
Est. Time(days) 3 To be negotiated
Product Description

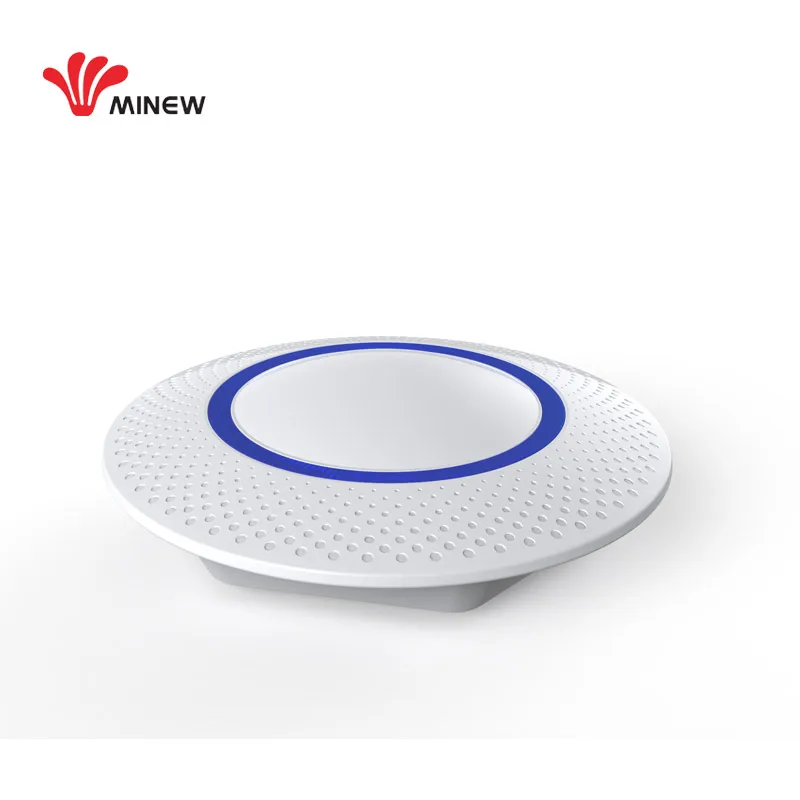

WiFi and Bluetooth Gateway G1

- The G1 is a Bluetooth 5.0 low energy (BLE) to Wi-Fi connectivity gateway without the uses of smartphones or apps.

- The G1 gateway collects the data from iBeacon, Eddystone, BLE sensor and other BLE devices, and

then sends to the local server or remote cloud server by HTTPs / MQTT/mbed (ARM) protocol with SSL and TLS certification over Wi-Fi / Ethernet / Cellular.

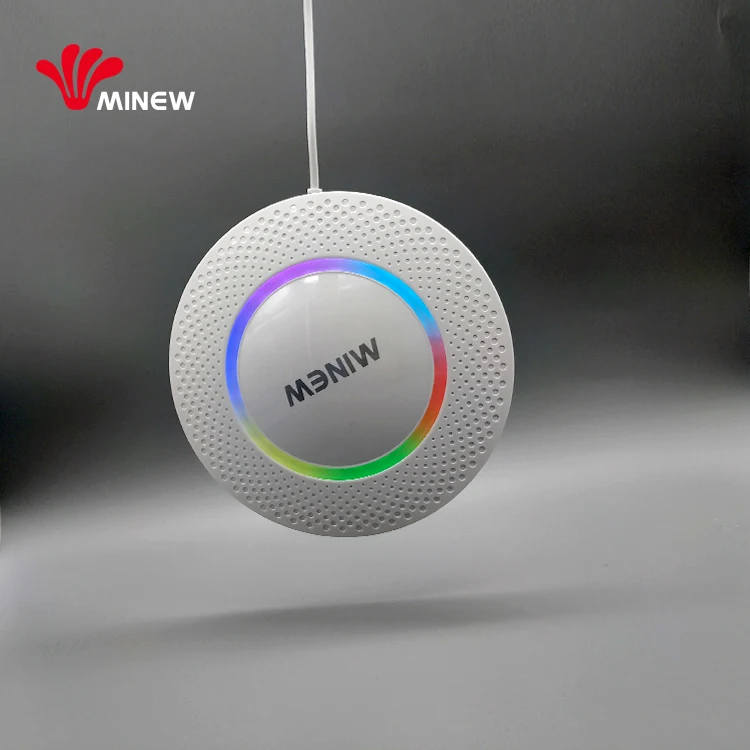

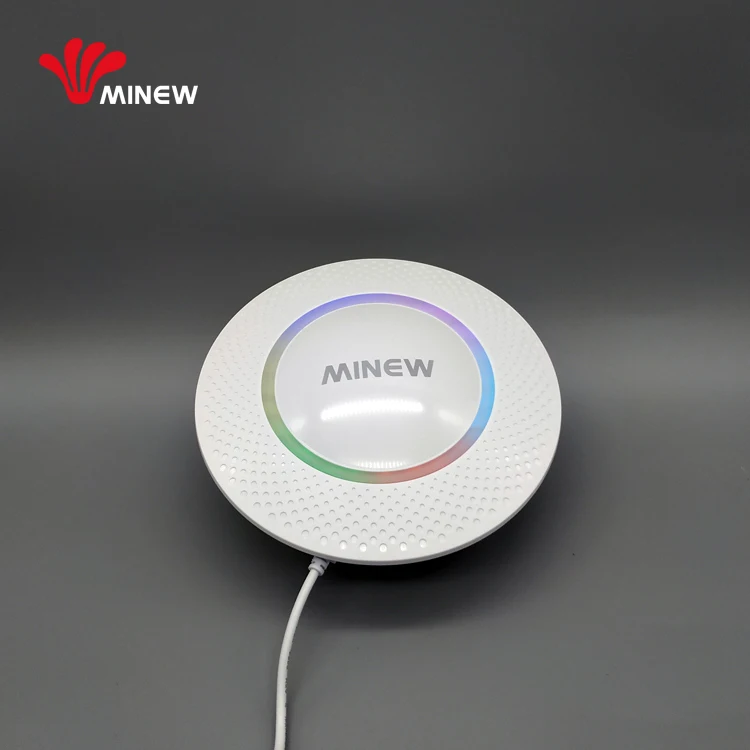

WiFi and Bluetooth Gateway G1

The subsequent version G1 Gateway will also implement the connection with BLE devices.

This product is a science fiction with a color lamp ring on the top. It can be fixed by sticker or screw thread.

Features

General:

● Input: DC 5.0V, 1A, micro-USB
● Supports 802.3af PoE standard
● Supports firmware upgrade Over-the-Air
● Operating temperature: -25℃ to 65℃
● Reads multiple BLE devices in the same time
● Supports TCP/HTTP/MQTT/mbed(ARM)
● Built-in RTC and NTP support
● RGB LED string as the status indicator
● Based on OpenWrt 15.05

Wi-Fi:

● Up to 150 Mbps PHY data rate
● With 3dBi flexible FPC antenna
● 100 meters range in open space
● 1T1R 2.4GHz frequency band
● IEEE 802.11b/g/n
● Web based UI for configuration
● Connects to the local server or remote cloud

BLE:

● Bluetooth 5.0 hardware nRF52832
● With a power amplifier
● With 3dBi flexible FPC antenna
● 300 meters range in open space
● Rx sensitivity -108dBm
● Bi-directional (reads data / sends command)

Other:

● 10/100M Ethernet with PoE
● Optional Cellular (coming soon, Q4/2017)
● 3G WCDMA
● 4G LTE

Typical Application

● iBeacon / Eddystone / other BLE tag receiver
● BLE sensor reader / receiver
● Asset tracking
● Access control management
● Advertisement promotion
● Indoor location and position
● Industrial automation

Related Products

S1: Bluetooth temperature & humidity sensor E2: 300 to 500 meters MaxBeacon
E6: Bluetooth ambient light sensor i3: Waterproof iBeacon & Eddystone
i7 : Bluetooth accelerometer sensor

C7: Credit card beacon with RFID/NFC

G1: WiFi and Bluetooth Gateway

Certifications of WiFi and Bluetooth Gateway

Detailed Images
Packing & Delivery

Packing of G1 BLE WiFi Wireless Gateway Beacon for IoT
Standard Package

Delivery
According to our customers requirements, we are willing to handle shipment for our customers, and the shipment fee is needed in this case.

Fast Express like DHL,UPS, TNT, FedEx are all available here.
Or if our customers have their own Express account, freight forwarder in China, we are happy to contact their Express people or freight forwarder to pick up products from our factory..

Our Company

Founded in 2007, Minew has been engaged in IoT (Internet of Things) field for years and is keeping updated to the market demand all along.


We are an ISO9001:2008 certified manufacturer focusing on RF / Wireless products such as 2.4GHz BLE 4.0 related products.


We focus on designing and manufacturing many different high quality and low cost iBeacons hardware , offering one-stop services include:
1. Schematic design;
2. Mold design;
3. PCB layout;
4. Firmware design;
5. Production and assembling.


Factory Facilities
• Plenty of production lines
• Flexibility Capacity: 20K per day
• Over 150 professional stuff
• 100% tested


Warmly welcome the OEM and ODM projects.

FAQ

1.Do you provide the technical support to the developers?
Re: SURE. The following technical data and documents will be provided to developers.
1. SDK 2. API 3. Demo APP 4. Configuration APP 5. Instructions

2.Can I change the password?
Re: Yes, you can use configuration APP to change password by yourself.

3.Do you have SDK or the source code?
Re: Yes, we will provide you after sample was arrived.

4. What's the warranty of the product?
Re: we supply 1 year warranty from the shipping date
