Width 65mm-1250mm IMA machine heatseal teabag filter paper

Feedback Ratings
US $4.75 / Kilogram |50 Kilograms (Min. Order)
Quantity:
- + Kilograms available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
10 day(s) after payment received
Contact Supplier
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Zhejiang, China (Mainland)
Brand Name:
Double Ring
Model Number:
XHTB22C-1
Type:
Qualitative
Material:
Wood Pulp
Usage:
Filter Papers
Width:
140mm
Thickness:
74um
color:
white or nature
basis weight:
16.5-22gsm
place of origin:
Hangzhou ,Zhejiang
width:
65mm-1250mm
thickness:
72-74mm
usage:
wrap tea,coffee or herbal
suitable machine:
Italy IMA C51, Argentina maisa EC21, Chinese CCFD6
suitable temperature:
135degree
raw material:
Abaca pulp, wooden pulp

Packaging & Delivery

Selling Units:
Single item
Single package size:
45X45X28 cm
Single gross weight:
1.5 KG
Package Type:
1. exported carton: it is suitable for long distance transportation, 2roll/ctn 15kgs/ctn 450X450X275mm 1000kgs about packed in 67cartons (3.73cbm), 20" container can be loaded 7500kgs 125mm width can be loaded 500cartons 2. pallet 30carton can be loaded one pallet 1000kgs can be loaded 2 pallets
Lead Time :
10

IMA MACHINE TEABAG FILTER PAPER



Company introduction:

Hangzhou Xinhua Paper Industry Co. Ltd. is the First Class State Owned enterprise and largest teabag filter paper manufacturer which is established 1992 on the basis of 40 year old Hangzhou Xinhua Paper Mill, the total invest value is USD48.88 million and the registed capital is USD16.6 million. covered the area of 177269 square meter, owned five production lines. the annual turnovers exceed USD20.5million,employed 695 personnel and 56 professional technician and 80professional engineers. the trademark is "Double Ring".





Production Description:

Heatseal teabag filter  paper manufactured from a specialty selected blend of high quality Abaca pulp (imported from Phlippines) , wooden pulp(imported from Canada) and P.P. fibre (imported from Austria). This paper has best seal integrity, excellent particle retention, superior infusion, taste neutrality and optimum wet strength. This paper complies with the latest food contact legislation of the United States (FDA 21 CFR 176.170) and America SGS , the national standard is GB/T25436-2010 set by Hangzhou xinhua paper industry co., ltd..



Specifications:

1.Basis Weigth: 16.5gsm 17gsm 18gsm,22gsm, 24gsm

2.Width: 120mm,125mm,130mm,145mm etc.

3.Outside diameter:300-500mm

4.Core size : 76mm (3'')

5.Package: 2or 3 rolls/ctn

6.Color: Bleached & Unbleached

7.Delivery time: 15days

8.terms of payment: 50% T/T in advance and 50% upon shippment



Technical Data

Basis weight

22±1.1gsm

Raw material

Abaca pulp(38%) Phlippines,wooden pulp(Canada), P.P. Fibre

Seal temperature

150degree

Suitable machine

Argentina Maisa EC-12 ,EC-12/B,  CYD-95

Italy IMA C51,C56,C55,

China Nanfeng  CCFD6,DXDC15,

thickness

0.0742mm

Wet bursting strength

≥350mm water column

Air permeability

150 cm3/cm2.s

Tensile strength  (MD)

≥0.64 kn/m

Tensile strength  (CM)

≥0.14 kn/m

Wet tensile strength(MD)

≥0.12 kn/m

Seal strength

≥0.10 kn/m

Filtering speed

≤ 3 s

Moisture

≤8 %



Applications:
teabag filter paper is used to process teabag by packing machine, it will be sealed when the packing machine temperature arrived above 150 degree,.

Teabag filter paper is suitable for the different packing machine, such as CCFD6 packing machine made by China, MAISA packing machine made by Argentine and IMA  packing machine made by Italy , The main size 125mm and 140mm.

Teabag filter paper has performance of soft papery and high wet strength and measure up  the line standard of GB/T25436-2010 constituted by Hangzhou Xinhua Paper Industry Co., Ltd. in 2010.





Our package



Exported cartons is suitable for long distant transportation  PVC plastic and kraft  1-4roll/tcn



 our delivery

1. enough stock with common width (16.5gsm 125mm ,    17gsm 115mm 125mm,120mm,    18gsm 125mm, 114mm,   22gsm  125mm, 145mm, 160mm,  24gsm  125mm, 150mm)

2. fast delivery (within5-10days after signing contact )

3. strong package ( pvc plastic and kraft)

4. three production lines ( 10T/day)

5. 20" container can be loaded 7500kg

6. the volume of 1000kgs is about 3.3-3.75cbm



Our advantage

1.    State Owned manufacturer

2.    Awarded the first class and advanced enterprise on 1998

3.    The earliest teabag paper factory from 1982

4.  Over 30 years production experience and strict quality managemen

5.  Competitive price and fast delivery (5-10days)





Our service



Free samples are available



Every raw paper roll coming out from paper machine is attached with a technical data sheet to control the paper quality



Quality control before slitting the paper for customs



Timely follow up about the feedbacks from customers





Kindly reminder & tips:



 1. We use special processing technology so that we can reduce the use cost.



2. We have various specifications in order to meet the requirement of all kinds of our customers.



3. The products pictures  are taken from real products that we have.



4. We have high degree of satisfaction and market share all around the world.



6. We have many years experience in long fibre  industry.



7. Every order can be promised fast delivery. Normally within 15 workdays.



8. We accept L/C at sight, T/T



FAQ

1.Are you a manufactuer

  Yes, our companay is the largest teabag filter paper manufactuer in China which is established 1952, jointed with Hongkong ZhongTai investment company on 1992,  produced the first teabag filter paper from 1982, set the national standard of GB/T25436-2010. now we have 3 productions lines , the capacity is 3500T/year.



2. what's is you main products

our main products is heatseal teabag filter paper,coffee filter papaer and nonheatseal teabag filter paper

nonthe basis weight is 13gsm, 13.5gsm,14gsm

heatseal teabag paper: 16.5gsm, 17gsm,18gsm,22gsm and 24gsm.

brown teabag paper: 18.5gsm, 20gsm ,22gsm, 24gsm, 26gsm

coffee filter paper : 22gsm, 24gsm ,26gsm, 40gsm,

the width is : 66mm, 100mm, 125mm, 132mm, 490mm,524mm,870mm



3. what main packing machine does your paper is suitable for ?

A.  16.5gsm, 17gsm is suitable for fast speed packing machine (such as IMA C51,C55 ,Argentina EC21,EC21-B,)

B.  18gsm(A-1) ,22gsm (C-1) is suitable for medium speed packing machine (such as CCFD6 machine)

C. 18.5gsm, 22gsm(C-2), 24gsm, 26gsm is suitable for slow speed packing machine (such as Taiwa machine and Fujiang machine)

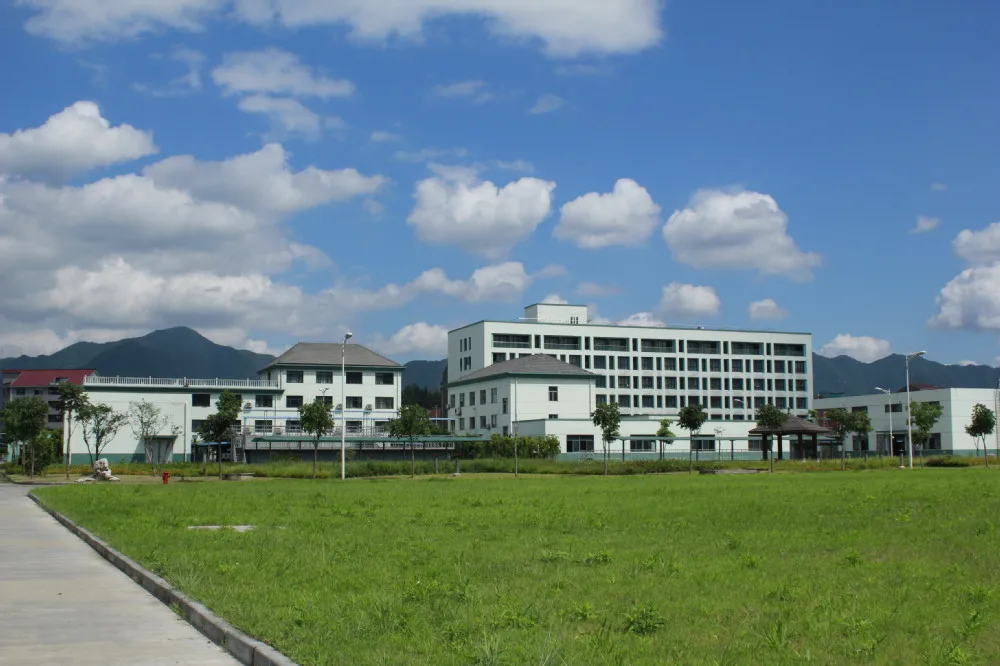

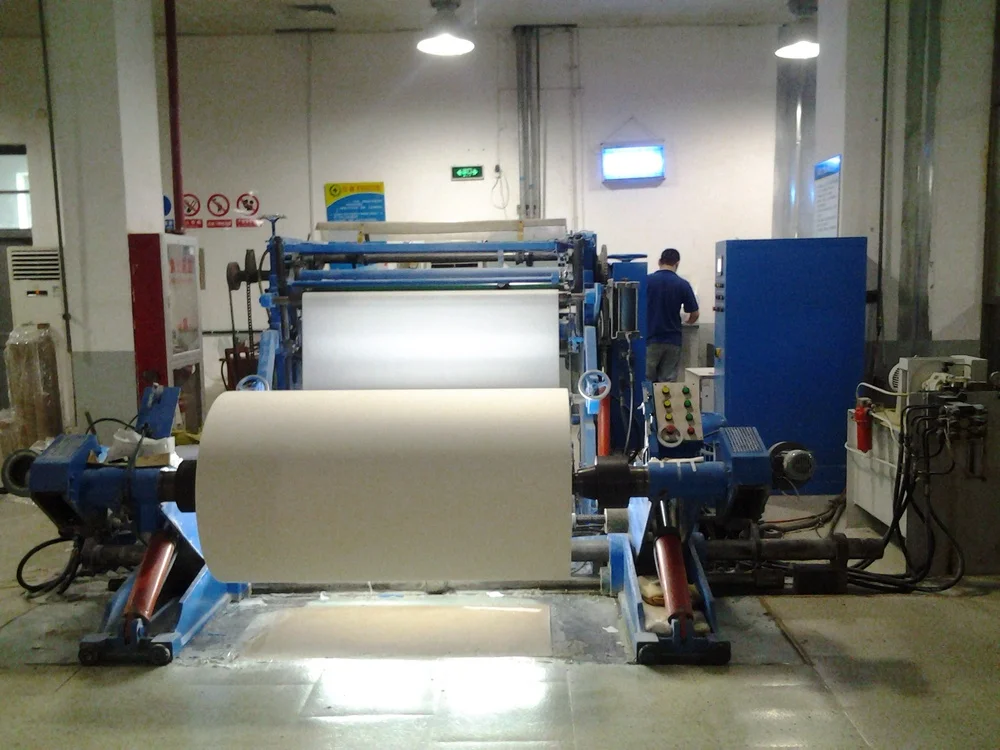

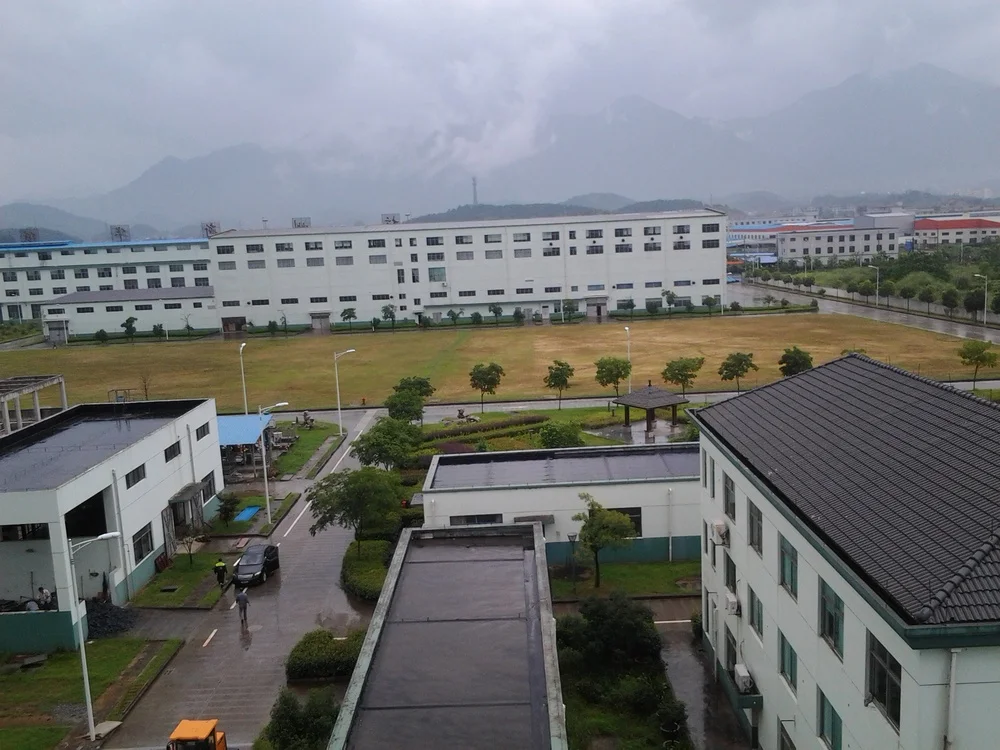

our company



 20141008_143808    20140724_120357



20140723_152822   _MG_0293



2   20140723_153750.jpg





    DSC03285





DSCF2350   1406698214495_hz-fileserver-upload-07_6398703





DSC03351   1406278364665_hz-fileserver-upload-04_4199436 DSC00785   20140304_105100





 20130411_123612
