Win10 Compatible 4:3 14 inch includes USB Controller 4 Wire Touch Screen Panel For photobooth/photo kiosk/Laptop

  • 1-9 Sets
    $48.00
  • >=10 Sets
    $43.00
Model Number:
HNT-1401
- +
available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
3 day(s) after payment received
Customization:
Customized logo (Min. Order: 100 Sets)
Customized packaging (Min. Order: 100 Sets)

More

Graphic customization (Min. Order: 100 Sets) Less
Contact Supplier
Samples - $45.00 /Set, 1 Set (Min. Order): Buy Samples
Loading... Add To Cart
Report Suspicious Activity
Overview
Quick Details
Products Status:
Stock
Type:
Resistive, Touch Screen
Interface Type:
Serial, USB
Brand Name:
HainaTouch
Place of Origin:
Guangdong, China
Property:
Resistive Touch Screen
Classify:
4 Wire Resistive Touch Screen
Application:
Industry
Ratio:
4:3
Operating Temperature:
-30°C to 80°C
Operating Force:
10g~100g
Warranty:
1 year
Life Time:
More than 3.5 million touches in one location without failure
Item Name:
4 Wire Resistive Touch Screen Panel Digitizer For GPS Car Pocket TV

Packaging & Delivery

Selling Units:
Single item
Single package size:
30X20X10 cm
Single gross weight:
1.5 kg
Package Type:
Anti-Static Foam+Paper Card+Vacuum Bag+Carton
Picture Example:
package-img
package-img
Lead Time :
Quantity(Set) 1 - 100 >100
Est. Time(days) 3 To be negotiated
Video Description

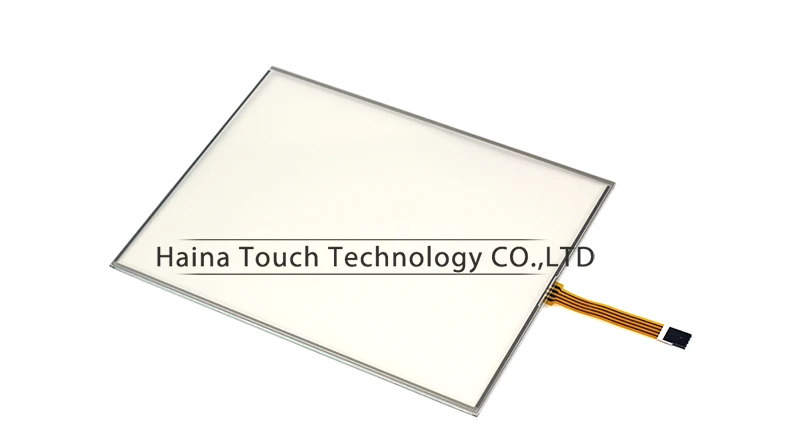

Win10 Compatible 4:3 14 inch includes USB Controller 4 Wire Touch Screen Panel For photobooth/photo kiosk/Laptop



Product Description



4-wire analog resistive touch technology is suitable for applications that require ease of integration, low power consumption, lightweight, portability, cost effectiveness and compact mechanism. Affordable, durable and versatile, the 4-wire resistive touch screens are primarily used in mobile applications, such as smart phones, PDAs, e-books, web pads, digital cameras, GPS, and other consumer or office electronics.



Advantages:
1. Low cost solution, Low power consumption
2. Consistently accurate, fast touch response
3. Pressure sensitive, works with any stylus, Finger, gloved hand and stylus activation
4. Not affected by dirt, dust, water, or light
5. Affordable touch screen technology
6. Antiglare surface treatment
7. Available in 1.8”- 21” models (Customer size welcome)



Specification:

Size

General Size



3.0 inch to 25 inch

Ratio

4:3, 16:9, 16:10

Fit in with

Panel display device

Performance

Resolution(Interpolation)

4096*4096

Linearity Error

<1.5%

Response Speed

<10ms

Mechanical

Input Method

Finger or gloved hand (rubber ,cloth or leather)

Touch Times

More than 1 million touches

Touch Activation Force

15~70g

Surface Durability

Meets pencil hardness 3H (per ASTM D3363)

Optical

Light Transmission

83%

Environmental

Temperature

Operating Range: -10°C ~ 60°C

Storage Range: -20°C ~ 70°C

Relative Humidity

Operating Range: 0%~90% RH (no dew falls)

Storage Range: 0% to 95% RH (no dew falls)

Altitude

Up to 3,800m

Electrical

Operation Voltage

Typical +DC 5V, +4.75V to +5.25V

Power Supply

USB or PS/2 Interface

Interface

Full Duplex USB 2.0 (Full Speed) Plug and play compatible

Serial RS-232. Baud Rate: 9600, 8 Data Bits, 1 Stop Bit, No Parity

Current

5mA~25mA

Electrostatic Endurance

No abnormal appearance after 10kv, 100Ω, 250PF electrostatic used

Isolation Resistance

>20MΩ @ DC 25V

Resistance

300Ω< X Axis <900Ω, 200Ω< Y Axis <800Ω (Varies with different size)

Agency Approvals

CE, FCC, Rohs

Operation System

Win8 8.1 / Win7 / XP / 2000 / NT 4.0/ ME / 98 / 95 / Dos / Linux / Mac OS





Support System:






Packaging & Shipping

 We use the Anti-Static Foam+Paper Card+Vacuum Bag+Carton for protect every item.



Company Information

Shenzhen Haina Touch Technology Co., Ltd is the Touch Screen, Monitor, Touch screen monitor, Touch POS Terminal All in one PC manufacturer.
Having more than 8 years in that, our company is a professional manufacturer and exporter that is concerned with the design, development and production of Touch Screen, Monitor, Touch screen monitor, Touch POS Terminal All in one PC.
Our factory is established in 2007 with 5 million investment, the total facilities are more than 1,500 square meters, in which over 1,000 square meters are production line and 500 square meters are Clean Room.

To ensure giving our customers the best quality and satisfaction products, our Company adopts uses the first-class equipment and raw materials.
With a wide range, good quality, reasonable prices and stylish designs, our products are extensively used in industrial filed and other industries.
Our products are widely recognized and trusted by users and can meet continuously changing economic and social needs.
We welcome new and old customers from all walks of life to contact us for future business relationships and mutual success!



FAQ

What can we do for you:

1, About the Free Sample: We accept the Free Sample. (Contact us for know more details)

2, About the factory: Yes! We have the factory, We are the Touch Screen, Touch Screen POS terminal Manufacturer.

3, About the MOQ: Our MOQ is 1 set.

4, About the Our Touch Screen Pos Terminal Warranty: We have 1 year warranty for our Touch Screeen POS Terminal.

5, About the Certification: We have CE, FCC, ROHS for Our Touch Screen POS Terminal.

6, About the Software: We have the Restaurant Cash register software, Inventory management software, Member management software, Financial Statement Analysis software. Just feel free to contact me for your special requirement.

7, About the System: We can install the Windows system, also we can install the Android or Linux system for you.

8, Our Skype: haina.electronic,

    Our Email: haina.electronic(@)foxmail.com

    Our Website: http://hainapos.en.alibaba.com/

9, About the Payment: Accept  multiple payment (Note: According to different regions, the terms of payment are differentiated)
