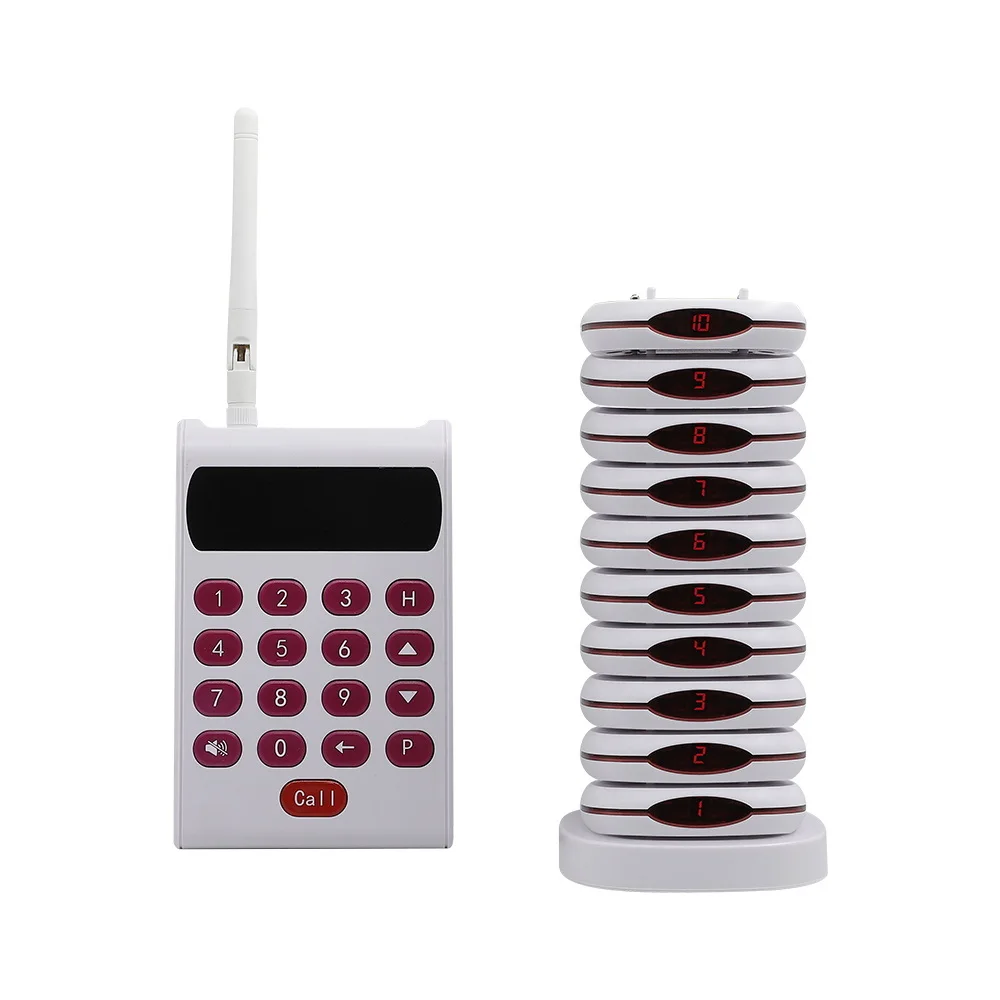

Wireless paging system calling system restaurant KL-QC03

  • 1-9 Sets
    $147.00
  • >=10 Sets
    $130.00
Color:
Stripe
$
- +
available
$
- +
available
Samples:
$147.00 /Set, 1 Set (Min. Order): Buy Samples
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
7 day(s) after payment received
Customization:
Customized logo (Min. Order: 500 Sets)
Customized packaging (Min. Order: 500 Sets)

More

Graphic customization (Min. Order: 500 Sets) Less
Contact Supplier
Samples - $147.00 /Set, 1 Set (Min. Order): Buy Samples
Loading... Add To Cart
Report Suspicious Activity
Overview
Quick Details
Certification:
FCC, ce, RoHS
Place of Origin:
Guangdong, China
Brand Name:
KELVIN
Model Number:
KL-QC03
Input Power:
DC12V/2A
Material:
Plastic
Application:
restaurant /hospital etc
Work Voltage:
DC3.7V
Frequency:
433.92MHz
Sensitivity:
-115dBm
Standby Power:
<120mW
Modulation Type:
FSK
Max Capacity:
998 pagers
Max Distance:
800s-1000m

Packaging & Delivery

Selling Units:
Single item
Single package size:
10X10X6 cm
Single gross weight:
2.000 kg
Picture Example:
package-img
Lead Time :
Quantity(Sets) 1 - 200 201 - 500 501 - 1000 >1000
Est. Time(days) 7 9 10 To be negotiated
Video Description
Product Description
Wireless Coaster Pager Restaurant table buzzer Queue Management System KL-QC02
Parameter
Power input
DC12V/2A Adapter
Transmitting frequency
433.92MHz
Transmit Power
26dBm
Standby power
<120mW
Modulation Type
FSK
Max Capacity
998
Backup Battery
Li-ion 3.7v 1000mAh
Size
110*165*50mm
Output
DC5V/4A
Parameter
Battery
Li-ion 3.7V 300mAh
Receiving frequency
433.92MHz
Stand-by current
<12mA
Standby Duration
10h
Receiving sensitivity
-115dBm
Max Distance
800m-1000m
Prompt Mode
Vibration/Buzzer/Flashing
Prompt Time
30s
Input
Type-C DC5V/2A;
or DC12V/2A
Instruction

A.Before using

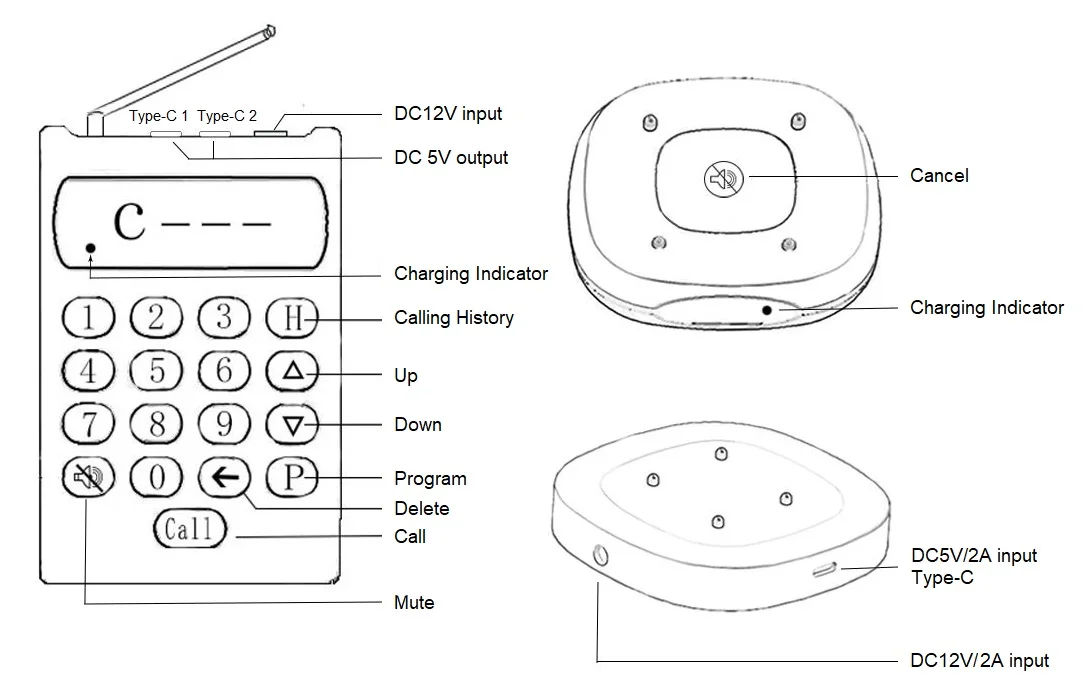

Wiring: Host connects to power source via adapter. Charging base connects to host via Type-C cable. Connect host to power source, and charge pagers for 10 minutes at least before using. Charging Indicator Information:

Host
Pager
Red LED
Charging
Flashing
Charging
Green LED
Full Charged
Always On
Full Charged

B.Operating Instruction

CALL mode is the default mode. Continuously press Delete button (←) to return Call Mode while in other mode. C--- is displayed in CALL mode. Input the number and press CALL button to call the corresponding pager.

C.Use

Input number and press CALL, the corresponding pager will alarm to remind. If input wrong numbers, press to delete. Pressing also can cancel a calling.

C.Mute mode

Press MUTE and 999 (S999 displayed) then press CALL, all charging pagers change to MUTE mode. Press MUTE and 000 (S000 displayed) then press CALL, all charging pagers change to normal mode. In MUTE mode, all pagers only vibrate and flash while being called. Continuously press DELETE button (←) to return CALL mode. (C--- displayed).

D.Call History

Press button H to check the recent 10 called numbers (HXXX displayed). Press △/▽ button to page up/down. Continuously press DELETE button (←) to return CALL mode. (C--- displayed) Note: No looping of △/▽.

E.One-Call-Off

In CALL mode, press 999 and CALL, all charging pagers will be off. Re-charge pagers will turn on again. Note: This instruction is invalid to the pagers not being charged.

F.Host Off

When powered by battery, long press H and △ at same time, host is off. Long press H and ▽, host is on. This operation is invalid when powered by power source. bottles in all shapes.

G.Program Operation

All pagers are programmed before delivery. So this operation is only necessary when adding new pagers or changing numbers. Put the pagers on the charging base, press P and 999 (P999 displayed), then press CALL to enter programming mode. The operation must be finished in 20 seconds after pagers are charged. In programming mode, all LED display of the pagers will keep flashing. Then input number and press CALL, all pagers display this number. Move the top pager away, the pager will beep once and stop flashing. It means the pager is programmed. Repeat the steps to program other pagers. Note: The pagers will quit programming mode if no operation within 1 minute. All pagers’ numbers will not change if not being programmed. 1 pager only can be programmed 1 number. Old number will be replaced by the new one.s in all shapes.

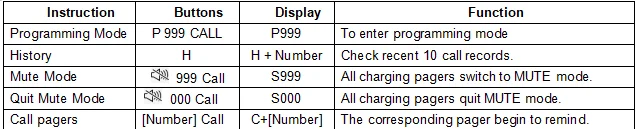

Instruction Description

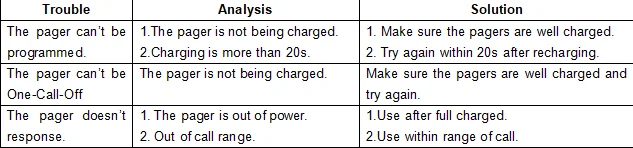

Common Troubles and Solutions
Related Products

Wireless Nurse Restaurant Waiter Coaster Pager Call Bell System KLY-68

Wireless Coaster Pager Restaurant table buzzer Queue Management System KL-QC02


wireless call nurse paging system for hospital/other hotel & restaurant supplies

Our Company
Certifications
FAQ

What you want to know


Q1: What's Sub-machine ?
A1: The handset which hold in customers' hand.

Q2: How many handsets can be saved or work at same time ?
A2: 998pcs,but only support 16pcs to charge at same time .

Q3: What's the max working distance ?
A3: Max 2km in open area.

Q4: I want special button symbol, do you have ?
A4: We provide customized servince .

Q5: I didn't know how to recognize Its frequency and code .
A5: Please contact us to get help ,We'll reply you within 24 hours .

If you other more question ,please call or write me .



Q6: How long is the warranty ? .
A6: 12 months

A7: What's your lead time ?.
Q7: Usually 10 working days .

A8: How long does the battery last and how to change it? .
Q8: 5 years ,we don't suggest to change battery by yourself.

Q9: How to repair after the warranty expires ?
A9: Please contact our people to get paid repair.

Q10:Do you have some certification like CE FCC etc ?
A10: Please contact our service to get copy.
