With ANSI C136.10 connector Lora Sensor, Outdoor Industrial IoT LoRaWAN Gateway

  • 1-4 Pieces
    $450.00
  • 5-9 Pieces
    $400.00
  • 10-19 Pieces
    $350.00
  • >=20 Pieces
    $300.00
Supplier Type:
Original manufacturer
- +
available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
5 day(s) after payment received
Customization:
Customized logo (Min. Order: 10 Pieces)
Customized packaging (Min. Order: 50 Pieces)

More

Graphic customization (Min. Order: 100 Pieces) Less
Contact Supplier
Samples - $450.00 /Piece, 1 Piece (Min. Order): Buy Samples
Loading... Add To Cart
Report Suspicious Activity
Overview
Quick Details
Model Number:
SZ11LR-GW- 1
Application:
street lighting control, smart lighting
Brand Name:
Shuncom
Place of Origin:
Shanghai, China
Product name:
Outdoor Industrial IoT LoRaWAN Gateway
Frequency:
433/470/868/915/923MHz
Dimension:
147mm*58.5mm*147mm
Protocol:
Standard LoRaWAN Protocol
Power supply:
9-24V DC
Antenna:
External Antenna
Interface:
4 WAN , 232 serial port, 485 serial port, USB and 4 AD / IO
Certification:
CE FCC RoHS
Warranty:
2 Years

Packaging & Delivery

Selling Units:
Single item
Single package size:
14.7X14.7X5.85 cm
Single gross weight:
1.5 kg
Package Type:
Internal packaging: standard carton packaging External packaging: waterproof film packaging
Picture Example:
package-img
package-img
Lead Time :
Quantity(Piece) 1 - 1 2 - 5 6 - 10 >10
Est. Time(days) 5 10 15 To be negotiated
Video Description
Specification
Setting Information
product model
SZ11LR-GW-1
Network standard
4G
Power supply
9-24V DC
Working temperature
-20~+80ºC
support band
433/470/868/915/923MHz
Product Description

Product Details

● Stable full Netcom speed experience, fully compatible with telecommunications, mobile, China Unicom's 2G, 3G, 4G network

● Cable network backup with each other to ensure the normal and stable data transmission

●Support WIFI, 4G, Ethernet port access to the Internet, multi-network at the same time online.

Product Details

● Powerful WIFI function, support AP, STA, Repeater multiple modes,

● Interface rich, can meet the different needs of customers and applications, 4-way WAN port, 232 serial port, 485 serial port, USB and 4 AD / IO interface.

● A variety of wireless extensions, optional , LoRa, Zigbee

Product Details

● Multi-network intelligent switching backup, data off network storage resume

●Protocol rich, support for transparent transmission, MODBUS RTU switch TCP, MQTT.

● Support for polling MODBUS devices proactively, helping customers save on cumbersome SCADA Modbus commands

Product Details

● Using industrial-grade high-speed 4G wireless communication module, configured 32-bit high-end processor, front-end acquisition of information transmission more real-time and higher speed.

● Downstream reservation optional a variety of wireless communications, Lora, Zigbee, Bluetooth etc., more flexible use

● Industrial Design, Metal Case, Stable 7X24 Hours Uninterrupted Work Under Various Industrial Environments & Strong Interference.



CN470
                EU868
US915
AS923

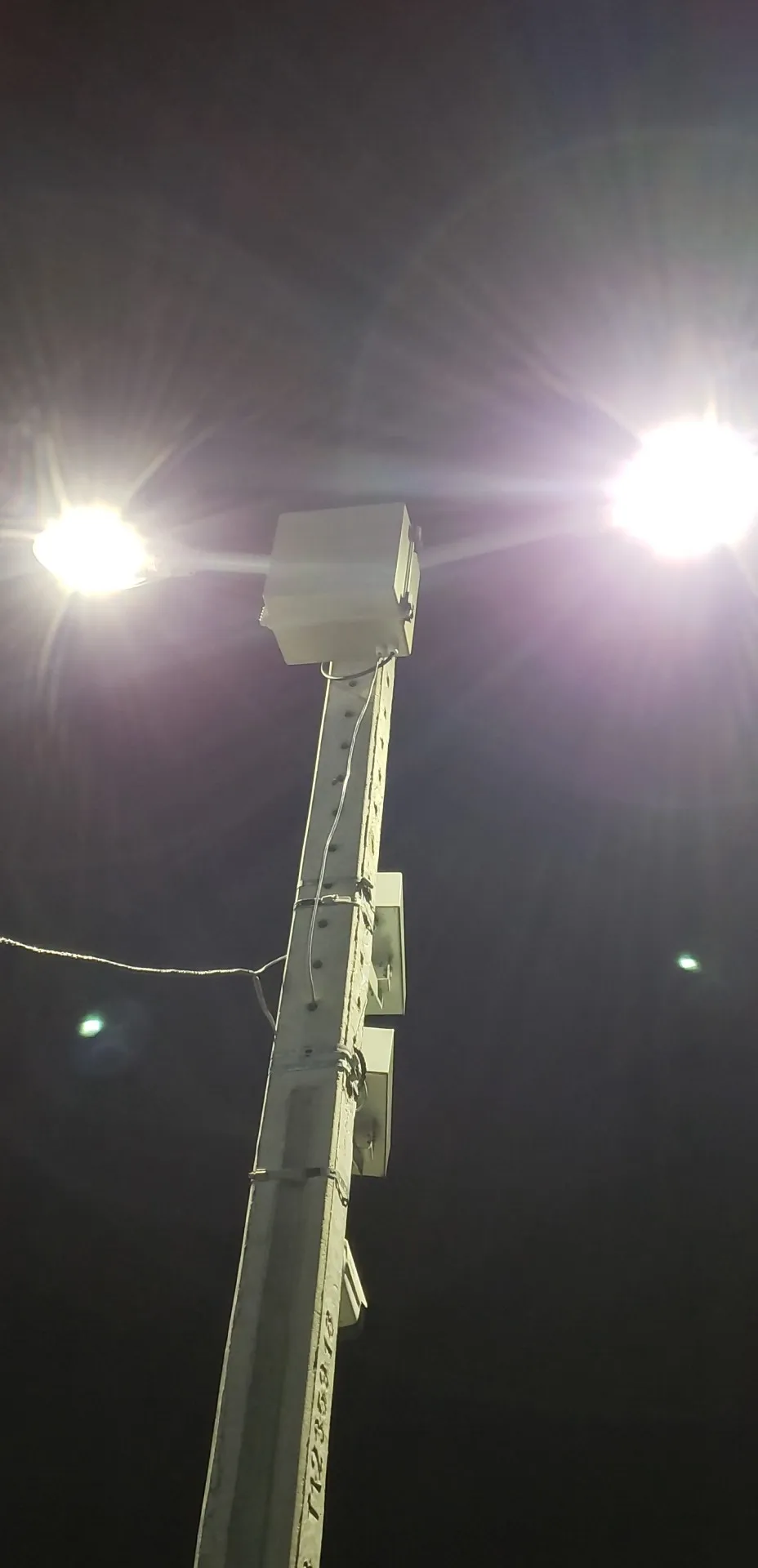

Applications
Company Information
Exhibition
FAQ

Q1. How many lighting controllers can a LoRaWAN gateway usually control?

A: A gateway can control 300 lamp controllers Under normal circumstances .

Q2. Can add other devices like meters or sensor for parking and garbage ?

A: You can add other devices like meters or sensor for parking and garbage.

Q3. Can we use our software and server?

A: You can use your Network server software, We can open our LoraWAN protocal to you.

Q4. Do you have any MOQ limit for Gateway order?

A: Low MOQ, 1 pc for sample checking is available.

Q5. What about the lead time?

A: Sample needs 5-7 days, mass production time needs 1-2 weeks for order quantity more than .

Q6: Do you offer guarantee for the products?

A: Yes, we offer 2-5 years warranty to our products.
