Woodworking Cnc Machines For Wooden Door Manufacturing Sponge Sale

FOB Reference Price:Get Latest Price
$15,000.00 - $25,000.00 / Sets | 1 Set/Sets (Min. Order)
Model Number:
ARK-1325
Report Suspicious Activity
Overview
Quick Details
Condition:
New
CNC or Not:
CNC
Place of Origin:
Shandong, China (Mainland)
Brand Name:
Alpha
Voltage:
220V/380V
Dimension(L*W*H):
3200*1840*1900mm
Certification:
CE ISO9001
Warranty:
2 Years
After-sales Service Provided:
Field maintenance and repair service, Engineers available to service machinery overseas
Control system:
Nc-studio(Weihong) V10
Application:
MDF/WOOD/ACRYLIC/ALUMINUM/Cardboard
Motor:
Delta Servo motor and driver
Driving system:
Leadshine/Yako
Software capabilities:
Option: Vectric Aspire, Type3, Ucancam, Artcam, Solidworks, etc.
Inverter:
DELTA
Oscillating knife:
for option
Keywords:
machines for manufacturing sponge
CCD:
for option
Power(W):
3-7kw
Weight:
1800kg
Supply Ability
Supply Ability:
300 Set/Sets per Month
Packaging & Delivery
Packaging Details
CNC Router is packed in a plywood case
Port
Qingdao
Product Description

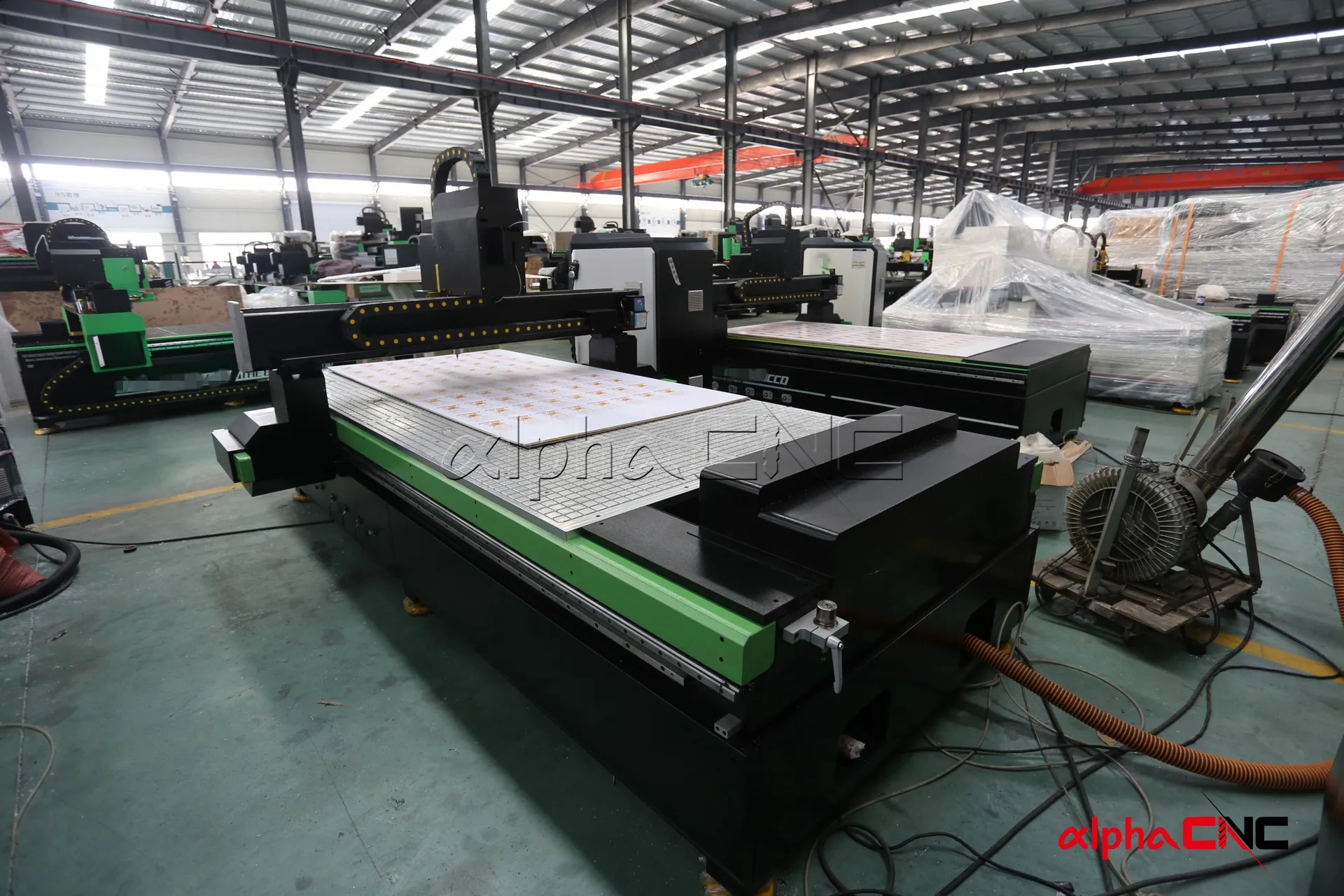

Woodworking Cnc Machines For Wooden Door Manufacturing Sponge Salemachines for manufacturing sponge

Product Application

Digital finishers are being asked to do more including routing aluminum and acrylic and cutting/trimming paper, vinyl, foam board, coroplast, styrene and rubber. As a result, we challenged our engineering team to develop a CNC router that meets the traditional demands of the digital finishing industry while delivering overwhelming power to take on broader projects.

It can process wood, MDF, particleboard, plywood, acrylic, plastic, soft metal and many other different materials.


ics applications. Popular applications include:

# Graphics and Print Finishing - Cut-to-print using multiple tools for all materials
# making - All types of 2D and 3D s in woods, metals and plastics
# Foam Packaging - 2D and 3D processing with router and knife tools
# Point of Purchase - Display stands, fixtures and fittings



Processing a wide range of materials requires more than one cutting head. The ARK series can combine two or three different cutting technologies to provide maximum versatility by offering a choice of routing spindle and one or two knives which can be either tangential, oscillating, or a combination of both.
#Hybrid head on narrow carriage for small footprint
#High-power router for fast processing of materials
#Tangential and oscillating knife tools for all flexible and semi-rigid materials
#High gantry clearance allows processing of materials up to 5" thickness
#Combine the machine with Alpha Vision System and you have a truly flexible machine for all applications.

Descriptions
                                                                     Parameters
ARKModel
ARK-1325
ARK-1530
ARK-2030
ARK-2040
Custom made
Working area
1300*2500mm
1500*3000mm
2000*3000mm
2000*4000mm
Custom made
Accuracy
±0.03mm
Table Surface
Vacuum & T-slot Combined (or T-slot Table, or vacuum table )
Frame
Thicken steel Square Tube Heavy structure , 10mm thicken steel
X, Y Structure
Gear and rack transmission, Taiwan PMI Linear Rail
Z Structure
Taiwan TBI Ball Screw, Taiwan PMI Linear Rail
Max. Rapid Travel Rate
60m/min
Max. Working Speed
40m/min
Spindle Power
9kw ATC air cooling spindle
Knife option
Oscillating knife, Tangential Knife, Kiss cut, Crease, Knife Options
CCD
CCD Camera for option
Drive Motors
Delta servo motor
Working Voltage
Custom made
Command Language
G Code
Operating System
Nc-studio(Weihong) V10
Computer Interface
USB interface
Inverter
Taiwan DELTA(Fuling optional)
Software
Option: Vectric Aspire, Type3, Ucancam, Artcam, Solidworks, etc.

Please kindly note the above configuration is standard configuration.

Custom Made/ODM/OEM is available. Just tell us your requirement, we will build the machine accordingly.

Sample
Detailed Images

9KW High Frequency Automatic Tool Changer Spindle

The Alpha ATC CNC Router machine comes standard with a 9kw high frequency automatic tool changer spindle. This precision spindle requires no maintenance, uses industry standard ER collets and ISO 30 tool holders. Fully programmable speeds from 6000 to 24000 RPM, and comes complete with pneumatically retractable vacuum hood.

CCD Vision system

Modular optical recognition system for multi-functional flatbed machines for industrial usage in exact-outline digital finishing processes.

Machine Base Frame


The base frame is fabricated from heavy-duty tubular steel that is welded, precision machined and stress relieved so that the foundation remains true and steady over the operational life of the machine.

Hiwin square rail&High quality helical rack pinion

The machine adopts Taiwan Hiwin square rail, which is more than twice durable. And the use of high quality helical rack pinion, makes it high precision

High precision TBI Ballscrew on Z axis

The high precision grinding screw makes the machine with very high precision.

8-position Tool Rack

If you choose the ATC function, the machine will be come with an 8-position tool rack in the rear of the machine. The position of this rack allows for easy loading and unloading of material from either side of the machine.

High precision fine machined Z&X axis plate

The Z&X axis plate is well machined by the CNC Center, the material is anodized aluminum, with higher precision, looks fancy and nice

Optional Parts

CNC Router Vacuum Pumps

5.5kw (totally enclosed fan-cooled). Rotary Vane Vacuum Pump.


Dust Collector

3kw double bags dust collector, which is powerful enough for collect the. It will make your workshop without dust.

Oil mist Coolant System

The Oil mist Coolant System is ideal for coolant tools for cutting metal. The result is higher material removal rates, improved finish, tighter tolerances and increased productivity.

Our Certificates
Packing & Delivery
Packaging
Size
3200 (L) * 2300 (W) * 1900 (D)
Weight
1500KG



Packaging Details
The normal package is plywood box.If container is too tight,we will use PE film for packing or pack it according to customers special request.
About Alpha Cnc

FAQ.

Q1: This is the first time I buy the machine, is it easy to operate?

We can provide the operation manual or video for guiding. If it is hard for you learning, we can also help you by "Team viewer"online, with telephone or Skype explain.

Q2: How to choose a suitable machine?
You can tell us the working piece material, size, and the request of machine function. We can recommend the most suitable machine according to our experience.

Q3 :How can I trust your company and your products?
The whole production procedure will be under regular inspection and strict quality control. The complete machine will be tested to make sure they can work very well before being out of factory. The testing video and pictures will be available before delivery.

Q4.If machine have any problem after I ordered it, what could I do?

Free parts send to you in machine warranty period if machine have any problem. Free after-sales service life for machine, please feel free contact us if your machine have any problem. We will give you 24hours service from phone and skype.

Q5. Can I visit your factory?
Yes! We greatly welcome customers to visit our factory!

Q6. What's your date of delivery?
For standard machine, about 15 working days; For customized machine, about 20 working day.

Q7.MOQ?

Our MOQ is 1 set machine. We could send machine to your country port directly, please tell us your port name. There will be best shipping freight and machine price send to you.
