XCY Intel Celeron J1900 4*LAN Ports Mini PC Quad-cores 4 Thread VGA WIFI Windows10 Pfsense Use as router firewall proxy

Feedback Ratings
$89.00 - $228.00 / Unit | 1 Unit (Min. Order)
Memory Capacity:
4g 8GB None 2gb
Hard Drive Capacity:
≤ 40GB
$131.00
- +
available
60GB
$137.00
- +
available
All 6 Options
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
8 day(s) after payment received
Contact Supplier
Report Suspicious Activity
Overview
Quick Details
Products Status:
Stock
Type:
Desktop
Screen Size:
No Monitor
Processor Brand:
Intel
Graphics Card Type:
Integrated Card
Display Type:
LCD
Widescreen:
No
Optical Drive Type:
NO
Processor Main Frequency:
2.41
Brand Name:
XCY
Model Number:
X30-J1900
Place of Origin:
Guangdong, China (Mainland)
Onboard CPU:
Intel Celeron Processor J1900
Memory:
DDR3L 1333/1600 MHz, 1.35V
Hard Disk:
Supports 1 * mSATA SSD
NIC:
Intel 82583V Gigabit Ethernet Controller
Integrated Graphics:
Intel HD Graphics
Onboard LAN:
1000M LAN
Operating System:
Support Win 7/8/10, Linux, Pfense etc
Case Color:
Black (Other Color Can Be Customized)
WiFi:
300M, 802.11b/g/n
Keywords:
Firewall

Packaging & Delivery

Selling Units:
Single item
Single package size:
25X19X10 cm
Single gross weight:
1.5 kg
Lead Time :
Quantity(Unit) 1 - 1 2 - 200 >200
Est. Time(days) 8 7 To be negotiated
Customizable

We can support OEM/ODM service, the process of customization is following:

1: Provide your specific requirement.
2: Our design engineers draw the design draft.
3: You confirm the design draft.
4: We start produce it.

Assisting customers in their journey towards customized solutions:

☑ Logo(Packing , Computer Logo)                               ☑ Computer Colors
☑ Security                                                                                ☑ Interfaces Customization
☑ Virtualisation                                                                    ☑ And so on...
☑ Data Protection


For more information, Pls leave email.

Product Description
XCY Intel Celeron J1900 4*LAN Ports Mini PC Quad-cores 4 Thread VGA WIFI Windows10 Pfsense Use as router firewall proxy
Features:
• Support Intel Celeron J1900/ J1800/N2806
• One channel DDR3L 1333/16000, Max 8GB
• Support 1 x mSATA
• Wit 4 x gigabit Ethernet
• Support automatic start the computer when plug in power
• Support wake up on Lan
• OS Support: Support Win7/8/10, Linux, Pfsense etc
• Palm-size from factory: 13.7*12.7*4CM
• Fan-less design, 0dB noise, Low power consumption
X30-J1900 Firewall Mini computer Specification:
Onboard CPU
Intel Celeron Processor J1900(quad-Core 2 MB L2, 2.0GHz, up to 2.42 GHz)
Memory
1* SO-DIMM Solt Support DDR3L 1333/1600 MHz, 1.35V Max support up to 8GB Memory
Hard Disk
Supports 1 * mSATA SSD
Integrated Graphics
Intel HD Graphics (Base Frequency 688.00 MH,Max Dynamic Frequency 792.00 MHz)
Onboard LAN
4 x Intel I211-AT- 10/100/1000 Controller
Audio Card
Realtek ALC662 HD Audio CODEC
I/O Port
• Power on/off
• Power LED ( POWER/ SSD)
• 1 x USB 2.0 Ports + 1 x USB 3.0
• 4 x Lan port
• 1 x HD 1 x VGA
• 1x SSD LED and power LED
Internal Connectors
• 1 x Mini pcie port (only for mSATA SSD)
• 1 x DDR3L SO-DIMM Memory Slot
• 1 x Automatically boot jumper
Operating System
Support Pfsense/Windows 7/8/10, Linux, etc
RAM(optional)
2GB / 4GB / DDR3L SO-DIMM
SSD/HDD(optional)
8G/16G/32G/64G/128G/256G/512G mSATA SSD
WIFI
mPCIe half-size for 300M WIFI ( 2 WIFI antennna)( for optional)
Power Consumption
TDP 10W
Case Color
Black (Other Color Can Be Customized)
Power
DC100-240V AC/50-60Hz
Operating Temperature
(-20°C~80°C )
Storage Temperature
(0℃-80℃)
Relative Humidity
10%~90% (non-condensing)
Dimension
137*127*40MM
Gross Weight
1.3kg
Accessories
1 x Power adapter
1 x WiFi ( barebone PC NO SSD NO RAM, package come no with WiFi, other bundle with WiFi)
1 x User manaul & warranty card

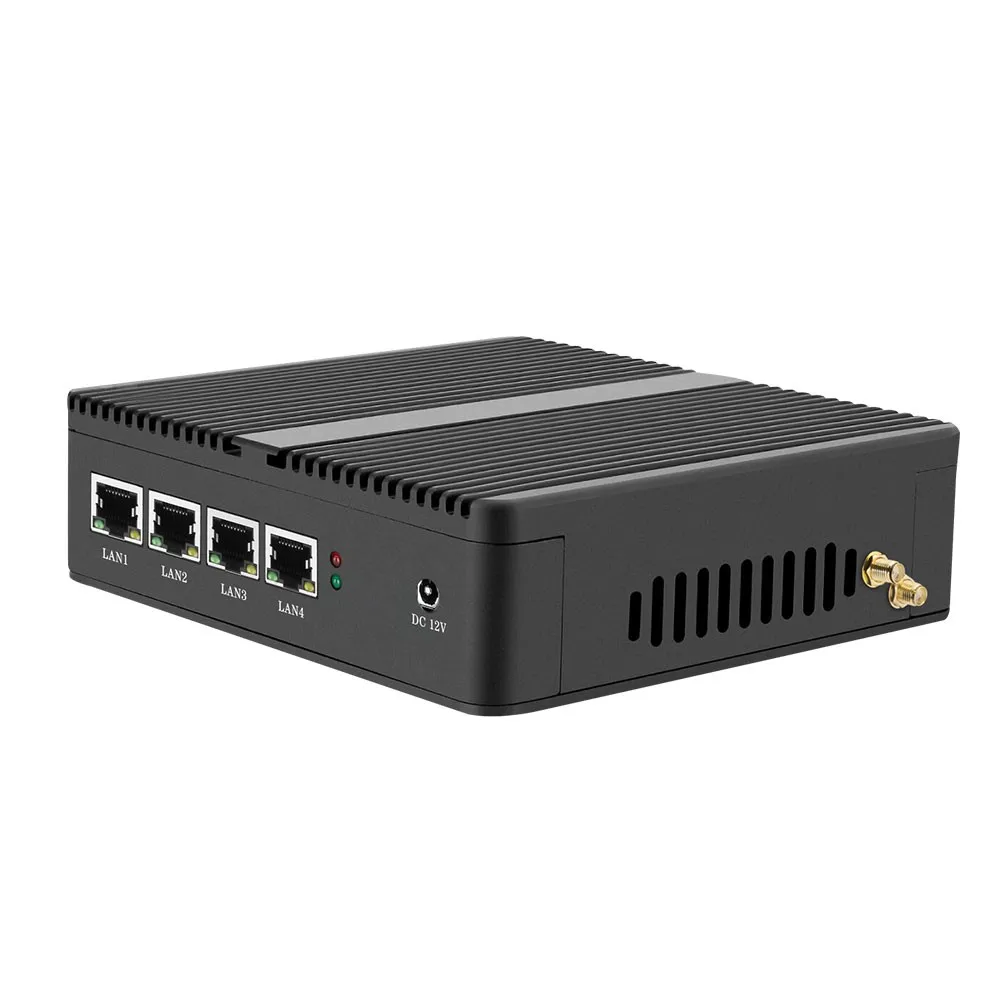

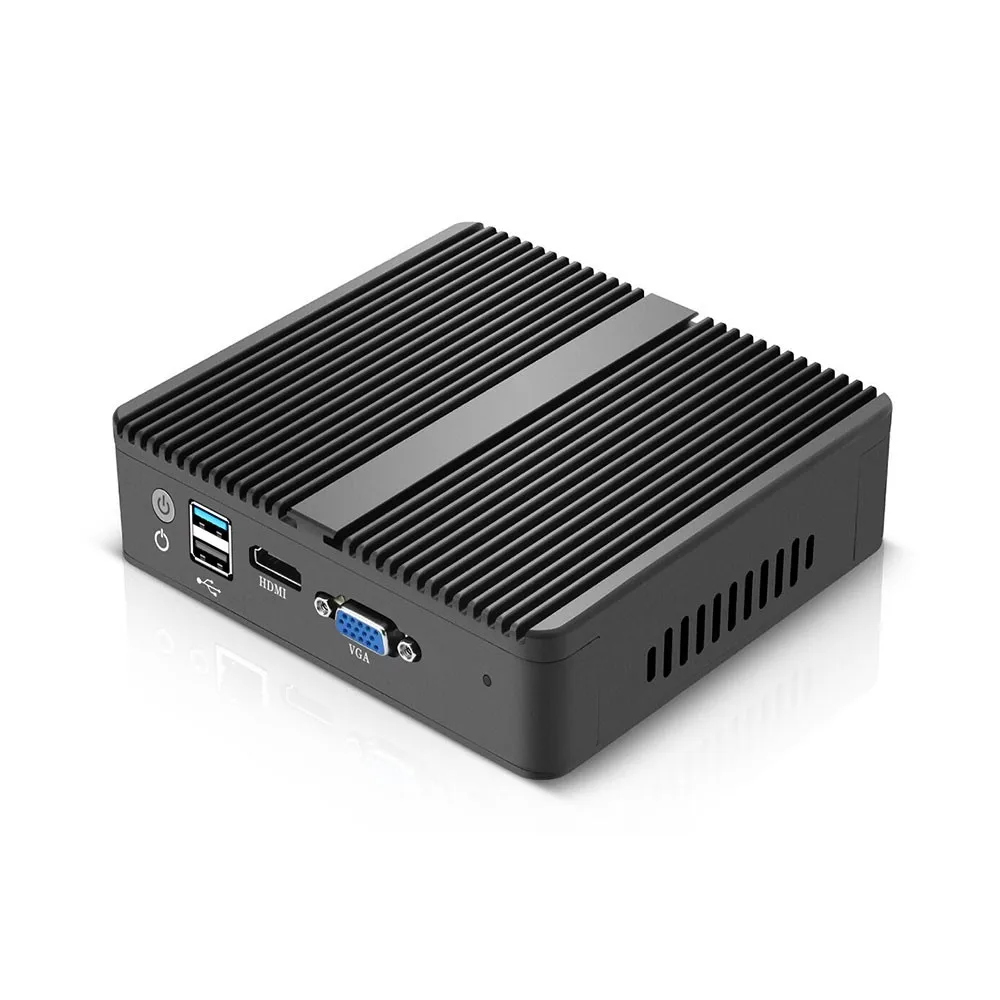

Detailed Images

Multi-wan access to multiple broadband superposition.
The product adopts WAN/LAN independent modification mode, and can set up 4 WAN broadband superposition, which can use the broadband superposition of different operators.

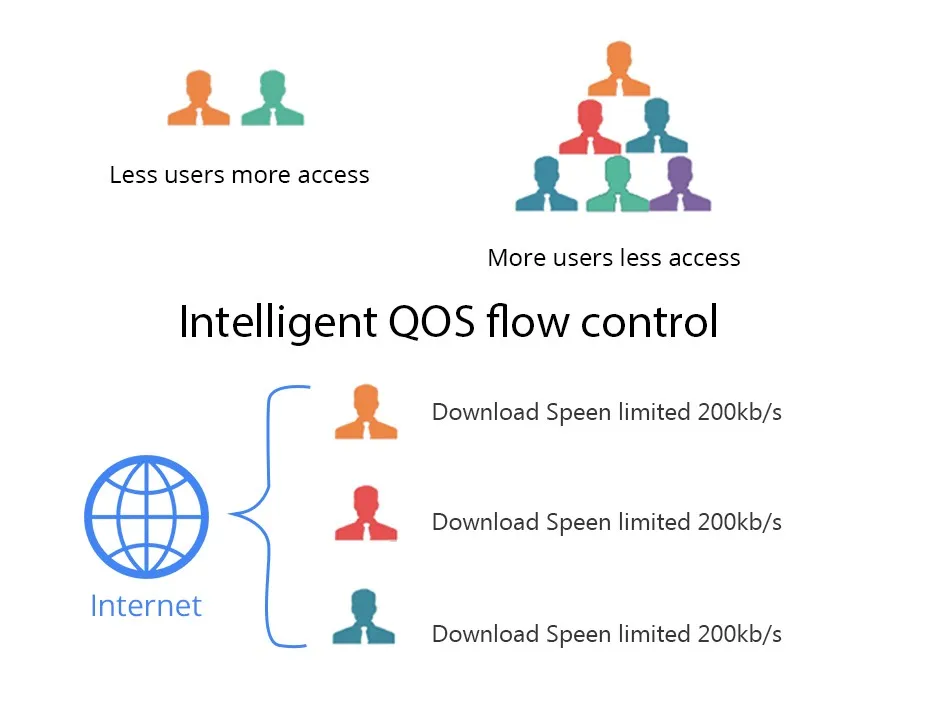

Intelligent flow control


The intelligent flow control analyzes the various situations of the host in the network activity to adjust the broadband network and ensure the user's overall smooth Internet access.

Packing & Delivery

Payment:
we are support "L/C; DA; DP; T/T; Paypal. "But according the contract and which country"


Packing List:
Normally we use the carton box, 5 or 10pcs per carton
1 x Mini PC
1 x Power adapter(correct power plug based on buyer's country)
1 x WiFi modlue with dual antennas(barebone not include WiFi)
1 x VESA bracket(some model not support)

1 x Sata power cable and data cable.(some model just support one Msata)
1 x Warranty card & user manual

Power adapter type:

Delivery :

we are support "L/C; DA; DP; T/T; Western Union; Paypal. "But according the contract and which country"
Normally we shipping by DHL,EMS,UPS,FEDEX,UPS usually take 3-7 working days to most countries,We will choose the right logistics according to your country.

Our Company
Contact us
FAQ

Q1. Can you provide OEM/ODM service? How much do I need to pay for your OEM service?
Re: Yes we can. The charges for OEM service depends on the different level of customize. the process of customization is following:
1) provide your specific requirement.
2) our design engineer draw the design draft.
3) you confirm the design draft.
4) we start produce it.

Q2. Can you print my logo on the mini computer ?
Re: Yes, it is support.

Q3. Can your device work 24h*7 days? And what about the temperature range it can operate in?
Re: Yes it can be working in 24h*7 days, working temperature range 0°C~50°C.

Q4. What is the lead time of your products?
Re: Sample order within 1~3 business days . Bulk order within 3~15 business days ( depends on order qty) ,we will test the model to insure the quality before shipping.

Q5.What's the warranty?
Re: 1 year warranty. After expired warranty and sent back to our company, we will still try our best to repair for you without repair cost (except change new accessories).

Q6.What are the OS do your computers support?
Re: Support Windows 7, Windows 8, Windows 10, Linux ubuntu , pfsense etc.  Some model is support XP, such as C1037U,Core CPU is not support XP.

Q7. Which models can run pfsense as a firewall?
Re: 2 or more LAN mini pc can run pfsense as a firewall. we have 2 LAN/4 LAN/6 LAN model.
