Note:
Please be cautious and check with your supplier if this product is for virus protection purposes and if the coronavirus (COVID-19) will affect your order.
- Place of Origin:
-
Guangdong, China
- Brand Name:
-
XCY
- Model Number:
-
X43
- Products Status:
-
New
- Warranty(Year):
-
3-Year
- Certification:
-
ce
- Hard Drive Capacity:
-
60GB, 120GB, 250GB, 500GB
- Use:
-
For Gaming
- Plugs Type:
-
US, JP, CN, AU, UK, EU
- Hard Drive Type:
-
SSD+HDD
- Operating System:
-
Win 10
- Processor Type:
-
Core i9
- Graphics Card Chipset:
-
Integrated Card
- RAM Type:
-
DDR4
- HDD Rotation Speed:
-
SSD
- Processor Series:
-
Core i9
- Video Memory:
-
2 GB
- Video Card:
-
In-tel UHD Graphics 630
- After-sales Service:
-
Return and Replacement
- CPU:
-
Core i9-9980HK
- Memory:
-
2*DDR4 2400/2666MHz
- Storage:
-
1* Full Height M.2 2280 SSD
- Ethernet:
-
1*10/100/1000M bps RTL8168/8111Ethernet
- USB ports:
-
2*USB3.0, 3*USB2.0, 1* USB Type-C
- Extention Options:
-
1 x M.2 WIFI
- WiFi:
-
Mini PCI-E, 802.11b/g/n, 300Mbps
- Cooling system:
-
Cooling Fan
- Dimension:
-
150*146*66.5mm
- CCC Certified.
- Valid from 2017-11-15 until 2021-07-26
Packaging & Delivery
- Selling Units:
- Single item
- Single package size:
- 30X10X21 cm
- Single gross weight:
- 2.500 kg
- Lead Time :
-
Quantity(Units) 1 - 20 21 - 300 >300 Est. Time(days) 10 25 To be negotiated
We can support OEM/ODM service, the process of customization is following:
1: Provide your specific requirement.
2: Our design engineers draw the design draft.
3: You confirm the design draft.
4: We start produce it.
Assisting customers in their journey towards customized solutions:
☑ Logo(Packing , Computer Logo)
☑ Computer Colors
☑ Security
☑ Interfaces Customization
☑ Virtualisation
☑ Data Protection
☑ And so on...
For more information, Pls leave email.
Processor Main Frequency | Core i9 9980HK (8 core 16 threads, 16M Cache, 2.40 GHz up to 5.00 GHz, TDP: 45W) |
Graphics Card | In-tel UHD Graphics 630 Graphics Base Frequency : 350 MHz Graphics Max Dynamic Frequency: 1.25GHz DirectX* Support:12 |
Dual Display | H-D-M-I maximum resolution (H-D-M-I 1.4): 4096x2304@24Hz DP maximum resolution (DP): 4096x2304@60Hz Support Synchronous or Asynchronous Display |
Memory(RAM) | 2* Dual Channels 2GB/4GB/8GB/16G DDR4 2400/2666MHz Support Dual Memory,2* 204-pin SO-DIMM 4GB/8GB/16GB Optional. Max to 32GB Only one RAM installed by default |

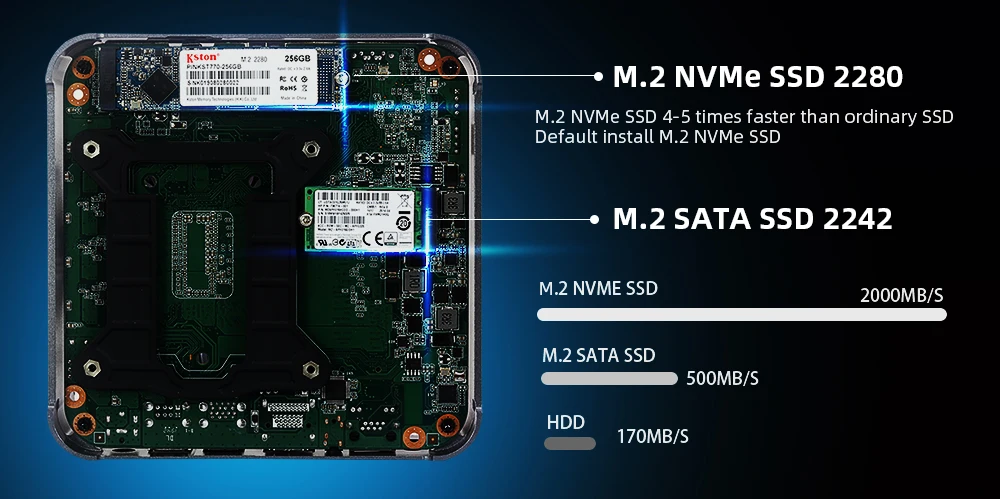

Hard Disk(SSD) | 1× Full Height M.2 2280 SSD Socket 30GB 60GB 120GB 240GB 500GB 1000GB M.2 SSD |
Support System | Official Win 10/8 Linux ubuntu CENTOS Openelec, etc. Notice: we pre-install activated non-genuine version Win7/8/10 OS for free only,; If you need legal genuine Win8/10 OS or other OS like Linux, Ubuntu, Pfsense..., please leave us message. |
Front-Panel Connectors | Power on/off 1 x USB 2.0 1 x USB Type-C |
Rear-Panel Connectors | 1 x H-D-M-I 1 x DP 1 x Audio 2 x USB 3.0 2 x USB 2.0 1 x RJ45 10/100/1000 Mbps Adaptive 1 x DC IN 12V |
Ethernet port | LAN: RJ45 10/100/1000Mbps RTL8168/8111 Supports Wake UP on LAN, S5 RTC Wake Settings, PXE Boot, Restore AC power loss. |
WIFI | 300M,802.11.b/g/n |
USB Port | 3x USB 2.0, 2 x USB 3.0,1x USB Type-C |
Audio port | Realtek ALC662 Audio Control Chip2 Channels, Stereo, Line out |
Extension Options | 1 x M.2 WIFI |
Power | Power Type: DC-IN5.5*2.5 Input Voltage: DC 12V-19V Input Current: 5A Power Supply: DC 12V 5A/60W(AC TO DC,100~240V) |
Mounted | Desktop |
Chassis Material | Aluminum Alloy |
Operating Temperature | -20-65℃ |
Storage Temperature | 15℃-35℃ |
Relative Humidity | 5%~95% (non-condensing) |
Dimension | 150*146*66.5mm |
Package Content | 1x Mini PC 1x Power Adapter 1x WIFI Module (If you buy Barebone PC without RAM and SSD, there will be no WIFI) 1x User Manual |
Payment:
we are support "L/C; DA; DP; T/T; Paypal. "But according the contract and which country"
Packing List:
Normally we use the carton box, 5 or 10pcs per carton
1 x Mini PC
1 x Power adapter(correct power plug based on buyer's country)
1 x WiFi modlue with dual antennas(barebone not include WiFi)
1 x VESA bracket(some model not support)
1 x Sata power cable and data cable.(some model just support one Msata)
1 x Warranty card & user manual
Power adapter type:
Delivery :
Normally we shipping by DHL,EMS,UPS,FEDEX,UPS usually take 3-7 working days to most countries,Pls choose that you need.
Q1. Can you provide OEM/ODM service? How much do I need to pay for your OEM service?
Re: Yes we can. The charges for OEM service depends on the different level of customize. the process of customization is following:
1) provide your specific requirement.
2) our design engineer draw the design draft.
3) you confirm the design draft.
4) we start produce it.
Q2. Can you print my logo on the mini computer ?
Re: Yes, it is support.
Q3. Can your device work 24h*7 days? And what about the temperature range it can operate in?
Re: Yes it can be working in 24h*7 days, working temperature range 0°C~50°C.
Q4. What is the lead time of your products?
Re: Sample order within 1~3 business days . Bulk order within 3~15 business days ( depends on order qty) ,we will test the model to insure the quality before shipping.
Q5.What’s the warranty?
Re: 1 year warranty. After expired warranty and sent back to our company, we will still try our best to repair for you without repair cost (except change new accessories).
Q6.What are the OS do your computers support?
Re: Support Win 7, Win 8, Win 10, Linux ubuntu , pfsense etc. Some model is support XP, such as 1037U,Core CPU is not support XP.
Q7. Which models can run pfsense as a firewall?
Re: 2 or more LAN mini pc can run pfsense as a firewall. we have 2 LAN/4 LAN/6 LAN model.
