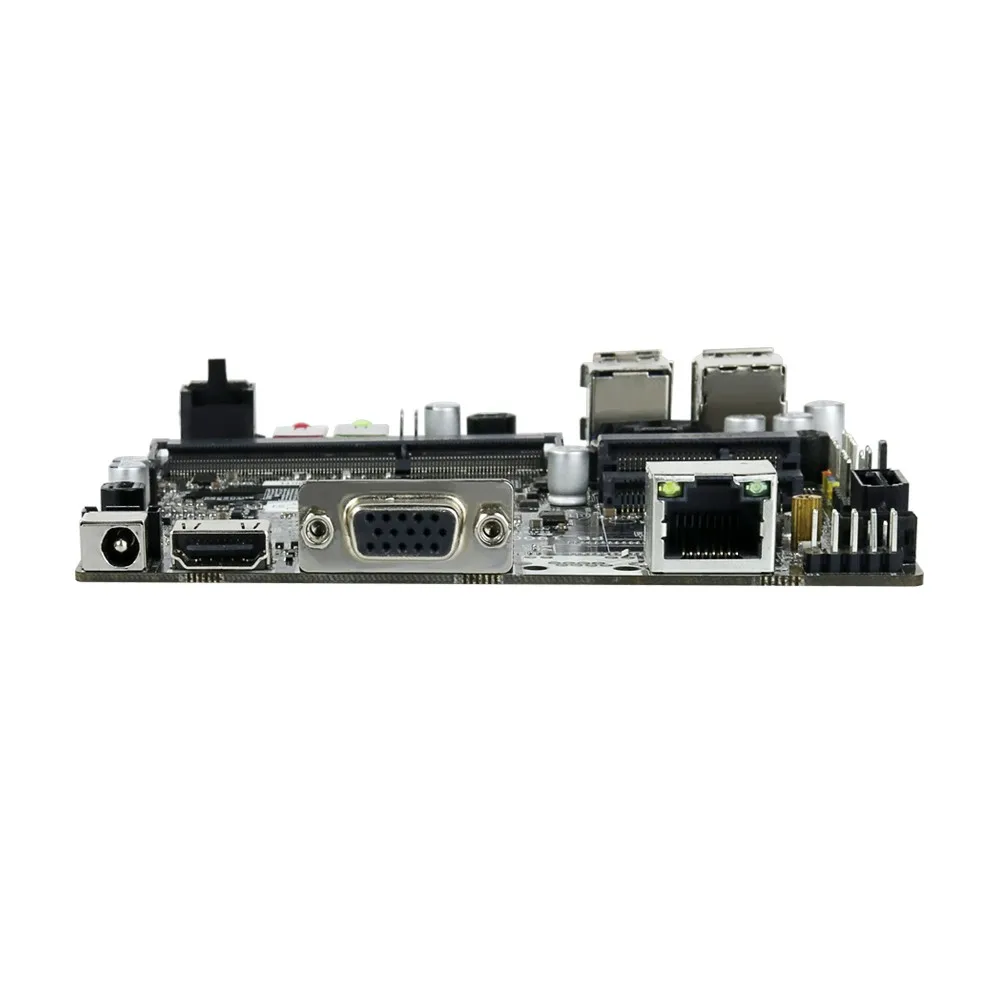

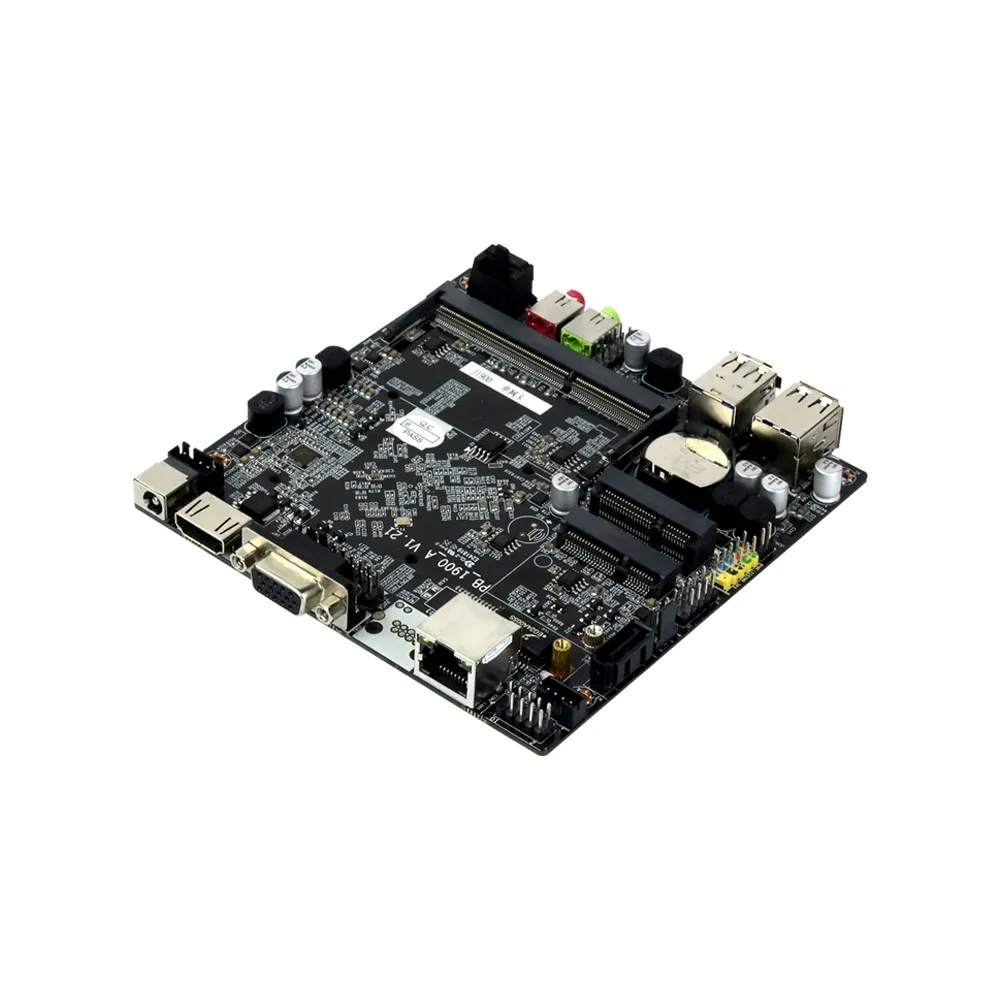

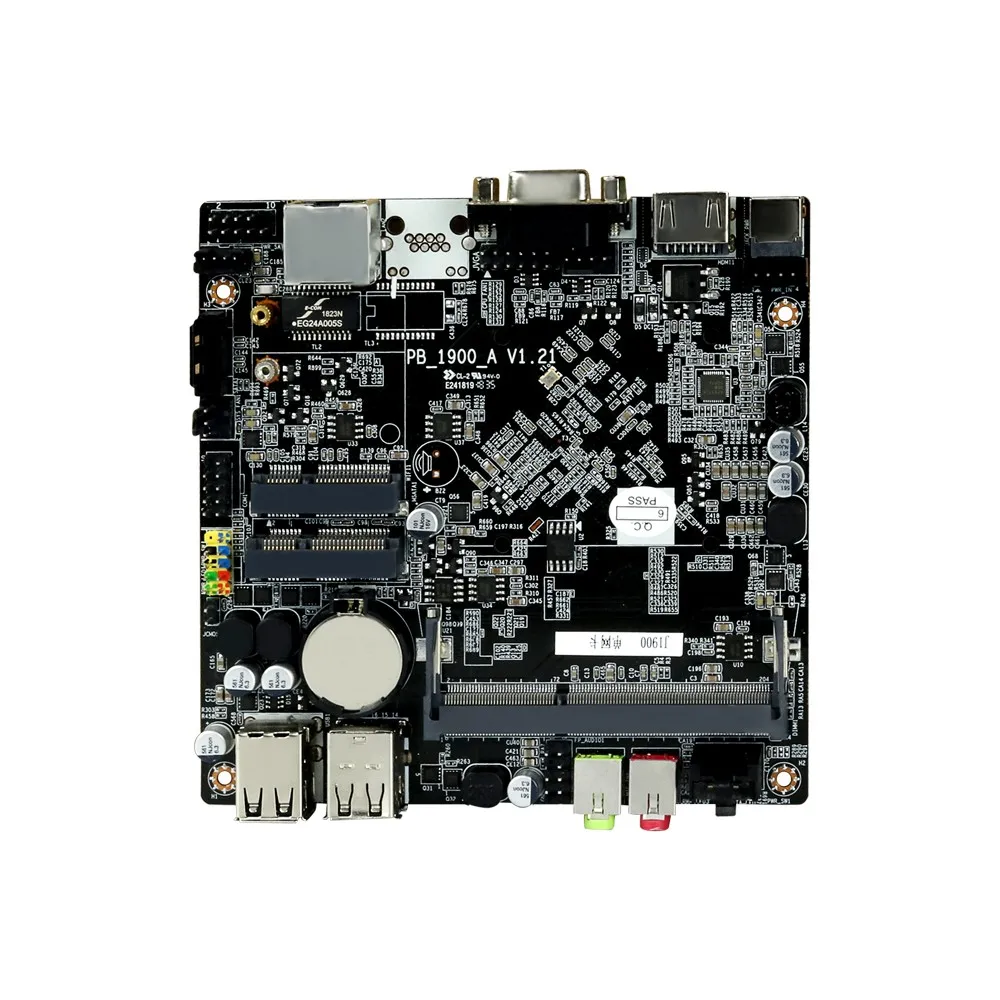

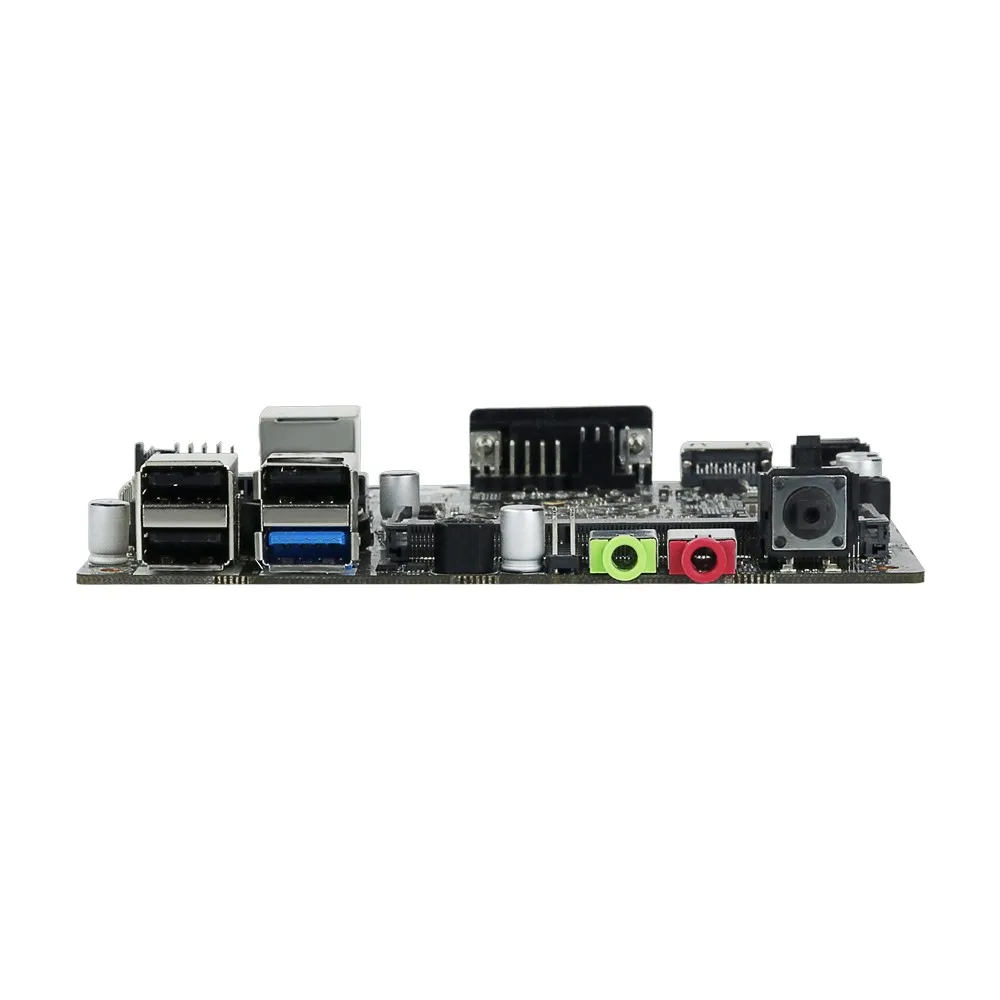

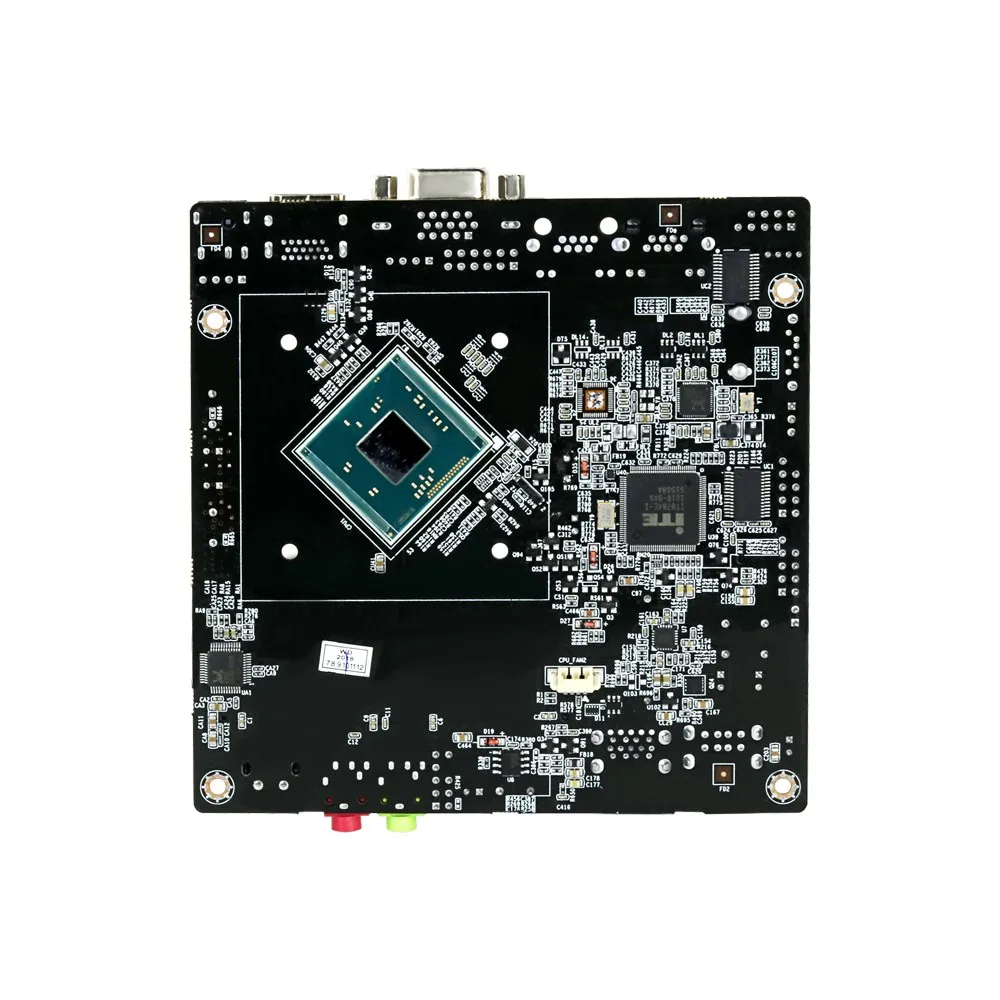

XCY itx motherboard 12X12 Intel Celeron N2815 N2810 J1900 DDR3L Mini PCI-E mSATA WiFi 12V 5A

Feedback Ratings
$43.00 - $64.00 / Unit | 1 Unit (Min. Order)
Model Number:
N2815
$43.00
- +
available
N2810
$43.00
- +
available
J1900
$64.00
- +
available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
8 day(s) after payment received
Contact Supplier
Report Suspicious Activity
Overview
Quick Details
Ports:
Display Port, Ethernet, SATA, USB 2.0, USB 3.0, VGA, WiFi, Bluetooth
CPU Type:
Intel
Chipset:
INTEL H61
Maximum Ram Capacity:
8GB
Products Status:
Stock
Application:
Laptop
Chipset Manufacturer:
Intel
Socket Type:
contain CPU
Form Factor:
Mini-ITX
Memory Type:
DDR3
Graphics Card Type:
Integrated
Hard Drive Interface:
SATA
Brand Name:
Intel Celeron
Place of Origin:
Guangdong, China (Mainland)
Model Number:
X30A
Cores:
Dual Core
Memory Types:
DDR3L 1333
Ethernet:
10/100/1000 Gigabits
Hard Drive Interface::
mini SATA, 2.5 inch SATA

Packaging & Delivery

Selling Units:
Single item
Single package size:
23X15X10 cm
Single gross weight:
0.5 kg
Lead Time :
Quantity(Unit) 1 - 1 2 - 500 >500
Est. Time(days) 8 6 To be negotiated
Product Description

• Support Intel Celeron N2815/N2810/J1900


• 2 channel DDR3L 1333, Max 8GB

• Support 1 x mSATA+SATA

• With 3*USB2.0,1*USB3.0 and 1*lan port,1*vga,1*HD

• Support automatic start the computer when plug in power

• Support wake up on Lan

• OS Support: Support Win7/8/10, Linux, Pfsense etc

• Fan-less design, 0dB noise, Low power consumption


  Specification
Onboard CPU
Intel Celeron Processor Celeron N2815 (Dual-Core 1 MB, 1.86GHz)
Memory
1* SO-DIMM Solt
Support DDR3L 1333, 1.35V
Max support up to 16GB Memory
Hard Disk
Supports 1 * mSATA SSD and 1 * 2.5 inch SATA HDD / SSD
Integrated Graphics
Intel HD Graphics
(Base Frequency 313 MHz,Max Dynamic Frequency 756 MHz)
Audio Card
Realtek ALC662 HD Audio CODEC
Front-Panel Connectors
• Power on/off
• Power LED ( POWER/ SSD)
• 3x USB 2.0,1*USB3.0 Ports
• 1x Lan port (RJ45)
• 1*VGA

Internal Connectors
• 1 x Mini pcie port (only for mSATA SSD)
• 1 x Mini pcie port (only for WIFI, only for USB singal)
• 1 x DDR3L SO-DIMM Memory Slot
• 1 x Automatically boot jumper
Back-Panel Connectors
• 1 × DC 12V input
• 1 x VGA Port
Operating System
Support Windows 7/8/10, Linux, Pfsense etc
RAM(optional)
2GB / 4GB / 8GB DDR3L SO-DIMM
SDD/HHD(optional)
8G/16G/32G/64G/128G/256G/512G mSATA SSD
Power Consumption
TDP 15W
Case Color
Black (Other Color Can Be Customized)
Power
DC100-240V AC/50-60Hz
Operating Temperature
(-10°C~70°C )
Storage Temperature
(-20℃-80℃)
Relative Humidity
10%~90% (non-condensing)
Dimension
12*12cm
Gross Weight
0.5Kg
Package Content
1x Motherboard
1x Power adapter
Packing & Delivery

1.We will send it by DHL/FedEX/UPS to you depending your choose within 7 weekdays.
2.We are unable to control the delivery time because it is processed by Third-party service. If parcel has not arrive within expected time, please contact us first, we will help and give you a satisfied reply or we can extend the delivery date.


FAQ

 1.Such a small computer,how is its running speed?
A:Our mini PC use new generation architecture Intel CPU with M.2 SSD,seconds to office software,design software,net surfing,audio and video entertainment,run smoothly small and medium computer games.

2.Q: What is fanless computer?Not used yet,any features and advantages?
A:Generally there is fan inside if computer to expand the heats caused by CPU and other spare working parts;the fanless computer adopts top quality but lower power consumption spare parts to replace the fan.They cause only a little heat to make sure the computer is in good working condition.
Differences between fan and fanless computers:
Noise: fan computer makes much noise in working,even if it`s high quality but fanless computer makes zero noise.
Dust: fan computer accumulates lots of dust for a longer time used,and dust can make the motherboard circuit shorted;fanless computer never has such troubles.

3.Q: Can I add a HDD to extend the computer even if there is a mSATA SSD inside?

A:mSATA SSD is supported in this computer,it is working fast and smaller size.most of people put operating system in SSD.If you need more capacity,we can put the SATA and power cable,screws in the computer,and you can fix the HDD in the back casing,there are 4 holes for HDD fixed.

4.Q:Does this computer support bigger size TV or projector? What is the effect of bigger display?
A:This computer has VGA ports,supports any size and resolution of TV or projector,it works perfectly with 1080P full HD.In our display room,one us Samsung brand 55 inch Tv,the other one is EPSONTW8000 projector,the display screen is 150 inch,the video is quite perfect.

5.Q:How is its performance? Can I play games on this computer? Because it so small and no fan.
A: The CPU is from Intel the latest technology low power consumption CPU,about 15W,but its performance is quite good,it`s widely used in office,commercial use,live room.It`s works perfectly in WIN7,bule-ray,3D HD videos,it also support well 3D games.

6.Q:Will it be too hot in working? Can it work for 7*24hours,zero noise attracts me,but I am worried about this.
A:The CPU is Intel latest lower saved CPU,rated power of CPU is only 15W,the CPU is only about 60℃ in lots of testing.And it won`t work in the most powerful performance all the time.As you may know,the laptop CPU temperature is about 78℃ or more.Each one will be tested 3*24hrs before shipping.Normally the heat doesn`t affect the CPU life at all if the CPU temperature is under 80℃,so don`t worry at all for its cooling.

7.Q:Why do I feel the casing so hot when it `s working?
A:The CPU almost touches the back casing to expand the heats,its temperature is almost the same same if that of CPU.1st,the metal casing is for heat expanding more easily,this is one of the reasons to use metal materials as its casing;2st,there is thermal paste with silver material imported from Japan in the CPU plug of motherboard.3th,there is free bracket mount attached to computer,you can make it stand in the bracket mount for cooling.

8.Q:How long can this mini computer used?
A:XCY mini PC with low-power hardware,compared to traditional computer,mini PC is more energy saving and environmental protection,less radiation and longer using life.
