XCY mini itx motherboard Intel Celeron J1900 Quad core motherboard 4 LAN mini pc pfsense firewall router

Feedback Ratings
$79.00 - $999.00 / Unit | 2 Units (Min. Order)
Model Number:
NO RAM SSD
$79.00
- +
available
2GB RAM 16GB SSD
$104.00
- +
available
All 9 Options
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
20 day(s) after payment received
Customization:
Customized logo (Min. Order: 10 Units)
Customized packaging (Min. Order: 200 Units)

More

Graphic customization (Min. Order: 200 Units) Less
Contact Supplier
Report Suspicious Activity
Overview
Quick Details
Ports:
Ethernet, USB 2.0, VGA
CPU Type:
Intel
Chipset:
Intel J1900
Maximum Ram Capacity:
8GB
Products Status:
Stock
Application:
Desktop
Chipset Manufacturer:
Intel
Socket Type:
integrated
Form Factor:
Mini-ITX
Memory Type:
DDR3L( 1.35V)
Graphics Card Type:
Integrated
Hard Drive Interface:
SATA, Msata
FSB / HT:
2GHZ
Brand Name:
XCY
Place of Origin:
Guangdong, China (Mainland)
Processor Number:
J1900
Cores:
4
Threads:
4
Processor Main Frequency:
2.41Ghz, up to 2.58Ghz
Memory Types:
DDR3L 1333/1600MHz
Memory Capacity:
2GB 4GB 8GB
Graphics:
Intel HD Graphics
Ethernet:
10/100/1000 Gigabits
Supported OS:
Pfsense, Sophos, VyOS, Linux iptables, Win7/8/10
NIC:
Intel 82583V Gigabit Ethernet Controller

Packaging & Delivery

Selling Units:
Single item
Single package size:
27X25X10 cm
Single gross weight:
0.5 kg
Package Type:
Normally we use the carton box, 10pcs per carton, 30KG per carton, the size is :40 x 31 X 26cm. 1 x Mini PC 1 x Power adapter(correct power plug based on buyer's country) 1 x Warranty card & user manual
Lead Time :
Quantity(Unit) 1 - 1 2 - 500 >500
Est. Time(days) 20 7 To be negotiated
Related Products
Onboard CPU
Intel Celeron Processor J1800
1M Cache, up to 2.58 GHz
Ethernet
4 x (10/100/ 1000Mbps)
USB 2.0
2
Case size
14.5 x 12.2cm
Cooling
Fanless
Memory
DDR3L 1333/1600MHz
Onboard CPU
Intel Celeron 1037U Processor (2M Cache, 1.8Ghz)
Ethernet
6 x (10/100/ 1000Mbps)
USB 3.0
2
Video port
Vga
Cooling
support Fanless or Fan
Memory
DDR3/L/-RS 1333/1600
Product Description

Features:
• Support Intel Celeron J1900/ J1800
• One channel DDR3L 1333/16000, Max 8GB
• Support 1 x mSATA
• Wit 4 x gigabit Ethernet and 1 x COM( RJ45 )
• Support automatic start the computer when plug in power
• Support wake up on Lan
• OS Support: Support Win7/8/10, Linux, Pfsense etc
• Fan-less design, 0dB noise, Low power consumption

Specification
Onboard CPU
Intel Celeron Processor J1900
(Quad-Core 2 MB L2, 2.00GHz, up to 2.42 GHz)
Memory
1* SO-DIMM Solt
Support DDR3L 1333/1600 MHz, 1.35V
Max support up to 8GB Memory

Hard Disk
Supports 1 * mSATA SSD and 1 * 2.5 inch SATA HDD / SSD
Integrated Graphics
Intel HD Graphics
(Base Frequency 688.00 MH,Max Dynamic Frequency 854.00 MHz)

Onboard LAN
4 x Intel I211-AT- 10/100/1000 Controller
Audio Card
Realtek ALC662 HD Audio CODEC

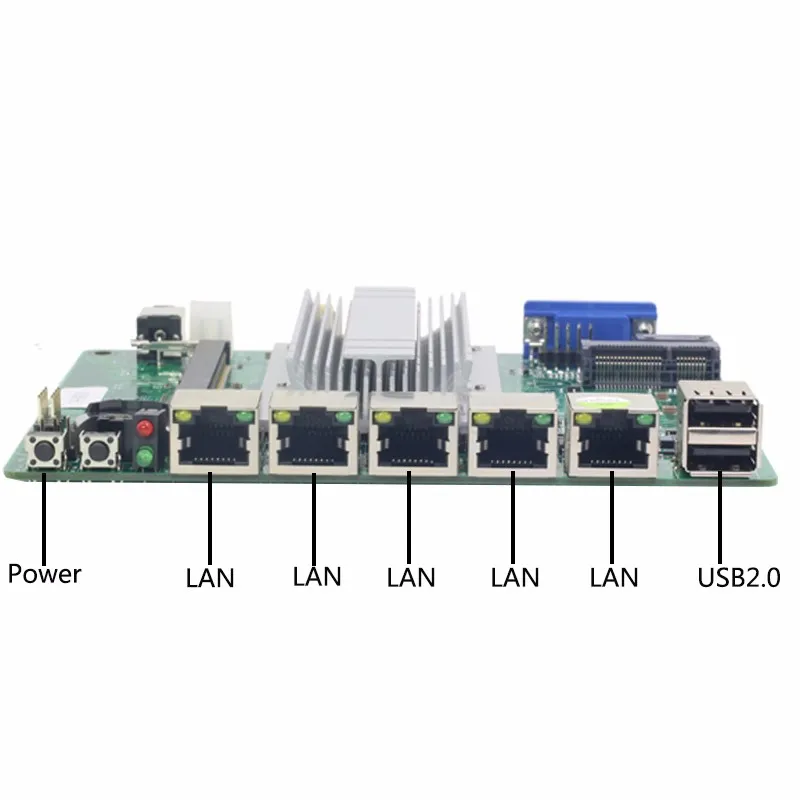

Front-Panel Connectors
• Power on/off
• Power LED ( POWER/ SSD)
• 2 x USB 2.0 Ports
• 4 x Lan port (RJ45)

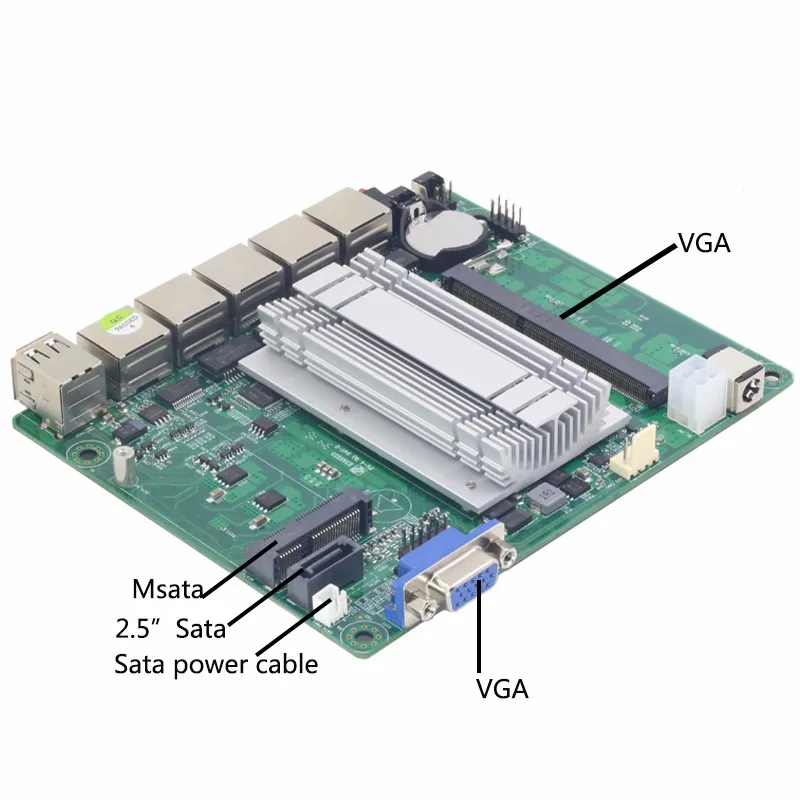

Internal Connectors
• 1 x Mini pcie port (only for mSATA SSD)
• 1 x Mini pcie port (only for WIFI, only for USB singal)
• 1 x DDR3L SO-DIMM Memory Slot
• 1 x Automatically boot jumper
Back-Panel Connectors
• 1 × DC 12V input
• 1 x VGA Port
Operating System
Support Windows 7/8/10, Linux, Pfsense etc
RAM(optional)
2GB / 4GB / 8GB DDR3L SO-DIMM
SDD/HHD(optional)
8G/16G/32G/64G/128G/256G/512G mSATA SSD
Power Consumption
TDP 10W
Case Color
Black (Other Color Can Be Customized)
Power
DC100-240V AC/50-60Hz
Operating Temperature
(-10°C~70°C )
Storage Temperature
(-20℃-80℃)
Relative Humidity
10%~90% (non-condensing)
Dimension
14.5 x 12.2 cm
Gross Weight
0.5Kg
Package Content
1x Motherboard
1x Power adapter

Configurations on this link
Memory
NONE
Hard Disk
NONE
WiFi / Bluetooth
NONE
Detailed Images
Our Company
Our Service

1.Warranty: 1 year, the second year and the third year, we can repair it free. but we will charge for the parts that need to change.
2.We can sell one sample for your test.
3.We can provide OEM/ODM services.
4.We ensure offer great products, services and favorable prices. And we have a long-term and reliable supply. If you have any questions, suggestions or need any assistance, we are always here to give you quick response.

Certifications
Packing & Delivery

Payment:
we are support "L/C; DA; DP; T/T; Western Union; Paypal. "But according the contract and which country"


Packing List:
Normally we use the carton box, 10pcs per carton, 30KG per carton, the size is :60 x 39 X 26
1 x Mini PC
1 x Power adapter(correct power plug based on buyer's country)
1 x WiFi modlue with dual antennas(barebone not include WiFi)
1 x VESA bracket(some model not support)

1 x Sata power cable and data cable.(some model just support one Msata)
1 x Warranty card & user manual

Power adapter type:

Delivery:

Normally we shipping by DHL,EMS,UPS,FEDEX and Packet. usually take 3-7 working days to most countries,We will choose the right logistics according to your country.
