XCY motherboard processor with i3 i5 i7 Intel Celeron J1900 Dual NIC RS485 RS232 ddr3 laptop motherboard

Feedback Ratings
$59.00 - $170.00 / Piece | 1 Piece (Min. Order)
Model Number:
2955U
$59.00
- +
available
J1900
$88.00
- +
available
All 5 Options
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
20 day(s) after payment received
Customization:
Customized logo (Min. Order: 200 Pieces)
Customized packaging (Min. Order: 200 Pieces)

More

Graphic customization (Min. Order: 200 Pieces) Less
Contact Supplier
Report Suspicious Activity
Overview
Quick Details
Ports:
Display Port, Ethernet, USB 2.0, USB 3.0, VGA, WiFi, Bluetooth
CPU Type:
Intel
Chipset:
Intel B250
Maximum Ram Capacity:
16GB
Products Status:
Stock
Application:
Laptop
Chipset Manufacturer:
Intel
Socket Type:
LGA 1151
Form Factor:
ATX
Memory Type:
DDR3
Graphics Card Type:
Integrated
Hard Drive Interface:
SATA, MSATA
FSB / HT:
2.0GHz
Brand Name:
Intel
Place of Origin:
Guangdong, China (Mainland)
Processors:
Intel Celeron J1900
Ethernet:
Intel i211AT 10/100/1000M Gigabit Ethernet
Audio Chip:
ALC662 HD Audio(Line-in ,Line-out, Mic-in)
COM Ports:
6x COM RS232 ( 2x RS485 optional )
Working Voltage:
DC12V-5A
Wireless:
Mini PCI-E, WiFi ( Bluetooth ) 802.11ac/b/g/n
USB Ports:
2x USB3.0, 2x USB2.0 ( support expanded extra 4X USB 2.0)
Dimension:
3.5inch (102mm*146mm*25mm)
4G LTE Support:
Yes, Mini PCI-E half

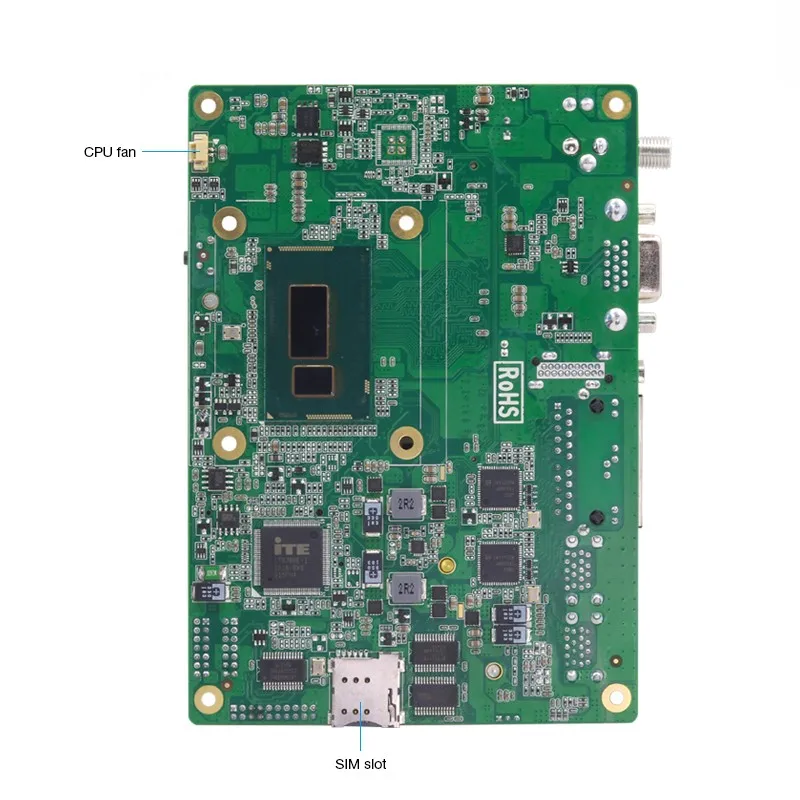

SIM slot:
1x Micro SIM card slot

Packaging & Delivery

Selling Units:
Single item
Single package size:
20X10X5 cm
Single gross weight:
0.5 kg
Lead Time :
Quantity(Piece) 1 - 1 2 - 500 >500
Est. Time(days) 20 7 To be negotiated
Customizable

We can support OEM/ODM service, the process of customization is following:

1: Provide your specific requirement.
2: Our design engineers draw the design draft.
3: You confirm the design draft.
4: We start produce it.

Assisting customers in their journey towards customized solutions:

☑ Logo(Packing , Computer Logo)                               ☑ Computer Colors
☑ Security                                                                                ☑ Interfaces Customization
☑ Virtualisation                                                                    ☑ And so on...
☑ Data Protection


For more information, Pls leave email.

Product Description

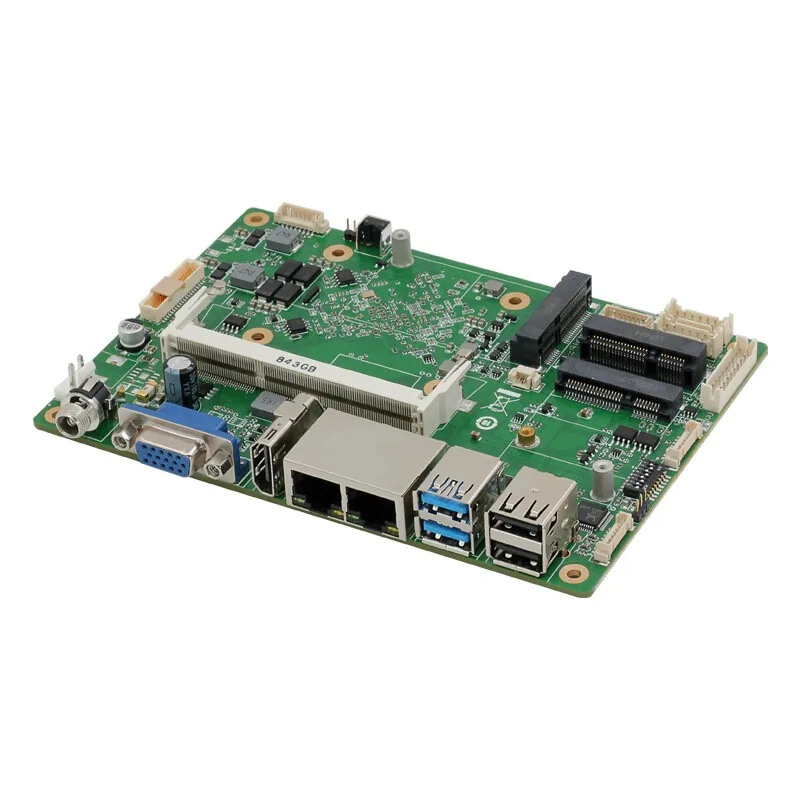

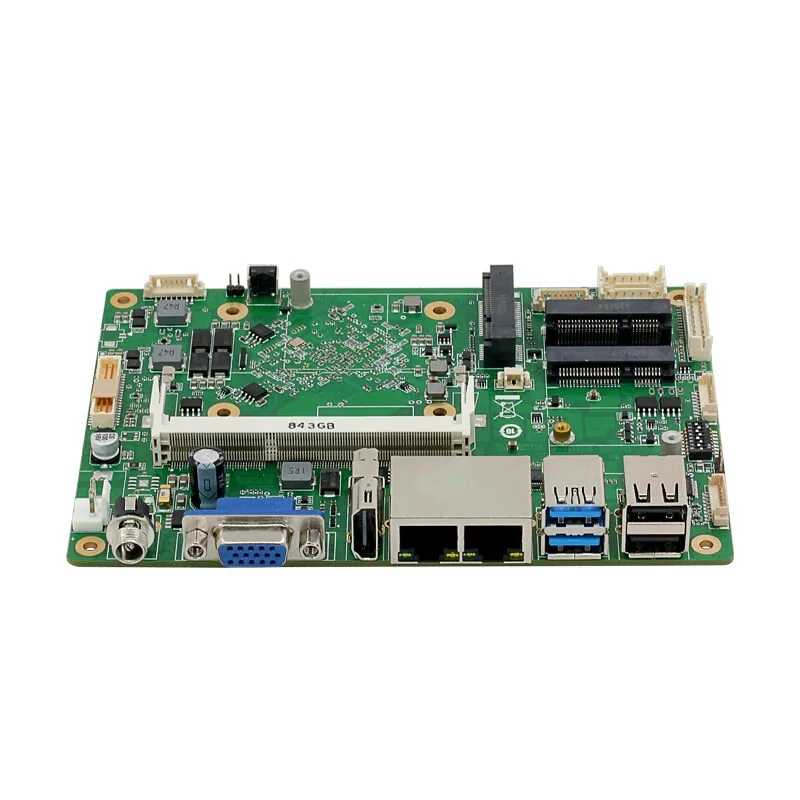

Fanless Motherboard integrated CPU Optional
CPU
Intel Celeron 2955U
Intel Celeron J1900
Intel Core i5 4200U
Price
59 USD
88 USD
147 USD
Intel Core i7 4500U
162 USD
Intel Core i7 5500U
170 USD
Above price NOT include RAM, Hard Drive, BT/WIFI Module, Power Adapter, if you need them, please leave us message.
Processor Optional
Intel Celeron 2955U (Dual Cores, Dual threads, 1.4GHz )
Intel Celeron J1900 (Four Cores, 4 threads, 2.0GHz, max 2.42GHz )
Intel Core i5 4200U ( Dual Cores, 4 threads, 1.6GHz, max 2.60GHz )
Processor Optional
Intel Core i7 4500U( Dual Cores, 4 threads, 1.80GHz, max 3.0GHz )
Intel Core i7 5500U( Dual Cores, 4 threads, 2.4GHz, max 3.0GHz )

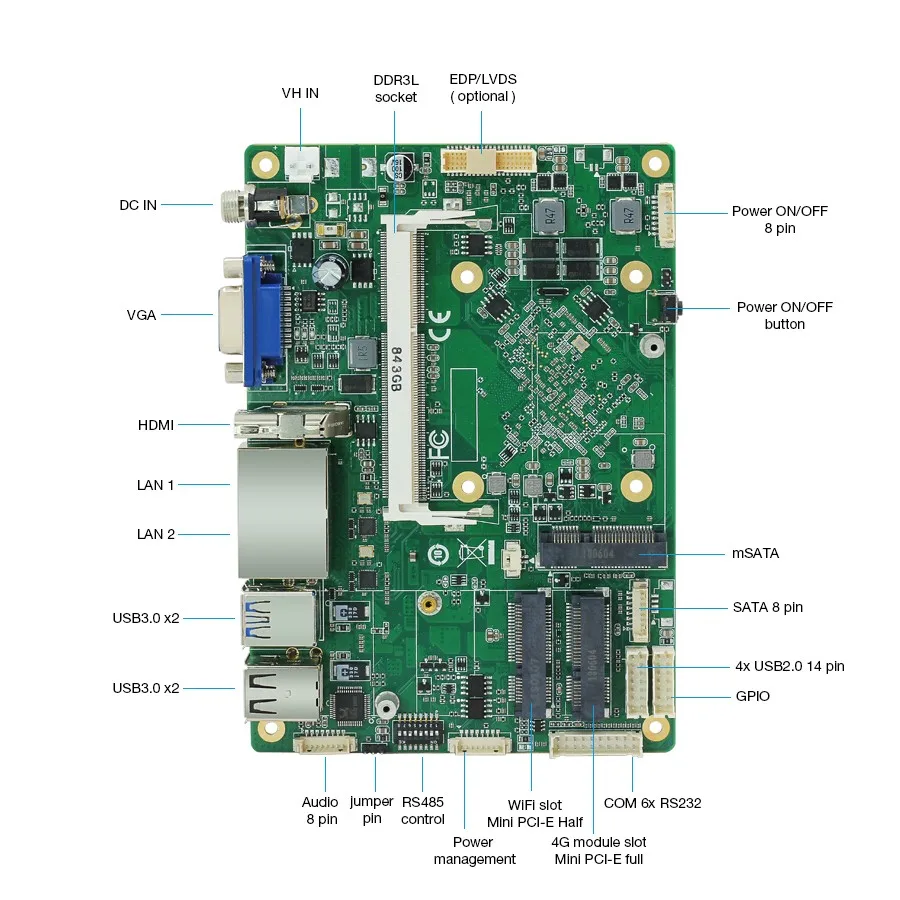

Ethernet
2x RJ45 10/100/1000Mb/s Intel i211AT Ethernet
Audio Chip
ALC662 HD Audio(Line-in ,Line-out, Mic-in)
Display
1x VGA 1x HDMI ,Optional, 1X eDP(2lanes)or 1x 18/24bit Dual channel LVDS
Mini-pcie
1x mini PCIE-half (Pcie bus) for WiFi module .
1x mini PCIE-full(Usb bus) for 4G module
Supported OS
Windows 10, Windows 8.1, Linux, WES7, VxWorks, and more
Memory Type
SODIMM*1 max 8GB DDR3L-1600Mhz
Hard Drive
1x SATA 8pin ( free send SATA cable ) 1x mSATA socket, compatible LPC
I/O Ports
4x GPIO IN
4x GPIO OUT
2x GPIO BLINK
1x CIR
Voltage 5V
USB
2x USB3.0 (front)
2x USB2.0 (front)

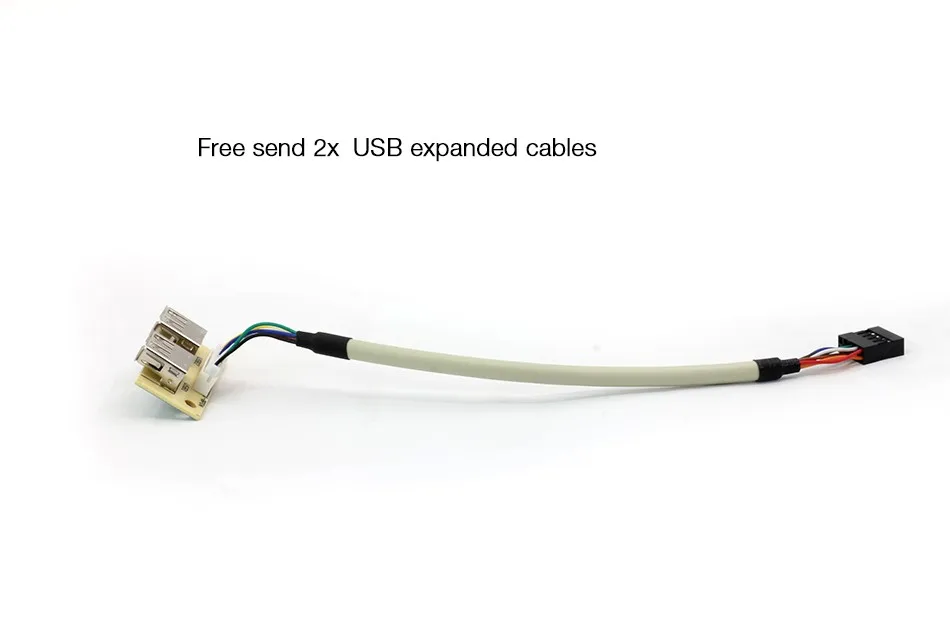

4x USB2.0 ( we free send USB expand cable )
COM
6x RS232( 3 line), COM5 COM 6 support set to RS485

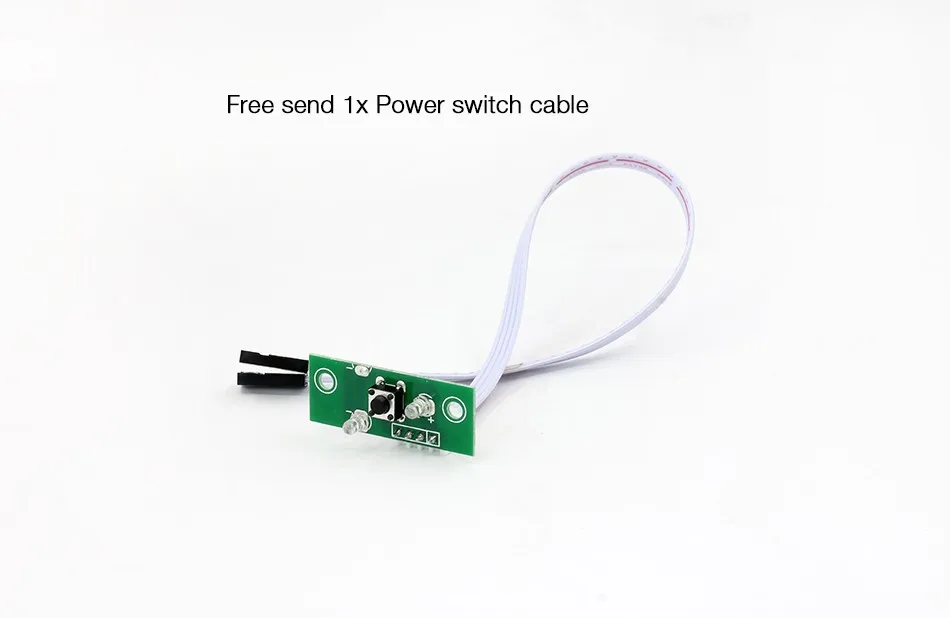

Free send expand cables
Working Voltage
DC +12V~+19V,recommend +12V-5A
Temperature
Operating -20°C to +75°C,-40°C to +80°C(optional)
Dimension
3.5inch embedded Mini ITX(102mm*146mm*25mm)
Features
Watchdog,Auto power on, RTC Wake Up, Non-disk Boot
State lamp interface, trigger switch(wafer 1*2)
Our Company
Contact us
FAQ

Q1. Can you provide OEM/ODM service? How much do I need to pay for your OEM service?
Re: Yes we can. The charges for OEM service depends on the different level of customize. the process of customization is following:
1) provide your specific requirement.
2) our design engineer draw the design draft.
3) you confirm the design draft.
4) we start produce it.

Q2. Can you print my logo on the mini computer ?
Re: Yes, it is support.

Q3. Can your device work 24h*7 days? And what about the temperature range it can operate in?
Re: Yes it can be working in 24h*7 days, working temperature range 0°C~50°C.

Q4. What is the lead time of your products?
Re: Sample order within 1~3 business days . Bulk order within 3~15 business days ( depends on order qty) ,we will test the model to insure the quality before shipping.

Q5.What's the warranty?
Re: 1 year warranty. After expired warranty and sent back to our company, we will still try our best to repair for you without repair cost (except change new accessories).

Q6.What are the OS do your computers support?
Re: Support Windows 7, Windows 8, Windows 10, Linux ubuntu , pfsense etc.  Some model is support XP, such as C1037U,Core CPU is not support XP.

Q7. Which models can run pfsense as a firewall?
Re: 2 or more LAN mini pc can run pfsense as a firewall. we have 2 LAN/4 LAN/6 LAN model.
