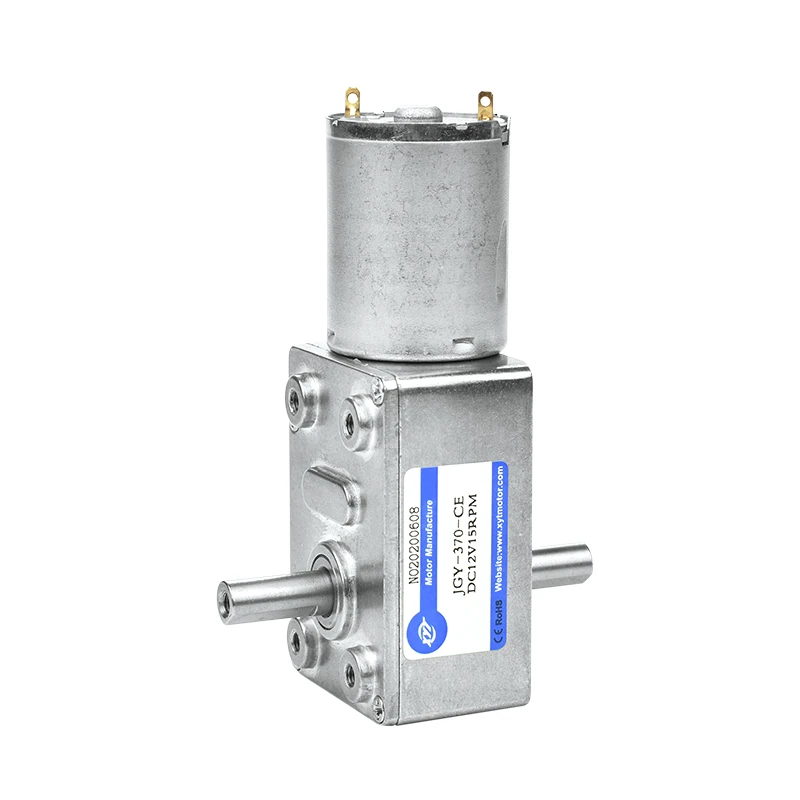

XYT JGY370 Quality Double Shaft Powerful DC Motor Reversible12V DC Worm Gear Motor

  • 2-149 Pieces
    $6.60
  • 150-499 Pieces
    $6.00
  • 500-1999 Pieces
    $5.50
  • >=2000 Pieces
    $5.00
Voltage(V):
6V 12V 24V
Output Power:
3W
Speed of Revolution:
150rpm per min
$
- +
available
90rpm per min
$
- +
available
55rpm per min
$
- +
available
All 9 Options
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
3 day(s) after payment received
Customization:
Customized logo (Min. Order: 100 Pieces)
Customized packaging (Min. Order: 2000 Pieces)

More

Graphic customization (Min. Order: 2000 Pieces) Less
Samples: $7.00 /Piece, 1 Piece (Min. Order): Buy Samples
Contact Supplier
Samples - $7.00 /Piece, 1 Piece (Min. Order): Buy Samples
Loading... Add To Cart
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
XYT
Model Number:
JGY-370 double-out shaft
Usage:
BOAT, Car, Electric Bicycle, FAN, Home Appliance
Certification:
ce, RoHS
Type:
Worm Gear Motor
Torque:
0.8kg.cm-30kg.cm
Construction:
Permanent Magnet
Commutation:
Brush
Protect Feature:
Totally Enclosed
Speed(RPM):
4~210RPM
Continuous Current(A):
<=600mA
Efficiency:
IE 1
Model:
JGY-370 Dual Shaft

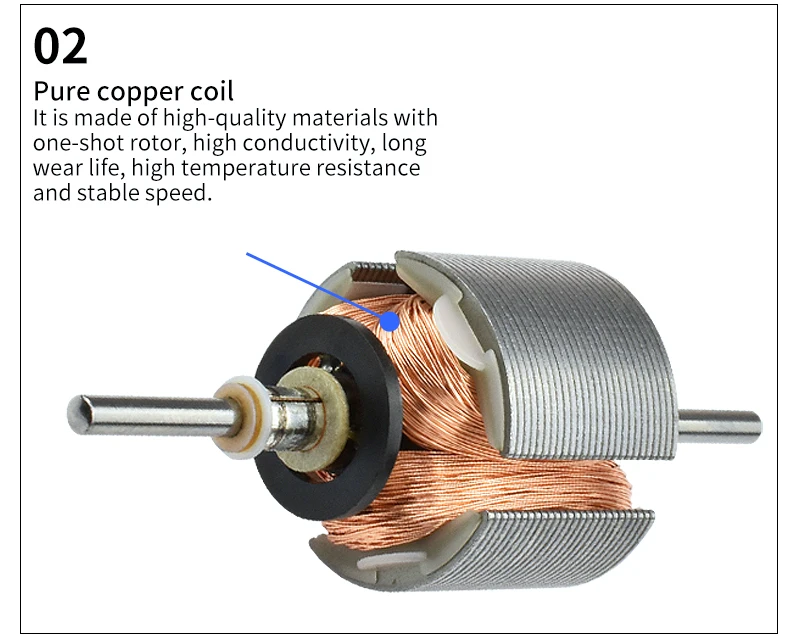

Rotor:
Pure copper coils
Motor type:
Dc Brush Gear Motor

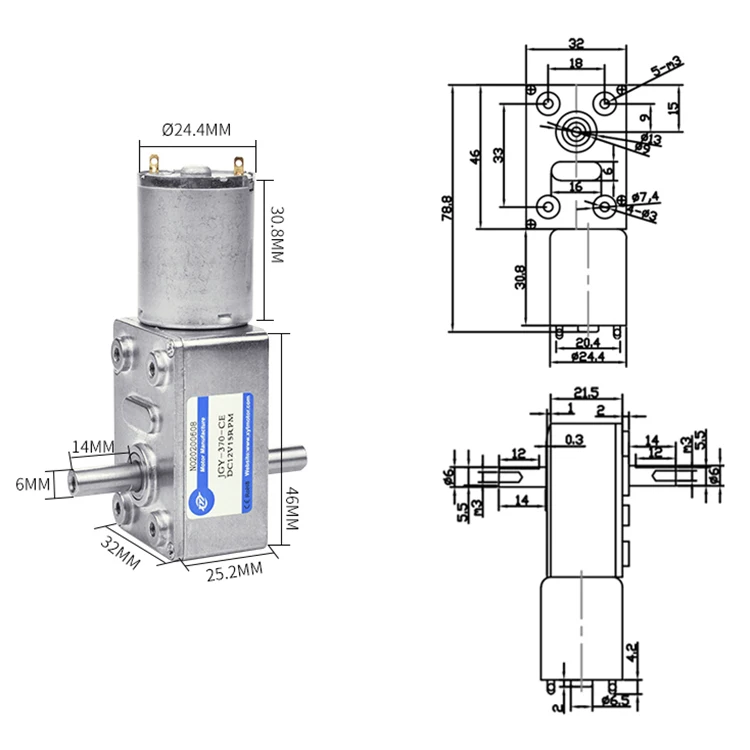

Size:
76.8*36mm
Feature:
High Efficiency

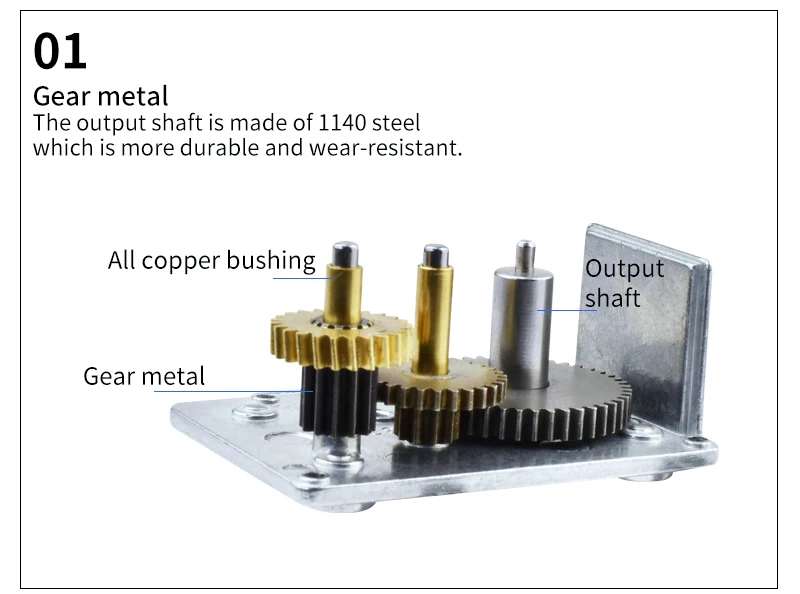

Gear Material:
Metal Gear
Output Shaft Diameter:
6mm or customized
Output Shaft Length:
14mm
Rated Voltage:
6v 12v 24v
Product Name:
Double Shaft Powerful DC Motor Reversible12v DC Worm Gear Motor
Product Certification certification
RoHS Certified.
Valid from 2019-11-19 until 2049-12-31

Packaging & Delivery

Selling Units:
Single item
Single package size:
7.88X3.2X2.15 cm
Single gross weight:
0.210 kg
Package Type:
1. Shockproof foam packing 2. Suitable carton size
Picture Example:
package-img
package-img
Lead Time :
Quantity(Pieces) 1 - 2 3 - 100 >100
Est. Time(days) 3 7 To be negotiated
Product Description
XYT JGY370 Quality Double Shaft Powerful DC Motor Reversible12V DC Worm Gear Motor
Product number
JGY-370
Motor Voltage (VDC)
6V, 12V, 24V
Reduction Ratio
40, 65, 150, 200, 260, 340, 600, 1000
Gearmotor No Load Speed (RPM)
4rpm~210rpm
Gearmotor Rated Load Speed (RPM)
3rpm~160rpm
Gearmotor Rated Load Torque(kg.cm)
0.8-30kg.cm
Gearmotor No Load Current(A)
<100mA
Gearmotor rated current(A)
<600mA
Housing material
Stainless steel

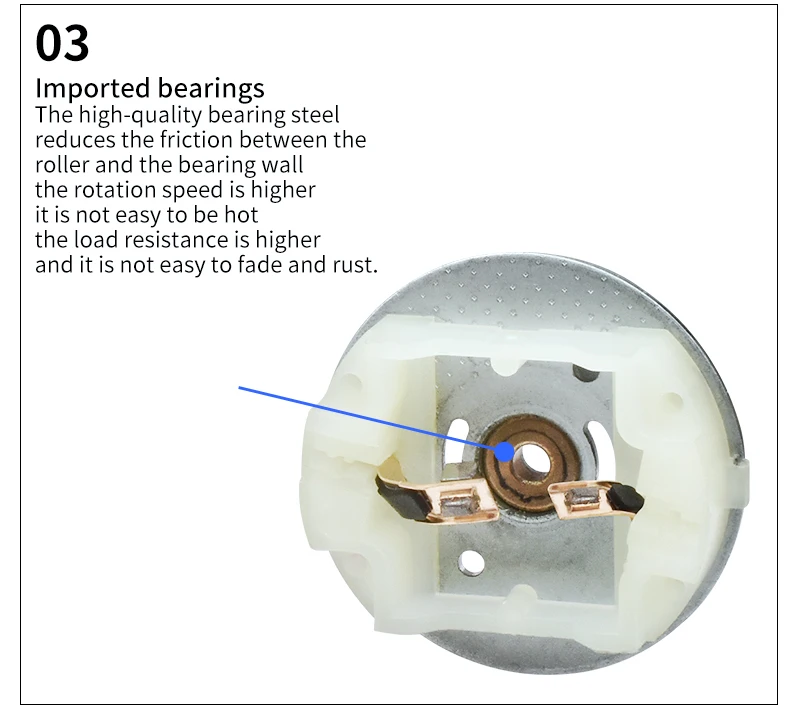

Bearing at output shaft
Ball-bearing or oil-retaining bearing
Shaft Shape
Round-type
Gear type
Metal gear
6V 0660
Reduction ratio
40
65
150
200
260
340
600
1000
No-load current MA
100
100
100
100
100
100
100
100
No-load RPM
150
90
40
30
23
18
10
6
Rated torque KG.CM
1.5
2.4
5.6
7.4
10
12
22.5
25
Rated RPM
100
70
30
22
17
13
7
4
Rated current A
0.6
0.6
0.6
0.6
0.6
0.6
0.6
0.6
Torque KG.CM
6.4
10
24
25
25
25
25
25
Stall current A
1.8
1.8
1.8
1.8
1.8
1.8
1.8
1.8
12V 1260
Reduction ratio
40
65
150
200
260
340
600
1000
No-load current MA
60
60
60
60
60
60
60
60
No-load RPM
150
90
40
30
23
18
10
6
Rated torque KG.CM
1.5
2.4
5.6
7.4
10
12
22.5
25
Rated RPM
100
70
30
22
17
13
7
4
Rated current A
0.6
0.6
0.6
0.6
0.6
0.6
0.6
0.6
Torque KG.CM
6.4
10
24
25
25
25
25
25
Stall current A
1.3
1.3
1.3
1.3
1.3
1.3
1.3
1.3
24V 2460
Reduction ratio
40
65
150
200
260
340
600
1000
No-load current MA
60
60
60
60
60
60
60
60
No-load RPM
150
90
40
30
23
18
10
6
Rated torque KG.CM
1.5
2.4
5.6
7.4
10
12
22.5
25
Rated RPM
100
70
30
22
17
13
7
4
Rated current A
0.2
0.2
0.2
0.2
0.2
0.2
0.2
0.2
Torque KG.CM
6.4
10
24
25
25
25
25
25
Stall current A
0.6
0.6
0.6
0.6
0.6
0.6
0.6
0.6
12V 1285
Reduction ratio
40
65
150
200
260
340
600
1000
No-load current MA
80
80
80
80
80
80
80
80
No-load RPM
210
130
55
40
32
25
14
8
Rated torque KG.CM
1.7
2.6
6
8
10
13
24
30
Rated RPM
160
100
40
30
24
20
10
6
Rated current A
0.6
0.6
0.6
0.6
0.6
0.6
0.6
0.6
Torque KG.CM
6.4
10
24
25
25
25
25
25
Stall current A
1.8
1.8
1.8
1.8
1.8
1.8
1.8
1.8
24V 2485
Reduction ratio
40
65
150
200
260
340
600
1000
No-load current MA
80
80
80
80
80
80
80
80
No-load RPM
210
130
55
40
32
25
14
8
Rated torque KG.CM
1.7
2.6
6
8
10
13
24
30
Rated RPM
160
100
40
30
24
20
10
6
Rated current A
0.6
0.6
0.6
0.6
0.6
0.6
0.6
0.6
Torque KG.CM
6.4
10
24
25
25
25
25
25
Stall current A
1.8
1.8
1.8
1.8
1.8
1.8
1.8
1.8
24V 2440
Reduction ratio
40
65
150
200
260
340
600
1000
No-load current MA
15
15
15
15
15
15
15
15
No-load RPM
10
50
25
20
15
11
6
4
Rated torque KG.CM
0.8
1.3
3
4
5
7
12
20
Rated RPM
75
40
19
14
10
8
4
3
Rated current A
0.08
0.08
0.08
0.08
0.08
0.08
0.08
0.08
Torque KG.CM
4
6.5
15
20
25
25
25
25
Stall current A
0.6
0.6
0.6
0.6
0.6
0.6
0.6
0.6
Application of product
Related Products
Packing&Shipping
Packing:
1. Per piece packed by the anti vibration foam
2. All pieces packed by quality export carton
Shipping:
1. Express: DHL, FedEx, UPS, EMS, TNT etc
2. Sea freight: Port to Port, Door to Door
3. Air Freight: Port to Port, Door to Door
Please choose which one is convenient for you.
Company Introduction
Certifications
RAQ & Reviews
Q1: Are you a Manufacturer or a Trading Company?
A:We are a professional manufacturer with over 11 years of experience, and have a complete supply chain from parts processing to finished products.
Q2: How is your Quality Control?
A: We have professional checking staff on every production line process. After finishing the whole motor, we have the entire quality machine to test the motor. Such as Hardness Tester, 2.5D Image Tester, Salt Spray Chamber, Life Tester, Temperature Test Machine, and Noise tester etc.
Q3: How about Sample order?
A: Sample is available for you. please contact us for details. Once we charge you sample fee,please feel easy, it would be refund when you place formal order.
Q4: How long is the producing and shipping?
A: 1. Delivery timedepends on the quantity you order. usually it takes 7-15 working days.
2. Regular type products can be shipped within 3 workingdays, and other customized samples can be shipped within 7-10 working days.
Q5: When will you reply after got my inquiries?
A: Ourcustomer service is online 24 hours, looking forward to your inquiry.
