YFMB380B IR lamp Heating System Semi-auto Laminating Machine

  • 1-4 Sets
    $6,300.00
  • 5-9 Sets
    $6,100.00
  • >=10 Sets
    $5,900.00
Model Number:
YFMB380B YFMB720B YFMB920B YFMB1200B
Power(W):
1.5kw
$
- +
available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
15 day(s) after payment received
Customization:
Customized logo (Min. Order: 5 Sets)
Graphic customization (Min. Order: 5 Sets)

More

Customized packaging (Min. Order: 5 Sets) Less
Contact Supplier
Report Suspicious Activity
Overview
Quick Details
Warranty:
1 year, 1 Year
Certification:
CE Certificate
Type:
Mechaical
Condition:
New
After-sales Service Provided:
Video technical support, Engineers available to service machinery overseas
Place of Origin:
Zhejiang, China
Brand Name:
FENGMING
Voltage:
220/380V
Weight:
1600kg
Automatic Grade:
Semi-Automatic
Dimension(L*W*H):
1300*1500*1550mm
Product name:
YFMB380B IR lamp Heating System Semi-auto Laminating Machine
Speed:
1700pcs/h
Color:
You can decide
Paper Thickness:
80-500g/mm
Product Type:
book binding machine
Mode of operation:
semi-automatic
Model:
YFMB380B

Packaging & Delivery

Selling Units:
Single item
Single package size:
1300X1500X1550 cm
Single gross weight:
200.0 kg
Package Type:
Normally use wooden carton, also can do fumigation
Picture Example:
package-img
Lead Time :
Quantity(Sets) 1 - 1 2 - 5 6 - 10 >10
Est. Time(days) 15 25 45 To be negotiated

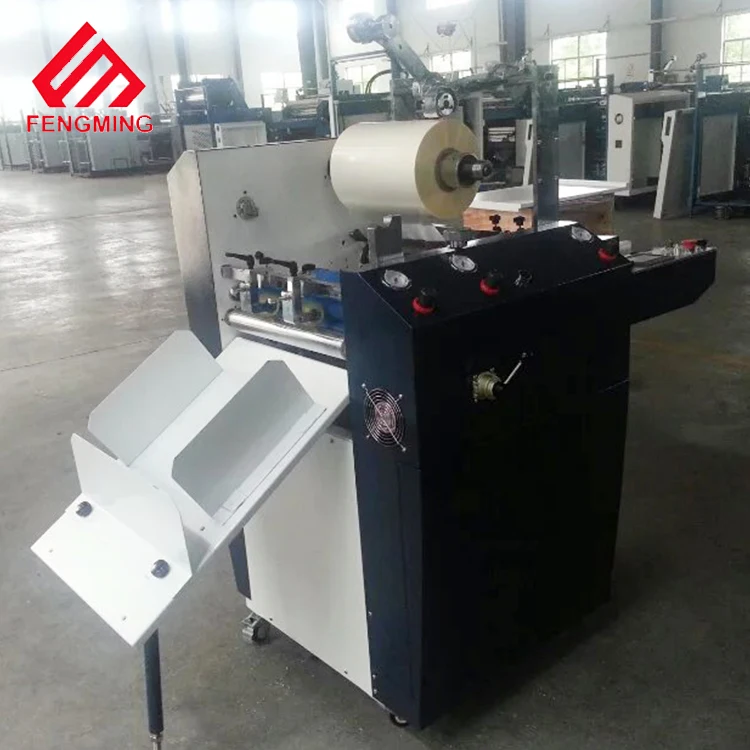

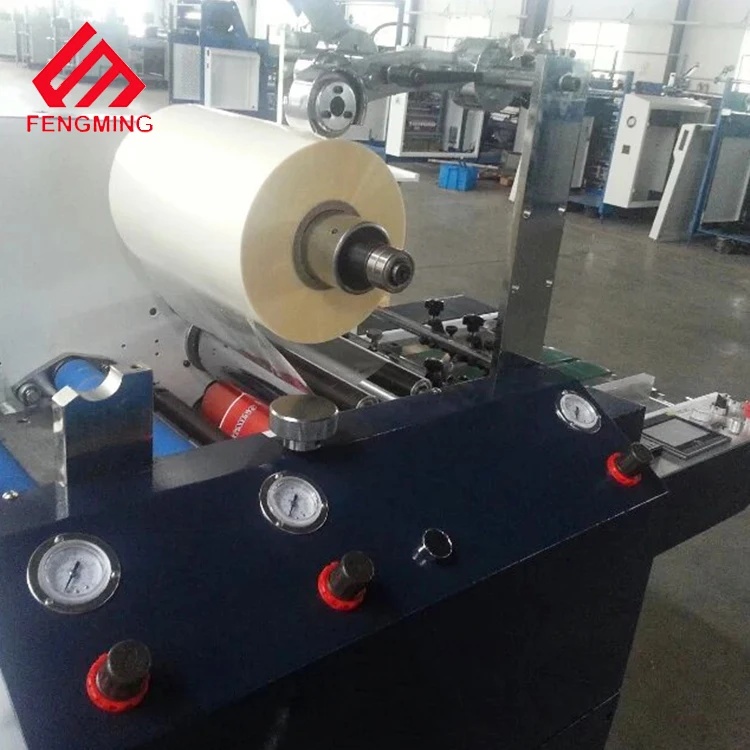

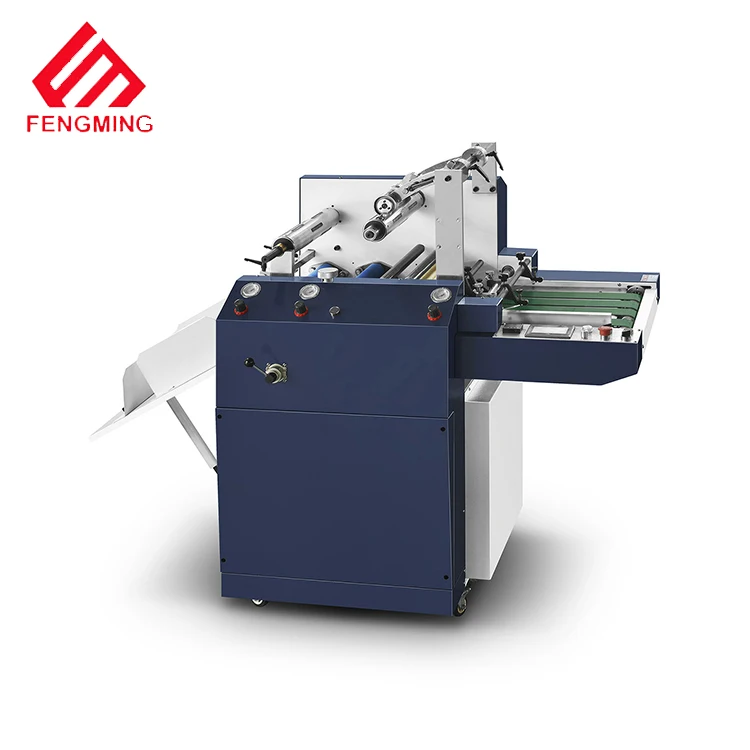

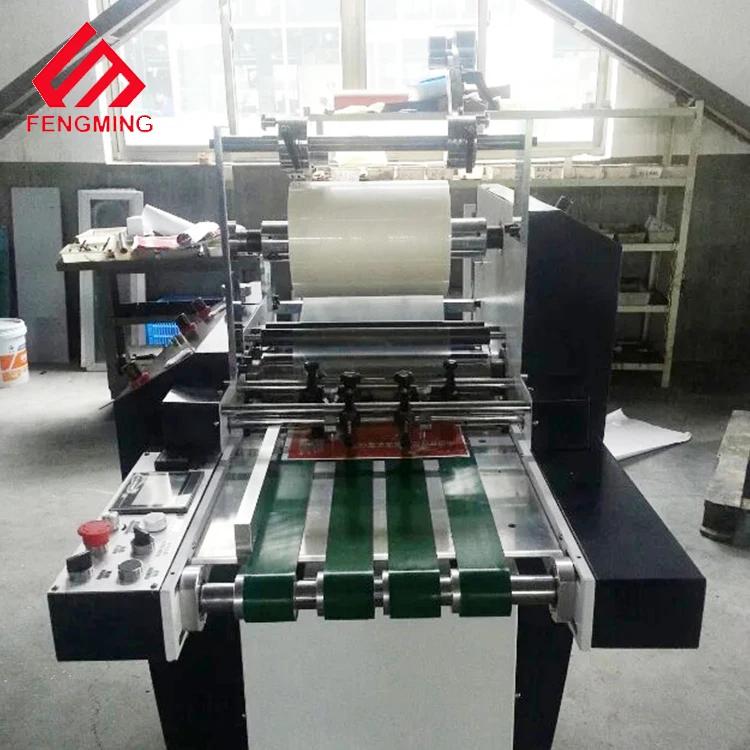

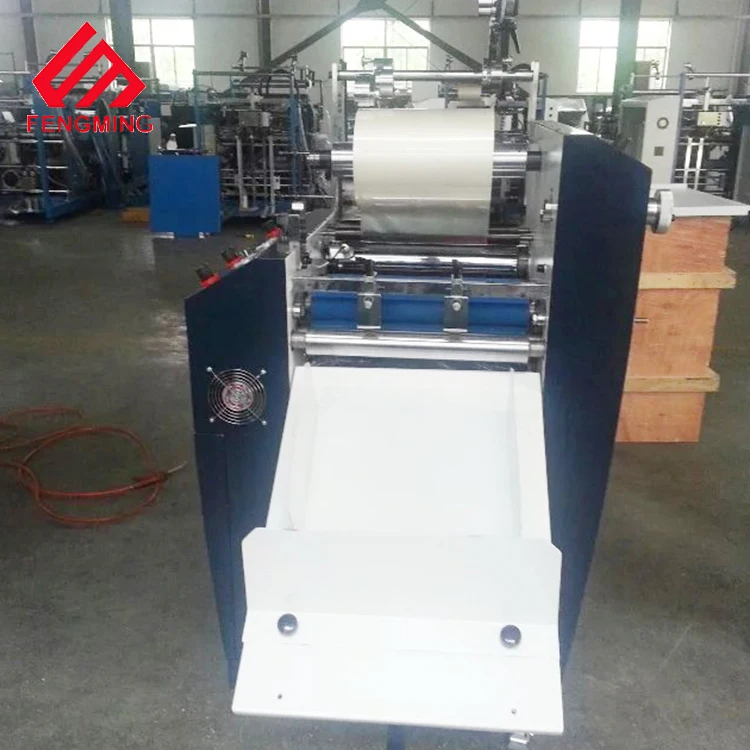

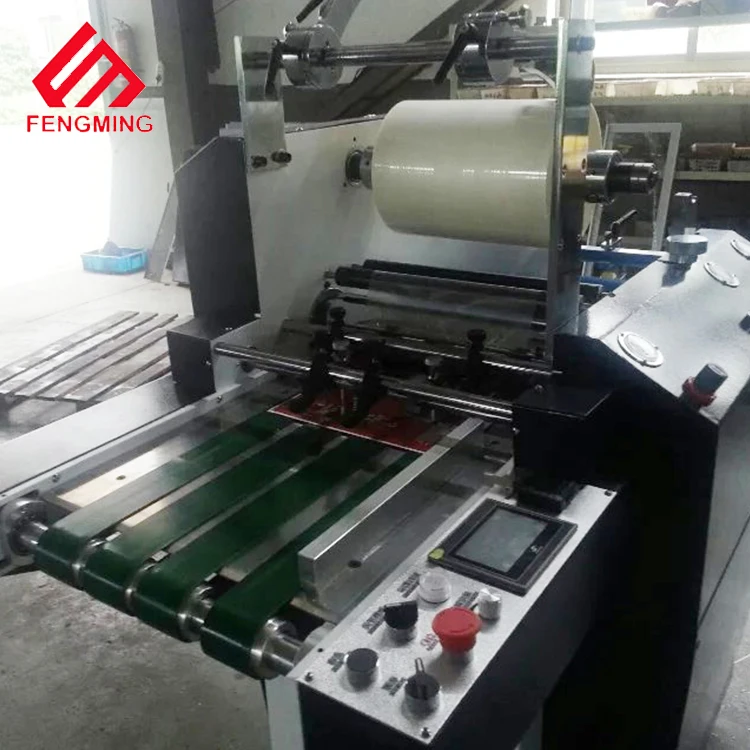

 YFMB380B IR lamp Heating System Semi-auto Laminating Machine

Mode

YFMB380B

Max speed

53m/min

Laminating temperature

normal-130°C

Paper Thickness

80-500g/m2

Power

1.5kw(normal is a half)

Voltage

220/380V

Diameter of Heating Roller

IR lamp inside

Diameter of Film Paper core

76mm(3 inch)

Total Weight

1600kg

Overall Dimensions

1300*1500*1550mm



1.Product Features:
Pneumatic cutting (equip with Air compressor  )

Pull guide
IR lamp Heating System(because heating roller is too small)
Gas Expanded Shaft(with Tension System)
Film Cutter and Film Puncher
Operation Plater and Date Inputting Device
Automatic hydraulic pressure (Automatic adjustment pressure )
Anti-Curve Device

Electric box (some part from Janpan and Taiwan, other from biggest supplier in China, they cooperate with Germay)

Vibration Table
PS: Using glueless and thermal film to laminate paper

2.Technical Specification:
Model: YFMB380B
Max.Laminating Width: 380mm
Laminating Temperature: ≤130℃
Paper Thickness: 80-500g/m²
Laminating Speed: 35m/min(machine speed is 53m/min)
Total power: 1.5kwVoltage: 220/380V
Diameter of Heating Roller (IR lamp inside)
Diameter of Film Paper core: ≤76mm(3 inch)

Dimension: 1300mm*1500mm*1550mm
