YN8-25 220v 80mm diameter ac gear motor without reducer

Feedback Ratings
  • 1-9 Pieces
    $50.00
  • 10-99 Pieces
    $46.00
  • 100-499 Pieces
    $40.00
  • >=500 Pieces
    $35.00
Output Power:
25,
- +
available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
10 day(s) after payment received
Customization:
Voltage (Min. Order: 1 Pieces)
Contact Supplier
Samples - $50.00 /Piece, 1 Piece (Min. Order): Buy Samples
Loading... Add To Cart
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Shanghai, China (Mainland)
Brand Name:
CALT
Model Number:
YN80-25
Type:
Induction Motor
Frequency:
50, 60HZ
Phase:
Single-phase
Certification:
CCC, CE, UL
Protect Feature:
Drip-proof
AC Voltage:
220V
Efficiency:
IE 1
output axle shape:
gear-shaft, bare-shafr, worm-shaft
current:
0.3A
rated torque:
191, 154,x 246, 305
rated speed:
1300/1600rpm
reducion ratio:
1:25~1:180

Packaging & Delivery

Selling Units:
Single item
Single package size:
22X12X14 cm
Single gross weight:
3.5 kg
Package Type:
export carton
Lead Time :
Quantity(Piece) 1 - 10 >10
Est. Time(days) 10 To be negotiated
Video Description
Product Description

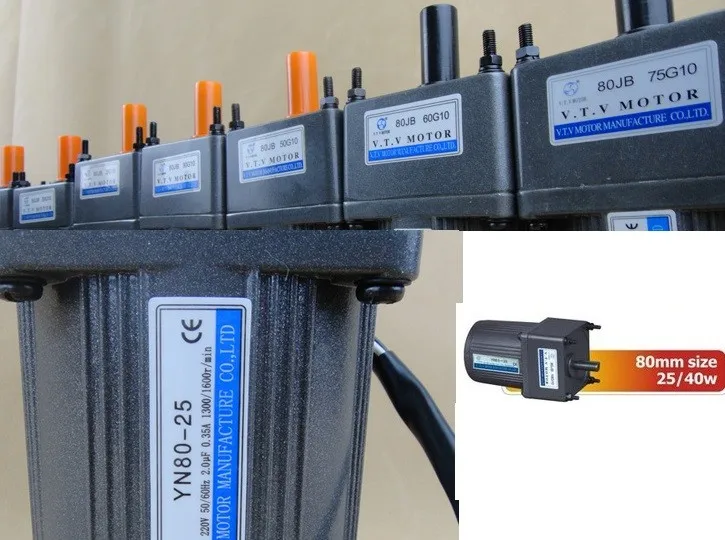

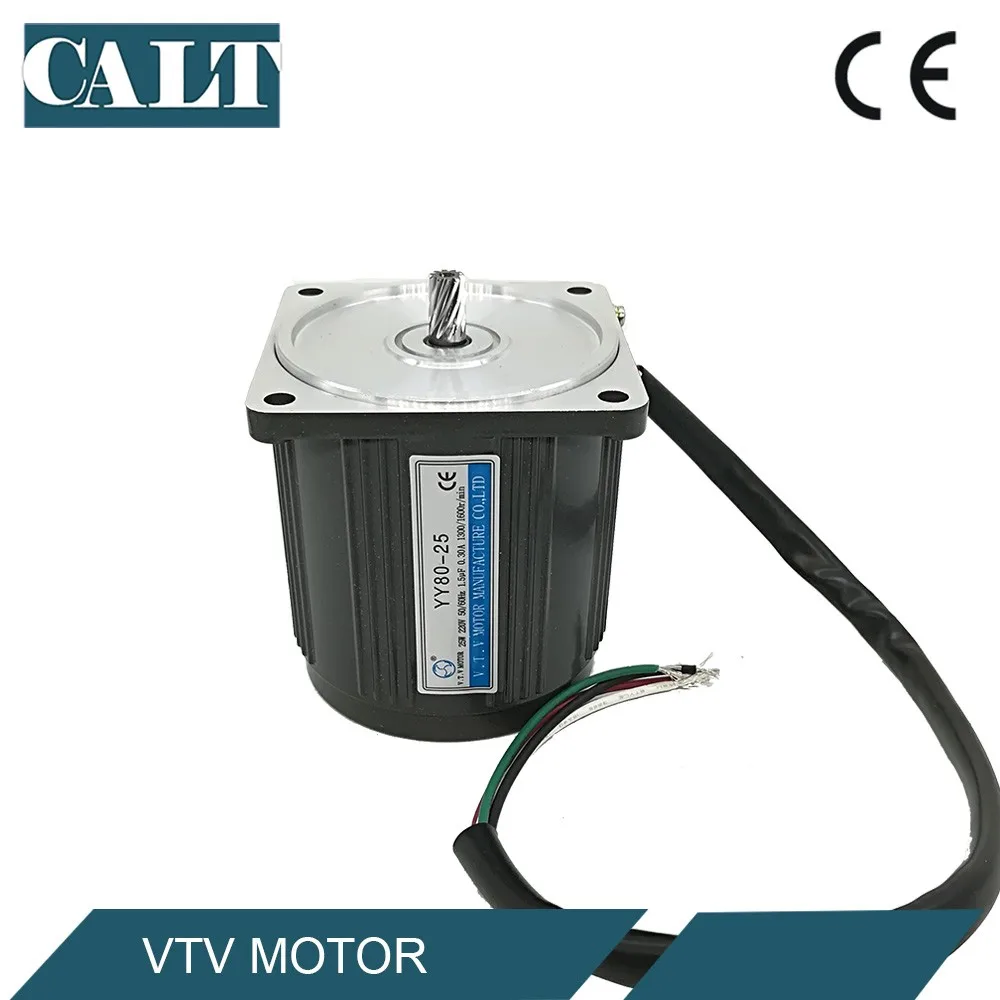

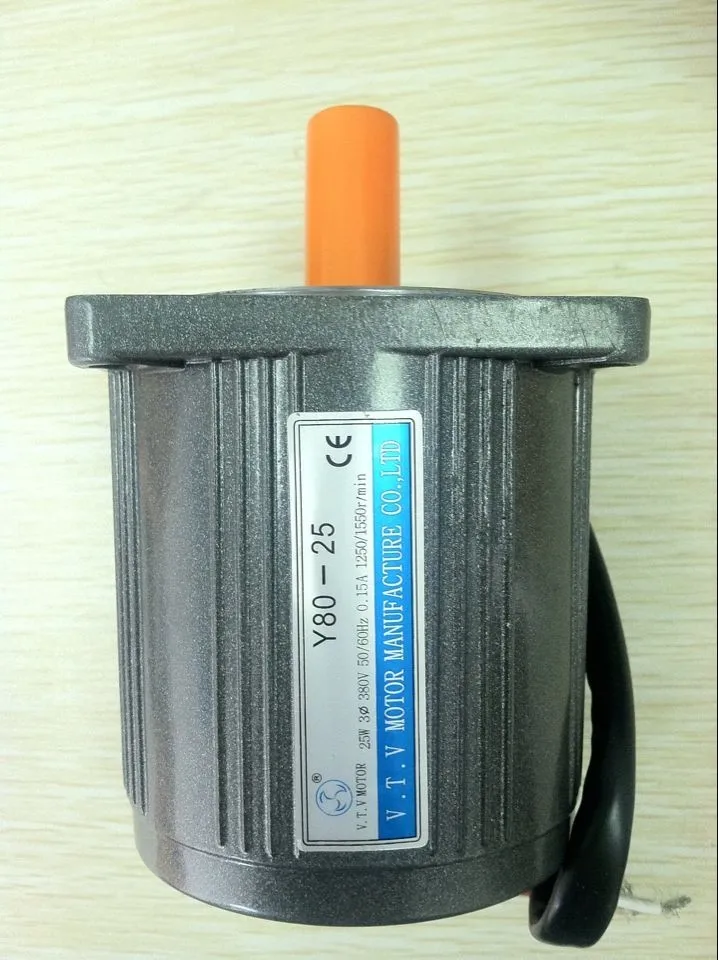

YN8-25 220v 80mm diameter ac gear motor without reducer

steel, chemical, oil, drink, food, electronic, process hides, pharmacy, and textile.
They are widely used in various low-speed transmissions, which are general basic parts of mechanical transmission.
Reducer gear is integrate gear box and motor. This integrated body would normally be called a gear motor or gear motor.
1, gear motor with international technical requirements for manufacturing, high technology content.

2, space-saving, reliable and durable, withstand high overload capacity, power up to 95KW or more.
3, low energy consumption, superior performance, speed reducer efficiency up to 95%.
4, small vibration, low noise, energy, high-quality forged steel, steel cast iron box, gear surface after HF treatment.
5, precision machining, to ensure parallel shaft and positioning accuracy, all this constitutes a gear drive gear motor assembly
configured various types of motor, forming a mechanical and electrical integration, fully guaranteed product quality characteristics.
6, the product uses a series, modular design, a wide range of adaptability, this series has an extremely multi-motor combination, mounting position and structure of the program, according to the actual need to select any speed and a variety of structural forms.

Model :

Products Show
Related Products
Packing & Delivery

Packing Details  : carton packed for each encoder or items, and then pack with thick carton for shipping.

Delivery Details : 3-4 days after full payment in regular product, and 7-10days for customized type. and according to quantities.

1. Ziplock packed
2. Box Packing
3. Packed with good conditions with shipping mark.
Our Company


Shanghai Qiyi Electrical & Mechanical Equipment Co., Ltd. is a professional rotary encoder supplier, located in Chinese business and port center, Shanghai. CALT brand product ranges: Optical incremental rotary encoder, single-turn and multi-turn absolute encoder, draw-wire position sensor and couplings, and other instruments, which widely used in CNC machinery, textile machinery, steel rolling machinery, linear guide system, hydraulic system, lifting machinery and servo motor, all get a very good reputation! Qiyi company has got independent import and export qualification in 2013, CALT brand products have been exported to Southeast Asia, Europe, America and Russia and other countries and regions in the world.

Factory Building

9# 302, No. 4361 Hutai Road, Baoshan District, Shanghai

Testing Machine

Oscilloscope

Testing Machine

Industrial microscope

Testing Machine

Plug and dial

warehouse: common type rotary encoders are all in stock can send our in 2-3 days.

warehouse

warehouse

Workshop1


Workshop2


Semifinished product

How to place order
Certifications
FAQ

Q: Are you trading company or manufacturer ?

A: We are factory.

Q: How long is your delivery time?

A: Generally it is 2-4 days after full payment if the goods are in stock. or it is 7-12 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? is it free or extra ?

A: Generally it is 2-4 days after full payment if the goods are in stock. or it is 7-12 days if the goods are not in stock, it is according to quantity.

Q: What is your terms of payment ?

A: We accept T/T, Paypal, Western union or money gramm.

Q: What's your warranty ?

A: 12 months. If the items you purchased from  our company are not with perfect quality or can't work normally, you can ship back for replacement or refund.

Q: What's your shipment method?

A: We ship by Express FEDEX, UPS, DHL, EMS, ARAMEX. All express freight is charged in your end.
