YZ CNC Machine Tool Equipment 7.5kw Heavy Duty Metal Lathe Machine CK6150 with 3 - Step Gearbox

  • 1 - 1 Sets
    $12,100.00
  • 2 - 4 Sets
    $11,700.00
  • >=5 Sets
    $11,200.00
Max. Swing Diameter (mm):
500
Spindle bore:
82mm
Lead Time:
Quantity(Sets) 1 - 20 >20
Est. Time(days) 30 Negotiable
Customization:
Customized logo (Min. Order: 1 Sets)
Customized packaging (Min. Order: 1 Sets)

More

Graphic customization (Min. Order: 1 Sets) Less
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Max. Spindle Speed (r.p.m):
1600
Max. Swing Diameter:
500mm
Type:
Horizontal
CNC or Not:
CNC
Automatic Grade:
Automatic
Year:
2019
Place of Origin:
Shandong, China (Mainland)
Brand Name:
YZ CNC
Model Number:
CK6150
Voltage:
380V/220V/450V/415V
Power(W):
7.5KW
Dimension(L*W*H):
2410*1560*1730mm
Certification:
ISO9001 CE SGS
After-sales Service Provided:
Online support, Video technical support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Engineers available to service machinery overseas
Warranty:
1 Year, One Year
Name:
Heavy Duty Metal Lathe Machine CK6150
Spindle bore:
82mm
Spindle speed:
30-150/100-500/320-1600rpm
Max length of workpiece:
750/1000/1500mm
Control system:

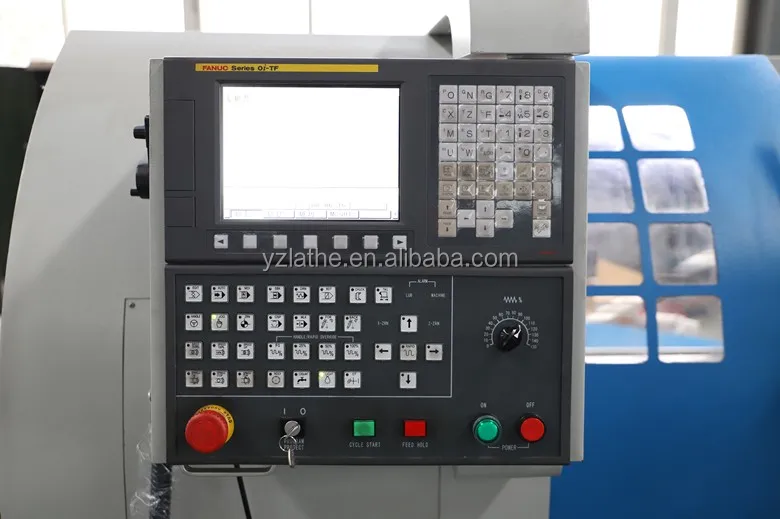

SIEMENS GSK FANUC (optional)
Tool holder:
vertical 4-station tool post
Precision:
High Precision
Color:
Customized Option
Weight:
2800kg
Supply Ability
Supply Ability:
20 Set/Sets per Month
Packaging & Delivery
Packaging Details
Exporting standard package, water proof,and anti-rust. fumigation-free
Port
Qingdao/Ningbo/Shanghai/Guangzhou
Lead Time :
Quantity(Sets) 1 - 20 >20
Est. Time(days) 30 To be negotiated
Video Description
Product Description

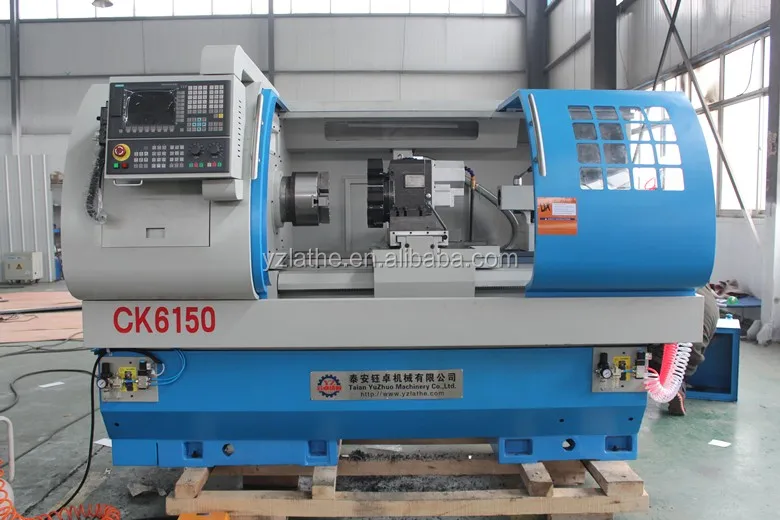

YZ CNC Machine Tool Equipment 7.5kw Heavy Duty Metal Lathe Machine CK6150 with 3-step Gearbox

cnc lathe machine price cnc lathe machine price cnc lathe machine price cnc lathe machine price
Product Feature:cnc lathe machine price cnc lathe machine price cnc lathe machine price cnc lathe machine price

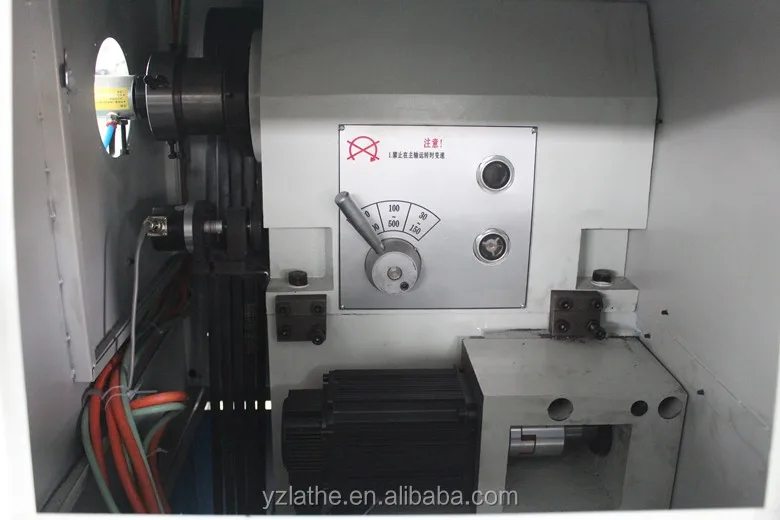

1-With 3-step gearbox this lathe can process hard workpiece,such as Stainless steel parts

2-Longitudinal and cross feeds are effected by ball leadscrews driven by servo motors.

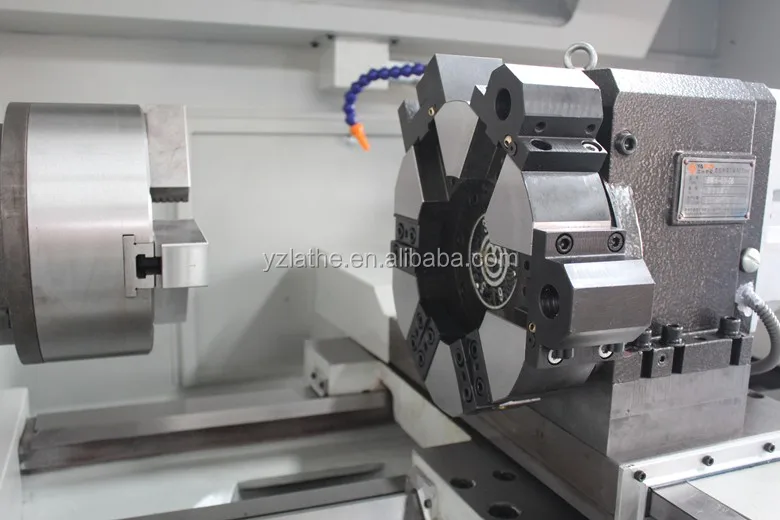

3-Either vertical 4-station or horizontal 6 and 8-station tool post as well as gang type tool post can be selected.The post is located on precision contrite gears with a high repeated positioning accuracy.cnc lathe machine price

4-Both chuck and tailstock are available with hydraulic or manual or pneumatic type.cnc lathe machine price

5-The spindle system is high in rigidity and accuracy.cnc lathe machine price

6-The surface of the bedways is supersonic frequency hardened and precision ground with a long service life.

SPECIFICATIONS
Max. swing dia. over bed cnc lathe machine price
Φ500mm cnc lathe machine price
Max. swing dia. over cross slide
Φ280mm cnc lathe machine price
Processing length cnc lathe machine price
750mm/1000mm/1500mm
Width of the bed cnc lathe machine price
400mm cnc lathe machine price
Dia. of spindle cnc lathe machine price
Φ82mm cnc lathe machine price
Spindle taper cnc lathe machine price
1:20/Φ90 cnc lathe machine price
spindle nose cnc lathe machine price
Type of spindle head D-8
Spindle speed cnc lathe machine price
30-150/100-500/320-1600rpm
Spindle speed step cnc lathe machine price
3-step cnc lathe machine price
chuck size cnc lathe machine price
250mm cnc lathe machine price
Tool holder cnc lathe machine price
4-station cnc lathe machine price
Tool bar section cnc lathe machine price
25X25mm cnc lathe machine price
Main motor power
7.5KW
X/Z axis position accuracy
0.02/0.025mm
X/Z axis repeatability
0.01/0.012mm
X/Z axis torque
6/10N.M
X/Z axis travel
X:360mm, Z: 750mm/1000mm/1500mm
X/Z axis fast feeding speed
8/10 M/MIN
Tailstock sleeve travel
150mm
Tailstock taper
MT5
Dimension
2410/2660/3160*1560*1730mm
weight
2800/3200/3500kg
Standard Configuration :

1-  System:GSK928TD-L, servo motor and drive.,cnc lathe machine price

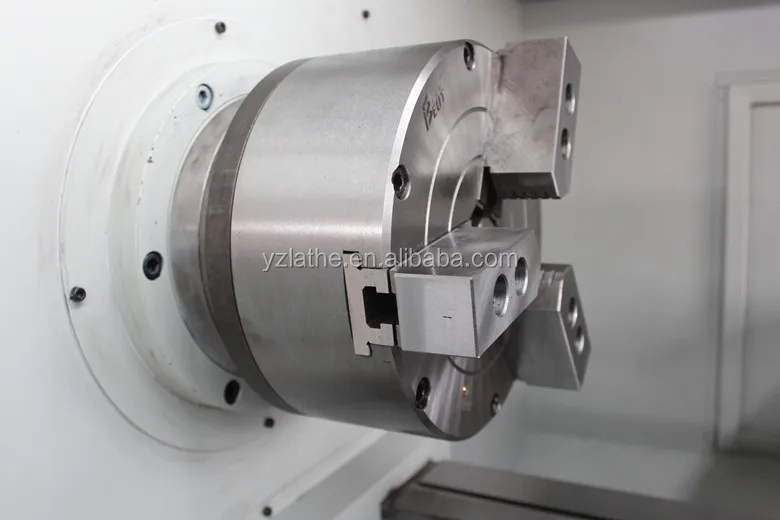

2-  Manual 3-jaw chuck(250mm),cnc lathe machine price

3-  Four station electric tool post cnc lathe machine price

4-  Manual tailstock cnc lathe machine price

5-  NSK bearing made in Japan cnc lathe machine price

6-  Taiwan HIWIN lead screw cnc lathe machine price

7-  Schneider electric components cnc lathe machine price

8-  Cooling system. cnc lathe machine price

9-  Lighten system. cnc lathe machine price

10- Automatic lubrication system.cnc lathe machine price

Related Products:

Detailed Images

Please feel free to contact us to get more details and latest price cnc lathe machine price cnc lathe machine price cnc lathe machine price

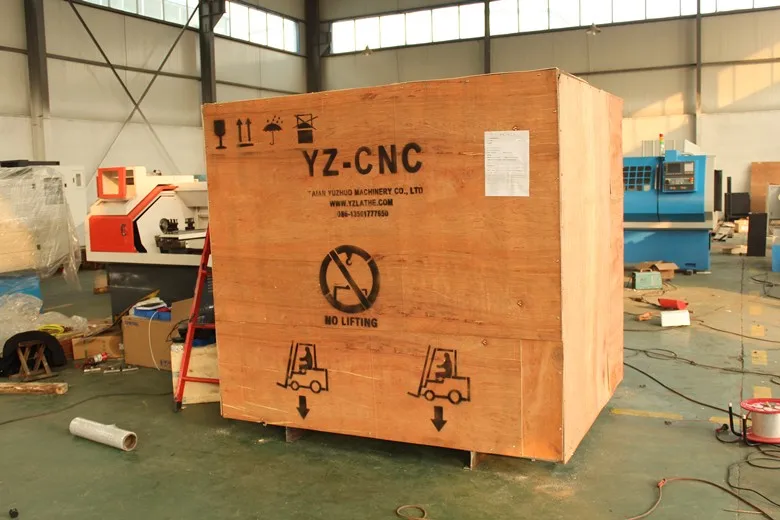

Packing & Delivery
Our Service

Before-sales service.

1.Help you choose the most suitable machine for you, to ensure that reduce costs and improve work efficiency.
2.If our equipment can not meet your requirements, we can according to your request to re-design,  build the final machine.
cnc lathe machine price cnc lathe machine price
cnc lathe machine price cnc lathe machine price
cnc lathe machine price cnc lathe machine price
cnc lathe machine price cnc lathe machine price


After-sales service.

1.Warranty is one year, we would offer the parts free of charge during this period,CNC system,Servo driven motor and transformer, Warranty is 3 years
2.Provide 24 hours of online technical service, you can contact us any time.
3.Provide free training, you can choose to train online or come to our factory.
4.Provide overseas services, including commissioning machines and training

Certifications
Our customers

Customers from Europe, America, Southeast Asia and other countries,more than 50 countries in Worldwide.cnc lathe machine price cnc lathe machine price cnc lathe machine price cnc lathe machine price

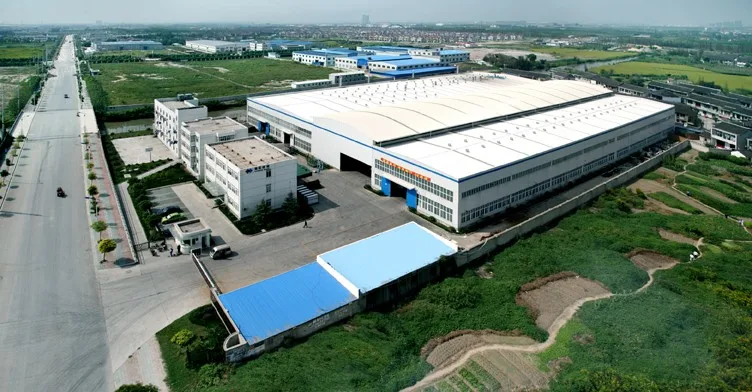

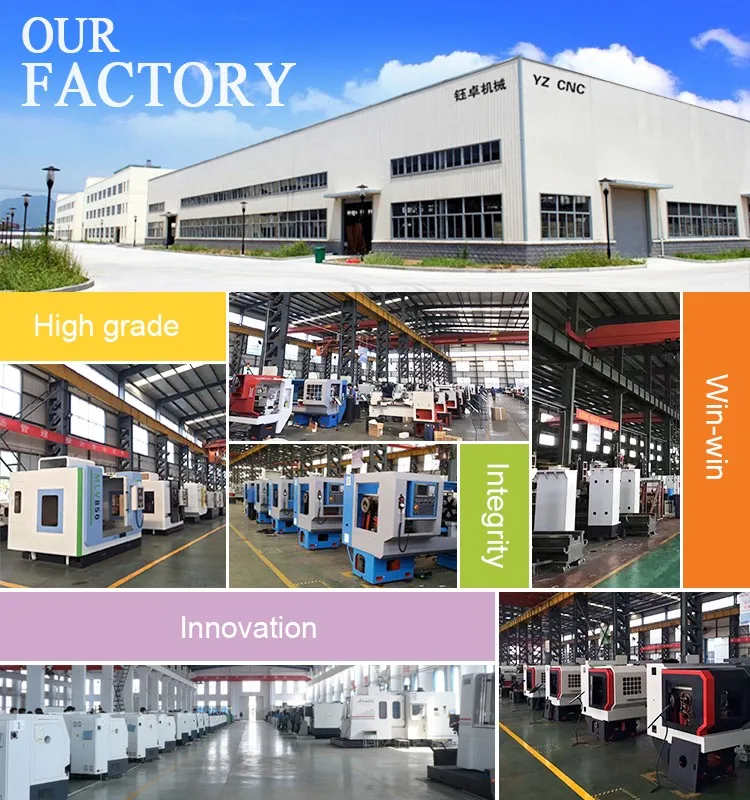

About us

Tai'an YuZhuo Machinery Co.,Ltd(as for "YZ CNC"),is a company including active and professional teams ,specialized in CNC machining Center,CNC Lathe Machine,Wheel Lathe machine .   Our team have great experience on manufacturing and exporting. Our service department has experienced technicians that can offer you answers to your technical questions, and in many cases, solve your problem effectively over the phone. We are dedicated to provide customers with the best, highly value added machines. We have earned a strong reputation in design and manufacturing of a wide variety of CNC machine tools. We continuously improve the performance level of our machines, strengthen our quality control system, and offer worldwide support services. Our dedication to the global marketplace will create a new era of CNC machine tools.   Furthermore, we are serious about quality, customer input, and reacting to market demands. Our fully equipped quality control department performs the final inspection of the machine and in process inspection of parts. Our quality control personnel are well trained to conduct rigorous inspections by using precision, sophisticated instruments. We deeply believe that quality is the life of our company and customer service is the power that drives our company forward. We are also looking for cooperation with professional dealers in the world. This would make us to create a new opportunity in certain area and offer top service quality as we have in China.cnc lathe machine price cnc lathe machine price

FAQ

Q1.How to send my enquiry?

You can contact us by email, phone call, message (Whats APP, We Chat, Skype).

cnc lathe machine price cnc lathe machine price cnc lathe machine price

Q2.How long can I get feedback after enquiry?

We will reply you within 6hrs in working day.

cnc lathe machine price cnc lathe machine price cnc lathe machine price cnc lathe machine price

Q3.Where is your factory located? How can I visit there?

Our factory is located in South Development zone, Tai An City, Shan Dong Province, China. There has flight from Jinan need 1.5 hours, or High speed train directly to our city. Welcome to visit our factory.

cnc lathe machine price cnc lathe machine price cnc lathe machine price cnc lathe machine price

Q4.Delivery time

Machines order takes 20 days after deposit payment received. Please inquiry sales.

cnc lathe machine price cnc lathe machine price cnc lathe machine price cnc lathe machine price

Q5.What is the package? Is it suitable for shipment?

Machine is by waterproof cloth to covered.And be packed by standard exported wooden case with steel foot.. It is very much strong for oversea transportation.

cnc lathe machine price cnc lathe machine price cnc lathe machine price cnc lathe machine price

Q6.Payment term

30% by T/T as down payment, balance 70% by T/T before delivery. If others payment terms, we can discuss.Welcome to inquiry sales.

cnc lathe machine price cnc lathe machine price cnc lathe machine price cnc lathe machine price

Q7.Can I trust you?

Sure, we're Alibaba Gold Suppliers , Alibaba Assessed Supplier , Alibaba Trade Assurance Supplier.


Q8.How long is the warranty for machines?

Machines warranty is 24 months after receive goods. in Warranty time,we can provide new free parts for changing.Please contact your YZ CNC sales representative for details.


Q9.How' s your after-sale service?

Out after sales support and service is second to none and we urgently respond to your queries, if parts are required they would be sent to you by international courier within 48 hrs upon registering your need.


Q10.Can you engineer come to our place to help with machine installation & commission?

Yes, our engineers are available to travel to your place. Round flight tickets & accommodation will be at your cost.


Q11. If i can't know how to operate. Can your engineer help me programme well on machine ?

Sure. You can provide your detailed sample drawing.engineer can programme well on machine. Or in some machines, we will put into U-disc of operation video to help you.
