ZC Sensor dual axis 0~10v output analog inclinometer tilt sensor for solar tracker

Free Inspection
FOB Reference Price:Get Latest Price
We offer premium service for Trade Assurance orders. Learn more
US $49-99 / Set | 1 Piece/Pieces for inclinometer tilt sensor (Min. Order)
Supply Ability:
1000 Set/Sets per Month for inclinometer tilt sensor
Port:
shanghai
Overview
Quick Details
Place of Origin:
Shanghai, China (Mainland)
Brand Name:
ZC
Model Number:
ZCT290L-LHS-17
Usage:
MEMS inclinometers
Theory:
MEMS
Output:
Analog Sensor
Product:
Inclinometer tilt sensor
Resolution:
0.0025 degree
Nonlinearity:
±1%
Measuring range:
+/-90 degree
Power supply:
8~36v
IP grade:
IP65
interface:
0~10v
Axis:
2 axis
Work temperature:
-40~85degree
Cross axis sensitivity:
3%
Packaging & Delivery
Packaging Details
2 axis 0~10v output inclinometer tilt sensor
1pcs/plastic box ,100 Nos per export carton
Delivery Time
2 weeks of 2 axis 0~10v output inclinometer tilt sensor

2015 hot sale inclinometer tilt sensor

What is Application of inclinometer tilt sensor?

Platform tilt measurement

Equipment and instrument condition monitoring

Rotational orientation measurement

Solar tracking System .

What is Specifications of our inclinometer tilt sensor?

Parameter

Condition

Min

Type

Max

Units

Supply voltage



8



36

V(DC)

Static operating current

Without load



5.7

6.5

mA

Output load

resistive

10





capacitive





20

nF

Operating temperature



-40



+85

°C

Parameter

Condition

Min

Type

Max

Units

Measuring range

X axis,

Y axis



±90



°

Zero output voltage



 4.92

 5

5.08

V

Offset zero point error







1

°

Offset temperature error

0~+70°C



±0.2

±0.3

°

-25~+85°C



±0.4

±0.6

°

Sensitivity





4.5



V/g

Near 0 degree

73

79

85

mV/°

Sensitivity temperature error

0~+70°C



-0.8…0.3



%

-25~+85°C



-1.5…0.5



%

Cross axis sensitivity





3



%



What is Packing Information of our inclinometer tilt sensor?

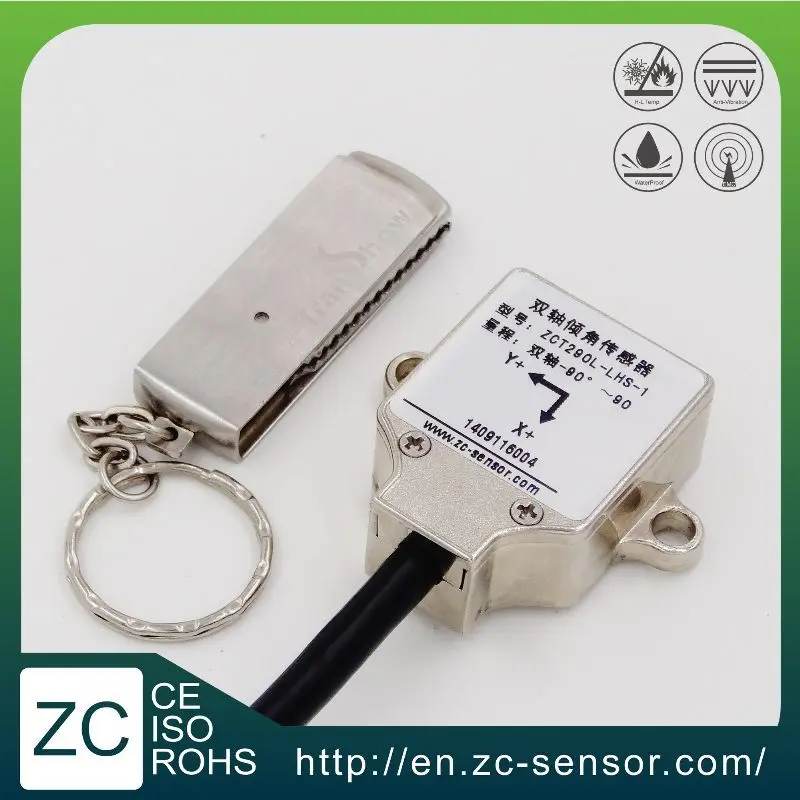

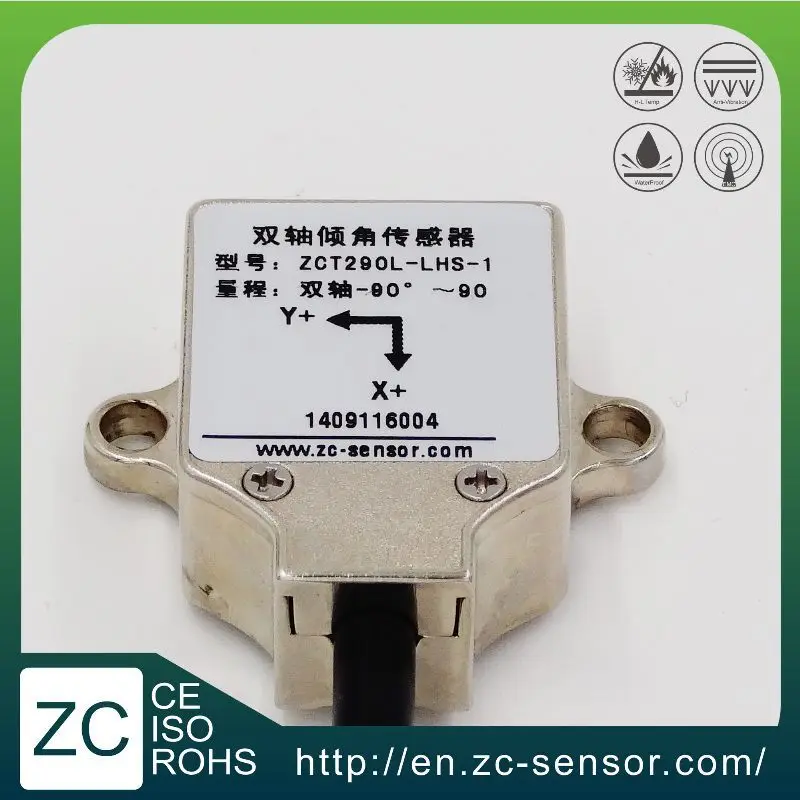

Product Photos
