1-5 sets packed in wooden case.
5-13 sets be nude inside the Container.
1 - 50
To be negotiated
The platform is driven by electric hoist and wire rope, running against the building facade while the suspension mechanism was erected on buildings or structures. Usage and Application:
ZLP series Suspended Platform belongs to high-rise working construction machinery, mainly used to install curtain wall, facade cleaning or other works such as plaster pulp, veneer, paint coatings, oil paint, or cleaning and maintenance, etc., can also be used for large tanks, bridges, dams and other construction operations.
Above all. HUIYANG Platform can increase the efficiency greatly, with simple and flexible operation, easy transfer, convenient and practical, safe and reliable.
The Parameters of ZLP series Suspended Platform
1. Rated Load
2. Lifting speed
3. Lifting height
4.1 Voltage-3 Phase
5. Safety Lock
6. Electric Cabinet Parts
Schneider or CHNT
Schneider or CHNT
Schneider or CHNT
7. Platform Sise (LxWxH)
8. Steel Wire Rope
4pcs; 100m/pcs D=8.3mm; 4x31SW+FC
4pcs; 100m/pcs D=9.1mm; 4x31SW+FC
9. Electric Cable
(3x2.0+2x1.0mm2 ) 100m
10. Suspended Jibs
Lifting Parts Weight
Qty of 20" Container
1. Working Platform: Steel + Painting; ( Steel+Galvanised or Aluminum Alloy+Painting is available also)
1.1 Working Platform is the workplace at heights for the workers.
1.2 L=7.5m (2.5+2.5+2.5) or (1.5+1.5+2+2.5) or (2+2+2+1.5) W=0.69m; H=1.45m; 1.3 With 4pcs of Bottom Wheel fitted underneath, the platform is easy to move.
2. Suspension Mechanism: Steel Q235 + Painting;
Suspension mechanism is on the top of the building to suspend the platforms through the steel rope.
3. Components: LTD8.0 Hoist, 1.8kw, 2 sets;
LSD30 Safety Lock, 2 sets;
Electric Cabine: 1 set;
Steel Rope: 4pcs, 100m/pcs; D=9.1mm;
Electric Cable: 1pcs, 100m/pcs, Rubber, 3x2.5+2x1.5mm sq;
Safety Lock is the protection equipment. When the platform goes acclivitous, or ropes are broken off and falling, the safety locks will lock the wire ropes automatically and quickly to ensure the safety of the operator from falling and inclining.
On Electric Control Cabinet, there are 4 buttons and a 220V
50Hz outlet for necessary use.
( Universal Switch, Power Indicator, Start Button and the Emergency Stop Button are in the door board of the cabinet. )
Name: Steel Rope Brand: Fasten
Quantity: 4pcs Length=100m/pcs
Safety Rope: 1Pcs=100m Electric Cable: 1Pcs=100m, Rubber, (3x2.5+2x1.5mm2) Counterweight (Optional) : Cement or Cast Iron
HUIYANG Company Brief.
Ningjin Huiyang Construction Equipment Co., Ltd, established in 2005,located at Dezhou City, is a professional and accurate technique corporation who is professional in the R&D production and sale of suspended access equipment on high operation, and the accessories such as Safety Lock, Hoists, Electric Control Cabinet, Fasten Wire Ropes, and etc.
Now Huiyang becomes the production base and research centre of exporting suspended access equipment in China. The quality of Huiyang Suspended Platform is in the first-class in China and our products have been exported to more than 20 countries, which can be comparable with European famous suspended platforms.
Huiyang Suspended Platform is one of the largest enterprises engaged in well-known suspended platform in China, and annual production capacity is up to 8000 sets. In China, Huiyang suspended platform owns the most complete categories, specifications, and applications compared with same industry. They have been used in every aerial area with the main models ZLP500, ZLP630, ZLP800 and ZLP1000. The Voltage and Frequency could be up to different countries' standard, such as single-phase 220V, triplicate-phase 2200V, 380V etc.
No matter what structure needs, everything is easier with Huiyang.
All products purchased from our company are guaranteed to keep in good repair for one year. If quality problems happen in guarantee period, our company will maintain for free.
1. How much is this suspended platform? Price will offer you immediately after telling us your requirements of loading capacity, material and voltage. 2. Are you a factory or trading company? We are direct factory with 40,4000 square meters factory and supply qualified products with factory price. 3. What quality certificate you own for your products? Our products own CCC, CE and ISO9001 certificate. 4. How about the price? Please send us inquiry, a consideration solution or preferable will be sent within 24 hours. 5. Payment term? T/T or L/C at sight. 6. Spare parts & guarantee? If any parts get damaged because of quality within 12 months after shipping date.
We will send new parts to replace right away. 7. Can you make suspended platform with our brand? Yes. 8. Delivery time? According to order quantity, 10-20 working days will be finished after getting the deposit.

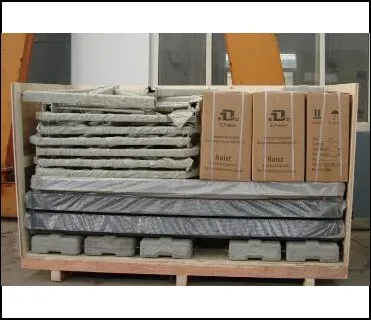

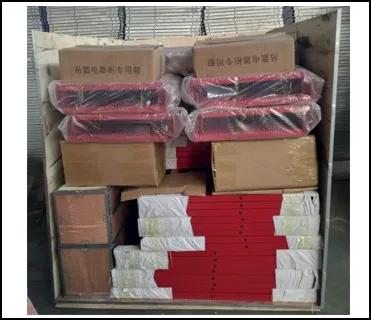

Packing & Delivery
MOQ: 1set 1-5 sets packed in wooden case. 5-13 sets be nude inside the Container.
