ZONESUN PCB Milling Machine CNC 2020B DIY CNC Wood Carving Mini Engraving Machine PVC Mill Engraver Support MACH3 System supply

Feedback Ratings
  • 1-4 Sets
    $249.00
  • >=5 Sets
    $235.00
Model Number:
zonesun
- +
available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
2 day(s) after payment received
Contact Supplier
Report Suspicious Activity
Overview
Quick Details
Condition:
New
CNC or Not:
CNC
Place of Origin:
China (Mainland)
Brand Name:
ZONESUN
Voltage:
220V
Power(W):
300W
Dimension(L*W*H):
20*15*10cm
Weight:
12.58
Certification:
ce
Warranty:
0
After-sales Service Provided:
No overseas service provided

Packaging & Delivery

Selling Units:
Single item
Single package size:
20X15X10 cm
Single gross weight:
13.5 kg
Package Type:
Our products are packed in cartons. We will check that if the machine can run before it is sent out. When you receive the goods, please open the package to check out if the goods are in good condition before the courier. If the cartons are damaged or other situations happen, please contact us in time.
Lead Time :
Quantity(Set) 1 - 9999 >9999
Est. Time(days) 2 To be negotiated

2016 new PCB milling machine CNC 2020B DIY cnc wood carving machine mini engraving machine


Why we choose this CNC Mini Machine?
1. Support MACH3 System.
2. Suitable for engraving PVC PCB wood materials.
3.USB interface, support for both desktop and notebook computers
4. Working table size 200 * 200 * 70mm
5. Equipped with a 300W high-speed spindle
6. With English installation manual, simply operation

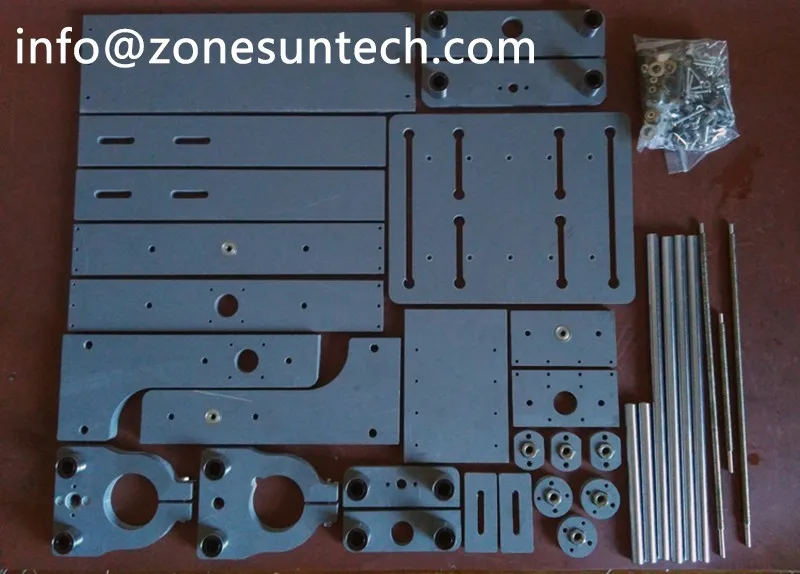

Package introduced
1pcs 2020B engraving machine
All parts of the mechanical parts, including Spindle motor+Stepper motor+2pcs press plate+Information CD+3 - axis driver board+Parallel port lines+Switching Power Supply+Transformer and rectifier bridge+2pcs milling cutter+SB interface board+Data line
Feature
Spindle motor: 300W
ER11: 3.175mm
Stepper motor: NEMA17 Stepper motor
Current of Driver:1.68A
Lead screw: M8 threaded stainless steel Lead screw triangle
Spindle, 300W high-speed (10,000 rpm)

Parameter
MAX. X axis travel:200mm
MAX. Y axis travel:200 mm
MAX. Z aixs travel:70mm
Size:600*700*500  mm
Resolution ratio:0.0125 mm
Table structure:10mm PCB
MAX. moving speed:4000 mm/min
Control:3000 mm/min
Main shaft power:300w
Main shaft speed:6000-12000 rpm/min
Tool DIA. range:Φ0.3-3.175 mm,4mm,6mm
Voltage:AC 110V/220V (BOTH OK )
Drive model:Stepper
Instruction:G-code
System:Window 2000/XP/7
