airconditioner metal air heatingtube for equipment

  • 1-9 Pieces
    $10.00
  • 10-99 Pieces
    $9.80
  • 100-999 Pieces
    $9.50
  • >=1000 Pieces
    $9.00
Model Number:
TR-KQJRG
Power(W):
1000-3000
$
- +
available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
10 day(s) after payment received
Customization:
Customized logo (Min. Order: 100 Pieces)
Customized packaging (Min. Order: 100 Pieces)

More

Graphic customization (Min. Order: 100 Pieces)
Customized according to size, voltage, power (Min. Order: 100 Pieces) Less
Samples: $10.00 /Piece, 1 Piece (Min. Order): Buy Samples
Contact Supplier
Samples - $10.00 /Piece, 1 Piece (Min. Order): Buy Samples
Loading... Add To Cart
Report Suspicious Activity
Overview
Quick Details
Type:
Air Heater
Power Source:
Electric
Dimension(L*W*H):
Cutomer's Request
Weight:
Final Dimension
Warranty:
1 Year, 1 Year
After-sales Service Provided:
Free spare parts, Video technical support, Online support, Online support,No after-sales service
Condition:
New
Place of Origin:
Jiangsu, China
Brand Name:
TUAN RUI
Voltage:
12-480v
Certification:
CE
Product name:
air conditioner metal air heating tube for equipment
voltage:
12-480v
Wattage:
3000w
Insulation material:
Mgo
Thickness:
1mm
Operating temperature:
800 °C
Function:
Heating
Application:
Industry Heating Process

Packaging & Delivery

Selling Units:
Single item
Single package size:
35X8X3 cm
Single gross weight:
0.4 kg
Package Type:
plastic bag and carton
Picture Example:
package-img
Lead Time :
Quantity(Piece) 1 - 100 101 - 500 501 - 1000 >1000
Est. Time(days) 10 15 20 To be negotiated
Detailed Images

01. Quality selection

Selected high quality SUS304, SUS321, incoly-840 and so on. Effectively prevent corrosion and rust, pressure and explosion protection, and durable.

02. National standards

Products are CE certified, working voltage 220v, 380v optional (customized voltage, power, size). Stable work, energy saving and environmental protection, safe and secure use.

03. Performance advantages

Due to the shortened component length, the heat loss is small, and the heating is fast under the same power condition, the heat is uniform, the heat dissipation performance is good, the thermal efficiency is high, the service life is long, the heating device is small in size, and the cost is low.

04. Professional customization

Professional manufacturers can accept drawings and processing, professional customization of different specifications, different uses, different sizes

Product Description

Quick Details:

Electric Heater Type: Electricity Heating Tube
Certification: CE
Place of Origin: Jiangsu, China (Mainland)
Brand Name: Tuanrui electricity heating tube
Power: Customized
Dimension(L*W*H): Customized
Weight: Customized
Power(W): Customized
After-sales Service Provided: Engineers available to service machinery overseas
Tubular heater sheath: SUS202/304/316L/Incoloy 800
Insulation of tubular heater: High purity, grade A compacted
Heating conductor: NiCr8020
Power density: Maxi 50W/CM2
Temperature resistance: 1000 centi degree
Product Name: Factory Directly Supplied Electricity Heating Tube
Construction of Electric Heating Tube :
      The heat sink electric heating tube is made of high quality stainless steel, modified yttrium oxide powder, high resistance electrothermal alloy wire, stainless steel heat sink and other materials. It is made through advanced production equipment and technology, and has strict quality management. This series of products can be installed. In the case of blowing ducts or other stationary, flowing air heating.

Features and Benefits of Electric HeatingTube:
     The heat sink heat-dissipating tube is a metal heat sink wound on the surface of a common component, and the heat-dissipating area is expanded by 2 to 3 times compared with the conventional component, that is, the surface power load allowed by the fin component is 3 to 4 times that of the ordinary component. Due to the shortened length of the component, the heat loss of the component is reduced, and under the same power condition, the utility model has the advantages of rapid temperature rise, uniform heat generation, good heat dissipation performance, high thermal efficiency, long service life, small volume of the heating device and low cost. According to user requirements, a reasonable design is made for easy installation.


use
   Products are widely used in machinery manufacturing, automotive, textile, food, home appliances and other industries, especially in the air curtain wind curtain industry.

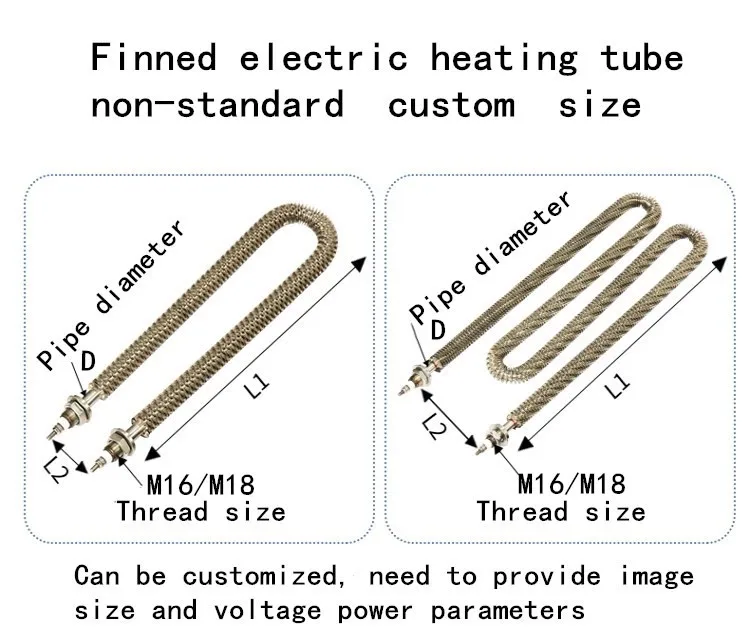

Order Guidance of Electric Heating Tube:
1. Diameter
2. Length
3. Shape
4. Voltage
5. Power
6. Lead & Fitting (connection and fitting type, leads length)
7. Quantity

model
D*L1*L2(mm)
Voltage(V)
power(W)
Main Specifications
TR-JRG-12800
φ12*800
100/120/230/380/400
800
1 Conditions of use: Ambient temperature -20 ~ +60 ° C relative temperature <80%

2. Leakage current: <0.5MA

3. Insulation resistance: ≥5MΩ

4. Grounding resistance: <0.1Ω

5. Withstand voltage: 1500V, no breakdown in 1 minute

6. Temperature resistance: 500 ° C

7. Power deviation value: +5%-10%
TR-JRG-121000
φ12*1000
100/120/230/380/400
1000
TR-JRG-121200
φ12*1200
100/120/230/380/400
1200
TR-JRG-121500
φ12*1500
100/120/230/380/400
1500
TR-JRG-16800
φ16*800
100/120/230/380/400
800
TR-JRG-161000
φ16*1000
100/120/230/380/400
1000
TR-JRG-161200
φ16*1200
100/120/230/380/400
1200
TR-JRG-161500
φ16* 1500
100/120/230/380/400
1500
TR-JRG-161800
φ16*18 00
100/120/230/380/400
1800
TR-JRG-201000
φ20*1000
100/120/230/380/400
1500
TR-JRG-201500
φ20*1500
100/120/230/380/400
2000
TR-JRG-202000
φ202000
100/120/230/380/400
3000
TR-JRG-2025000
φ20*2500
100/120/230/380/400
4000
TR-JRG-221000
φ22*1000
100/120/230/380/400
2000
TR-JRG-2215000
φ222000
100/120/230/380/400
3000
TR-JRG-U1235060
φ12*350*60
100/120/230/380/400
1000
TR-JRG-U1240060
φ12*400*60
100/120/230/380/400
1200
TR-JRG-U1245060
φ12*450*60
100/120/230/380/400
1500
TR-JRG-U1250060
φ12*500*60
100/120/230/380/400
2000
TR-JRG-W12400150
φ12*400*150
100/120/230/380/400
1500
TR-JRG-W12450160
φ12*450*160
100/120/230/380/400
2500
TR-JRG-W12600170
φ12*600*170
100/120/230/380/400
3500
Can be customized according to customer requirements, please refer to the ordering guide
Packing & Delivery

Delivery:

• Packaging Details Carton box or wooden box for Electric Heating Heater

• Delivery Time 10 days for Electric Heating Heater

Our Company
        Yangzhou Tuanrui Electric Co., Ltd. Located in the beautiful historical and cultural city of Yangzhou. The company is a factory that integrates R&D, design, production, and sales services. Our factory specializes in PTC heaters,MCH Ceramic Heater, mica heaters, ceramic heaters, cast aluminum heaters, cast copper heaters, cast iron heaters, electric heaters, Quartz Heater, Explosion-Proof Heater, Foil Heater, Teflon Heater, Track Heater, Hot Runner Heater, Armored Heater, Ceramic Fiber Heater, Far Infrared Ceramic Heater, Hot Melt Machine heater, electric heating film, silicon carbide heater, silicon molybdenum heater, metal heating tube, heating coil, heating plate, heating rod, silicone rubber heater, radiant heater, heating cable, temperature sensor, thermal resistance , thermocouples, high temperature wire and cable, instrumentation, slip line bridge, bus switchgear, insulation materials, test instruments, ceramic ignition pin and other electrical complete sets of equipment. Products are mainly used in military, chemical, power, electronics, steel, metallurgy, medicine, machinery, automobiles, air conditioning, industrial furnaces, home appliances and other heating industry equipment. All products can be customized according to the requirements of customers, many products have now filled the domestic blank, instead of imports. At present, our heaters, temperature sensors, etc. have been sold to countries in the world and are well received by customers. Welcome new and old customers at home and abroad to visit us.

Address:No.198, Wuzhou East Road, Economic and Technological Development Zone, Yangzhou City
Contact:Dora zhang
Mobile / WhatsApp/Skype:+86 19905149759
WeChat:zl13952543845
Fax:+86(514)87244068
E-mail:yztrdq(@)yeah.net
Web:www.heater-china.com
Pc:225000

Certifications apply
Our Service
FAQ

Q1. Can I have a sample order forCeramic Heater?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks
Q3. Do you have any MOQ limit for Ceramic Heater?
A: Low MOQ, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5.How to proceed an order?
A: Firstly provide the heater size , voltage, wattage, quantity
Secondly We quote according to your size
Thirdly customer confirms the order
Fourthly We arrange the production.
Q6. Is it OK to print my logo?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7: Do you offer guarantee?
A: Yes, we offer 8000 hours warranty to our products
Q8: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less
than 0.2%.
Secondly, during the guarantee period, we will send new heater with new order for small quantity.
