arch roof forming machine, roof panel curving machine, steel arch building machine

Feedback Ratings
US $28000.00 / Set | 2 Sets (Min. Order)
Quantity:
- + Sets available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
30 day(s) after payment received
Contact Supplier
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Liaoning, China (Mainland)
Brand Name:
HT
Model Number:
120
After-sales Service Provided:
Overseas third-party support available
Forming speed approx:
15-25m/min
Step of rollers:
13 steps
Type:
1250-800mm
Material of cutting blade:
Cr12
Material of rollers:
45# steel, quenched HRC 58-62
HS:
8455229090
Main motor power:
18.5KW
PLC:
pansonic
Controlling system:
CNC
lifetime:
10years

Packaging & Delivery

Selling Units:
Single item
Single package size:
1050X225X250 cm
Single gross weight:
8000.0 KG
Package Type:
Nude packing...
Lead Time :
30

arch roof forming machine, roof panel curving machine, steel arch building machine

Product Description

What's the  arch roof forming machine, roof panel curving machine, steel arch building machine details ?

The products from arch roof forming machine, roof panel curving machine, steel arch building machine   looks very beautiful and have a high strength, its widely used as the roof of the factory, garden, hotel, exhibition center, etc!

Main Technical Specification HT-240(610)

1. Size: 9500mmx2270mmx2400mm

2. Total Weight: About 12000kg

3. Controlling System: PLC

4. Forming Power: 7.5kw

5. Bending Power: 4.0kw+1.5kw+1.5kw

6. Cutting Power: 3.0kw

7. Material of rollers: 45#steel, quenched HRC 58-62

8. Material of roller shafts: 45#steel

9. Material of cutting blade: Cr12 steel

10. PLC Type: Siemens

11. Step of rollers: 13 steps

12. Feeding Width: 914mm

13. Effective Width: 610mm

14. Thickness of the coil: 0.6-1.6mm

15. The depth of the groove: 203mm

16. Working speed: Straight sheet: 15m/min

17. Arch sheet: 13m/min

18. Sewing: 10m/min

19. Max span: 38m

Main Technical Specification HT-120(305)

1. Size: 8800mmx2050mmx2000mm

2. Total Weight: About 9000kg

3. Controlling system: PLC

4. Main forming unit driving motor power: 5.5kw

5. Curving motor power: 3KW+1.5KW

6. Electric cutting power: 3kw

7. Material of roller: 45#steel, quenched HRC58-62

8. Material of roller shafts: 45#steel, adjusted

9. Material of cutting blade: Cr12

10. Step of rollers: 13 steps

11. Feeding Width: 600mm

12. Effective Width: 305mm

13. The depth of the groove: 109mm

14. Thickness of the coil: 0.6-1.6mm

15. Working speed: Straight sheet: 15m/min

16. Arch sheet: 13m/min

17. Sewing: 10m/min

18. Max span: 24m

type

coil width

effective width

thickness

span

120-305

600 mm

305mm

0.6-1.6 mm

≤24m



type

coil width

effective width

thickness

span

240-610

914 mm

610 mm

0.6-1.6 mm

≤38m



type

coil width

effective width

thickness

span

914-650

914 mm

650 mm

0.6-1.6 mm

≤26m



type

coil width

effective width

thickness

span

914-700

914 mm

700 mm

0.6-1.6 mm

≤22m



type

coil width

effective width

thickness

span

1000-680

1000 mm

680 mm

0.6-1.6 mm

≤30m



type

coil width

effective width

thickness

span

1000-750

1000 mm

750mm

0.6-1.6 mm

≤22m



type

coil width

effective width

thickness

span

1250-800

 1250 mm

 800 mm

0.6-1.6 mm

≤42m

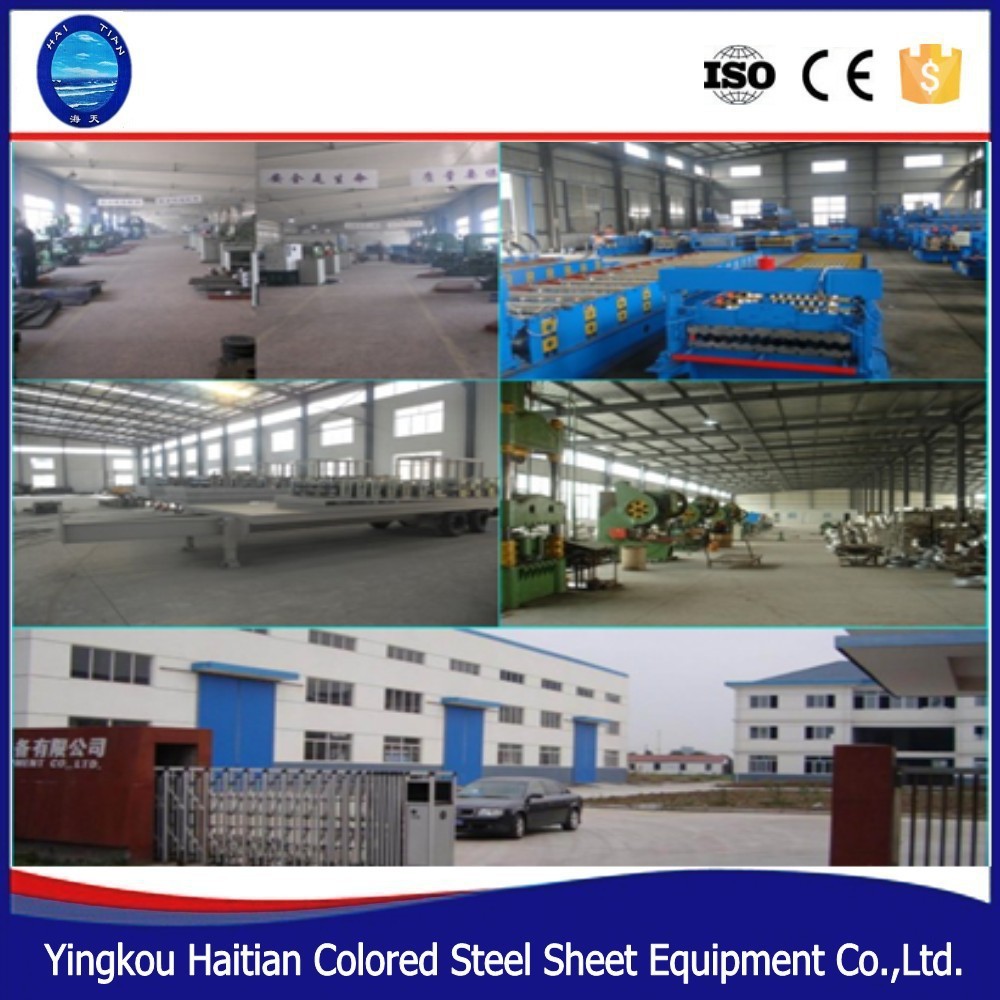

How  is the workshop ?


What's the parts quality ?


 What's the all necessary accessories? 748297654_397_conew1.jpg

What is the roof machine type drawings ?

23




 What's the use ?




FAQ



Q: Can you make color order ?



A: Yes. We can according to your requirements.



Q: Are you a factory or trading company ?



A: We are a factory.



Q: Where is your factory located?



A: Our factory is located in YingKou  City, LiaoNing Province, China. All our clients,           from home or abroad, are  warmly welcome to visit us !



 Q: How do you guarantee the quality of the products?



 A: Strict product quality, unqualified resolute don't factory.This is the tenet of our            factory

     Every one of our products have strict testing procedures, must be 100% quality          assurance.

Our Services



Why choose us  ?

Advanced machinery, well trained workers.

More than 12 years experience in roll forming machine Ad industry.

Unique designed, good quality, competitive price.

Full range of roll forming machine solution.





How do order?



Step 1: Tell us your requirements
Step 2Quoataion will be sent based on your requirement. Solution will be recommended to you            as the alternative
Step 3Negotiate and confrim each details for goods, trading terms and so on, get agreement               and sign contract.
Step 4: Advanced payment and production
Step 5: Factory Examine Goods/ rectify and reform to meet the requirements of contract.
Step 6: Balance payment and shipping
Step 7: Handing Shipping files to help clients get goods from transporter in time.
Step 8: Clients get goods and go into warranty time.





How is the payment ?



T/T( 30% by T/T in advance, the rest 70% to be paid by T/T after you inspect the Product  in seller's factory before delivery )
