asbestos cement sheet making machine/fiber cement boards production line

Free Inspection
FOB Reference Price:Get Latest Price
We offer premium service for Trade Assurance orders. Learn more
US $60,000-220,000 / Set | 1 Set/Sets asbestos cement sheet making machine (Min. Order)
Supply Ability:
15 Set/Sets per Year asbestos cement sheet making machine
Port:
Shanghai,Qingdao or according to the customers' request
Overview
Quick Details
Condition:
New, brand-new
Type:
Tile Forming Machine
Tile Type:
Cement
Use:
Roof
Production Capacity:
5500pieces/day
Place of Origin:
Henan, China (Mainland)
Brand Name:
Fangrui--fiber cement boards production line
Model Number:
FRS5500
Power(W):
200kw
Voltage:
380V
Dimension(L*W*H):
48m*8m*5m
Weight:
45t
Certification:
CE,SGS,ISO, ISO,CE,SGS
Warranty:
1 year after selling
After-sales Service Provided:
Engineers available to service machinery overseas
Name:
fiber cement boards production line
Capacity:
3600-5500pieces/day
Operator:
6-10
Gross building areas:
2000 square meters
Raw Materials:
fiber,cement, quartz,sand
Advantage:
working life is more than 36 years
Delivery time:
30 days after receiving the deposit
Warrenty:
1 year
Packaging & Delivery
Packaging Details
asbestos cement sheet making machine seaworthy packing
Delivery Time
asbestos cement sheet making machine
Product Description

Product Application


Asbestos cement sheet making machine
Main Product Specification: 3000 x 900 x 6mm (L x W x T)


I Technical requirements of Asbestos tile making machine :


1.1 Product specification: L x W x T: 3000 x 900 x 6mm.
Special sizes can be custom-made specially.
The common size: wave height is 40mm and wave pitch is 150mm or wave height is 51mm, and wave pitch is 177mm.


1.2 Others of Corrugated Fiber Cement Sheets Making Line :
(1) Theoretical capacity: 9000m2/day
(2) Pre-curing time: 12h
(3) Daily productive time: 20h
(4) Reserve of main raw material:
Dosage of fiber material should be supported for 7days.
Dosage of powdery material such as cement, quartz powder should be supported for 3days.

1.3 Basic requirement for quality of raw materials:
Limestone: SiO2≥80%, Fineness: ≥ 200 pore, sieve <10%
Cement: ordinary Portland cement with grade of above 32.5.

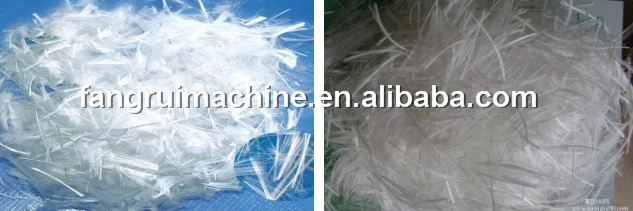

Fiberglass: fineness is 0.088mm, length is 15-30mm.

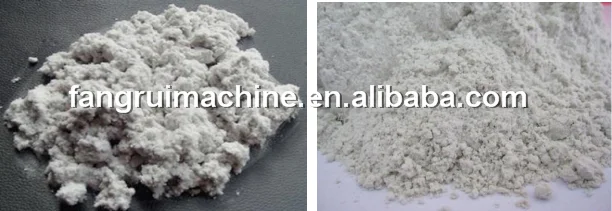

Fiber: asbestos or wood pulp or construction PP fiber.
Pulp: unbleached sulfate needle wood pulp or kraft pulp, pulping degree is 20 ~70°SR
Above mentioned contents are basic requirements for raw material. In some case, different raw materials also can produce qualitied products, we will confirm according to the raw materials after being analyzed.

II Raw materials:
The common proportion of material for fiber cement tile as follows:
Cement 50%, limestone powder 30%-40%, asbestos fiber 6%-8%, pulp fiber 4%-5%, and fiberglass 1%
If no asbestos tile, the proportion of materials as follows:
Cement 50%, limestone powder 30%-40%, wood pulp 8%, pulp fiber 8%, and fiberglass 1%

Quality Standard of Fiber Cement Sheets Making Line :

Item
Unit
Data
Density
g/m3
0.9-1.2
Flexural Strength
MPa
>9
Heat Conductivity
w/m.k
<0.29
Shock Resistance
kJ/mm2
>2.0
Screw Withdrawal Force
N/mm
<0.2
Non-inflammability
Complying with GB8624A,inflammable

III Production process:

The hatschek process is the most advanced technology in fiber cement tile production line with full automatic. We can custom-made according to requirements.

IV Product advantage of non-asbestos fiber cement board machine:

This equipment is reached and development with rich experience and advanced technology, used for producing asbestos tile, calcium silicate board fiber cement board.
This machine is used PLC automatic system, pneumatic principle with less operators and simple maintenance. One shift just needed 7 workers.
The control system is included Mitsubishi System controller SX2N-64MB,PANASONIC INVERTER VF-8Z,VFO and so on.
This system is included automatic, debugging, manual function. One mold three tiles, one mold two tiles or one mold one tiles and ridge tile can be chosen.

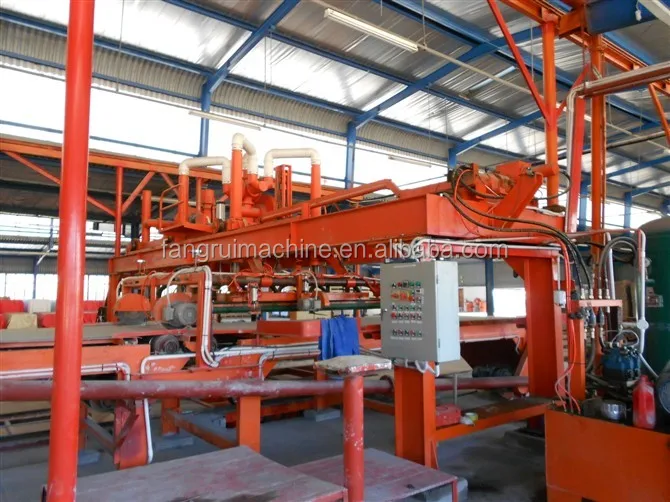

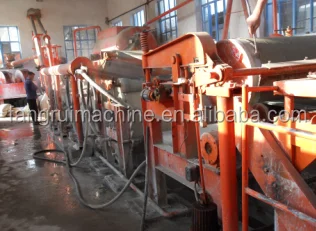

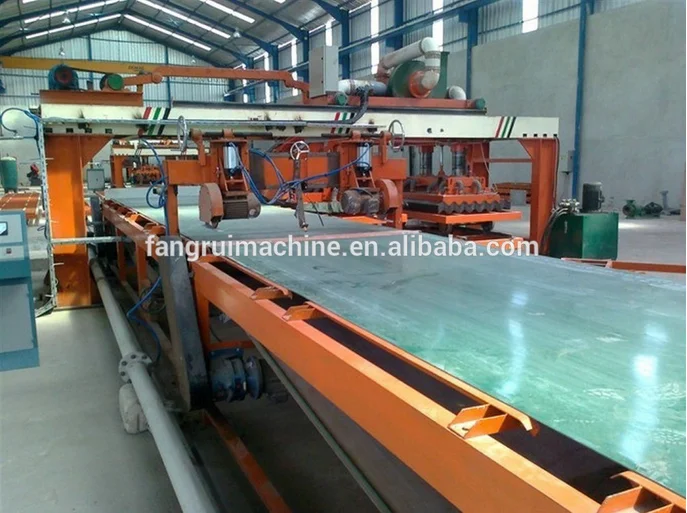

Photos of asbestos fiber cement board machine

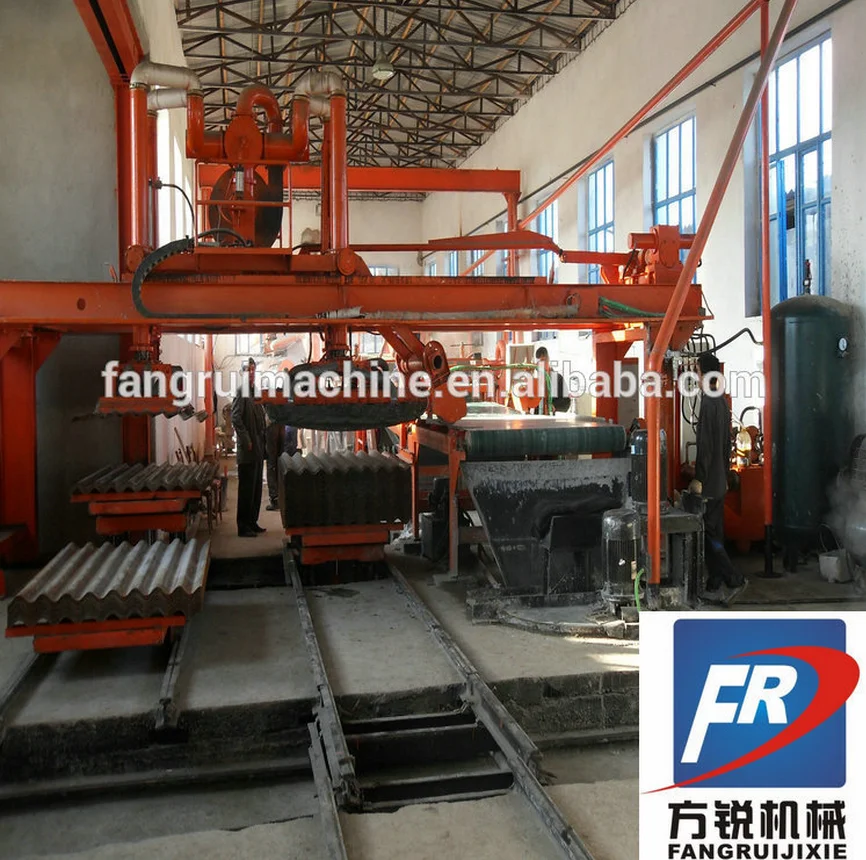

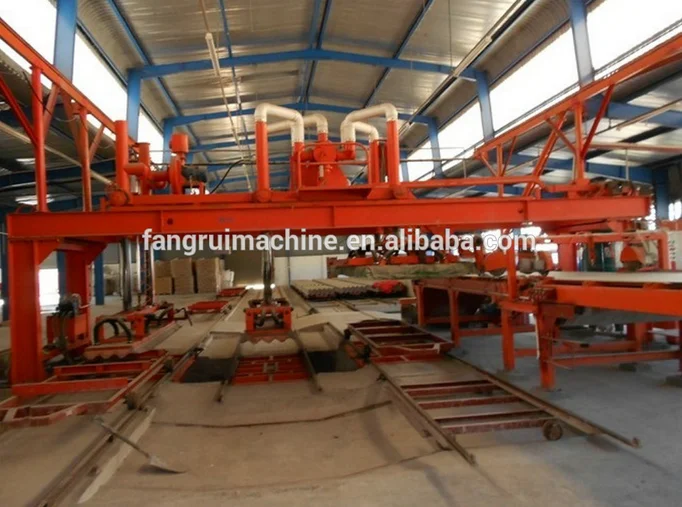

Customer sites

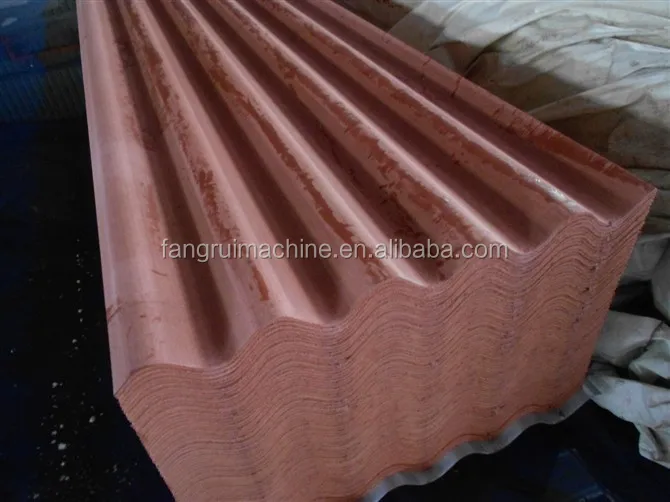

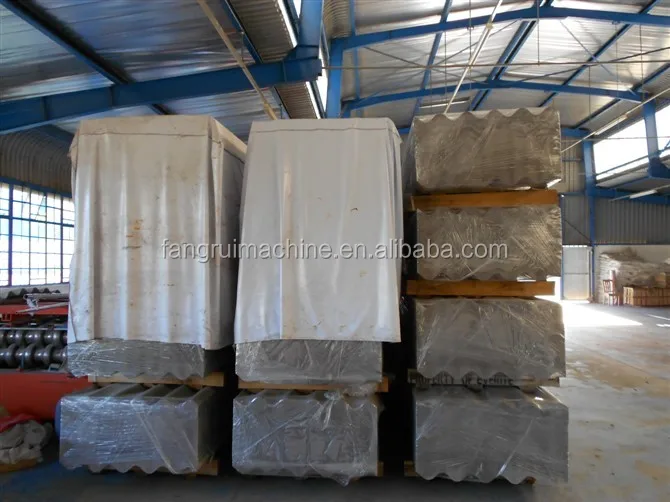

The picture of the cement board

Our customers

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery

If you want to know more information, please contact us freely.
Ms. sky
Phone: +86-15378799736(Whatsapp)
Skype: skyzhao1002
Wechat or QQ: 8615378799736
www.chinafangrui.com
