automatic electric cable wire terminal crimping machine manufacturer

FOB Reference Price:Get Latest Price
$8,333.00 - $13,700.00 / Set | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
YICHUAN
Model Number:
BX-330A
Usage:
Crimping
Name:
automatic electric cable wire terminal crimping machine
Function:
wire stripping and crimping
Application:
electrical cable wire terminal industrial
Color:
white
Weight:
260kg
Type:
fully automatic
Power:
2.5KW
Stripping length:
0mm-12mm
Wire material:
any kind
Voltage:
AC220V/50/60HZ
Supply Ability
Supply Ability:
50 Set/Sets per Month
Packaging & Delivery
Packaging Details
size:1000*700*1500mm

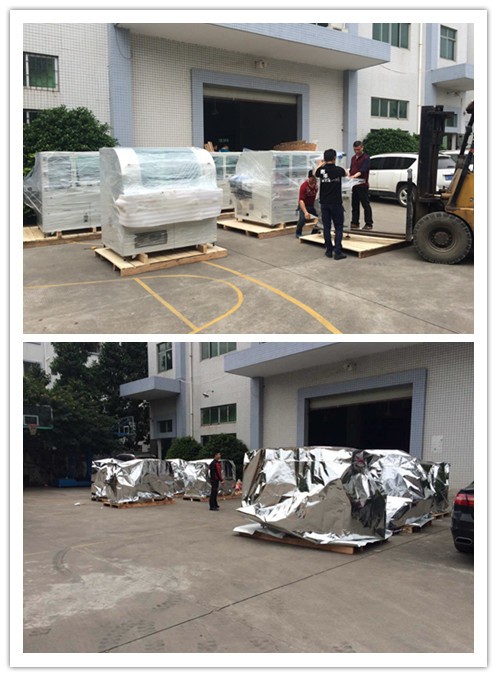

standard export wooden box
Port
shenzhen

BX-330A

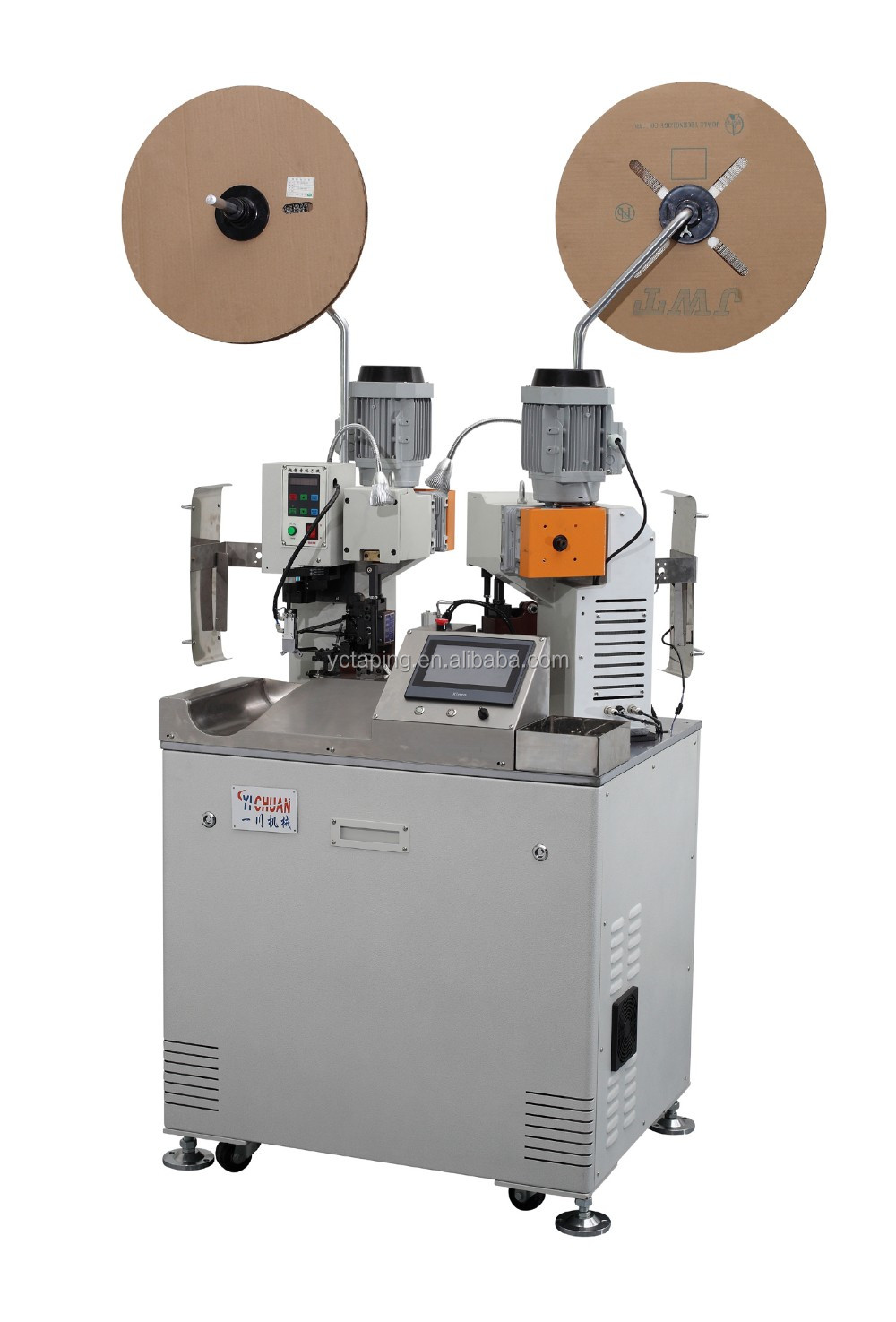

BX-330A Double automatic terminal Machine


Device Function

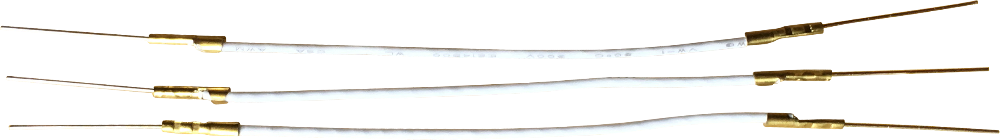

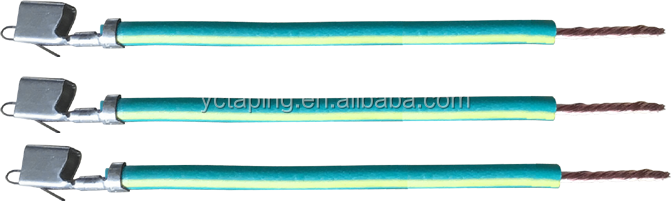

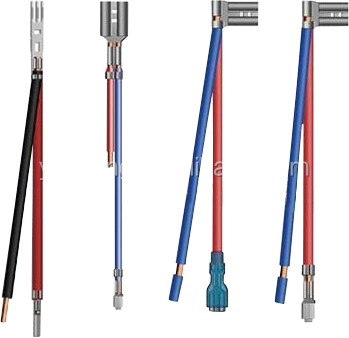

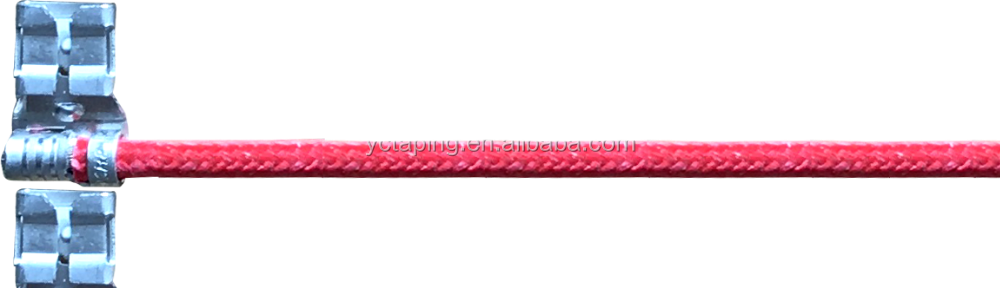

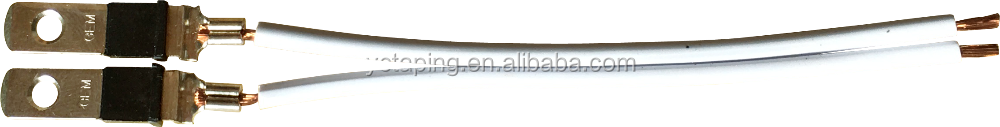

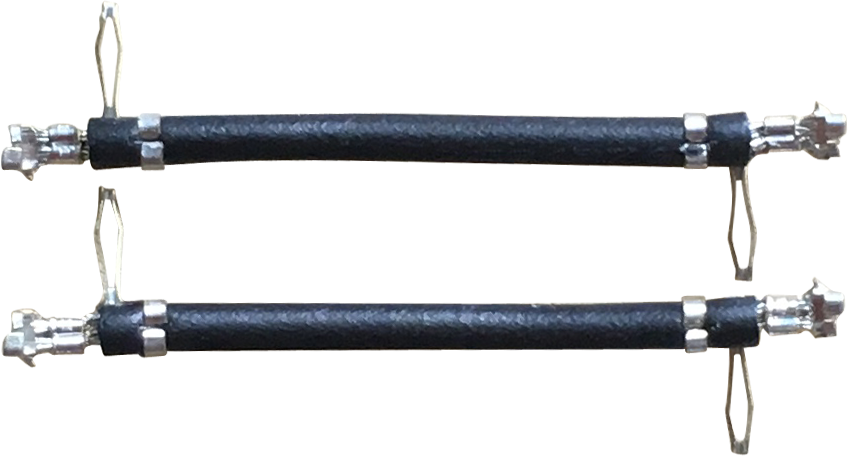

This machine can realize double stripping and terminal. single end terminal or semi-stripping.


Equipment Featurs
1. The machine uses PLC controller with full stepper motor control.
2.The design is simple, compact, and practical.
3. using a full PC-style digital adjustment, making it more rapid and efficient to replace product.
4.all other requiremens can be equipped according to customer

Function Parameter
1.Power:AC220V 50/60HZ
2.Power:2500w
3.The pressure focused on:1.5T/can be customized according to customer requirements.
4.producction efficiency: 5000pcs(length within 200mm)
5.wire processing length:45mm-9999mm, tangential cut length precision 1mm+0.1%
6.Stripping Length: 0mm-12mm
7.wire specification:wire AWG18-AWG28, other specifications can be customized.
8.the air pressure:4.5-6kgf(need to use clean air)
9. Put Line means:According to customer product line with normal playback devices,other special requirements can be customized.
10. the detection device: Pressure testing, without wires,tie detection.presence or absence of the terminal crimping detection
11. the device size:1000*700*1500mm excluding projecting portions.
12. Weight:260KG
13.take-up device:optional according to customer request.(1.5m-10m)
14.pressure sensor:optional according to customer request.

BX-330A-2









BX-330A-1







BX-350-1







BX-200-1







BX-130-2









BX-130-1
