building equipment precast concrete wall panel making machine

$450,000.00 / Set | 1 Set (Min. Order)
Model Number:
YR-20181101
$450,000.00
- +
available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
50 day(s) after payment received
Customization:
Customized logo (Min. Order: 1 Sets)
Graphic customization (Min. Order: 1 Sets)
Contact Supplier
Samples - $350,000.00 /Set, 1 Set (Min. Order): Buy Samples
Loading... Add To Cart
Report Suspicious Activity
Overview
Quick Details
Warranty:
1 Year
Production Capacity:
30000-500000sqm/year
Power(W):
50
After-sales Service Provided:
Online support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support
Applicable Industries:
Hotels, Building Material Shops, Restaurant, Construction works
Condition:
New
Application:
construction, Calcium silicate /Mgo/Cement fiber EPS sandwich panel production
Automatic Grade:
Automatic
Place of Origin:
Shandong, China
Brand Name:
OYADE
Voltage:
380
Dimension(L*W*H):
3.5*3*1.5M
Weight:
4000kg
Features:
High quality , low maintaince
Certification:
CIQ
Automation degree:
High automatic
Machine material:
High quality carbon steel
Product size:
2440x610x(60-180)mm normally, can be adjusted accordingly
Name:
light weight wall panel machine
Advantages:
Light weight/soundproof/waterproof/fireproof/heatproof etc
Control System:
PLC
Capacity:
300,000-500,000 sqm per yeaR
Certificate assurance:
CE, ISO9000 etc

Packaging & Delivery

Selling Units:
Single item
Single package size:
3.5X1.5X3 cm
Single gross weight:
88000.0 kg
Picture Example:
package-img
Lead Time :
Quantity(Set) 1 - 1 >1
Est. Time(days) 50 To be negotiated
Video Description
Product Description

EPS cement sandwich panel production line/sandwich panel from china is now totally new and hot in the world. But there are very few suppliers in the world. It is now replacing traditional building materials in the structure. We are specialized in this machine for over 10 years.

Machinery Parameters
Capacity
20,000sqm~600,000sqm per year
Thickness
50-200mm thickness. Or customize the size you like
Length
2400~3000mm
Width
610mm
Raw material

There are mainly two different types

1. Cement+fly ash/eps/ceramsite/sand, etc (optional, can choose to add or not add)

2. Fomed cement+additives

Finished board type

1. Composite board/sandwich board, with surface board

2. Lightweight solid panel, without furface board

Surface board types

1. Calcium silicate board   2. Fiber cement board    3. Mgo board

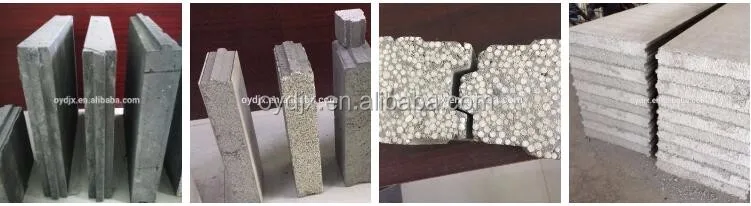

Finished products as following photos

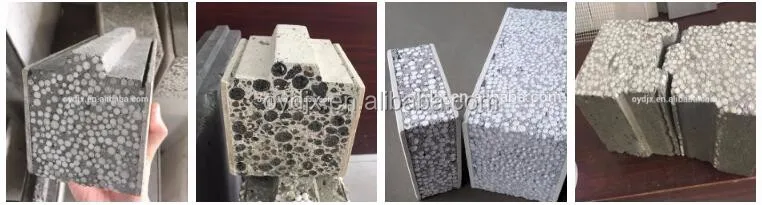

1.EPS Ccement Solid  Wall Panel    2.EPS Cement Sandwich Wall panel

Unique advantage
 1.Double -function mold car ,can produce panel with surface board and without surface board
2.Our machinery has a long service time and low failure rate ,no need repair often
3.We have a short machine testing time 10-15days to help you save raw materials cost
4.Perfect after-sale service systerm , skilled technical training and installation service .
5.Unique production technology formula to help you occupy more market

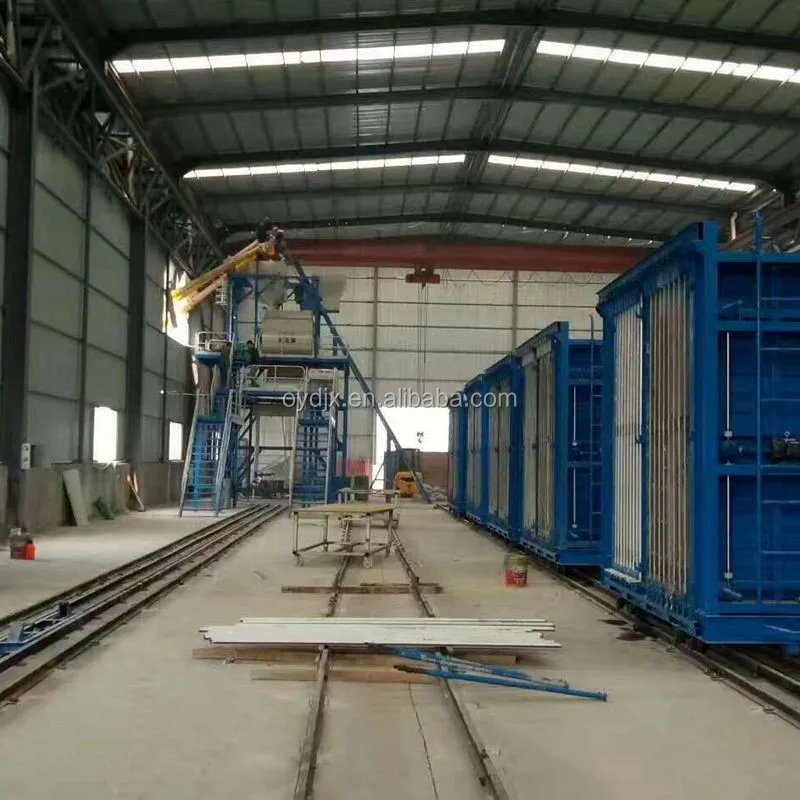

Main Equipment


Name: full automatic mixing platform

Brand: OYD brand

Measuring materials. Weighing system uses the gravity center of the pressure sensor structure measuring scale design, measuring scale adopts anti vibration and abrasion-proof , the accuracy of measurement is always guaranteed in construction process. We adopt double-shaft mixer, which has compact structure, beautiful appearance, stable running, convenient operation, high production efficiency.

Full automatic meteriing for raw materials

Each raw material is automatically mesured, so can ensure the eaxct formula.

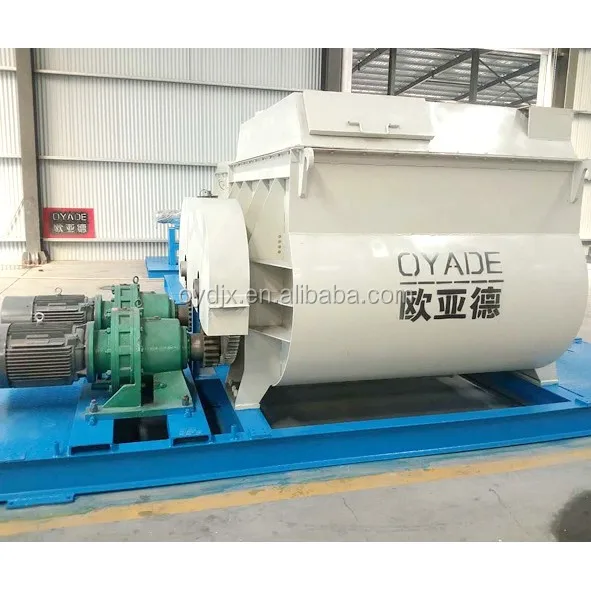

Mixer

The Mixer is double -shaft , stable and convenient operation and high production efficiency.Beside, the blade is only 3mm to the mixer wall so that can guarantee mixing even .End of shaft has four seal, no oil leakage, no slurry leakage , automatic oil filling maintenance.
Besides ,the mixer is sealed, so there is only a small quantity dust and no need dust collector , so that can help you save cost .

Name: Pumping system
Brand: OYD brand

We use the pump to cast the slurry into the mould car , in this way , the slurry will be more even ,with less bubble ,besides it can keep the working platform clear without wasted raw material .
Besides , it can avoid the difference between two end of two board by workers vibration,and protect the integrity of the calcium silicate board , and ensure the compactness of both sides.

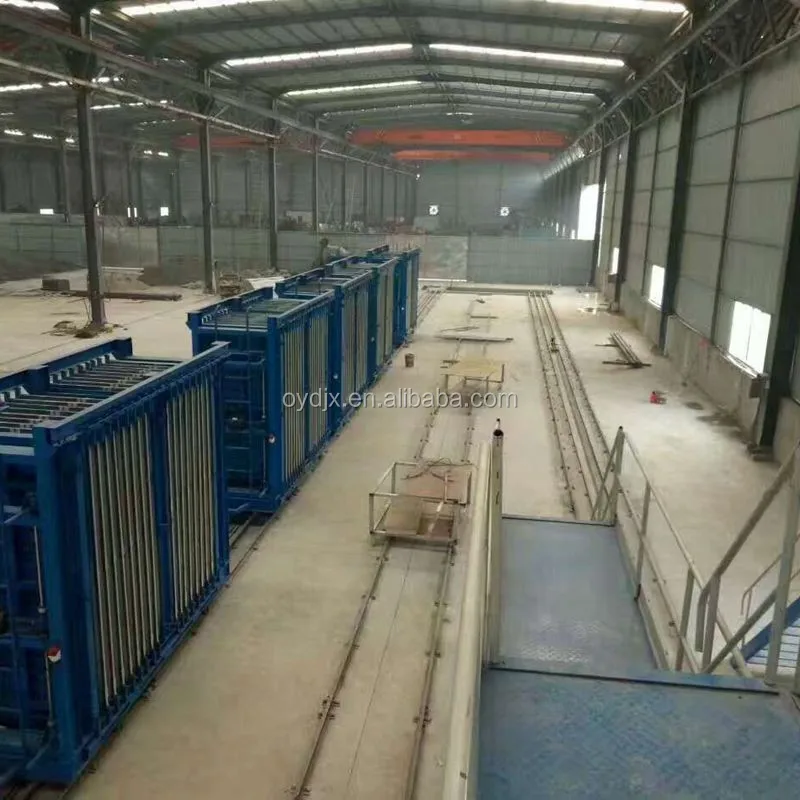

Name: Full automatic mould car
Brand: OYD brand

Full automatic open and demoulding, no need workers to lift the panel

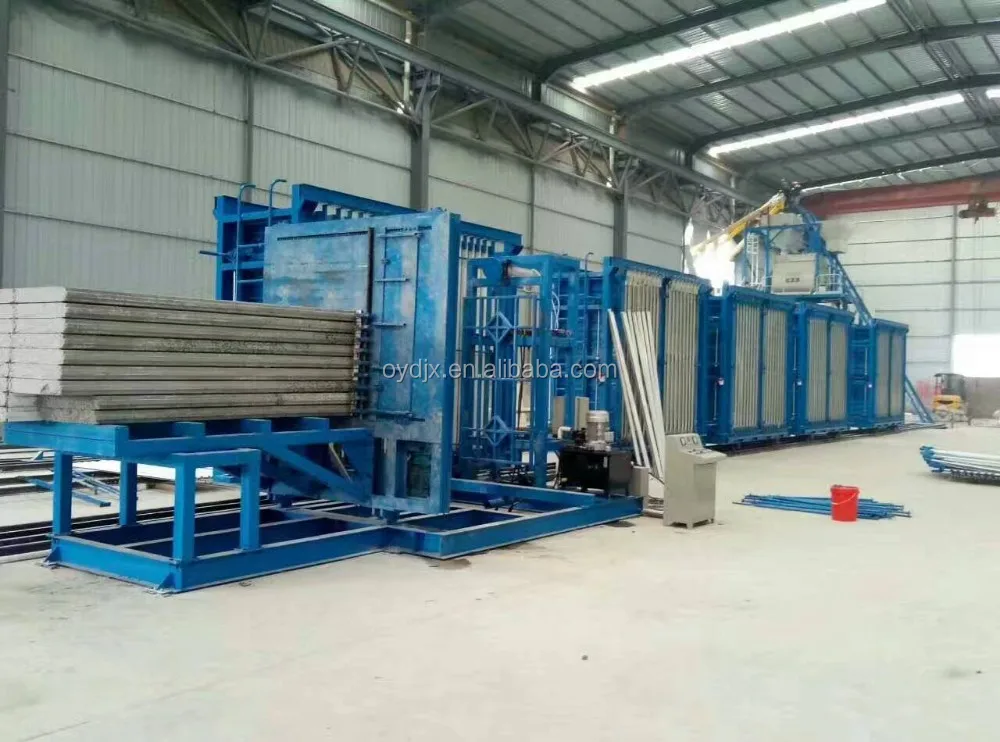

Name: Automatic unloading machine
Brand: OYD brand

we have full automatic demoulding system to reduce the working strength, this is our patent technology and it is very mature now . each time can pull out 20pieces wall panel , compared with manual demoulding which need about 30-40minutes , automatic demoulding only need around 10-20 minutes

mold car traction system

Boiler system

EPS foaming machine

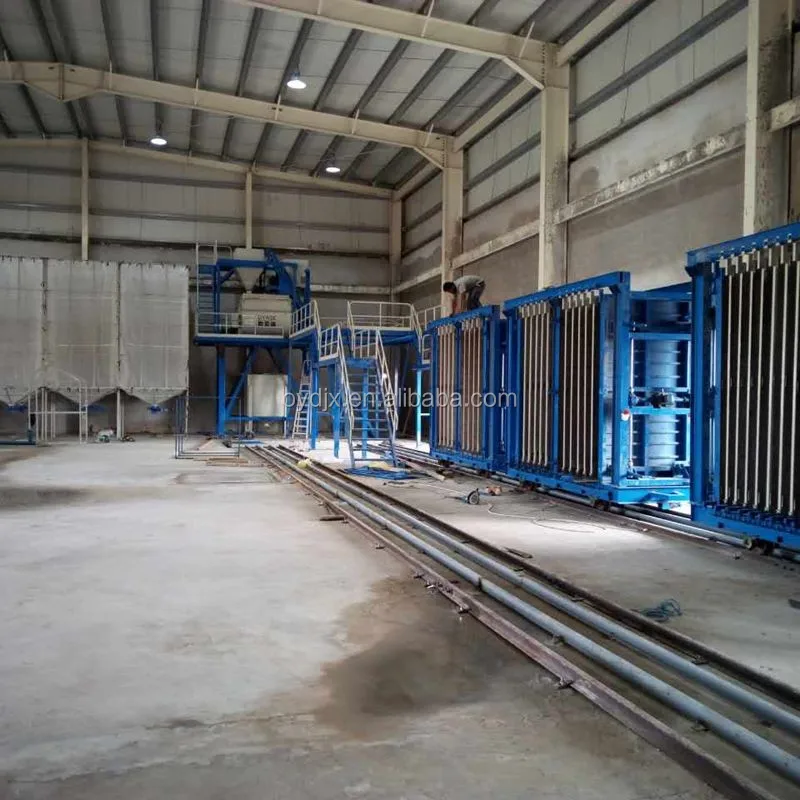

Sample Project

we been exporting machinery from 2014. And so far, we have more than 100 successful projects in global world. For wall panel production line, we have customers from: Philippines, Malaysia, Qatar, Saudi Arabia, Russia , Australia, Syria, UAE and so on.

Packing & Delivery
Packaging
1.
First use plastic film to wrap and cover the machine
2.
Pack small parts in plywood box
3.
marked with required label or shipping mark
4
Use steel wire rope to fix the container ,so as to avoid to damage because of moving
Our Certificate
