carbon steel material windows with tempered glass

FOB Reference Price:Get Latest Price
$28.00 - $35.00 / Square Feet | 1 Square Foot/Square Feet (Min. Order)
Type:
Casement Windows
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Fujian, China (Mainland)
Brand Name:
Fortune
Model Number:
Fortune
Frame Material:
Steel
Open Style:
Swing
Feature:
Magnetic Screen
Opening Pattern:
Horizontal
Material:
Hot rolled steel tube, imported Carbon steel, w20, w40, thermal break
Service:
Drawing CADs by professional designers and engineers
Glass:
Warm egde tempered insulating glass with full sets of certifications
Productivity:
1000 sets per month
Warranty:
10 years no paint fall off and 10 years entire door maintenance
Craft:
Pure manual
Finish:
Zinc rich Fluorine carbon paint
Advanced equipment:
Automatic painting lines
Custom:
YES
Main markets:
Australia, Canada, UK, USA......
Supply Ability
Supply Ability:
1000 Set/Sets per Month
Packaging & Delivery
Packaging Details
4 layers: soft foam sheet, corrugated paper board, bubble wrap and customized wood crate
Port
Xiamen
Video Description
Product Description
Standard
American standard
Australia standard
European standard

Warranty
10 years
Material / Profile
☆ Hot rolled steel tube (Hollow steel)
☆ Swiss imported carbon steel (Solid hot rolled steel: W20 series, W40 series)
☆ Swiss imported carbon steel (Solid galvanized steel: thermal break MTS50)

We are CHINESE EXCLUSIVE AGENT of Swiss imported hot rolled STEEL profile.

Carbon steel & Galvanized steel & Thermal break steel

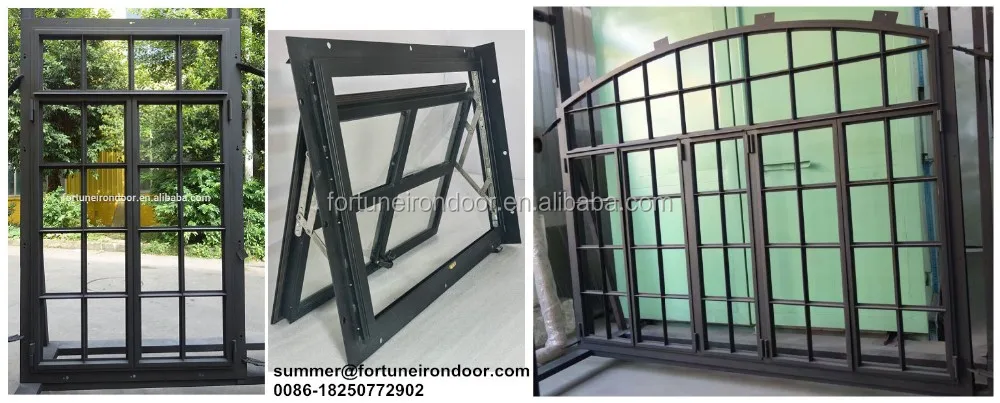

Products: Casements / Fixed / Awing / Pivot / Sliding / Folding Steel Windows & Steel Doors

We are Chinese leading hot-rolled steel frame window and door manufacturer.

We believe in using only the highest quality environmentally friendly materials. All steel 100% recycled and precision hot-rolled in Switzerland specifically for us. All hardware and fittings are superior quality, solid brass or 316 grade stainless steel, European sourced.

Profile
Advantage
Usage
☆ Hot rolled steel tube (Hollow steel)
High cost-effective
Jamb: 1" * 2", 1.25" * 2", 1.5" * 2"
Stile tube: 1.25" * 2"
Steel muntin / Cross bar: 3/4", 1", 1.18"
Fixed windows

Modern style double / single doors
Pivot doors

☆ Swiss imported carbon steel (Solid hot rolled steel: W20 series)
Minimal depth and sidelines
The thinnest and high energy-efficient with glass thickness: single 8mm, double 16mm / 22mm
French style casements
Fixed windows
☆ Swiss imported carbon steel (Solid hot rolled steel: W40 series)
Minimal depth and sidelines
Both thin and strong
High energy-efficient with glass thickness: double & triple 16mm / 22mm / 25mm / 30mm
Awing windows

French style doors
Sliding doors
☆ Swiss imported carbon steel (Solid steel: thermal break galvanized steel MTS50)

Minimal depth and sidelines
Thermal break can be used in extreme weather conditions
Zinc-magnesium coating for corrosion protection
High energy-efficient with glass thickness:
double & triple 26mm / 30mm
Unique & stylish thermal break doors & windows

Sunlight room
Advanced paint tech

World's top level zinc-rich fluorine carbon paint.

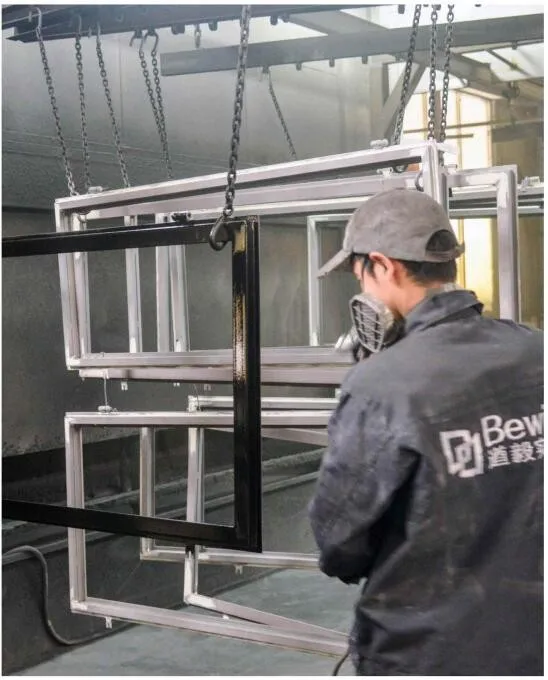

Automatic hanging painting technology in the dust-free rooms and thoroughly drying in the baking rooms. We make painting 10 layers and baking 8 times reaching marine grade with 10 years antirust and no paint fall off

Paint process

· Sand blast for taking off rust
· Zinc-rich Epoxy primer for anti-rust
· Mica iron epoxy primer
· Intermediate coat
· Black paint
· Hand applied touch ups
· Protected with oil based clear coat sealer

RAL / Custom Color
Available
Color 0#
Matt Black
Color 4#
Silver pewter
Color 5#
Antique Copper
Color 6#
Light Bronze
Color 7#
Heavy Bronze
Color 8#
Gold Rush

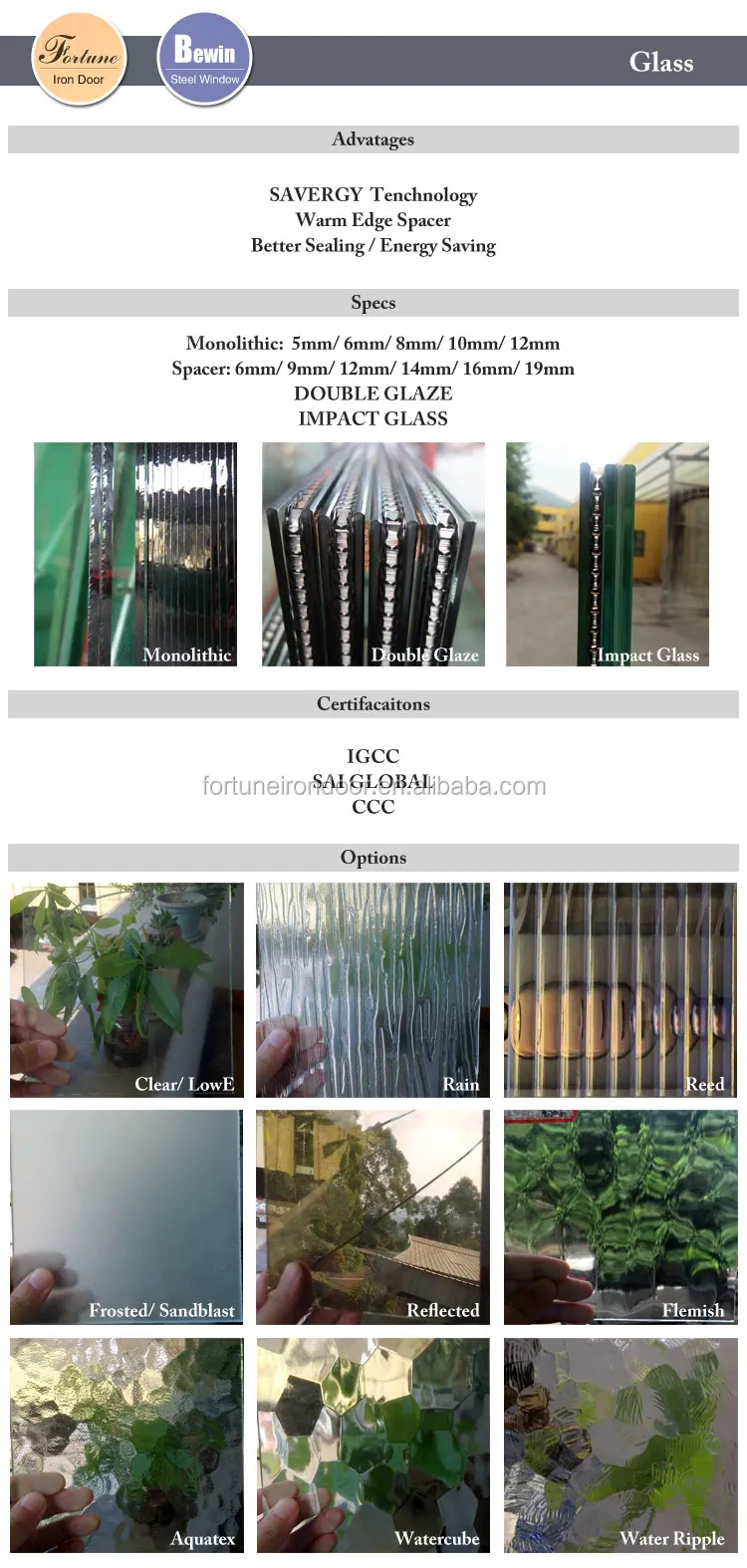

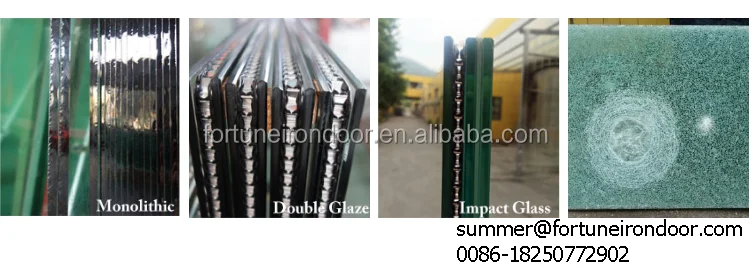

Glass
Manufactured by our own glass factory
More styles are available
Tempered single glass / Toughened insulating double glass / Triple glass / Impact glass / Laminated glass
Bullet-proof glass / Tinted glass
Lowe glass with U-Value 0.29 and SHGC 0.22
Certifications: IGCC / SAI GLOBAL / CE
Quanex super spacer is available

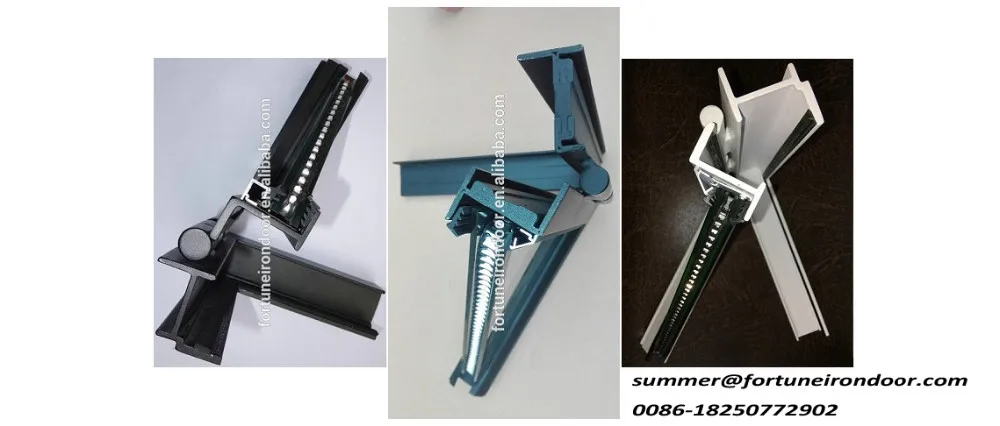

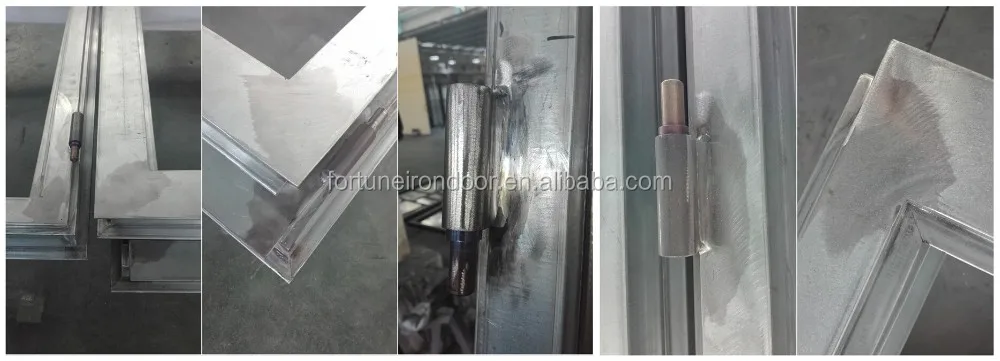

Hardware and Details

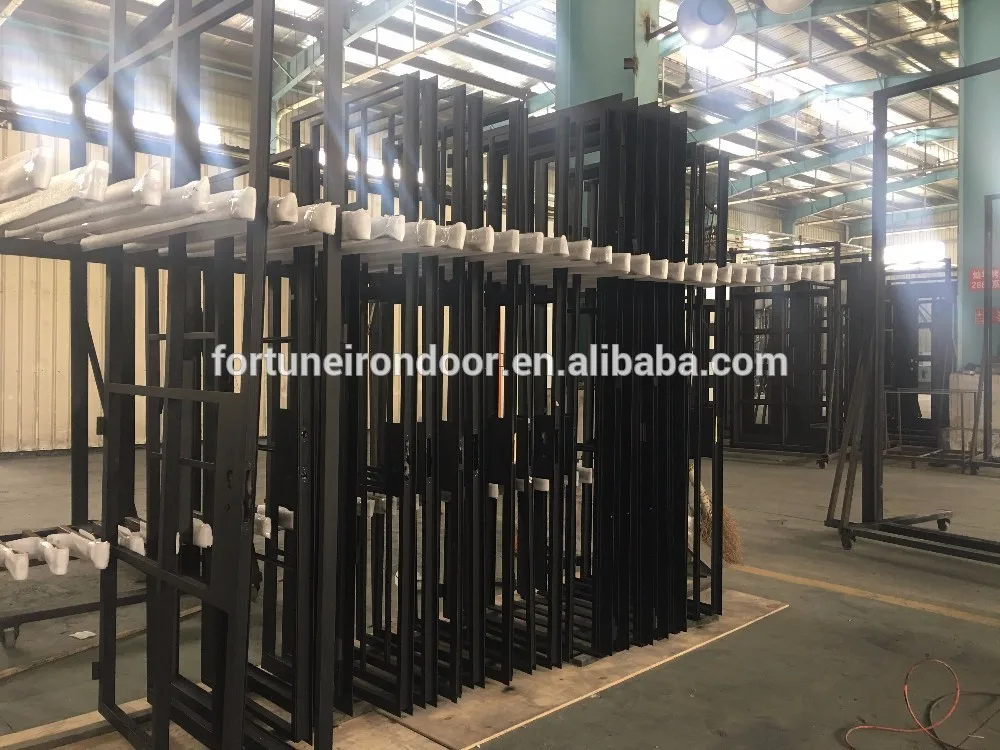

We are manufacturer

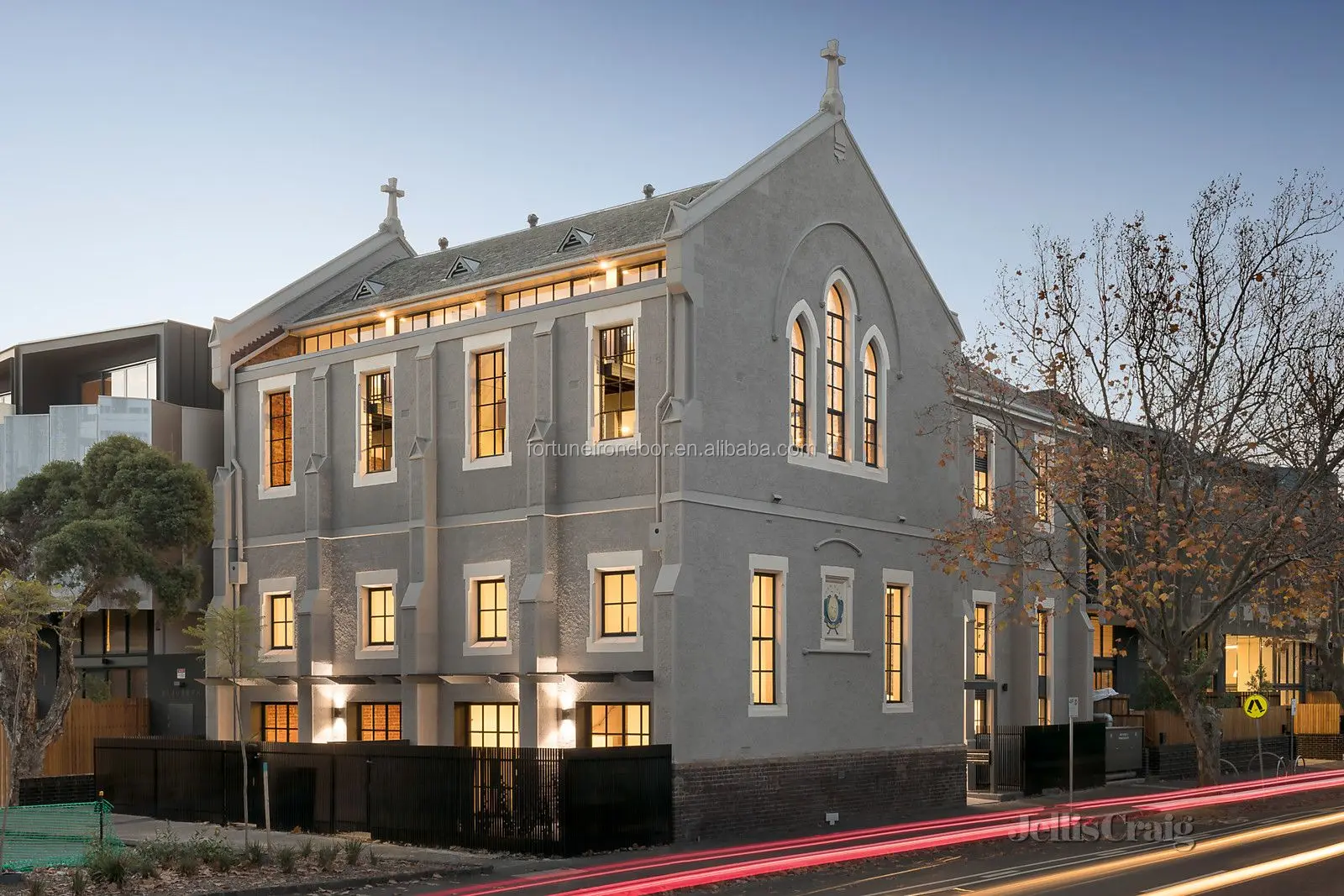

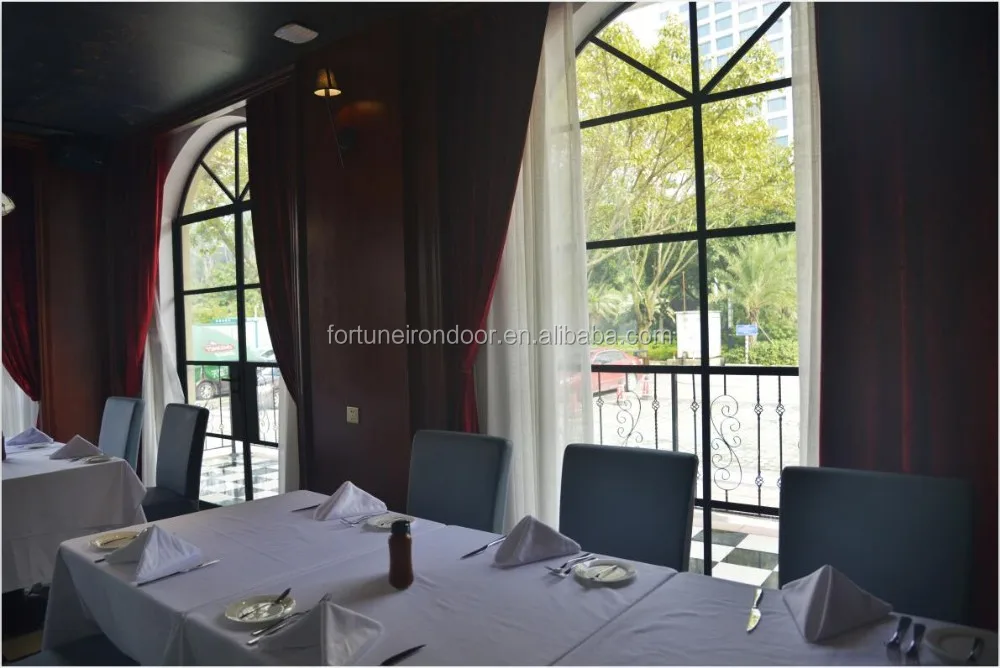

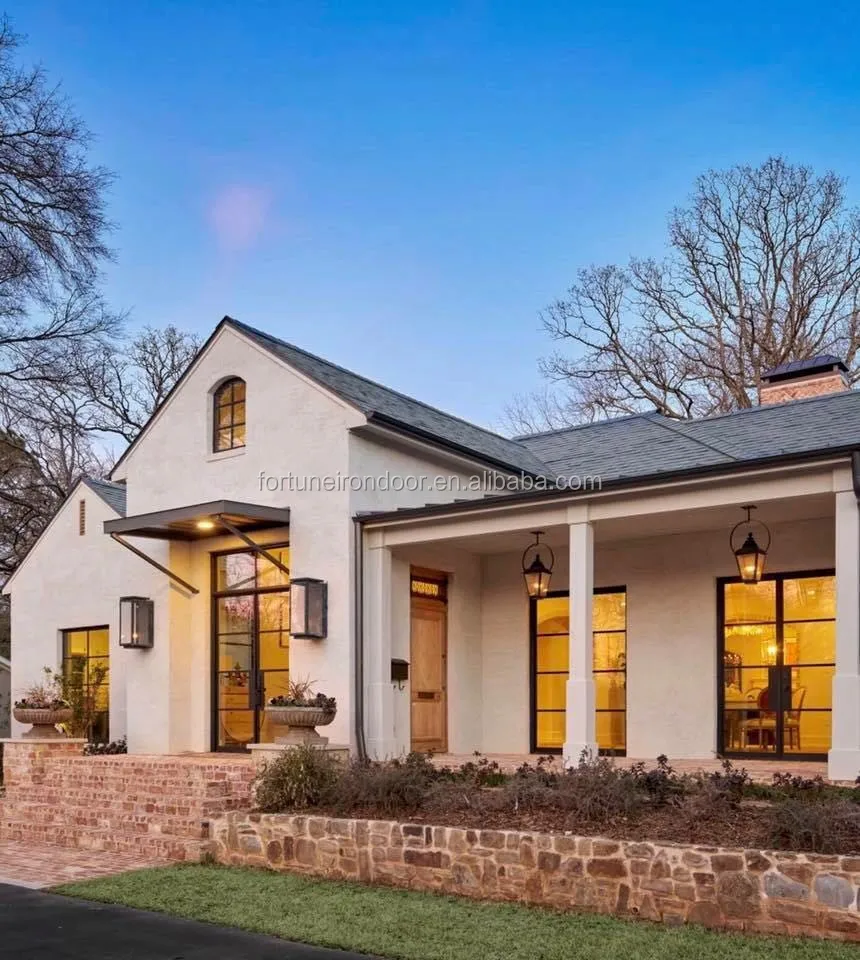

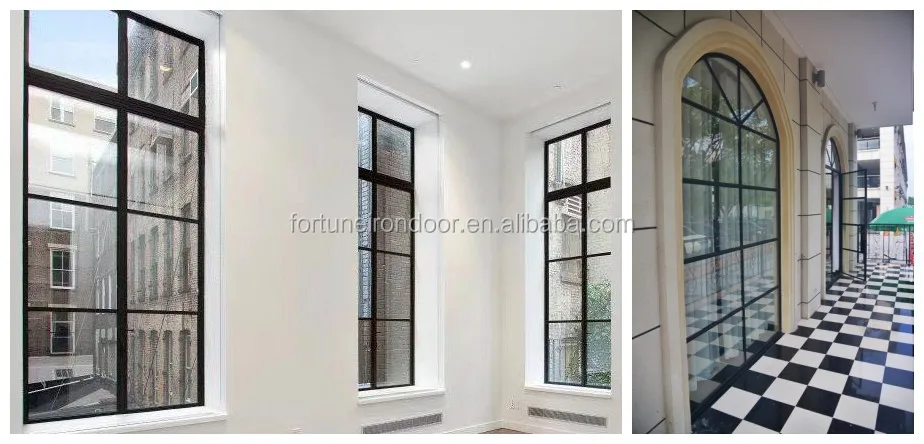

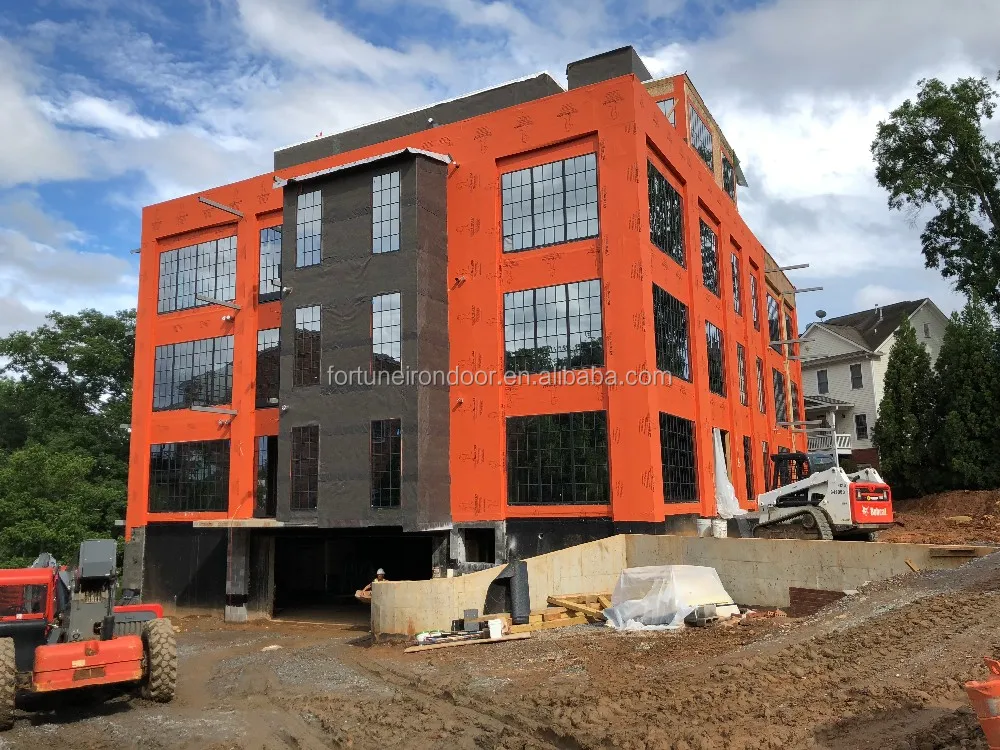

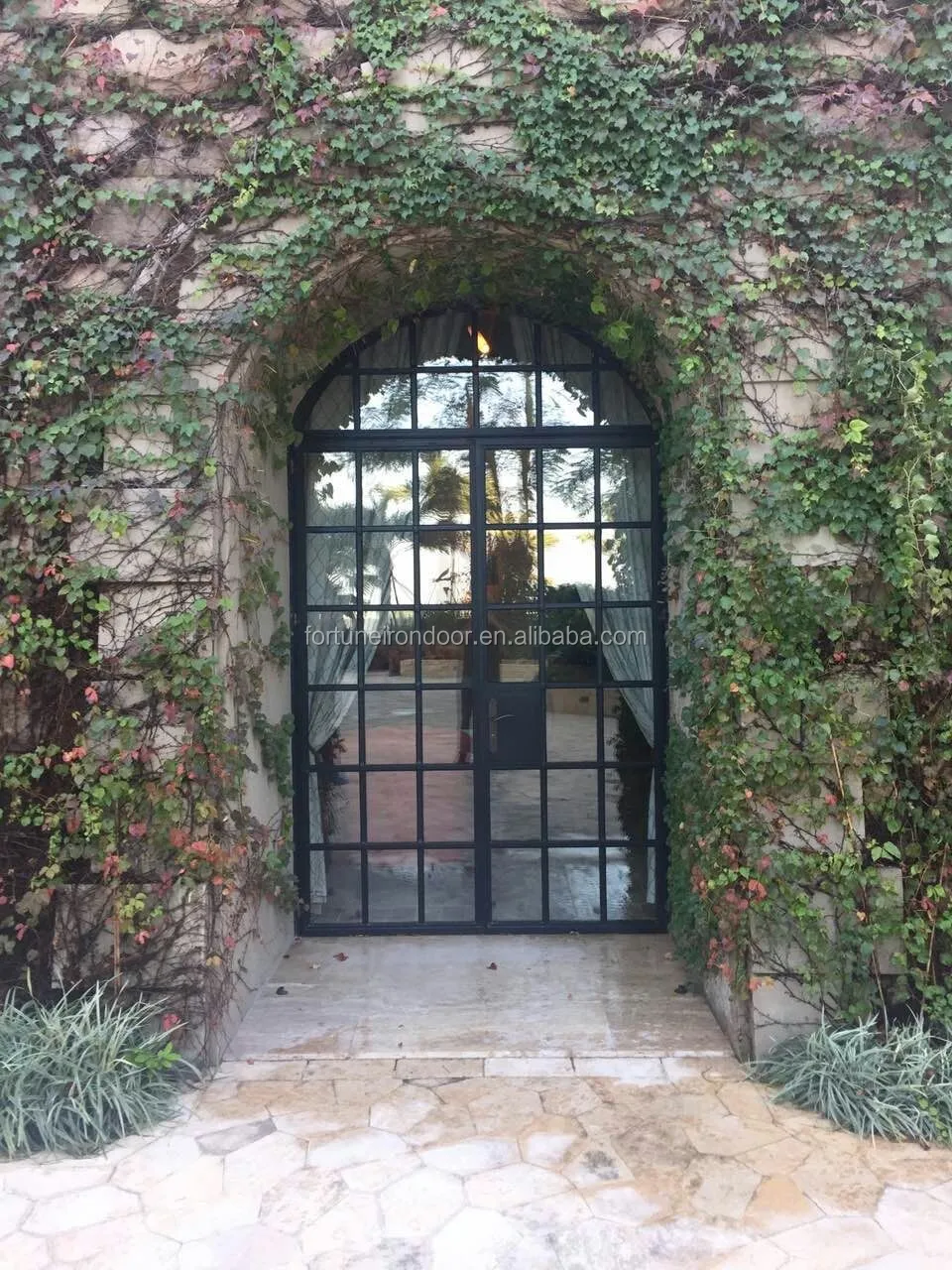

Products & Projects

Please don't hesitate to contact with
Summer
0086-18250772902
summer(@)fortuneirondoor.com
