cement silo dust collector for Power Plant or Cement Plant

FOB Reference Price:Get Latest Price
$500.00 - $750.00 / Sets | 1 Set/Sets (Min. Order)
Type:
dust catcher
Efficiency:
99.9%
Model Number:
SV
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Minimum Particle Size:
40um
Place of Origin:
Shandong, China (Mainland)
Brand Name:
DOM
Dimension(L*W*H):
Diameter 800mm
Weight:
110kg
Certification:
CE
Warranty:
1 Year
After-sales Service Provided:
Online support, Engineers available to service machinery overseas
Name:
Industrial Dust Collector
Application:
keep the pressure balance of inside and outside of the silo
Material:
stainless steel
Color:
can be customize
Other Name 1:
dust catcher
Other name 2:
dust wiper
Use:
used in cement silo
weight:
110kg
accessories1:
distributor pipe
Supply Ability
Supply Ability:
100 Set/Sets per Month
Packaging & Delivery
Packaging Details
Standard packing in containers or according to client's needs
Port
QINGDAO

cement silo dust collector for Power Plant or Cement Plant

product detail



Product Description

We are a reputed name in the industry, devoted towards offering the best quality array of Cement Silo Dust Collector.
SDDOM dust collector  is a cylindrically shaped dust collector for venting of pneumatically filled silos. Its stainless steel body contains vertically mounted, POLYPLEAT filter elements. The air jet cleaning system is integrated in the hinged weather protection cover.

Function :
Dust separated from the air flow by special POLYPLEAT filter elements drops back into the silo after an
integrated automatic reverse air jet cleaning system inside the weather protection cover has removed it
from the filter elements.
Features:
Compact design
High filtration capacity
Reliable filtration

Product modelSV-V2:vibrating type SV-J1:air jet type
Filtration area24m224m2
Wind capacity1500m3/h1500m3/h
Filtration efficiency99.9%99.9%
Noiseunder 85dBunder 75dB
Cleaning methodVibration cleaning intermittent working wayPulse air-jet cleaning continuous working
Compressed air4-6 bar 4-6 bar
Control panel power380V/50Hz220V/50Hz
StructureStainless steelStainless steel
Connecting wayFlange connectionFlange connection

1.SV-V2: Vibrating Type

Vibrating type is used on top silo.Dust separated from the air flow by filter elements drops back into the silo after vibration.

2.SV-J2:Air-Jet Type

Dust separated from the air flow by filter elements drops back into the silo after an integrated automatic reverse air jet cleaning system inside the weather protection cover has removed it from the filter elements.

The air jet cleaning system is integrated in the hinged weather protection cover.

3. Dust collector with blower and dust collector hopper:



Dust separated from the air flow by filter elements drops back into the dust collector hopper after an integrated automatic reverse air jet cleaning system inside the weather protection cover has removed it from the filter elements. The fan system provide negative pressure which help to keep air filtration more efficient.

4.Filter inside

Filter inside is folded PET filter.

Thickness of the filter is only 0.2mm,easy to clean and have long working life.

using

paking&shipping

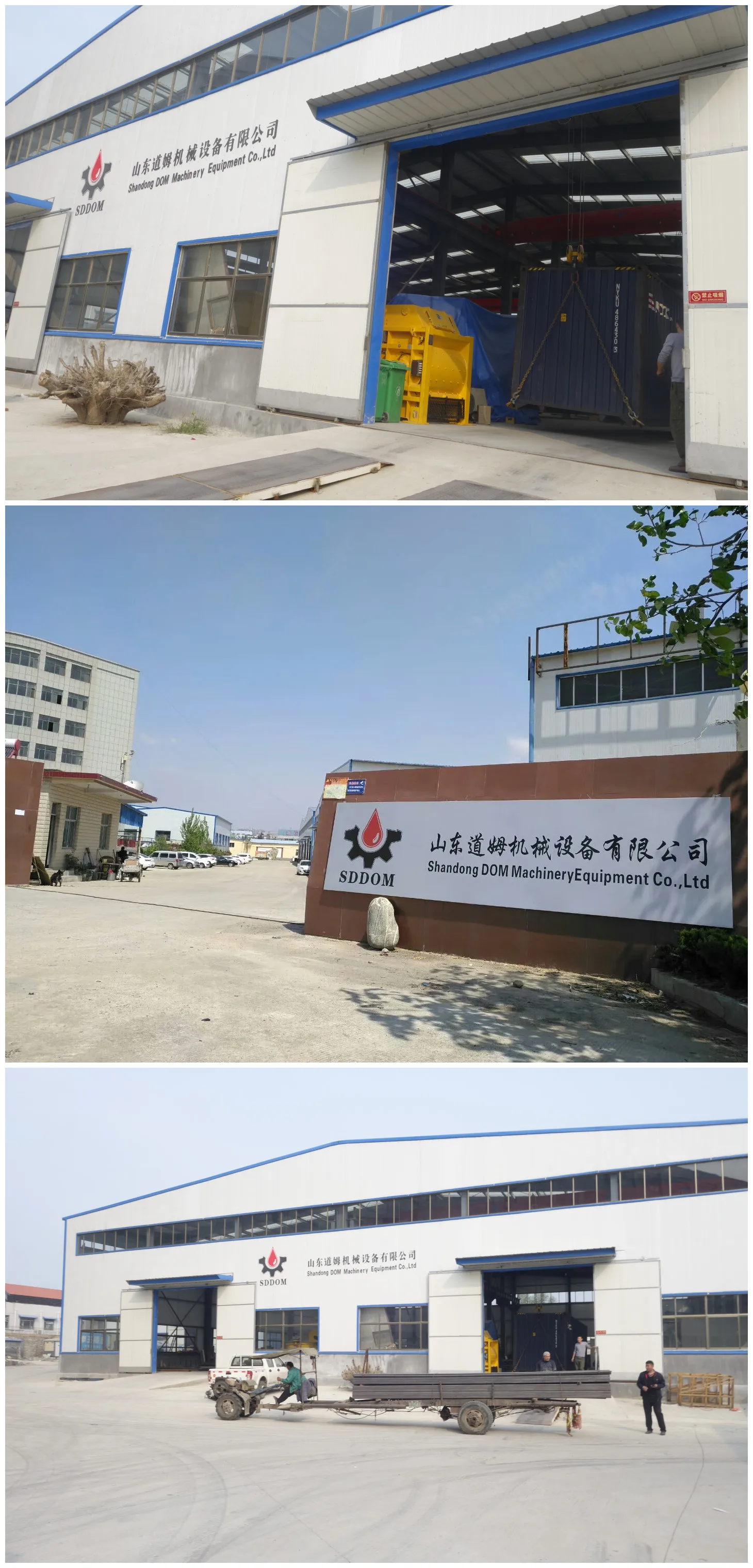

company information

SDDOM Machinery is the most innovative concrete machinery company. Mobile and Stationary China supplier road construction equipments concrete batching plant price construction companies indonesia, Bolted and Horizontal Silo, Planetary and Twin Shafts mixer and other more than 10 kinds of products are certificated by CE or get patent.

Every step of Every equipment will be signed and checked from design, drawing, production, test to delivery. All the processing steps are meeting the requirements of Europe CE.

More and more clients around the world come to visit our factory every month. Australia, Sweden, Denmark, France, Saudi Arabia, Kuwait, Indonesia, South Africa, USA, Brazil.

Welcome friends from all over the world to visit us!

Powerful Overseas Engineers Service team will provide you with professional technical support.
