cheap chinese home automation rs232 programmable plc logic controller

Feedback Ratings
  • 1-9 Pieces
    $373.00
  • 10-19 Pieces
    $370.00
  • 20-49 Pieces
    $365.00
  • >=50 Pieces
    $360.00
Quantity:
- + Pieces available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
5 day(s) after payment received
Customization:
Customized logo (Min. Order: 20 Pieces)
Customized packaging (Min. Order: 20 Pieces)
Contact Supplier
Samples - $360.00 /Piece, 1 Piece (Min. Order): Buy Samples
Loading... Add To Cart
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Jiangsu, China (Mainland)
Brand Name:
Mochuan
Model Number:
MU2V-1616MT-CAN
Input/Output point:
16/16
Built-in Pulse:
8x200kHz
Program Capacity:
32K steps
Votage Rating:
AC85~264V/DC24V
Processing Speed:
0.05μs/step
Interface Type:
RS485/CAN/RS232
MOQ:
NO MOQ

Packaging & Delivery

Selling Units:
Single item
Single package size:
12X10X8 cm
Single gross weight:
2.5 kg
Package Type:
Inner plastic box + outer hardness box.7days refund in case of bad quality
Picture Example:
package-img
package-img
Lead Time :
Quantity(Piece) 1 - 1 2 - 20 21 - 50 >50
Est. Time(days) 5 10 14 To be negotiated
Video Description
Pay Attention
Certificate
Certificate Number
1105217
Origanization
EC DECLARATION OF CONFORMITY
Declare the product
PLC Programmable logic controller
Date & Time
02/06/2011
Test Standard
EN60950-1:2006+A11:2009
Certificate for
EC Low Voltage

Kindly reminder:

All our certifications are REAL ONE.

NOT FAKE, NOT FAKE, NOT FAKE!!!


PLEASE CONTACT US TO SHOW YOU!!!


WORLD-WIDE CUSTOMERS COMMEND & FEEDBACK

Here is some of comments from our world-wide customers.

You can check all the comment at our company profile by www.mochuan.en.alibaba.com-" company profit"-"Rating& Rewiews" Then you can see all comments from our clients.


( Know please, all our customer comments are real one, NOT FAKE.)

TRUST YOU WILL LIKE OUR SERVICE, QUALITY AND PRICE

Alibaba.com suppliers platform show that:

1. We never got any complain.

2. More than 5000 customers contacted us.

3. Star supplier with more than 10000 points.


Our Advantage
Product Description
MU2V
MU2H
MU1H
I/O Point
16/16, 28/28
16/16, 32/32
08/06, 12/08, 16/10, 16/14, 36/24
Max Logical I/O
512
512
512
Max Special Function Module
8
8
2 I/O and analog module
Program Capacity
32K
24K
12K
Pulse output
8x200KHz
4differential output
3x100KHz( transistor output)
2x100KHz( transistor output, relay input)
One-phase Counting Channel
8x200KHz
2*50KHz, 4x10KHz
Two-phase Counting Channel
4x200KHz
1x25KHz, 2x5KHz
1x20KHz, 2x10KHz
Sum of Counter Frequency
800KHz
100KHz
80KHz
PLC N:N
support
RTC
support(power down keeping at least 3years)
Constant Sanning Mode
support
Digital Filter
0.8, 1.6, 3.2, 6.4, 12.8, 25.6, 51.2, adjustable
Feature
Description
Programming Software
Free MCprogrammer
Program Security
download, upload, program password
Programming Language
ladder, instruction, SFC
Communication Protocol
programming protocol, Modbus, CAN and free port, MXLink
Expansion Module
I/O extension module, AD/DA, thermal resistance, thermal couple, pulse, weighting, et

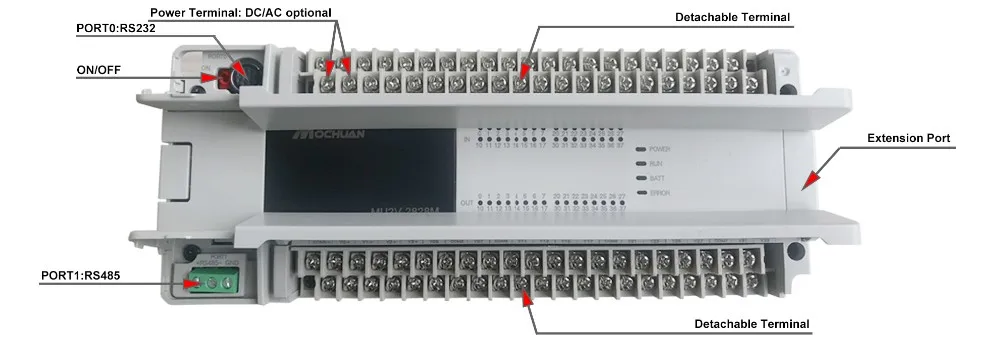

MU2V Model:
Model
I/O
Input Point
Ouput Point
Type
CAN Card
Dimension
MU2V-1616MT/MT1/MT1-CAN
32
16
16
transistor
optional
158*90*83
MU2V-2828MT/MT-CAN
56
28
28
transistor
226*90*83
Supporting to expand analog/thermocouple/ thermal resistance/ pulse/ high precision analog/ weight..module.
Feature

Multi Axis Control: MU2V series plc controller programmable logic controller supports totally 8*200KHz pulse input and outptut, without any the other separate extended I/O module and speial function module.

Visual Panel and Oscilliscope: visual panel makes monitoring online Demo more vivid; oscilliscope makes fault easier found in debugging process.

Three Programming Language: ladder, instruction list, SFC which could be interconverted. As for conversion between ladder and instruction list, annotation could be kept.

Free Software: MCProgrammer meet IEC61131-3 internation standard.

MU2V series also have many features, please contact us for more.

Application
What&How Mochuan is

With more than 15-years domestic market development since 2002 and around 3-years foreign business  since 2015 .Development, and the sufficential support and cooperate from all our valuable customers.


Mochuan  Drives have been integrated manufacturer and engineering company in PLC, HMI Panel, VFD, IE4 ac 3phase pmsm motor and position sensor. Our one-step service has the honor to serve more than 100 industries in China and more than 200 foreign customers.


Our value message is QUALITY IS OUR CULTURE.

90% of our prodution equipment is imported from Japan and Germany to offer our customers the best competitive advantage PRODUTS.


"With us your MONEY in safe, your BUSINESS in safe".

WELCOME TO BE ONE OF OUR TOP"VIP" CUSTOMERS.

WE BELIEVE THAT " THE QUALITY IS THE SOUL OF AN ENTERPRISE."
