chinese supplier safematic cartridge mechanical seal

FOB Reference Price:Get Latest Price
$1.00 - $100.00 / Pieces | 1 Piece/Pieces safematic mechanical seal (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Sichuan, China (Mainland)
Brand Name:
kyseal
Model Number:
safematic SB1, SBW, SB2
Material:
Metal
Style:
Mechanical Seal
Application:
chemical pump
size rang:
20~110mm
Temperature:
-40C°~260C°
Pressure:
≤42 bar
ready stock or not:
ready stock
sealing face:
graphite,silicon carbide,tungsten carbide,aluminum oxide
standard or nonstandard:
standard
Certificate:
ISO9001:2008
operation speed:
1000~3600rpm
Keywords:
safematic mechanical seal
Standard or Nonstandard:
Standard
Supply Ability
Supply Ability:
1000 Set/Sets per Month safematic mechanical seal
Packaging & Delivery
Packaging Details
carton or wooden case
chinese supplier safematic cartridge mechanical seal
Port
Shanghai,Shenzhen,Chongqing,Ningbo
Lead Time :
shipped in 20 days after payment
Product Description

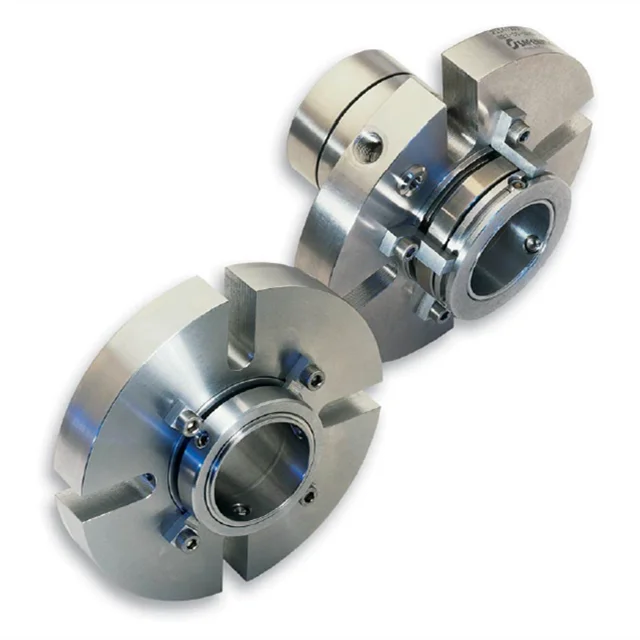

chinese supplier safematic cartridge mechanical seal

safematic SB1

Typical applications
Safeseal SB1 is a single cartridge seal for use with clean
fluids and lubricants: e.g., water, oil, solvents, and pulp (consistency
≤2%). Generally it is used in pumps in the
pulp & paper industry, as well as in power plants.
The SB1 cartridge seal fits in various pumps as well as
in other pcocessing equipment.
The SB1 seal is versatile, easy to install and maintain.
Although the design of the seal is simple, it contains
advanced technical features such as patented seal face
holders and an elastic thrust ring.
Features
The balanced cartridge design makes the SB1 seal applicable
for a wide range of demanding conditions.


Technical specifications
Stuffing box pressure max. 15 bar (215 psi)
Speed max. 20 m/s (65 ft/s)
Temperature max. 120 °C (250 °F)
Materials
Seal faces SiC/Carbon
SiC/SiC
O-rings PTFE
EPDM
Viton
Metals AISI 329 standard,
Titanium, Hastelloy, UHB
Springs Nimonic steel
Standard seal
SB1-ØD2-GREO

1. Balanced construction
Sudden changes in pressure do not affect seal function.
2. Springs are located in the stationary part of the seal
Shaft misalignment will not vibrate the springs or wear
out the O-rings.
3. SiC/carbon faces are standard
Ideal for the high speeds found in condensate and high
pressure pumps.
4. Cartridge design
Easy to install, reducing possibilities of human error.
No measurements necessary for installation.
5. No drive pins in contact with faces
No face cracking during start-up.
6. Available in different materials
Selection covers all single seal applications.

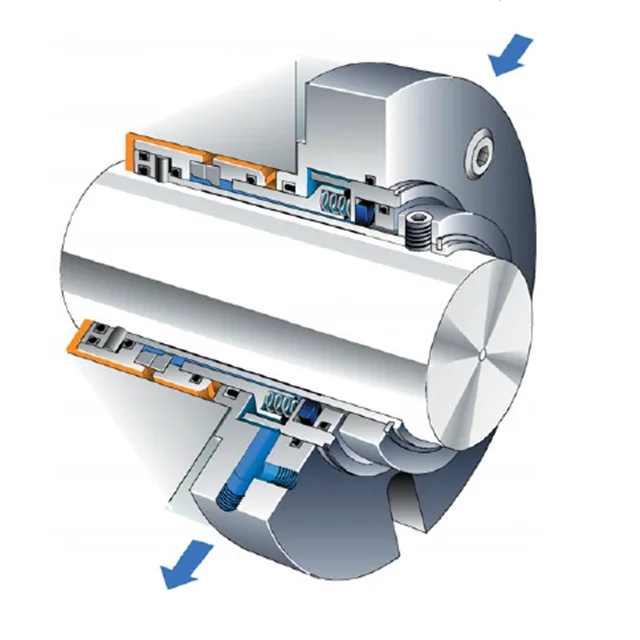

safematic SBW

Typical applications
Safeseal SBW is a single seal cartridge used in the quench
(unpressurised) wash. The SBW seal can be used in many
industrial process pumps. The design ensures reliable performance
and longevity under demanding conditions.
Typical, applications include pulp pumps in the pulp & paper
industry and in high temperature condensate pumps.
The SBW cartridge seal fits other processing equipment in
addition to pumps.
Features
Balanced cartridge design makes the SBW seal ideal for a
wide range of applications under demanding conditions.


Technical specifications
Stuffing box pressure max. 15 bar (215 psi)
Seal water pressure max. 0.5 bar (7 psi)
Speed max. 20 m/s (65 ft/s)
Temperature max. 150 °C (300 °F)
Materials
Faces SiC/Carbon
SiC/SiC
O-rings PTFE
EPDM
Viton®
Metals AISI 329 standard,
Titanium, Hastelloy, UHB
Springs Nimonic steel.

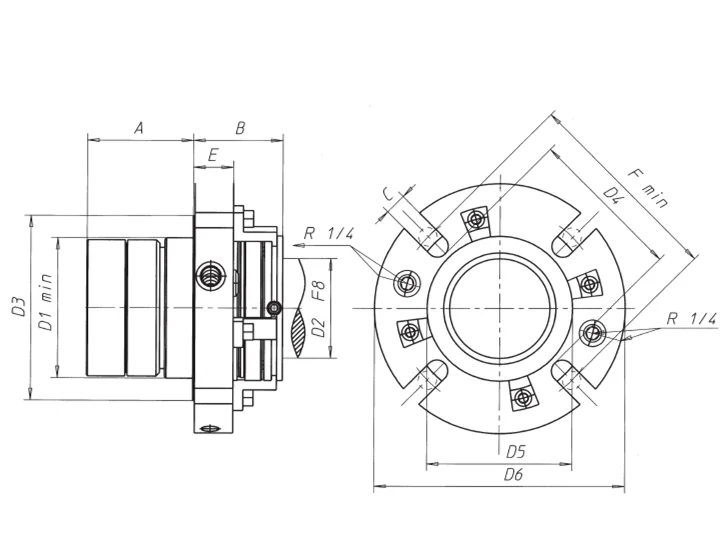

Standard seal
SBW-ØD2-QREV

1. Balanced design
Sudden changes in pressure do not affect seal function.
2. Springs are located in the stationary part of the seal,
in the seal water
Shaft misalignment will not vibrate the springs or wear
out the O-rings. The seal water washes the springs.
3. Cartridge design
No measurements necessary for installation, easy to
install, reducing possibilities of human error.
4. No drive pins in contact with faces
No face cracking during start-up.
5. Available in different materials
Selection covers all single applications.
6. Unpressurised water quench
At high temperatures, the seal is cooled with an
unpressurised (quench) wash. A V-ring prevents wash
water leakage.

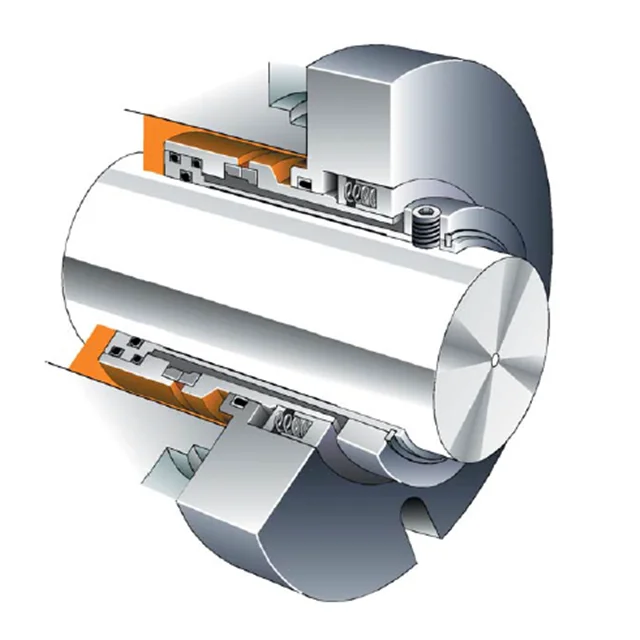

safematic SB2

Features
1. A patented heat process fastens the seal faces
ensuring correct, distortion-free face
Alignment at all recommended temperatures.
2. The springs are located in the stationary body of the
seal, in the seal water
The seal water washes the springs, preventing process
chemical corrosion and reduces chance of the springs
getting blocked or jammed. Shaft misalignment does not
vibrate or wear out the O-rings.

3. The piston design permits free axial movement
It allows ± 2 mm axial movement. Impeller adjustments
4. PTFE slot rings
PTFE slot rings replace the traditional O-rings in places
where they are exposed to the product, preventing
sticking
5. Protected faces
The seal face carriers are driven by machined fits,
preventing metal stress from distorting the face.
6. Patented double-balanced design
Allows the use of both pressurised and unpressurised
water and prevents face overload.

Technical specifications
Stuffing box pressure max. 15 bar (215 psi)
Seal pressure max. 15 bar (215 psi)
Velocity max. 20 m/s (65 ft/s)
Temperature max. 180 °C (350 °F)
Materials
Faces SiC/Carbon
SiC/SiC
O-rings PTFE
EPDM
Viton®
Metals AISI 329 and 316 standard,
Titanium, Hastelloy, UHB
Springs Nimonic steel

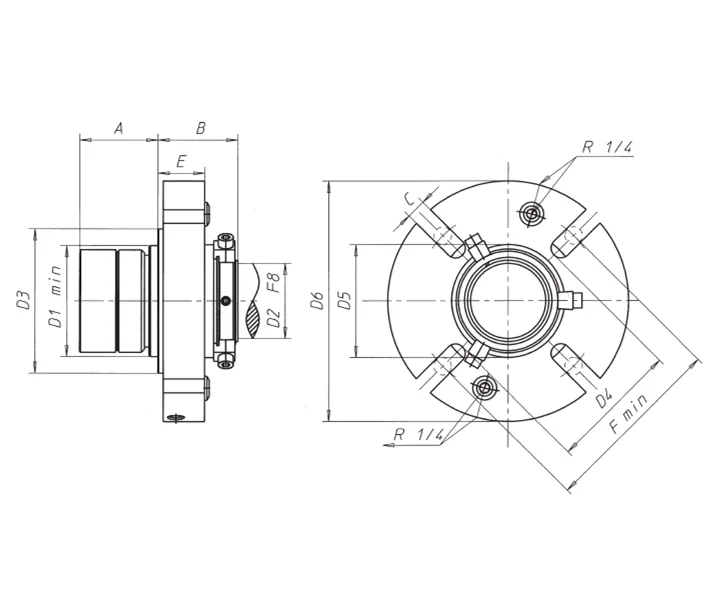

Standard seal
SB2-ØD2-QRMN

Our Company

powerful worker and new factory

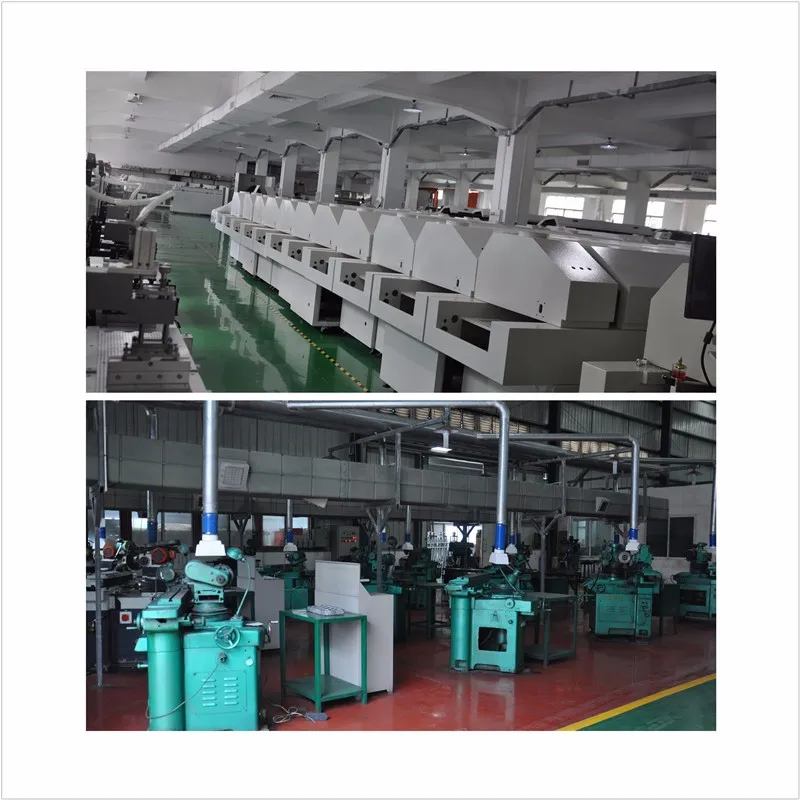

Advanced equipment and clean workshop make our products more excellent and shorter lead time

After Sale Service

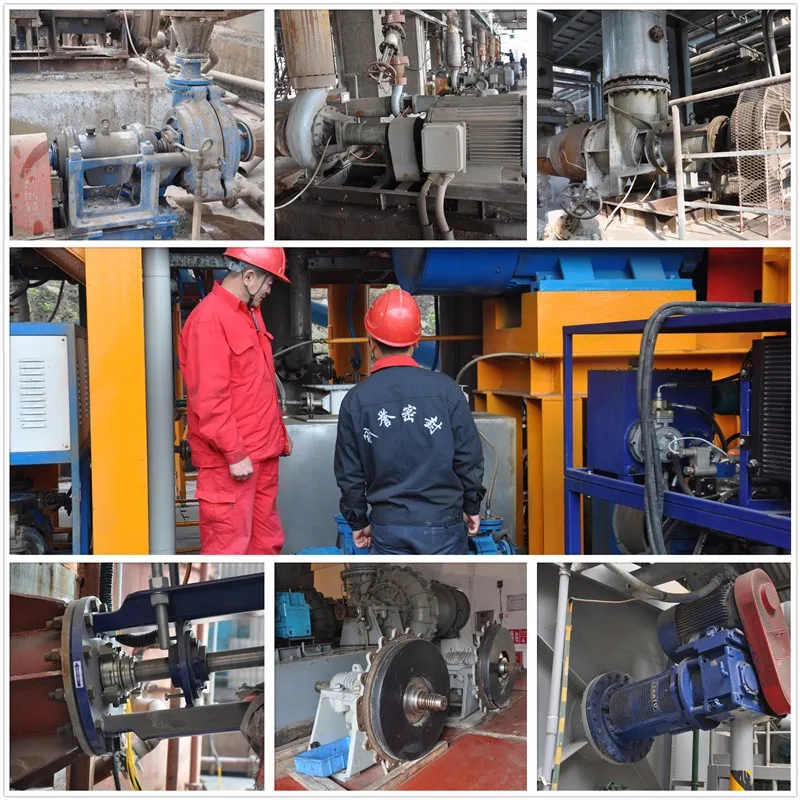

These are all our customer . when you need us , we will react immediatly to solve your problem.

Certifications

what are waiting for ? just contact us as follow !!!!

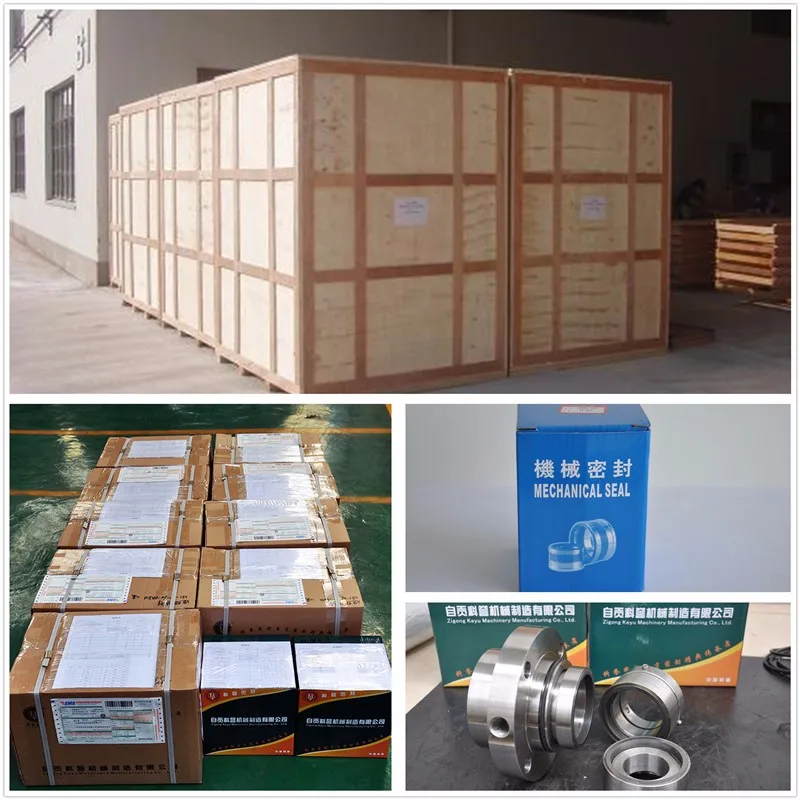

Packing & Delivery

package: sponge + small box+ carton + wooden cases , Or according to your requirement.

Related Products
FAQ

1.Q:Are you a factory or trading company?
A: We are a factory.
2.Q:Where is your factory located? How can I visit there?

A: Our factory is located in Chengdu of China.You can fly to Chengdu airport directly.All our clients, from home or abroad, are warmly welcome to visit us!

3.Q:How can I get some samples?
A: We are honored to offer you samples.
4.Q:How about the lead time?

A: With in 10-30 days after getting the payment
