class 0.5 rogowski coil flexible meter with ingretor

Feedback Ratings
  • 50-499 Pieces
    US $15.00
  • >=500 Pieces
    US $12.00
Quantity:
- + Pieces available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
15 day(s) after payment received
Customization:
Customized logo (Min. Order:: 50 Pieces)
Customized packaging (Min. Order:: 50 Pieces)

More

Graphic customization (Min. Order:: 50 Pieces) Less
Contact Supplier
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
China (Mainland)
Brand Name:
Zentar
Model Number:
RC290
Usage:
Current
Phase:
Single
Coil Structure:
Toroidal
Coil Number:
Autotransformer
Power Supply:
12VDC
Operating frequncy:
45Hz-600Hz
Rated primary current:
1000A
Rated output voltage:
0.333mv
Current range:
10A-6000A
Accuracy class:
0.5
Dielectric voltage:
3000Vrms
Ambient storage temp:
-40~+70C
Ambient operating temp:
-40~+70C

Packaging & Delivery

Selling Units:
Single item
Single volume:
25000 cm 3
Single gross weight:
10.0 kg
Lead Time :
Quantity(Piece) 1 - 500 >500
Est. Time(day) 15 To be negotiated
Product Description

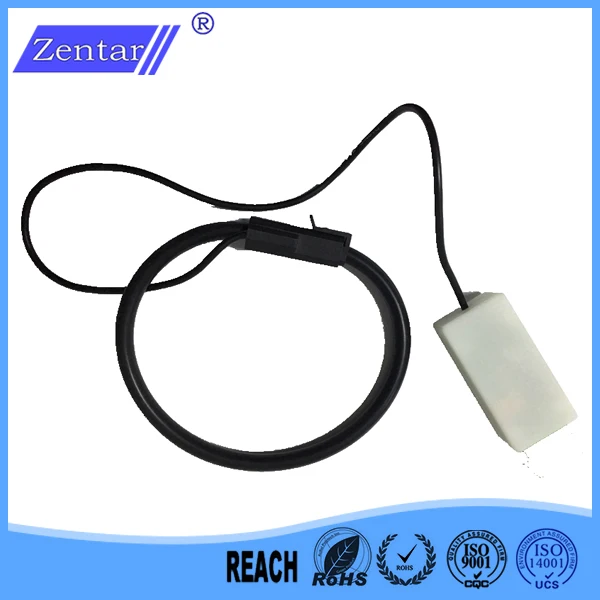

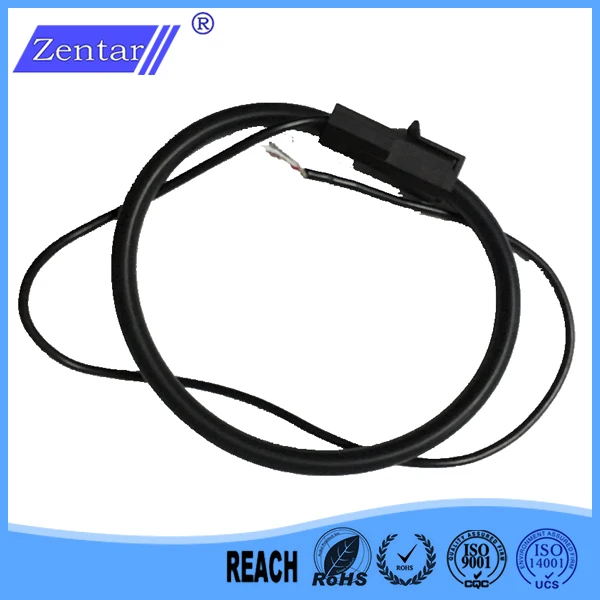

Rogowski Coil Flexible

A Rogowski coil is an electrical device for measuring alternating current(AC) or high-speed current pulses. There is no metal (iron) core. The winding density, the diameter of the coil and the rigidity of the winding are critical for preserving immunity to external fields and low sensitivity to the positioning of the measured conductor.[1][2]

Power Supply
12VDC, 50mA MAX
Current range
10A-6000A
Operating frequncy
45Hz-600Hz
Accuracy class
0.50%
Rated output voltage
0.333V
Dielectric voltage(Hi-pot)
3000Vrms/2 seconds between sec. / outside
Rated primary current
1000A
Ambient storage temp
-40~+70ºC

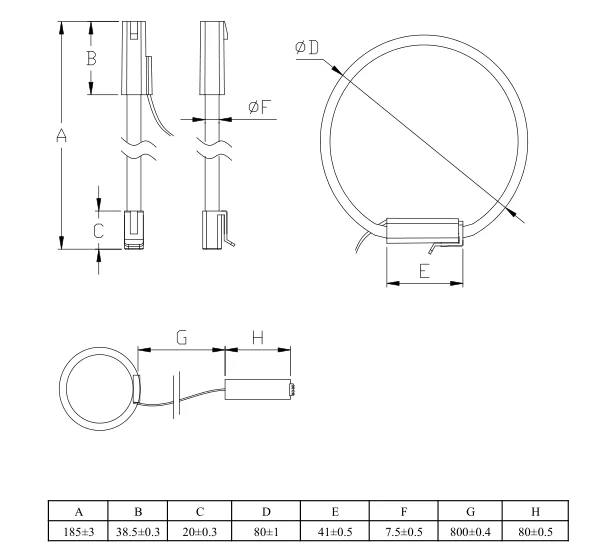

Drawing&Application
Application&Advantag

Application 1

Current monitoring in precision welding systems, arc melting furnaces, or electromagnetic launchers.

Application 2

Measurement of harmonic current content

Advantage of Rogowski Coil Flexible

1. open-ended and flexible, allowing it to be wrapped around a live conductor without disturbing it.
2. high-current Rogowski coil to be calibrated using much smaller reference currents
3. No danger of opening the secondary winding.
4. Lower construction costs
5. Temperature compensation is simple.
6. smaller than an equivalent rating current transformer.
