color display dpc-18 1000w electric bike kit bafang kit 1000 watt g510

Feedback Ratings
  • 1-4 Sets
    $560.00
  • >=5 Sets
    $550.00
Color:
- +
available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
7 day(s) after payment received
Contact Supplier
Report Suspicious Activity
Overview
Quick Details
Voltage:
48V
Design:
Brushless
Wattage:
> 400w
Product name:
color display dpc-18 1000w electric bike kit bafang kit 1000 watt g510
Motor:
geared Motr
Brand Name:
BAFANG
Power:
1000w
Speed:
45km/h
Efficiency:
80%
Throttle and brake levers:
yes
Sensor:
Torque & Speed sensor
Weight:
9kg
warranty:
2 years

Packaging & Delivery

Selling Units:
Single item
Single package size:
53X26X28 cm
Single gross weight:
9.5 kg
Package Type:
standard packing for color display dpc-18 1000w electric bike kit bafang kit 1000 watt g510
Picture Example:
package-img
Lead Time :
Quantity(Set) 1 - 2 3 - 5 >5
Est. Time(days) 7 15 To be negotiated
Product Description

color display dpc-18 1000w electric bike kit bafang kit 1000 watt g510

Complete kit:
1x Mid Motor (Integrates Controller)
1x DP C18.UART LCD Display
1x 44T Chain Wheel

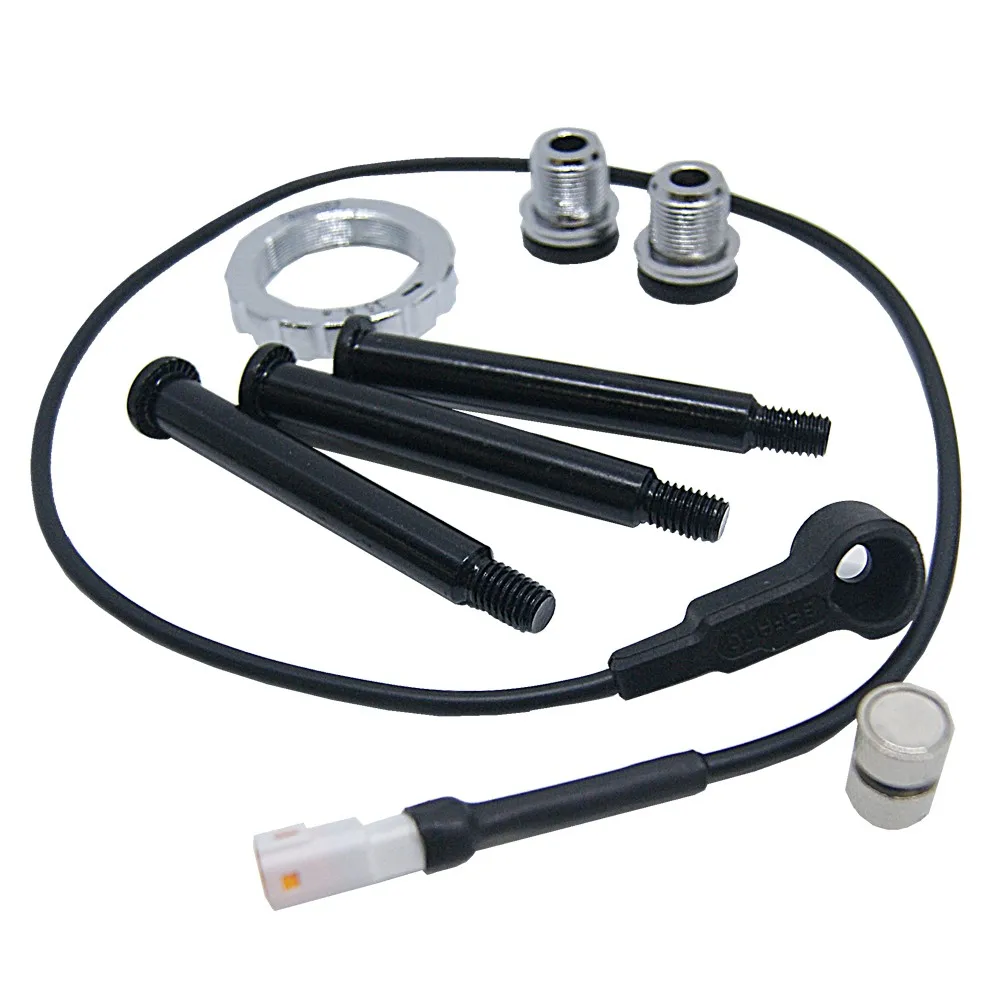

1x Speed Sensor and Magnet
1x Screws
2x Crank
1xThumb throttle(optional)
2x Brake levers(optional)


Feedback from customers :

The mid-drive motot constantly samples relevant information at a frequency of up to 80k Hz via a torque sensor and two speed sensors which are all highly sensitive. The resulting data on crank torque, vehicle speed and the speed of rotation of the pedals is made available to the controller, ensuring precise control of the vehicle while achieving the highest possible efficiency. The Max Drive System puts the rider in complete control. In spite of a generous power output and a maximum torque of more than 160 N.m, the motor operates in virtual silence. The modular motor design and integrated controller make disassembly easier and improve service responsiveness. This motor can be black.

color display dpc-18 1000w electric bike kit bafang kit 1000 watt g510
Model
MMG510
Brand
BAFANG
Power
48V 1000W
Construction
GEARED
Controller
Built In
Display
dpc-18 color display
Sensor
torque & speed
Efficiency
80%
Max Torque
160N.M
Speed
45KM/H
Application
Electric bike
Chain wheel
44T
Throttle
thumb
Battery
optional
Cetification
CE
Warrnty
2 years
Detailed Images

Motor


Geared motor with torque sensor (Mountain bike model or fat bike model for choosing)

Frame Adapter


Material :Alumium alloy

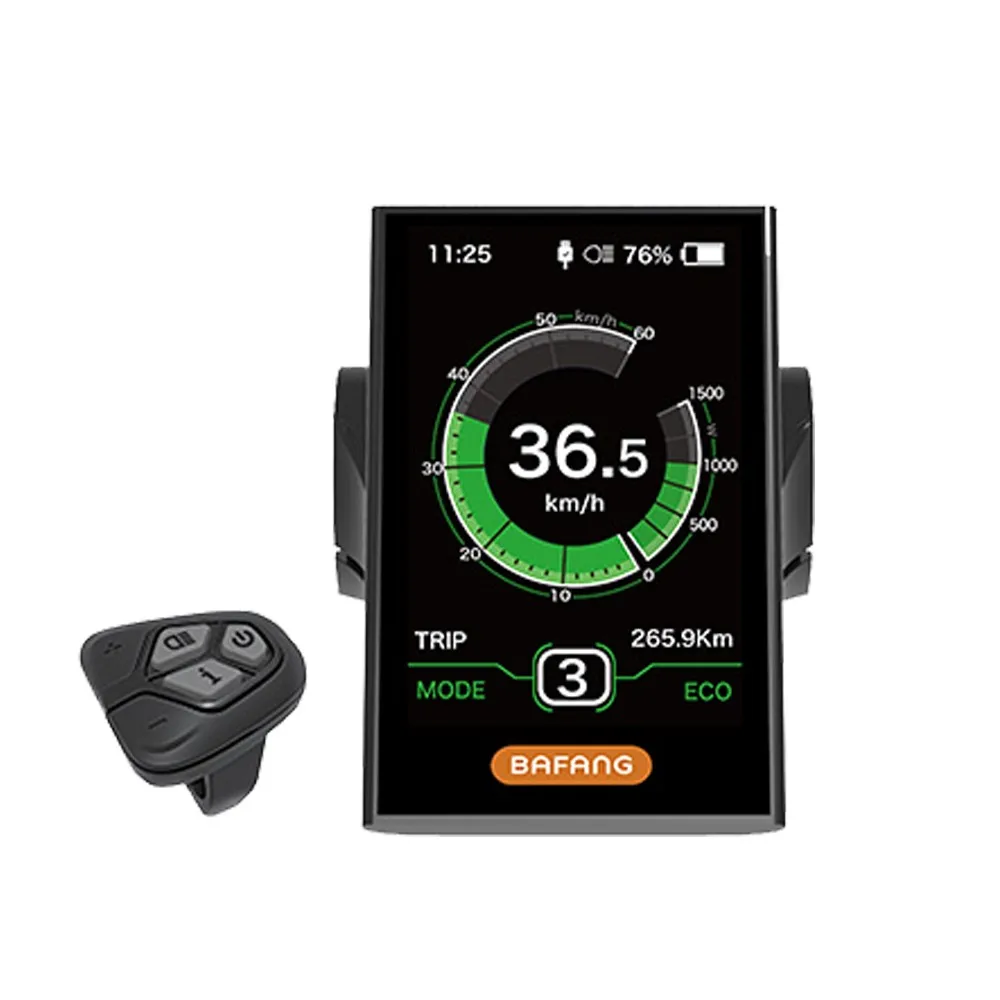

Displ


DPC-18 color display

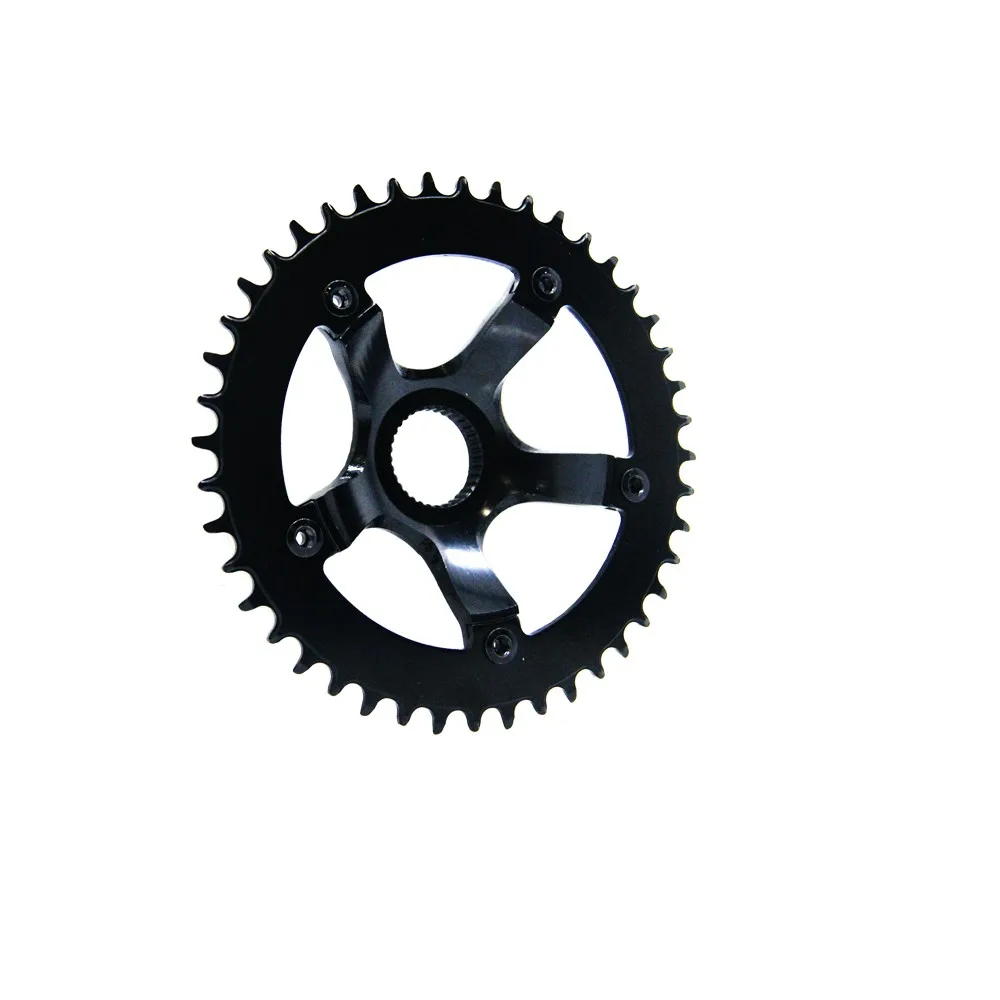

Chain wheel


different for mountain bike or fat bike .(44T)

Parts


Screws & Nuts

Related Products







FAQ

Q.How many sets are available for bafang mid motor kit wholesale price ?

A. more than 20 sets , we can offer the wholesale price for MMG31,MMG32, MMG33 . MMG510

Q:Do you have stock?

A:We always keep some ready stock for this mid motor kits,Please let me know what quantity and which model you want,thus I could check properly for you.

Q:What type of connector do you use for the battery?

A:Anderson connector.(optional)

Q: Can i have a user manual of Bafang mid motor kits?

A: Yes, we will send you a user manual with the goods.

Q:Does it come with the controller?

A: Everything you need (except for battery) comes with this kit. Depending on how you are going to use it may require splicing some wires, but that's about all.

Q: What should i do when an error code is displayed?

A: Please check the code list in first,something errors can be solved simply. Please contact our service technician if the user cannot remove the error.

Our Company

CNEBIKES Co., Ltd is located in Changzhou city ,Jiangsu ,China. We are just one hour from Shanghai by high-speed train . It is easy for potential customers to come and have a look at our facility and products.

We manufacture a variety of products . Our products are reliable and durable. We export to Europe, the USA, Canada, Southeast Asia, Australia and many other countries . Our customers have given us high praise for our products and service
