construction material cz purlin roll forming machine

FOB Reference Price:Get Latest Price
$10,000.00 - $30,000.00 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Production Capacity:
8-12m/min
Power(W):
20kw
Condition:
New
Tile Type:
Steel
Use:
Roof
Place of Origin:
Hebei, China
Brand Name:
zhongtuo
Voltage:
380V 50Hz 3phases
name:
cz purlin roll forming machine
Punching:
Hydraulic pre-punching before forming,
material Thickness:
1-3mm.
Cutting tolerance:
+/- 1.5mm
Drive:
Chain
Working speed:
10m--15m/min
Coder:
Omron
Deliver time:
45 working days.
Terms of payment:
30%T/T ,Balance to be paid before shipping after inspection.
Computer operating panel:
touching screen
After-sales Service Provided:
Engineers available to service machinery overseas
Warranty:
2 Years
Supply Ability
Supply Ability:
30 Set/Sets per Month
Packaging & Delivery
Packaging Details
1.One 20ft or 40ft container for loading one set machine with manual decoiler.
2.The whole wiped anti rust oil ,PLC controller covered by foam film.
3.Spare parts and some small parts packed in plastic tooling box.
4.All components of purlin roll forming machine fixed by steel wire.
Port
XINGANG TIANJIN
Lead Time :
45 working days after receiving the deposit

construction material c purlin roll forming machine

Product Description

In steel building construction, secondary members such as purlins (roof) and girts (wall) are frequently cold-formed steel C, Z or U sections, (or mill rolled) C sections.Z sections can be nested for transportation bundling and, on the building, lapped at the supports to develop a structurally efficient continuous beam across multiple supports.cz purlin roll forming machine is high effciency and labor cost saving.

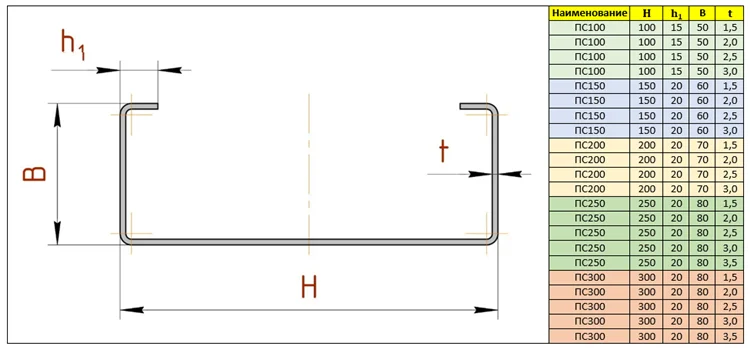

The attached is some profile drawings of the c purlin ,you can chose any of them. Or give me your own profile.



1. Working flow of c purlin roll forming machine

2. Main Specification of c purlin roll forming machine

1) Capacity: 5 ton

2) Loading width: MAX 300mm

3) Valid expanding range for coil inner diameter: 450-550mm

4) Main motor power: 15kw

5) Feeding and leveling power: 4KW

6) Hydraulic power:5.5KW

7) Hydraulic pressure: 20Mpa

8) Punching: Hydraulic pre-punching before forming,

9) Punching mould:Cr12mov

10) Cutting blade: Cr12mov

11) Roller material: Gcr15 steel and quench treatment hardness 55-58, chrome coated 0.05mm

12) Leveling rollers: according to your profile

13) Valid width after formed: 100mm-300mm



advantages of cz purlin roll forming machine:
2.cz purlin roll forming machine adopts memorial arch frame type,independent roller station make the machine more beautiful and stability.
3.All the rollers are through quench treatment ,CNC machine treatment twice and polished on the surface to guarantee the accuracy and long life.
4.The width and depth can be automatic adjusted by PLC.

5.The most outstanding characteristic of our cz purlin roll forming machine is customers do not need to change blade mould for different dimension ,only changing the quantity of the spacers between two rollers.



3.some details of cz purlin roll forming machine

we also have other type of purlin roll forming machine.It is with the whole adjusting system to change the sizes of the purlin. it no need to change the spacer one by one, just change the screw whole on the machine so that can adjust different sizes. this design is much convenient and quick than the changing spacer machine line.



The cutting is hydraulic cutting, you can change different blades for different sizes of the purline.

If you want to know more about our products,please copy and paste the link into your web browser.

https://www.youtube.com/channel/UCea3FfE-LRSPhycSuiY4snA

If you have any question, please contact us directly .



Company Information



Cangzhou ZHONGTUO Roll Forming Machinery Co., Ltd is a professional manufacturer and exporter of cold roll forming machines. All products comply with international quality standards and are greatly appreciated in markets throughout the world, such as Asia, Africa, Europe,South America, Australia and so on.

We specialized in manufacturing metal roofing roll forming machine, cz purlin roll forming machine,Glazed tile roll forming machine, floor tile making machine, rolling shutter machine, metal stud roll forming machine,highway guardrail roll forming machine,steel door frame making machines, gutter machine,no beam roof tile machine, pipe welding machine.

FAQ:

1.How to get a quotation of cz purlin roll forming machine?
Give me the profile drawing and thickness for the cz purlin,this is the important.
Other spicific requirements is welcome,such as the speed,power and voltage you want.



2. Terms of payment:
30% T/T, Balance to be paid before shipping after inspection.Also we accept the payment L/C, O/A , D/P.



3. How long the cz purlin roll forming machine could be made?
Normally speaking, cz purlin roll forming machine could be made without 45 working days. If you need cz purlin roll forming machines in a hurry, we can make it for you less than a month.



4. What is your after-sale service?
cz purlin roll forming machine's warranty period is 12months,if the broken parts can't be repaired,we can send new to replace for free,but you need to pay the express cost yourself.we supply the technical support for the whole life of the equipment.



5. You are trade company or factory?
We are trade company but we also have own factories. Building trade company is just for exporting various types of cold roll forming machines.



6. How to visit your company?
a.Fly to Beijing airport: By high speed train From Beijing Nan to Cangzhou Xi (1 hour), then we can pick up you.
b.Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5 hours), then we can pick up you.
