directional flow pneumatic control valve

FOB Reference Price:Get Latest Price
  • >=1 Sets
    $150.00
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Shanghai, China (Mainland)
Brand Name:
POV
Model Number:
pneumatic control valve
Application:
General
Material:
Casting, WCB, 304, 316, 316L
Temperature of Media:
Medium Temperature
Pressure:
Medium Pressure
Power:
Pneumatic
Media:
Gas
Port Size:
Standard
Structure:
Needle
Product name:
motorized regulating valve
Type:
Single seat, double seat, sleeve
Connection:
Flange: FF, RF, RJ and LG
Packing:
V type PTFE, flexible graphite
Core seat:
304, 316, 316+ SLT
Control type:
Proportional or switch type
Input signal:
4-20mA, 0-10V, 1-5V, ON-OFF
Output signal:
4-20mA or passive contact signal
Explosion-proof class:
ExdIIBT4, ExdIICT6 or others
Standard or Nonstandard:
Standard
Supply Ability
Supply Ability:
4000 Set/Sets per Month directional flow pneumatic control valve
Packaging & Delivery
Packaging Details
Packing Details (HS CODE: 8481400000)
packed by cartons or plywood case as per exporting standard
or as per customized requirements.
Port
Shanghai,Ningbo, Tianjin, China any ports
Lead Time :
Shipped in 7 days after payment
Company introduction
POV Valve (Shanghai)Co.,Ltd.
professional factory in SHANGHAI, China that manufacture the pneumatic/electrical valves. Main series of products as below:
1, pneumatic butterfly valve and pneumatic ball valve;
2, electric butterfly valve and electric ball valve;
3, manually butterfly valve and ball valve;
4, actuator: pneumatic actuator, electric actuator;
5, pneumatic diaphragm valve;
6, pneumatic angle seat valve;
7, solenoid valve;
8, manual ball valve and manual butterfly valve.
No fact stands without pictures, see below:

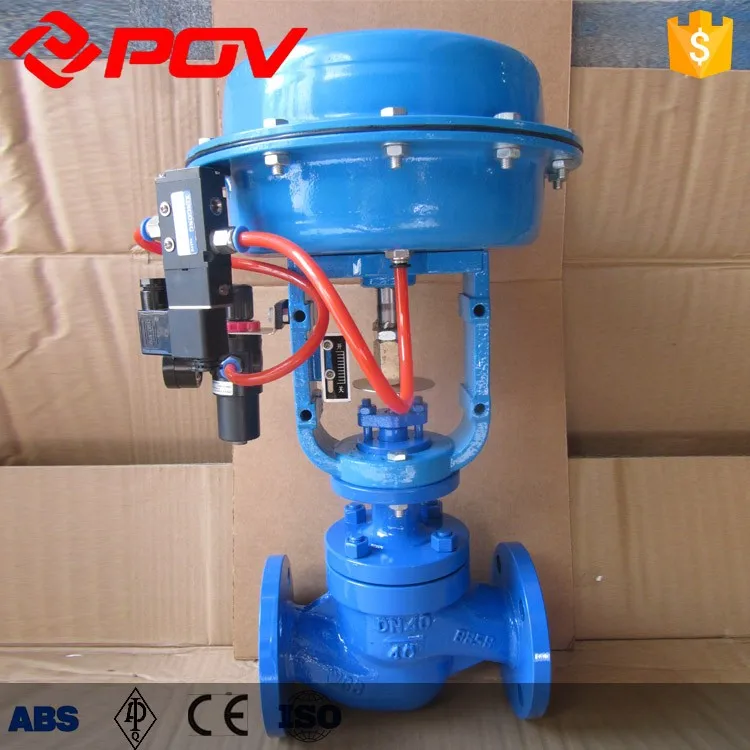

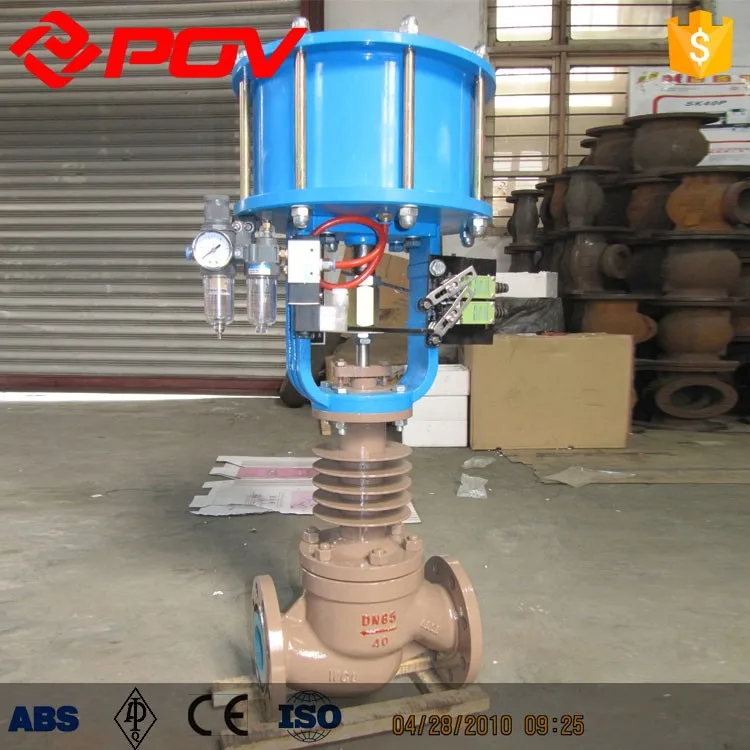

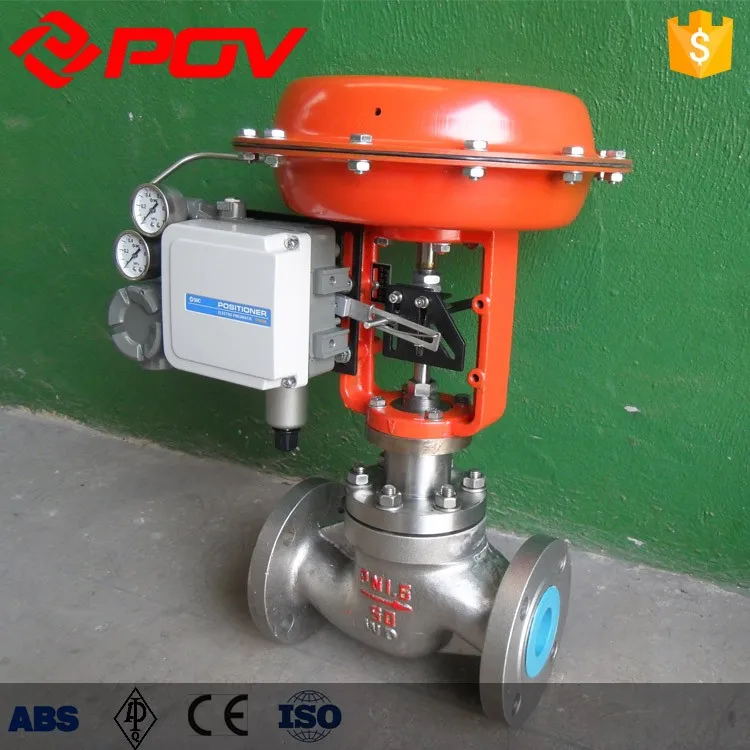

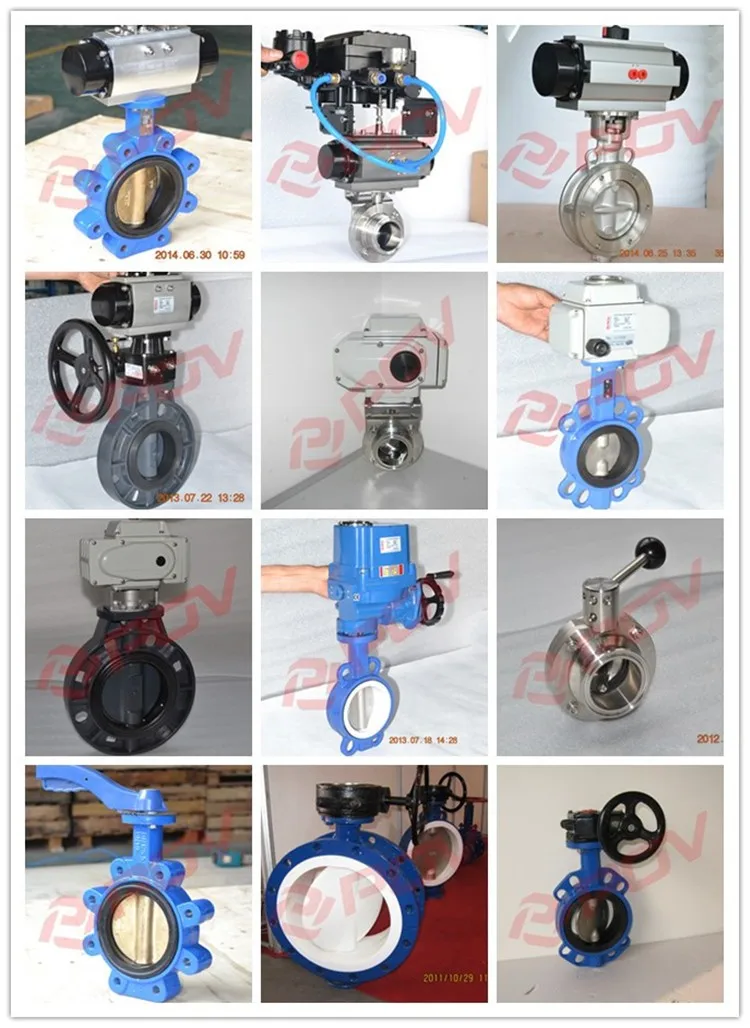

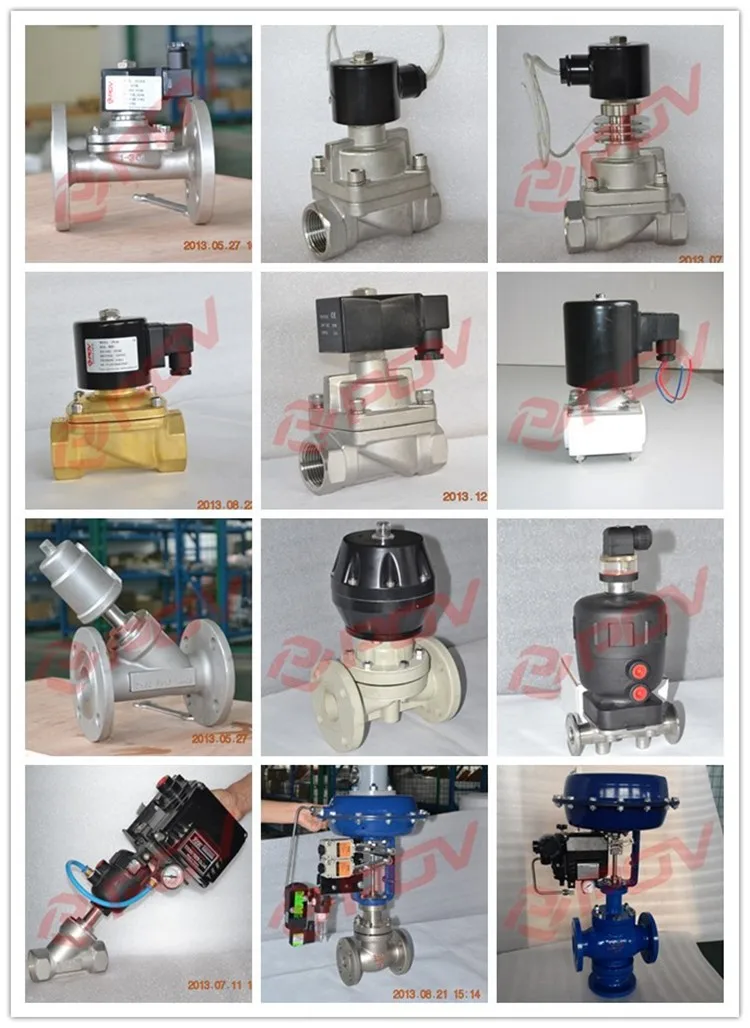

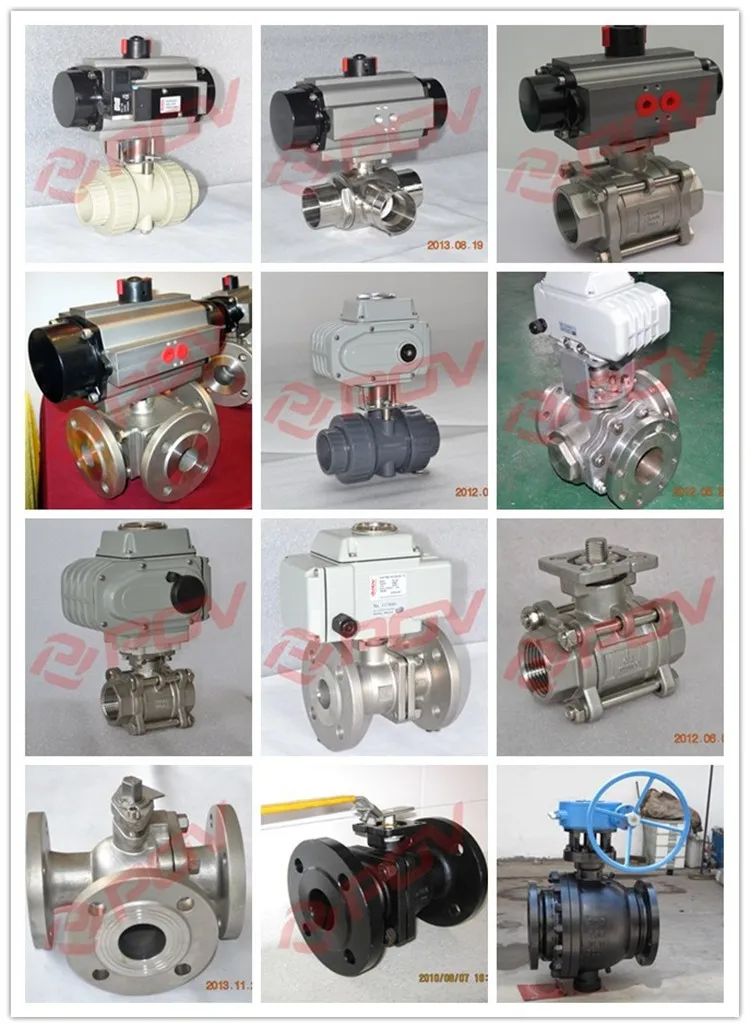

Product display
Specifications
Valve body
Type: Single seat, double seat, sleeve
Nominal diameter: DN20-DN200
Nominal pressure: ANSI150, 300, 600LB; JIS10, 16, 20, 30,
40K; PN1.6, 2.5, 4.0, 6.4MPa
Connection: Flange: FF, RF, RJ and LG, Flanged standard
ANSI B16.5, JIS B2201, JB/T79.1 PN1.6MPa, JB/T79.2
Thread: DIN, NPT, RC, BSP, G etc
Welding: GB12224-89
Sealing surface: PN16 convex surface, PN40, PN63, PN100
concave surface
Material: WCB, 304, 316, 316L
Bonnet: Standard type (-20℃ ~+200℃ )
Low temperature type (-60℃ ~-196℃ )
Cooling type (-40~450℃ )
Bellows seal type
Gland type: press plate
Packing: V type PTFE, fl exible graphite
Valve components
Core type: single seat plunger type, double seat, sleeve
Core seat: 304, 316, 316+ SLT
Flow characteristics: Equal percentage, linear, quick-opening
Actuator
Type: Electric actuator
Action type: Direct action, reserve action
Control type: Proportional or switch type
Input signal: 4-20mA, 0-10V, 1-5V, ON-OFF
Output signal:4-20mA or passive contact signal
Power: AC220V, AC380V, DC24V, etc
Explosion-proof class: ExdIIBT4, ExdIICT6 or others (Optional)
Manual device: with handle
Accessories (Configured according to requirements)
heater, overload protection
Performance
Rated KV value: Reference table
Flow characteristics: Linear, equal percentage, quick opening
Adjustable range: 50:1
Leakage class
Metal seal: Less than 0.01 (ANSI B16.104-1976IV)
Soft seal: Less than 0.00001%
Hysteresis: ≤ 1%
Dead zone: ≤ 1%
Basic error: ± 1%

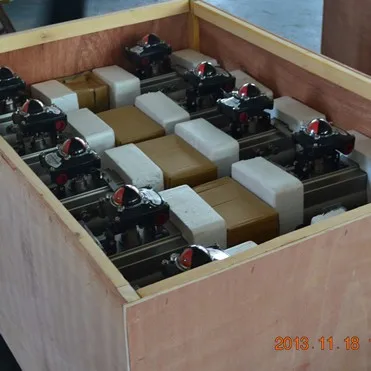

Our packing

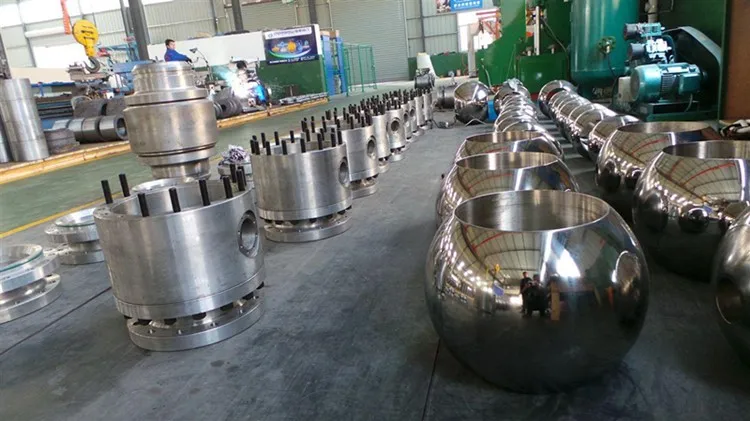

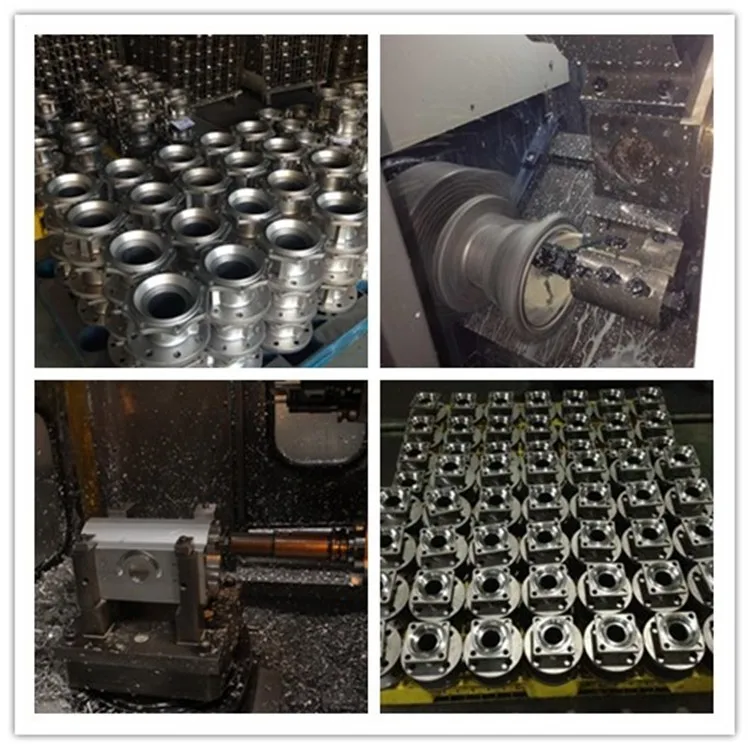

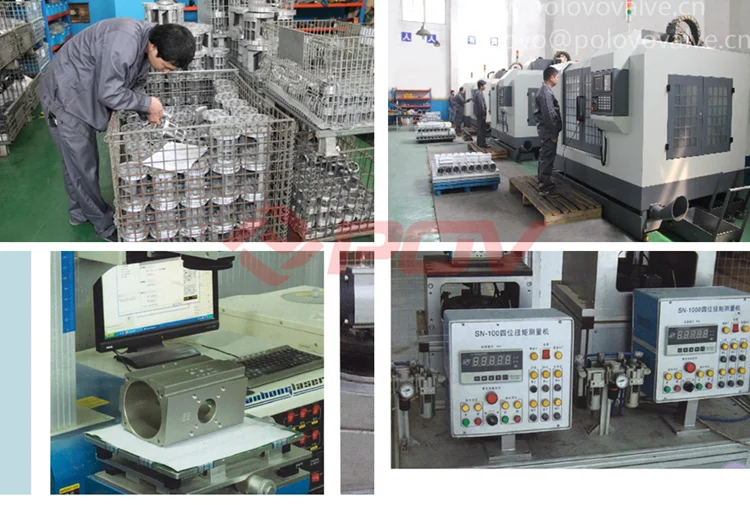

Our factory

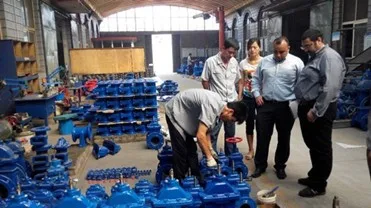

Our customers

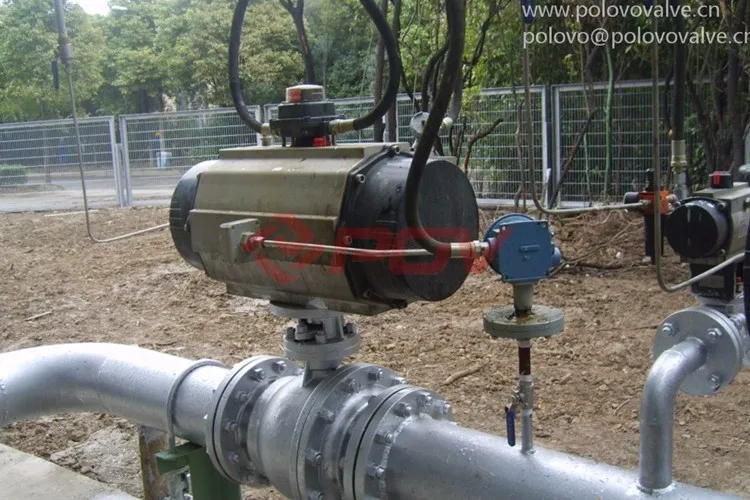

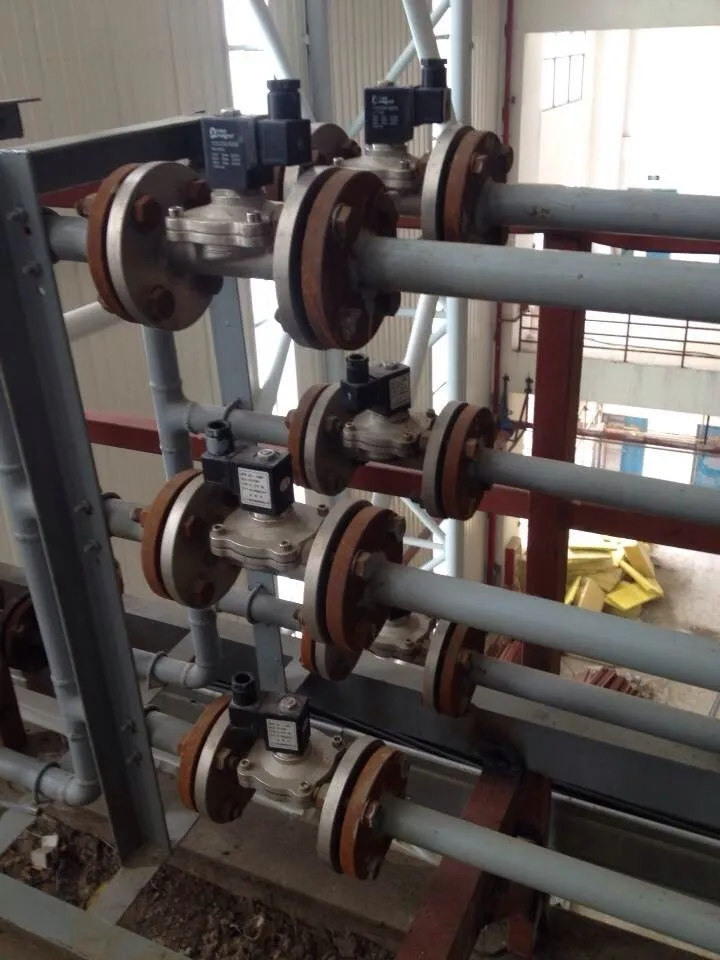

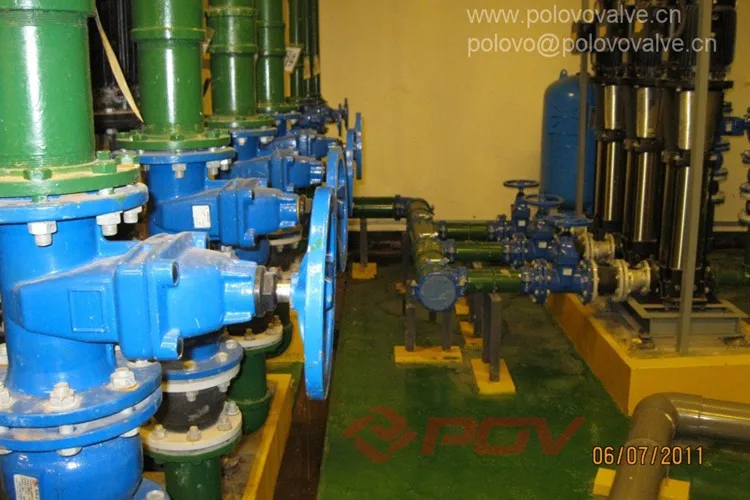

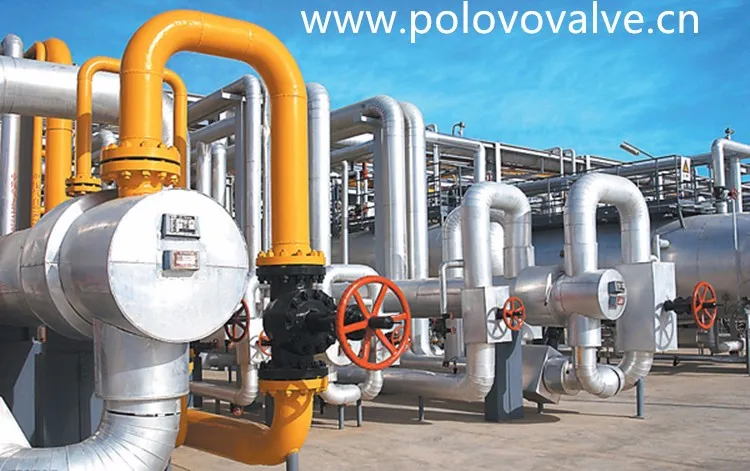

Actual using
Our advantages

1. Excellent technology:

the technology is in the leading level in China, cooperate with the most famous

universities in China, established the POV-Ocean university lab.

2. Advanced equipment:

advanced processing equipment and testing means, providing the integration of automation system solutions for product, engineering, service and training.


3. Strong team:

have many senior engineers with plenty of research, development, design

experience, providing professional service for sales and after sales.

4. Good quality:

reliable and stable quality, good performance, long life time.

5. Full series of products:

covers full category of valves, meet the general standard of every country in the world, such as GB, DIN, ASTM, BS, JIS.


6. Professional after sales service:

have the professional engineer team to provide the service.

7. Certificates:

passed the ISO9001 certificate as well as CE,API/WRAS/AWWA/ISO/TUV/DNV etc.

8. Fast delivery time:

have the stock, fast delivery time could be guarantee.

9. Packing:

packing strictly as per the exporting standard or as per the customized request.

10. Long-term quality warranty time:
provide 12 months quality warranty time.
