good quality long life ceramicheaters

  • 1-9 Pieces
    $15.00
  • 10-99 Pieces
    $9.90
  • 100-999 Pieces
    $9.80
  • >=1000 Pieces
    $9.70
Model Number:
TR-224
Power(W):
7
$
- +
available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
15 day(s) after payment received
Customization:
Customized logo (Min. Order: 1000 Pieces)
Customized packaging (Min. Order: 1000 Pieces)

More

Graphic customization (Min. Order: 1000 Pieces)
Customized color and size (Min. Order: 1000 Pieces)
Customized voltage and power (Min. Order: 1000 Pieces) Less
Samples: $2.60 /Piece, 1 Piece (Min. Order): Buy Samples
Contact Supplier
Samples - $2.60 /Piece, 1 Piece (Min. Order): Buy Samples
Loading... Add To Cart
Report Suspicious Activity
Overview
Quick Details
Type:
Band Heater
Power Source:
Electric
Dimension(L*W*H):
50*5*50mm
Weight:
1g
Warranty:
1 Year
After-sales Service Provided:
Free spare parts, Video technical support, Online support
Condition:
New
Place of Origin:
Jiangsu, China
Brand Name:
TUANRUI
Voltage:
3.7v
Certification:
CE
Product name:
mini aluminum metal MCH ceramic heater for industry
Size:
50*5*50mm
Voltage (V):
3.7v
Power (W):
7w
Material:
ceramics
Color:
White
MOQ:
1 Piece
Heating element:
Tungsten alloy
Shape:
Cylinder
Application:
Industry Heating Process

Packaging & Delivery

Selling Units:
Single item
Single package size:
6X1X6 cm
Single gross weight:
0.1 kg
Package Type:
plastic bag and carton or wooden box
Picture Example:
package-img
Lead Time :
Quantity(Piece) 1 - 100 101 - 1000 1001 - 10000 >10000
Est. Time(days) 15 20 30 To be negotiated

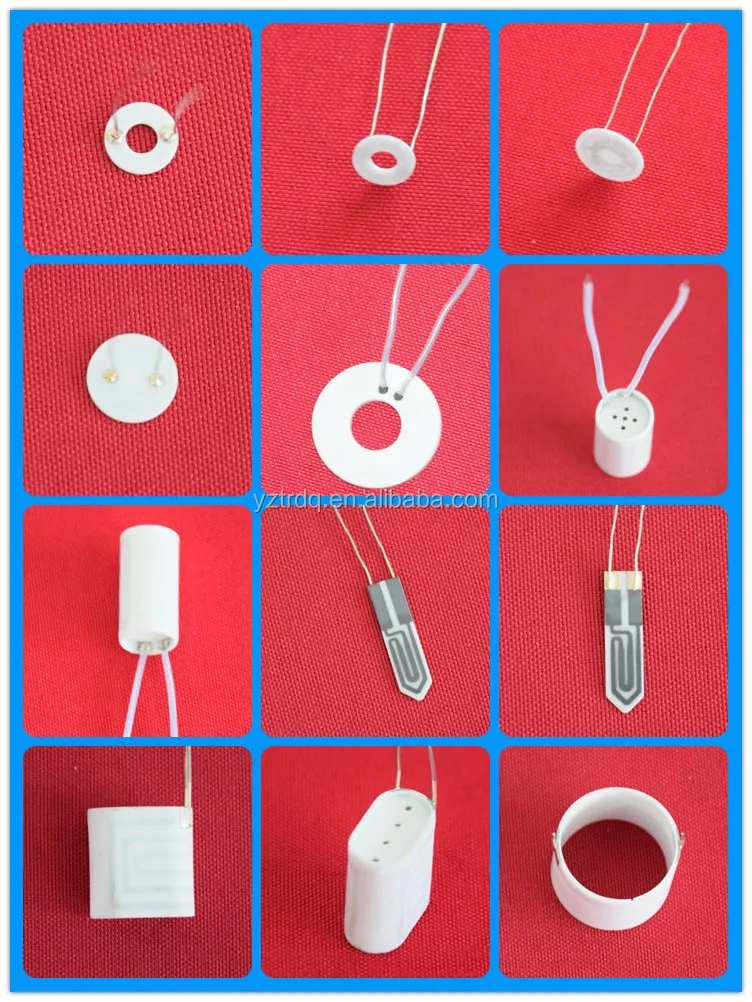

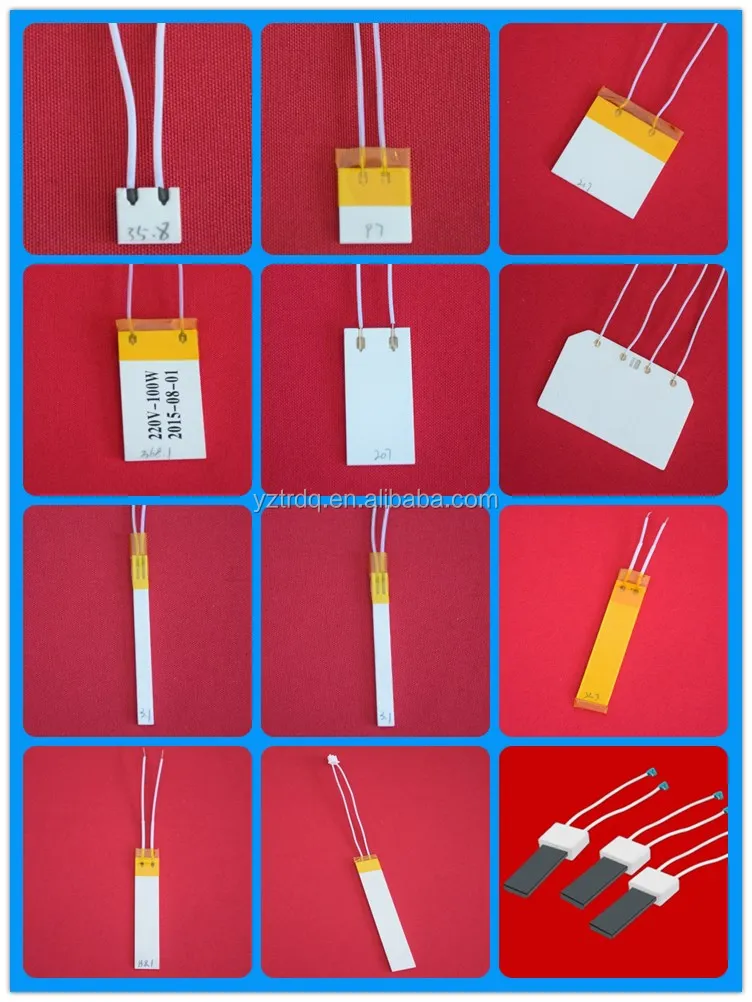

Detailed Images

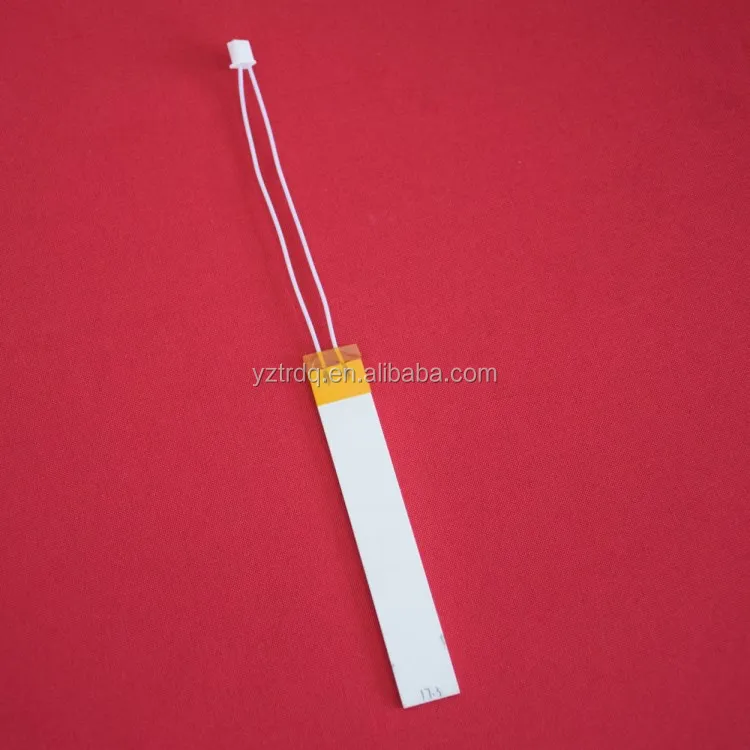

Mch electric heating sheet

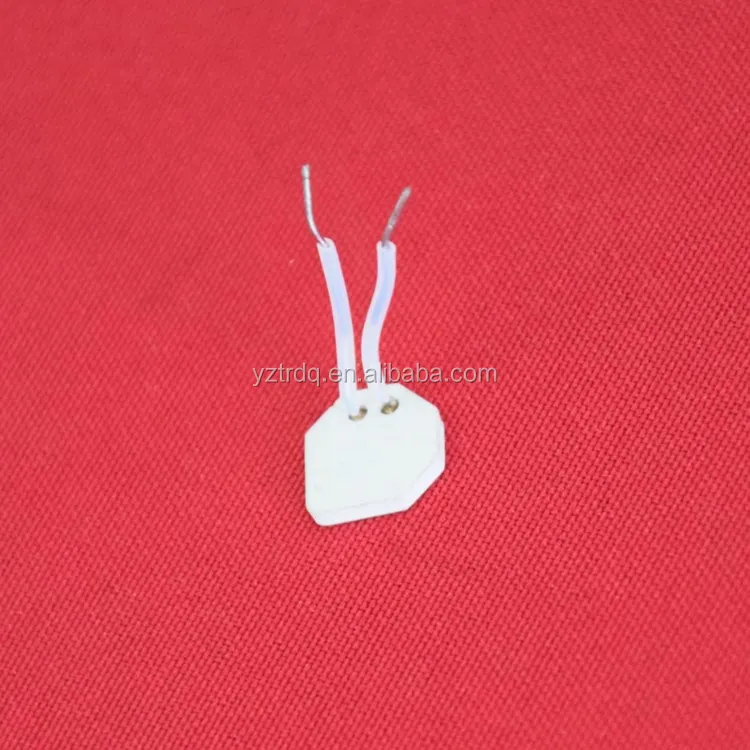

Polygon mch  heating sheet

Electric hair comb mch heating sheet

Double resistance ring mch heater

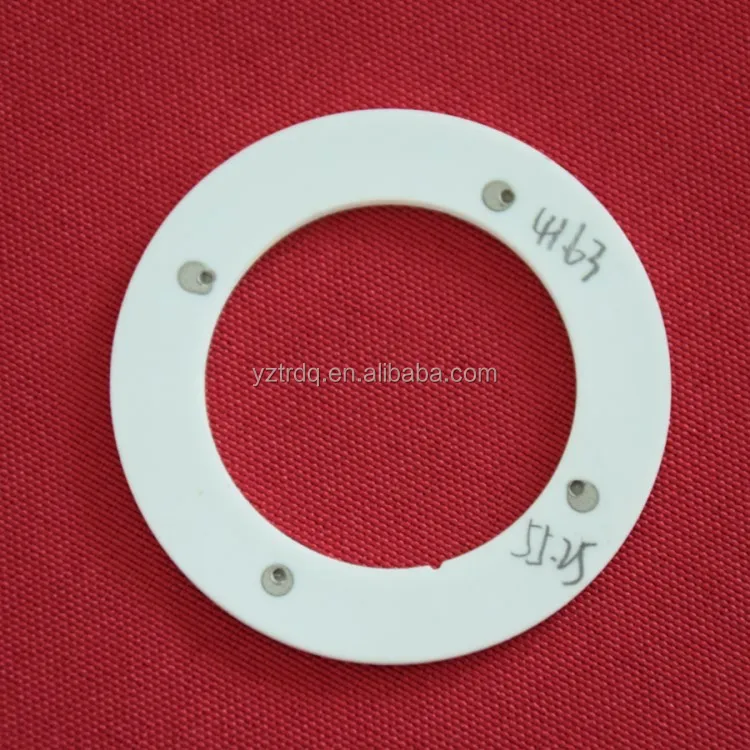

mch Ring heater

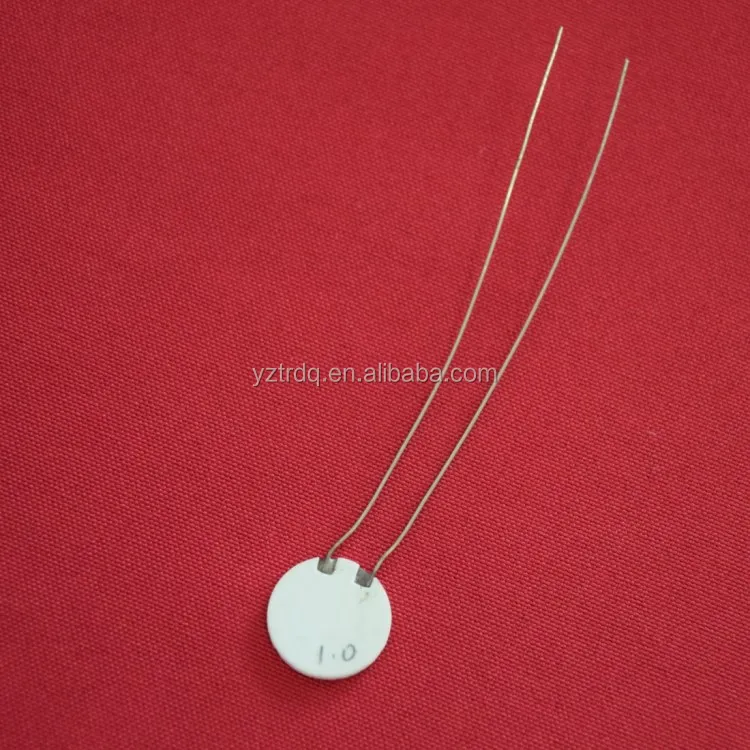

Round mch heater

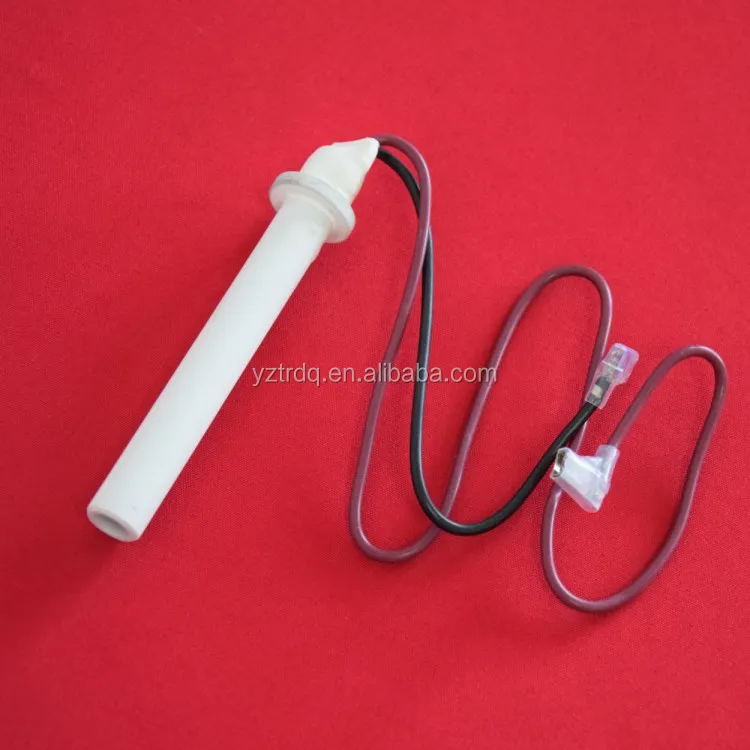

Liquid mch heating tube

Electronic cigarette mch heater

Liquid mch heater

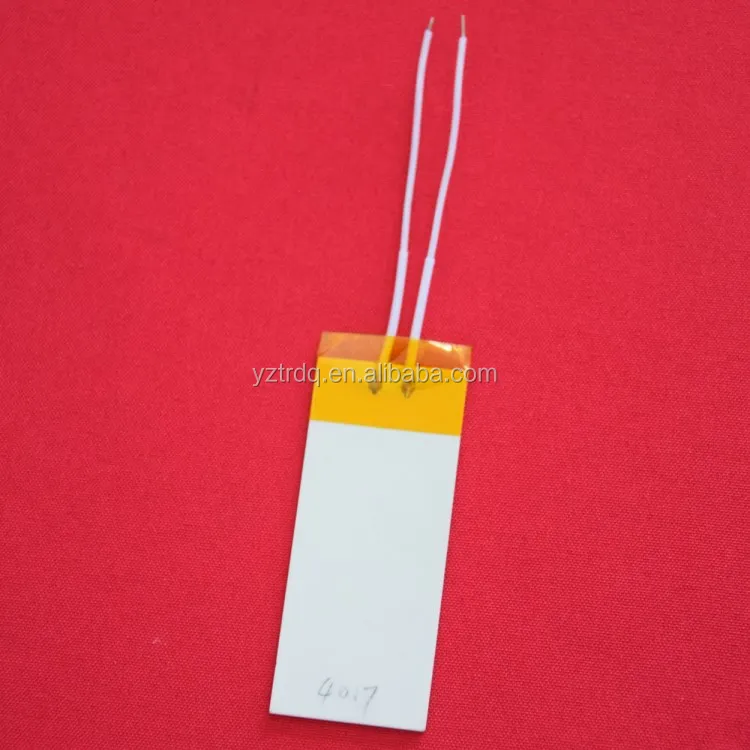

Rectangular mch heater

Circular mch heater

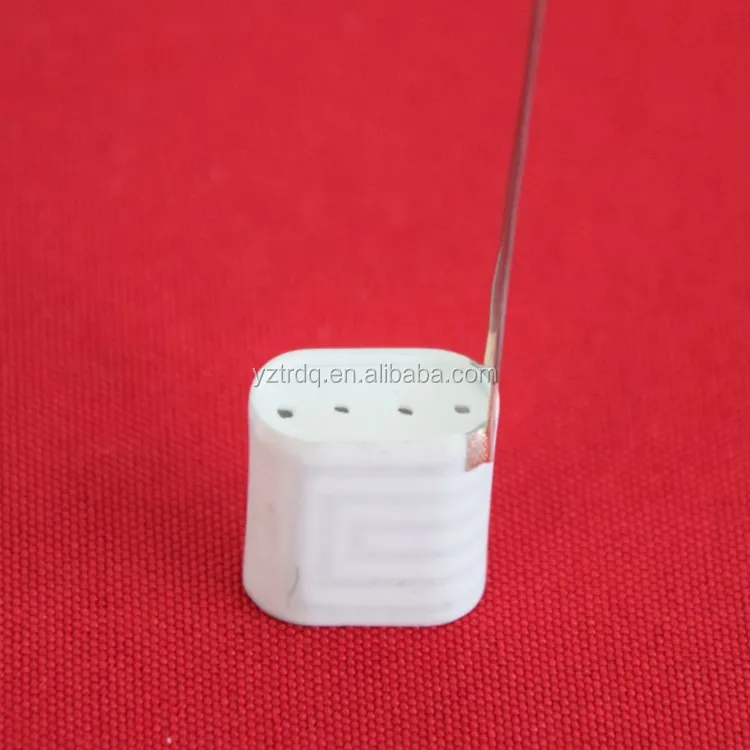

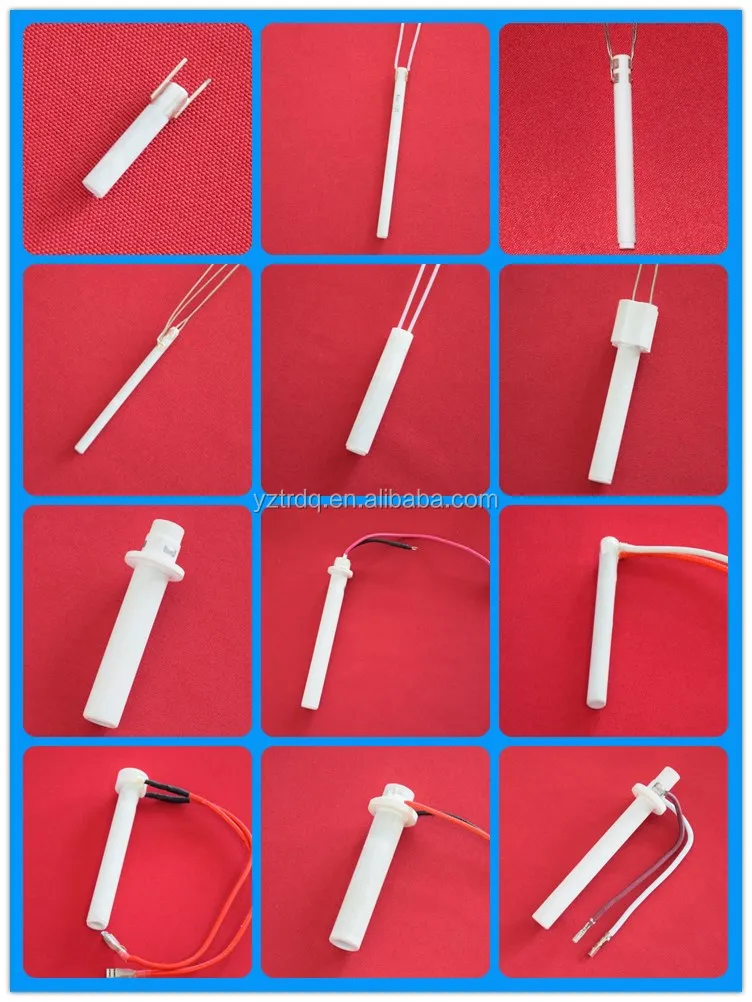

Tubular mch heater

Product Description

1. Introduction

MCH is metal ceramics heater the "make, meaning is metal ceramic heating element. Mch refers to the design of metallic tungsten or molybdenum manganese with high melting point metal heating resistance Slurry required printing to be printed in 92 ~ 96% of alumina casting ceramic tiles, after hot-pressing laminated, then protect the atmosphere at about 1600 ℃, ceramics and metals jointly sintered and made of ceramic tiles, with corrosion resistance, high temperature resistance, long life, efficient energy saving, uniform temperature, good thermal conductivity, the speed of Heat Compensation is fast and so on, and it does not contain lead, cadmium, mercury, chromium, more, more, etc. matter, comply with environmental requirements such as EU rohs and other environmental protection requirements.
Alias: mch fever film, mch ceramic fever film, metal ceramic fever film, alumina Ceramic fever film, htcc ceramic heating element, htcc ceramic heating element heating component.
2. Application Areas
Widely used in daily life, agricultural technology, communication, environmental protection, industrial drying equipment, electric Bonding liquid heater, hairdresser (straight) for acid and Acid-Base liquids) air conditioning, air conditioning, air conditioning and Water Heater quick heating device, multi-functional microwave, oven, oven, dryer, etc, dryer, air conditioner fan, air pump, hot water pot, coffee pot, medical, infrared li liao yi, venous injection heater, etc.

3. Main raw materials
Substrate: White multi-layer alumina ceramics,.-Al2O3 content not less than 95%
Lead: In a ф 0. 5mm of Nickel wire.
Casing, tape: Teflon, high temperature resistance to high temperature
Resistance: high temperature materials such as tungsten, etc.
Product thickness: 0.7 ~ 2.0. Customizable
Use voltage: 3.7 V, 4.5 V, 5 V, 7 V, 6 V, 9 V, 12 V 24 V, 36 V, 110 V, 220 V, 380 V can be customized.
Resistance Selection: 0.3 ~ 1500 ohm, according to voltage, chip size power and customer demand selection.

Packing & Delivery
Delivery:
• Packaging Details Carton box or wooden box for Electric Heating Heater

• Delivery Time 10 days for Electric Heating Heater .
Our Company

      Yangzhou Tuanrui Electric Co., Ltd. Located in the beautiful historical and cultural city of Yangzhou. The company is a factory that integrates R&D, design, production, and sales services. Our factory specializes in PTC heaters,MCH Ceramic Heater, mica heaters, ceramic heaters, cast aluminum heaters, cast copper heaters, cast iron heaters, electric heaters, Quartz Heater, Explosion-Proof Heater, Foil Heater, Teflon Heater, Track Heater, Hot Runner Heater, Armored Heater, Ceramic Fiber Heater, Far Infrared Ceramic Heater, Hot Melt Machine heater, electric heating film, silicon carbide heater, silicon molybdenum heater, metal heating tube, heating coil, heating plate, heating rod, silicone rubber heater, radiant heater, heating cable, temperature sensor, thermal resistance , thermocouples, high temperature wire and cable, instrumentation, slip line bridge, bus switchgear, insulation materials, test instruments, ceramic ignition pin and other electrical complete sets of equipment. Products are mainly used in military, chemical, power, electronics, steel, metallurgy, medicine, machinery, automobiles, air conditioning, industrial furnaces, home appliances and other heating industry equipment. All products can be customized according to the requirements of customers, many products have now filled the domestic blank, instead of imports. At present, our heaters, temperature sensors, etc. have been sold to countries in the world and are well received by customers. Welcome new and old customers at home and abroad to visit us.

Address:No.198, Wuzhou East Road, Economic and Technological Development Zone,  Yangzhou City
Contact:Dora zhang
Mobile / WhatsApp/Skype:+86 19905149759
WeChat:zl13952543845
Fax:+86(514)87244068
E-mail:yztrdq(@)yeah.Net
web:www.heater-china.com
Pc:225127

Certifications
Our Service
FAQ

Q1. Can I have a sample order forCeramic Heater?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks
Q3. Do you have any MOQ limit for Ceramic Heater?
A: Low MOQ, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order?
A: Firstly provide the heater size , voltage, wattage, quantity
Secondly We quote according to your size
Thirdly customer confirms the order
Fourthly We arrange the production.
Q6. Is it OK to print my logo?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7: Do you offer guarantee?
A: Yes, we offer 8000 hours warranty to our products
Q8: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less
than 0.2%.
Secondly, during the guarantee period, we will send new heater with new order for small quantity.
