high quality GD19 series miniature LVDT DC voltage displacement sensor-Stroke range 0-50mm

  • 1-9 Pieces
    $206.00
  • 10-49 Pieces
    $183.00
  • 50-99 Pieces
    $165.00
  • >=100 Pieces
    $150.00
Quantity:
- + Pieces available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
206 day(s) after payment received
Customization:
Customized logo (Min. Order: 1 Pieces)
Contact Supplier
Samples - $206.00 /Piece, 1 Piece (Min. Order): Buy Samples
Loading... Add To Cart
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Shanghai, China
Brand Name:
UTMOST
Model Number:
GD19
Usage:
Position Sensor
Theory:
Linear Variable Differiatial Transformer
Output:
Analog Sensor, 4-20mA/0-5V/0-10V/0.5-4.5V DC
Stroke range:
0~50mm
Linearity:
±0.5%FRO
Stability:
±0.25%FRO/year
Body diameter:
19mm
Material:
SS304
Operating temperature:
-20℃ to 85℃

Packaging & Delivery

Selling Units:
Single item
Single package size:
20X10X5 cm
Single gross weight:
0.3 kg
Package Type:
Standard Carton package for export
Lead Time :
Quantity(Piece) 1 - 15 >15
Est. Time(days) 206 To be negotiated
Product Description

LVDT (Linear Variable Differential Transformer)consists of a primary coil and two secondary coils symmetrically space on a cylindrical form. A free-moving rod-shaped magnetic core inside the coil assembly provides a path for the magnetic flux linking the coils. When the core is moved, it produces a differential voltage output that varies linearly with changes in core position. This technology has now been widely applied to measure different linear position, e.g. tension, expansion, diameter, conicity thickness, eccentricity, differential pressure, liquid level, force, weight and etc. The LVDT has the features of frictionless, low power, high resolution and long duration, which can be applied in harsh environment like high temperature, high humidity and dust.
GD19 series (dia. 19 mm) is a LVDT position transmitter with DC input, high level output option, eg-0.5-4.5VDC, 0-5VDC, 0-10VDC, 4-20mA output. The 4-20mA is perfect for remote position sensing. All LVDT conditioning and electronics are built-in for easy installation in industrial environments.
This series provide highly reliable, contactless operation with high resolution, excellent repeatability,dynamic and response, with the added convenience and simplicity of DC input and precalibrated high level output.

Features

• Ranges from 0~1mm to 0~250mm

• International standard 19mm(0.75") diameter

•Integrated structure of built-in amplifier, strong anti-interference ability

• Single DC power supply, multiple standard DC outputs

• No sliding contact, high resolution, fast response and good repeatability

• Through-bore design

• Frictionless operation

• Dynamic response

• Free iron core combination, convenient for using

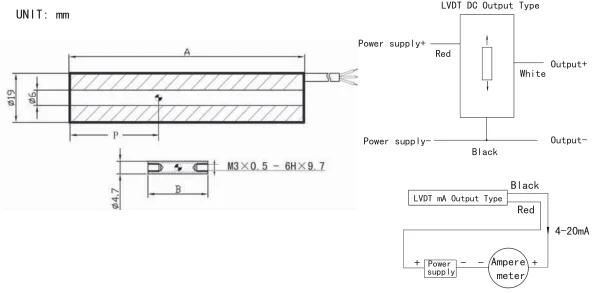

Dimensions

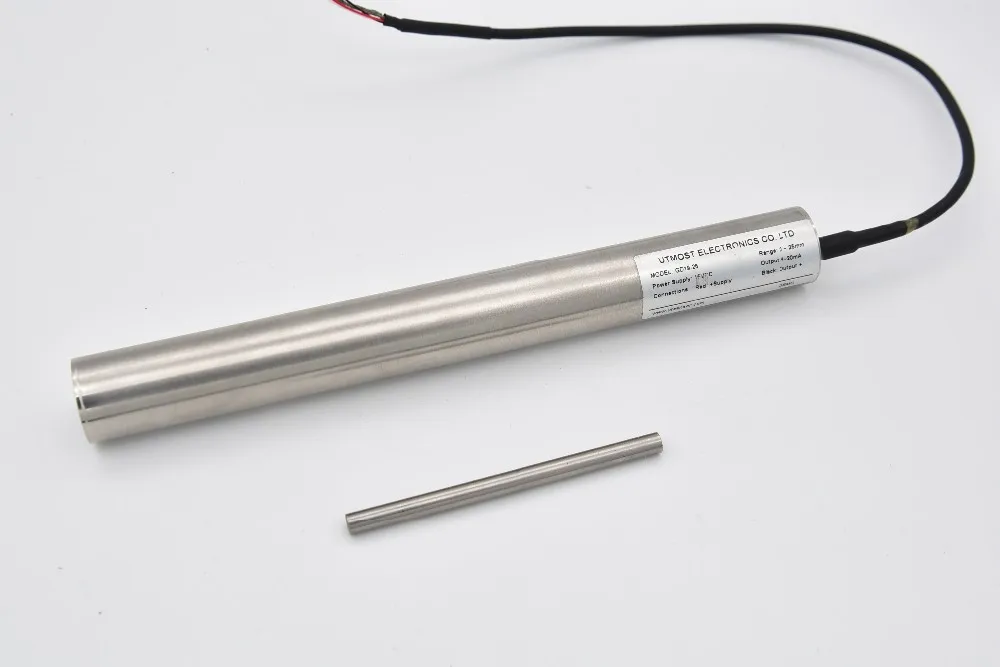

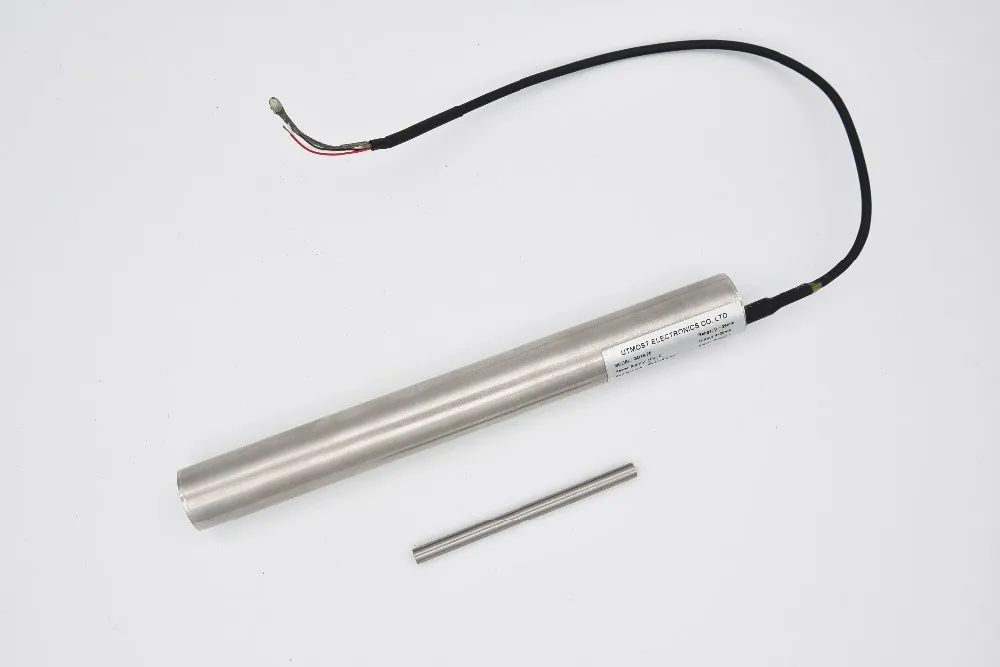

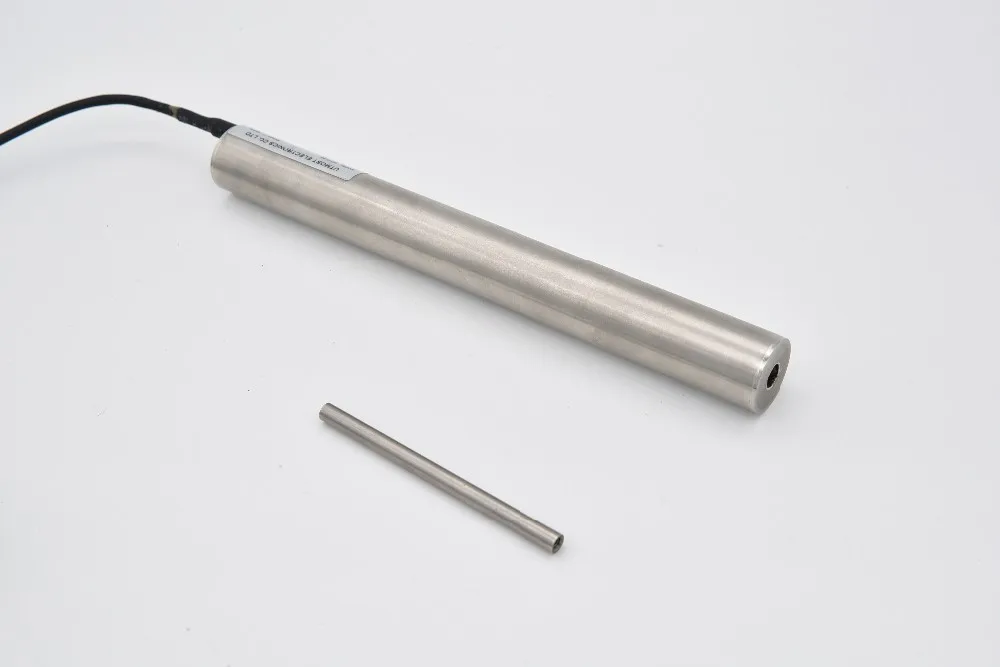

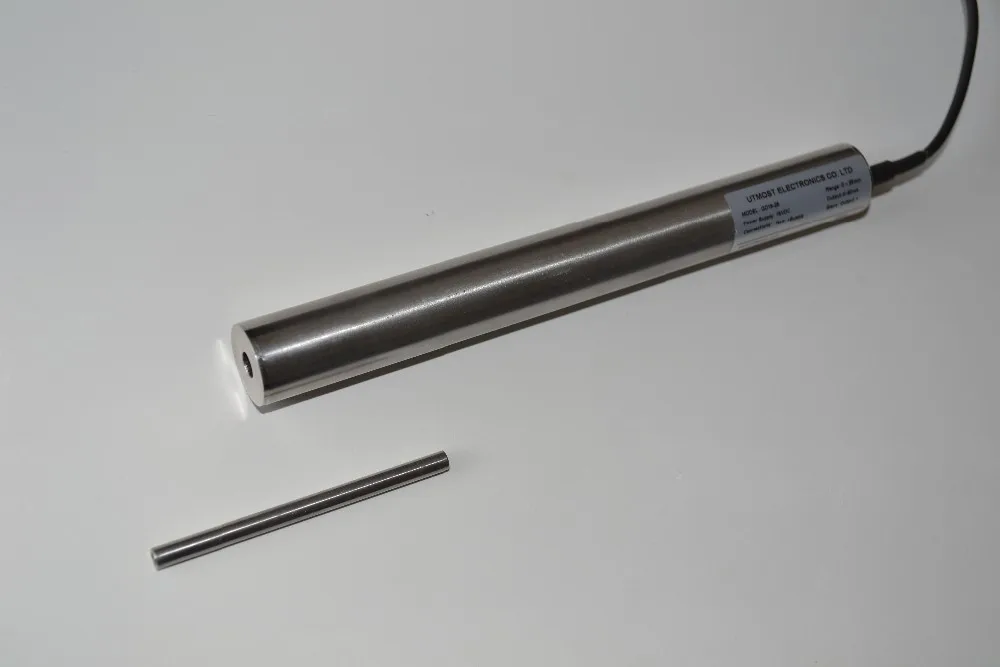

Product picture

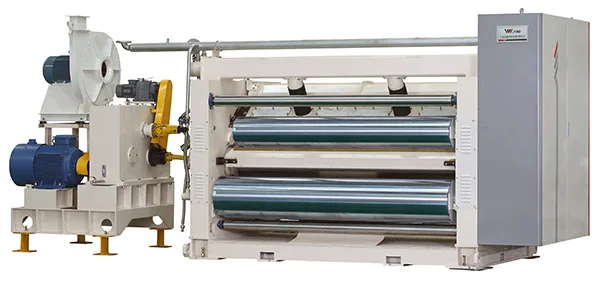

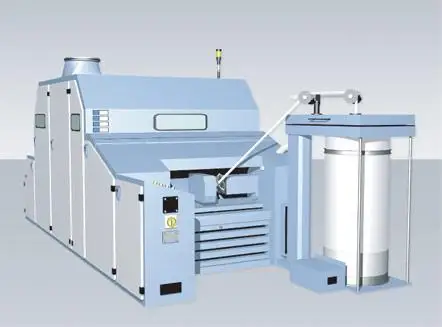

Application
Packing & Delivery

The courier charge is estimated cost, it maybe a little different with actual one.
So please discuss the courier charge with us firstly, please don't place order directly, thanks.

Certificates
Company information
