high torque 36v 48v 500w 750w hub motor 26*4 20*4 electric snow bike conversion kit

Feedback Ratings
  • 1-9 Sets
    $159.00
  • >=10 Sets
    $149.00
Quantity:
- + Sets available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
5 day(s) after payment received
Contact Supplier
Report Suspicious Activity
Overview
Quick Details
Part:
Wheel
Place of Origin:
Jiangsu, China (Mainland)
Brand Name:
CNEBIKES
Model Number:
H06
Product Name:
500w 750w hub motor 26*4 20*4 electric snow bike conversion kit
Power:
36v/48v 500w
motor type:
geared motor
Controller:
KT
Throttle:
Thumb throttle /throttle throttle
Wheel size:
20*4/26*4
Display:
LCD3/LED
PAS:
yes
Warranty:
2 years
Battery:
optional

Packaging & Delivery

Selling Units:
Single item
Single package size:
65X65X23 cm
Single gross weight:
13.0 kg
Package Type:
standard package for 500w 750w hub motor 26*4 20*4 electric snow bike conversion kit
Picture Example:
package-img
Lead Time :
Quantity(Set) 1 - 1 2 - 30 >30
Est. Time(days) 5 15 To be negotiated
Video Description
Product Description

This rear-drive geared  motor kit , which is compatible with the disc brake, has a rated power from 250W to 500W, a reduction ratio of 1: 5 and a maximum torque of 80 N.m, providing ideal power for vehicles. Strong and efficient, this motor, working together with a cassette or freewheel speed change mechanism, greatly enhances riding comfort and is suitable for beach buggies and snow bikes.

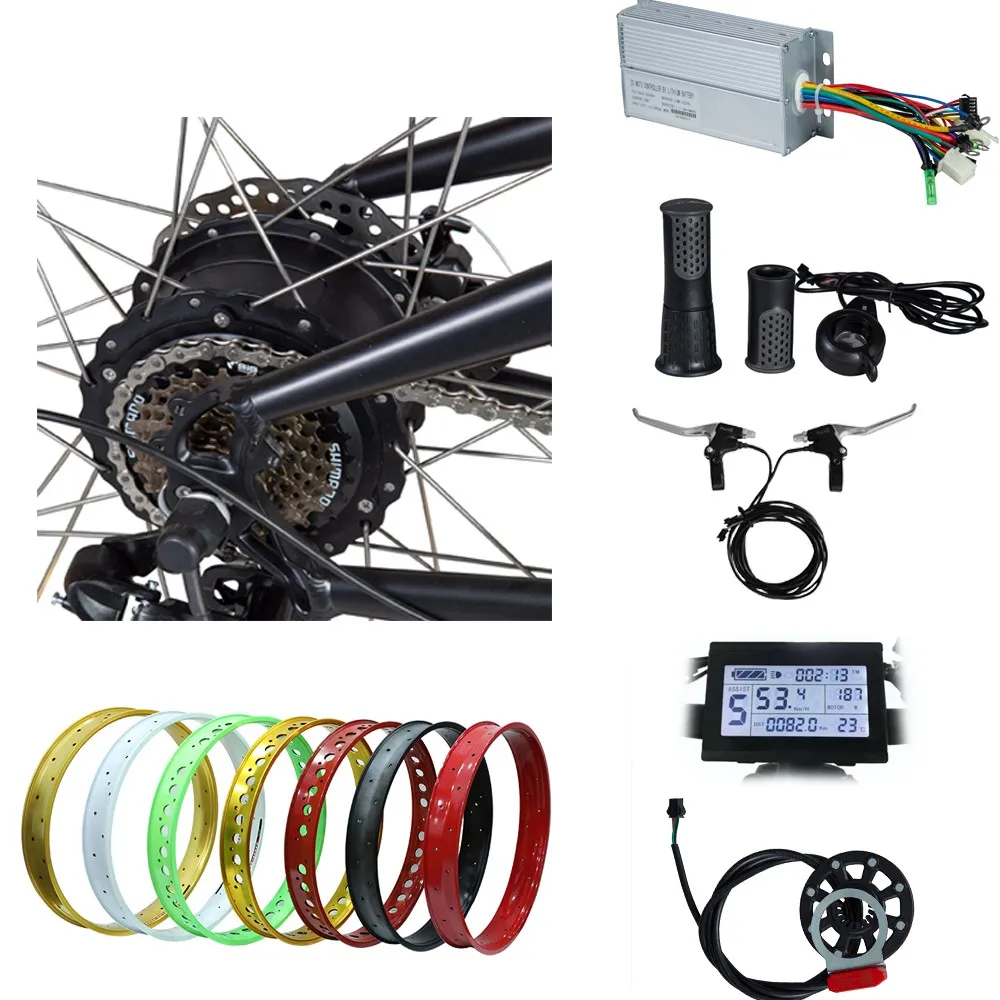

Complete Kit inclde :

   Geared motor

170mm /190mm dropout

can be casseet /Screw

Fat bike rim

20*3/20*4  26*3/26*4 rim

Different color ;with holes /without holes

LCD3 display

Optional

LCD1 /LED

Controller

15A for 250w geared motor

17A for 350w geared motor

22A for 500w geared motor

PAS

pedal assitant

5 magnet /8magnet

two Brake levers

Wuxing brake levers (power-off function)

500w 750w hub motor 26*4 20*4 electric snow bike conversion kit


Parameter List
Details for cnebikes H06 geared motor Fat tyre 26*4 electric bike kit

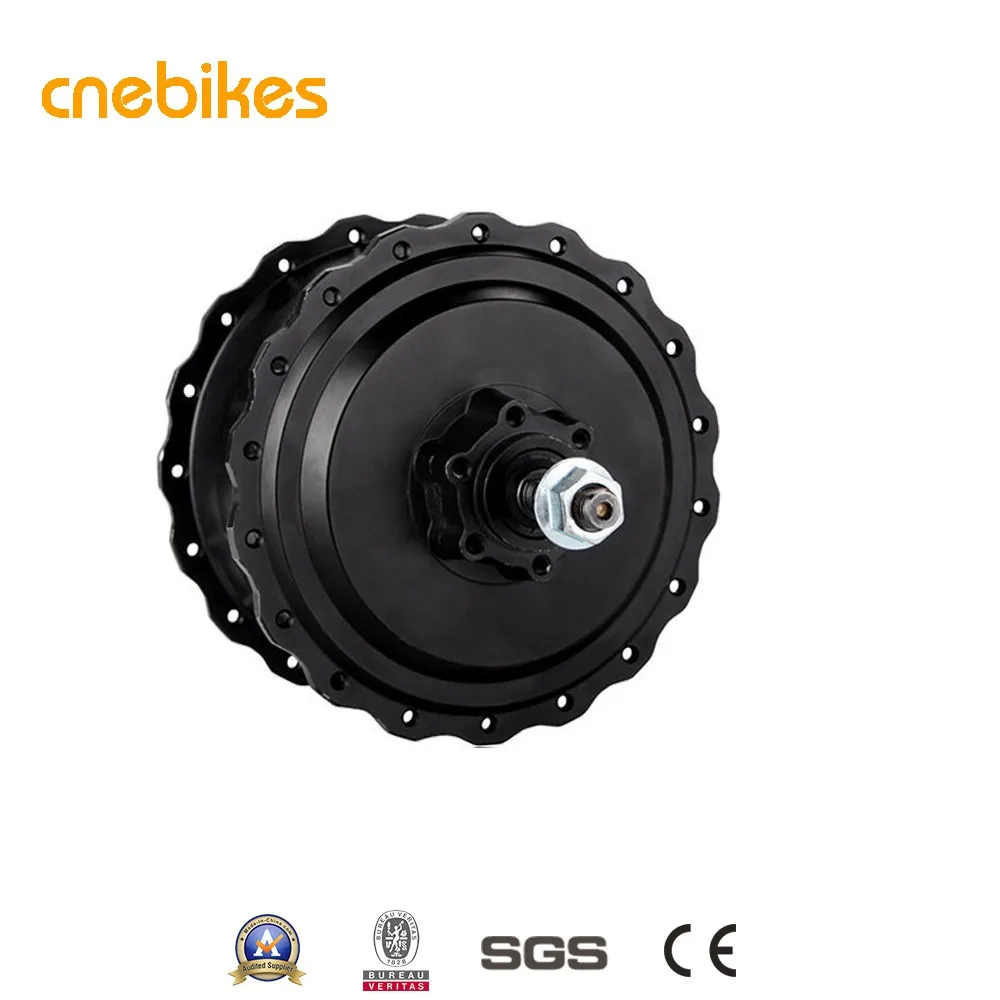

1.Motor
Rated Power
500w/750w
Rated voltage
36v /48v
Construction
Geared
Max Torque
80N.M
Efficiency (%)
80
Operating Temperature
-20 - 45℃
Installation Widths
170/190mm
Spoke Specification
36*12G

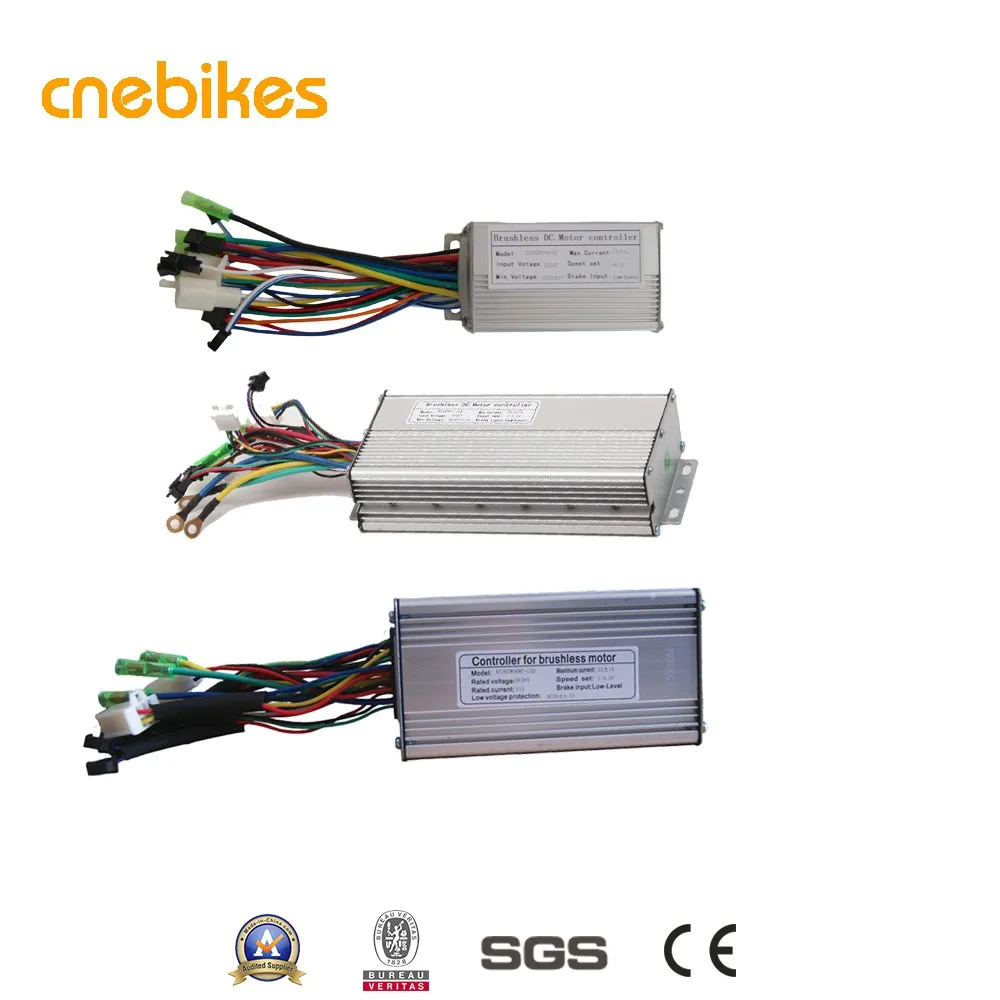

2.Controller
Brand
KT /LS
Mos
9MOS /12MOS
Rated current
22A
waterproof
optional

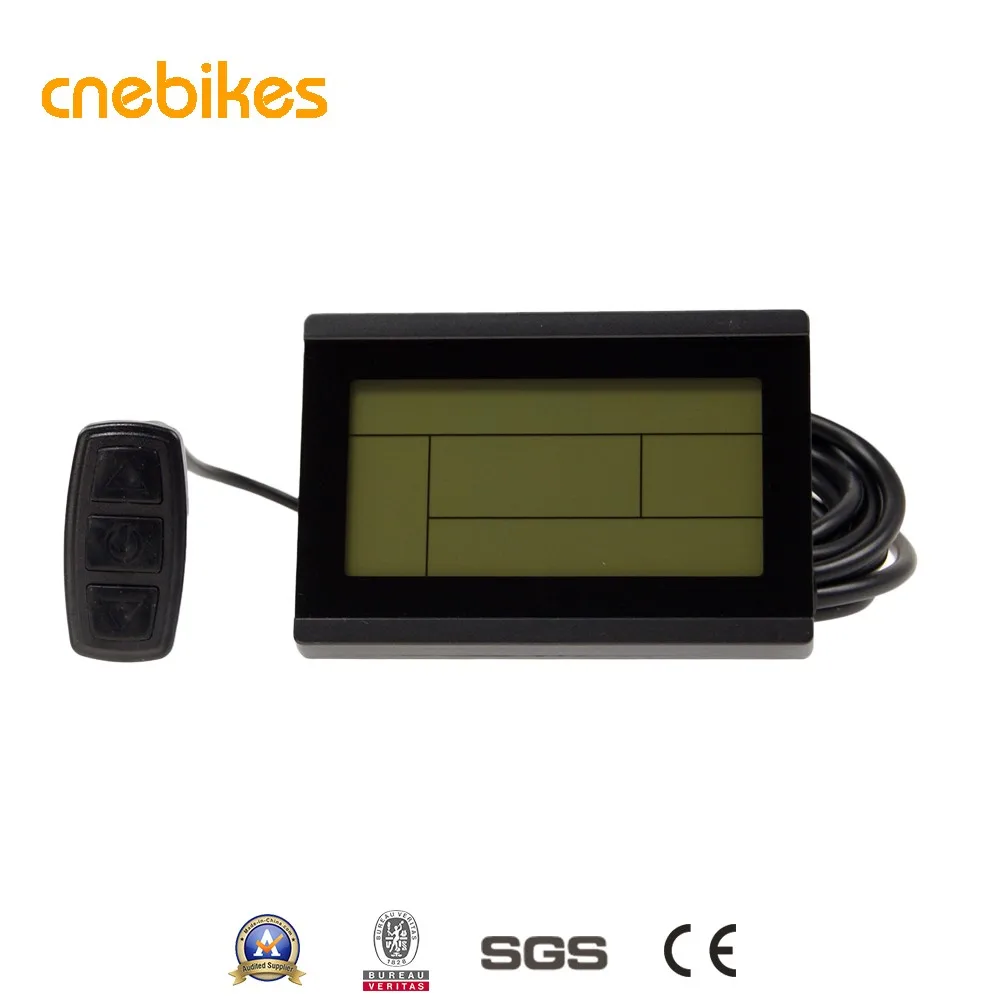

3.Display
Brand
KT-LCD3
pas level
5
Voltage
36v/48v
optional
LED ,LCD

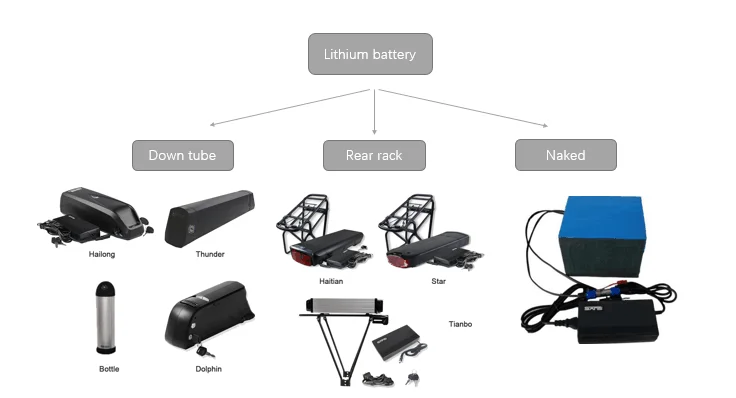

4 Battery
Battery type
Dolphin model /Tiger shark model /Hailong model /Haitian model/Star 1 /star plus so on
Suitable battery for 500w
48v 10.4ah /48v 11.6ah /48v 13ah /48v 14ah

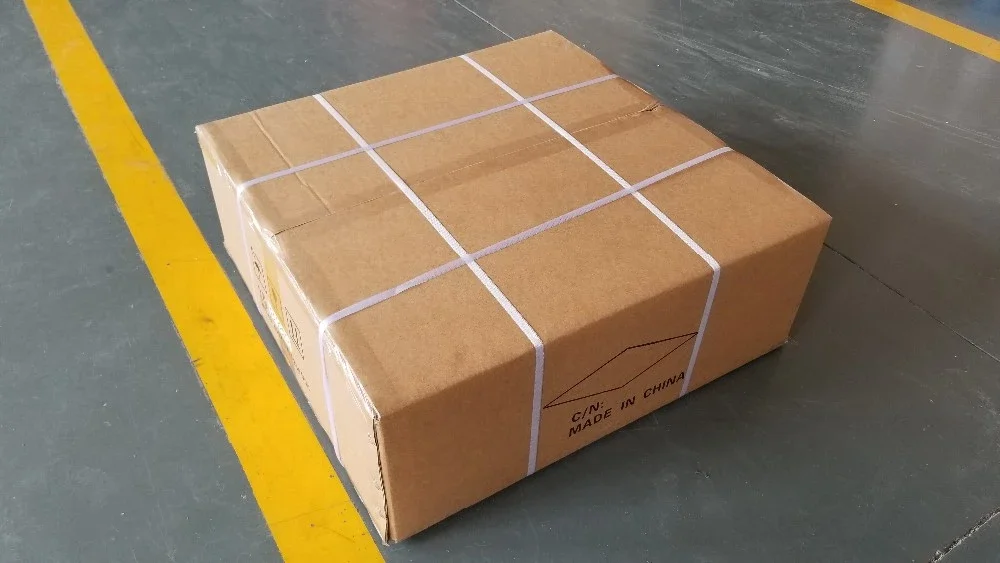

Packing & Delivery

all standard package for ebike kit

20*4 '' :55*55*25cm


26*4'': 60*60*25cm

RFQ

Q:What's main advantages of geared motor and gear less motor?

A: Geared motor has lighter weight,smaller size,zero drag(complete freewheel when not using battery, and excellent efficiency.

Gearless motor has high top speed, more power output, and excellent life span.

Q:What is Pedal-Assist?

A:The Pedal-Assist Mode (PAS) operates when you are pedaling the bike and progressively adds electrical power to the motor. The faster you pedal, the more power is applied. PAS mode significantly increases battery range as compared with using the throttle alone.

Q:Does the battery recharge when I pedal?

A:No, in order for the motor to recharge the battery, it would have to create resistance which would make it too difficult to pedal without the motor. Unfortunately physics doesn't work in our favor.

Q:How far can I go on one charge?

A:There are many variables that affect distance such as weight, terrain, number of stop / starts, riding speed, amount of pedal assistance, number of hills climbed, tire pressures, and wind resistance etc.

Q: Front wheel and rear wheel choose which one?

A: Common standard front wheel is 100mm dropouts,easier to install without derailleur adjustments, you can use your original freewheel; Common standard rear wheel is 135mm dropouts, better grip especially when you ride on steep inclines or in wet condition
.
