high voltage fuse for transformer protection

$15.00 / Piece | 100 Pieces (Min. Order)
Quantity:
- + Pieces available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
7 day(s) after payment received
Contact Supplier
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Zhejiang, China
Brand Name:
SR
Model Number:
XRNP1
Usage:
High Voltage
Breaking Capacity:
High
Safety Standards:
IEC
Material:
Ceramics
Length:
465mm,354mm,195mm
Diameter:
25mm,22mm

Packaging & Delivery

Selling Units:
Single item
Single package size:
55X35X15 cm
Single gross weight:
6.000 kg
Package Type:
carton
Lead Time :
Quantity(Pieces) 1 - 100 >100
Est. Time(days) 7 To be negotiated

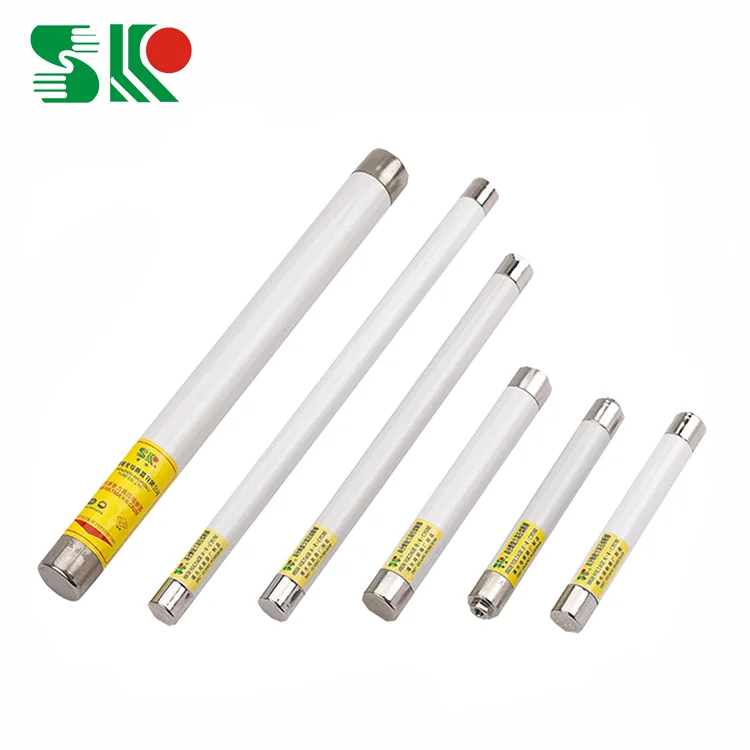

high voltage fuse for transformer protection

Product Description




Applications



    H.V HRC current-limiting fuses type XRNP for transformer protection is mainly used in AC 50HZ, rated voltage 3.6-40.5KV, rated current up to 6.3A circuit for protection transformers from overload and shirt-circuit.
    It conforms to IEC282-1,BS and GB15166.2.



 Desing Features

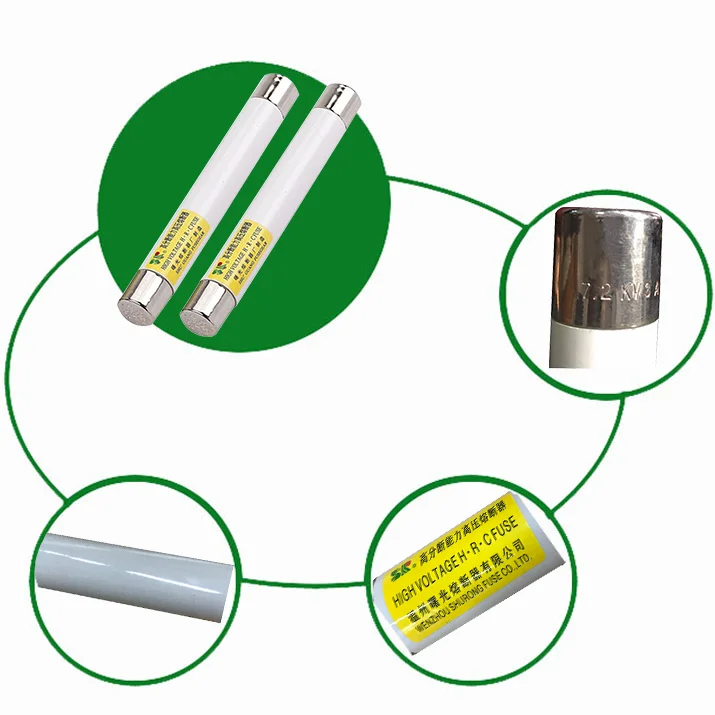

    XRNP type H.V HRC current-limiting fuses is insert installation. It is convenient for install and removal. The fuse link made of high-resistance metal wire and low-resistance metal wire. They are sealed in the fuse tube filled with chemically treated high-purity quartzsand. The fuse tube is made from heat tesistance, high duty ceramic or epoxy glass. When fault circuit happens, the fuse link melts causing arc,quartz sand dxtiguish the arc immediately, signaling the melting or automatically cutting the circuit.







Dimension



model

rated

voltage

(kv)

rated current

of fuselink

(A)

Rated

breaking

current

(KA)

Dimensions

(mm)

weight
XRNP13.60.5,1,2,3,15,6.350See figure 1 1420.19
XRNP17.20.5,1,2,3.1550see figure 1 142(195)0.19(0.22)
XRNP1120.5,1,2,3.1540See figure 1 1950.22
XRNP1240.5,1,2,3.1540See figure 1 3550.43
XRNP140.50.5,1,2,3.1531.5See figure 1 4650.55
XRNP1120.5,1,2,3.1550See figure 1 1.12
