laboratory grinding machine lab rolling mill

Feedback Ratings
$500.00 / Set | 1 Set (Min. Order)
Model Number:
S65
$500.00
- +
available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
1 day(s) after payment received
Contact Supplier
Report Suspicious Activity
Overview
Quick Details
Output (kg/h):
1 - 5
Applicable Industries:
paint factory
Application:
Chemicals Processing, paste material, such as paint, ink, pigment
Condition:
New
Type:
Grinder
Product Type:
Shampoo
Place of Origin:
Jiangsu, China (Mainland)
Brand Name:
YZ
Voltage:
220V/380V
Dimension(L*W*H):
440*420*400mm
Certification:
CE
Weight (KG):
60
Warranty:
1 Year
After-sales Service Provided:
Video technical support, Online support, Engineers available to service machinery overseas
Key Selling Points:
Competitive Price
Power(W):
0.75KW
Weight:
60KG

Packaging & Delivery

Selling Units:
Single item
Single package size:
50X50X50 cm
Single gross weight:
60.0 kg
Package Type:
Standard wooden case packing
Picture Example:
package-img
Lead Time :
Quantity(Set) 1 - 5 >5
Est. Time(days) 1 To be negotiated
Product Description

Product Application

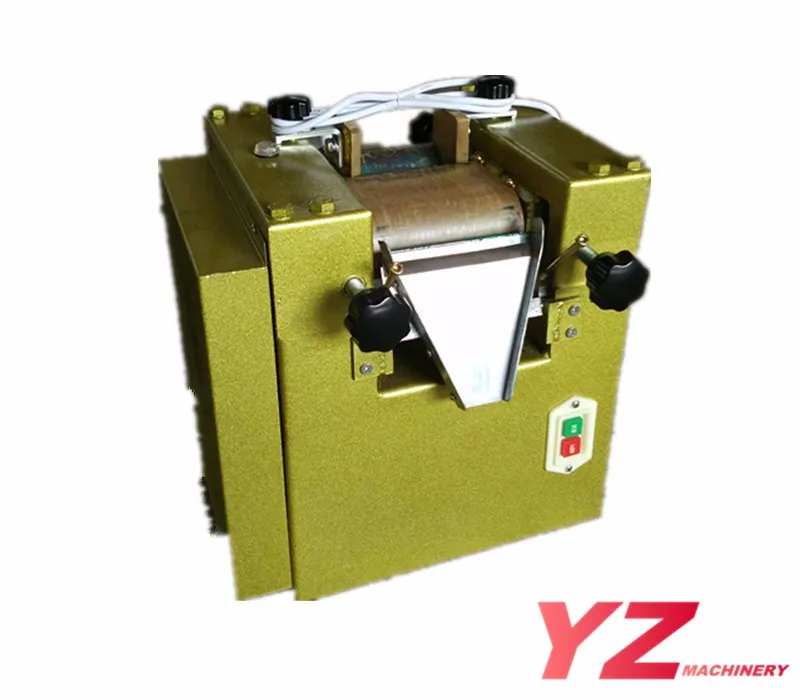

S65 Lab three roll mill machine is suitable for grinding paste materials such as paint, printing ink, pigment. It is widely used in making samples in the laboratories.

SPECIFICATIONS FOR S65 LAB THREE ROLL MILL
Diameter of the roller
65mm
Working length of the roller
125mm

Rolling speed per minute
Slow
32 r/min
Middle
89 r/min
Fast
250r/min
Motor Power
0.75KW
Overall size
440*420*400mm
Weight
60kg

Main Features

1) Simple structure in linear type ,easy in installation and maintation.

2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.

3) High pressure double crank to control the die opening and closing.

4) Running in a high automatization and intellectualization,no pollution

5) Apply a linker to connect with the air conveyor ,which can directly inline with filling machine .

Detailed Images

Machine Parts

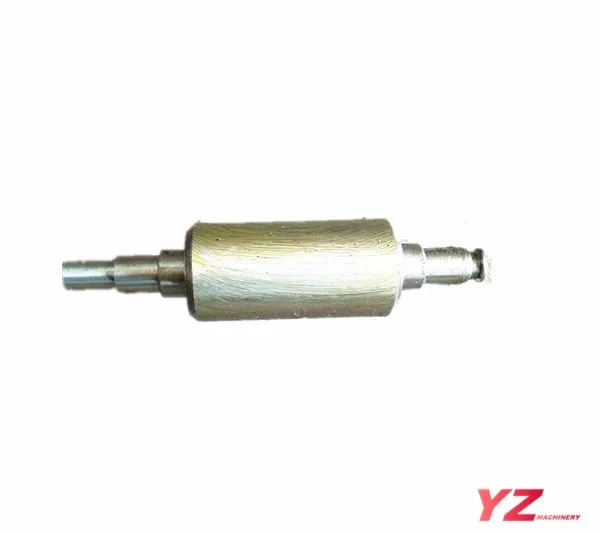

Name:roller

Domestic famous rollers, whose chilled alloy cast iron surface is more than 15mm and durable surface hardness rating of HS70, are finely ground.
The picture shows the roll with rust-preventative oil in our factory.

Main Features

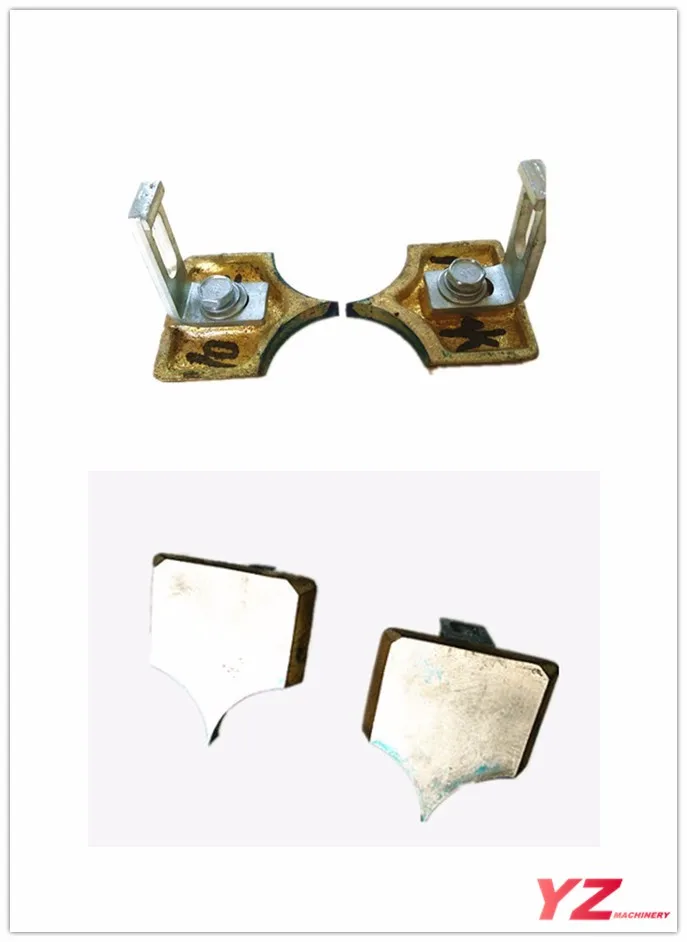

Name: Copper End Plates

They are between the feed roll and center roll to prevent the material to flow out while charging.

Machine Parts

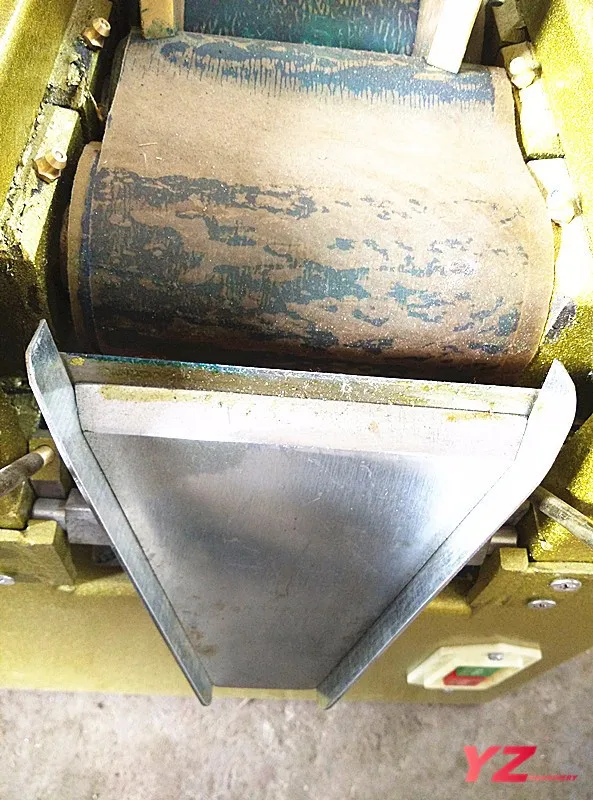

Name: Discharge apron with knife blade

A knife blade scrapes the processed material off the apron roll and the paste rolls down the apron.

Main Features

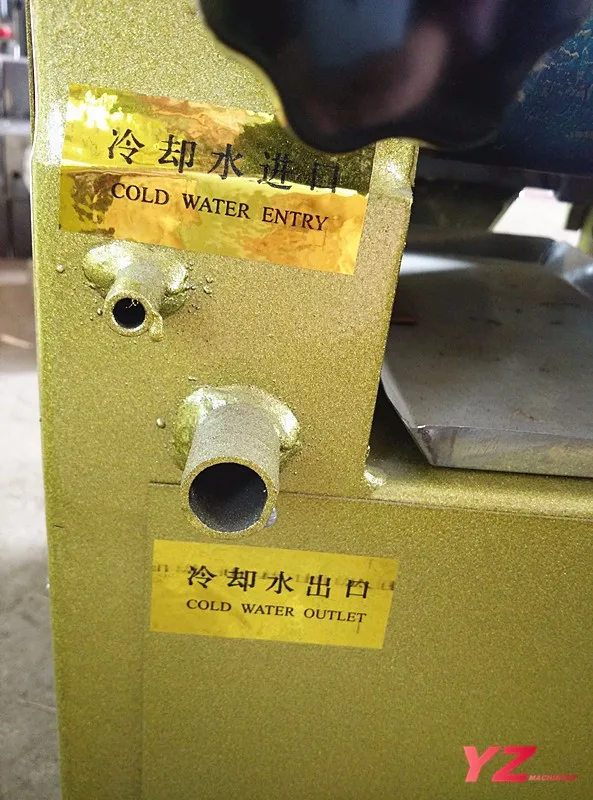

Name: Inlet and outlet of the cooling water

It's for cooling system with a hosepipe connected to the inlet and outlet on the machine.
Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery
Packaging
Size
450(L) * 430(W) * 410 (D)
Weight
10KG



Packaging Details

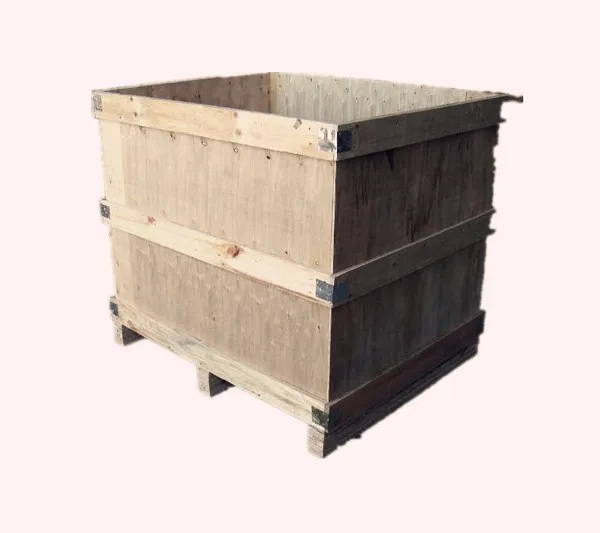

The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.We will pack it according to customers special request.
