metal gutter roll forming machine

$40,000.00 / Set | 1 Set (Min. Order)
Model Number:
Gutter machine
Power:
5.5KW
$40,000.00
- +
available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
15 day(s) after payment received
Customization:
Customized logo (Min. Order: 1 Sets)
Customized packaging (Min. Order: 1 Sets)

More

Graphic customization (Min. Order: 1 Sets) Less
Contact Supplier
Loading... Add To Cart
Report Suspicious Activity
Overview
Quick Details
Type:
Tile Forming Machine
Tile Type:
Steel
Production Capacity:
not less than 12m/min
Rolling thinckness:
0.3-0.8mm
Applicable Industries:
Building Material Shops, Manufacturing Plant, Construction works
After Warranty Service:
Video technical support, Online support, Spare parts, Field maintenance and repair service
Local Service Location:
None
Showroom Location:
None
Condition:
New
Use:
ROOF
Place of Origin:
Jiangsu, China
Brand Name:
GH
Voltage:
380V 50Hz 3phases
Dimension(L*W*H):
7600*1600*1600mm
Weight:
7T
Certification:
CE/ISO9001
Warranty:
1 Year, 1 Year
After-sales Service Provided:
Online support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support, Engineers available to service machinery overseas
Key Selling Points:
Easy to Operate
Feeding width:
1220mm, 915mm, 900mm, 1200mm, 1000mm, 1250mm
Machinery Test Report:
Not Available
Video outgoing-inspection:
Provided
Marketing Type:
Ordinary Product
Warranty of core components:
1 Year
Core Components:
Pressure vessel, Motor, Bearing, Gear, Pump, Gearbox, Engine, PLC
Color:
Blue
Name:
metal gutter making machine
Raw material:
Ppgi
Product name:
metal gutter making machine
Usage:
Steel Construction
Cutting blade material:
Cr 12 High Grade Steel
Roller material:
45# Forged Steel
Control system:
PLC(imported Brand)

Packaging & Delivery

Selling Units:
Single item
Single package size:
750X160X150 cm
Single gross weight:
5200.000 kg
Lead Time :
Quantity(Sets) 1 - 3 >3
Est. Time(days) 15 To be negotiated
Product Description
                                                               Gutter roll forming machine（Only for reference）
Maximum production speed: not less than 12 metres per minute (excluding cutting);

Material: 0.3-0.8mm, GI or clor steel

If you have your own special requirements,our machine can be also customized.

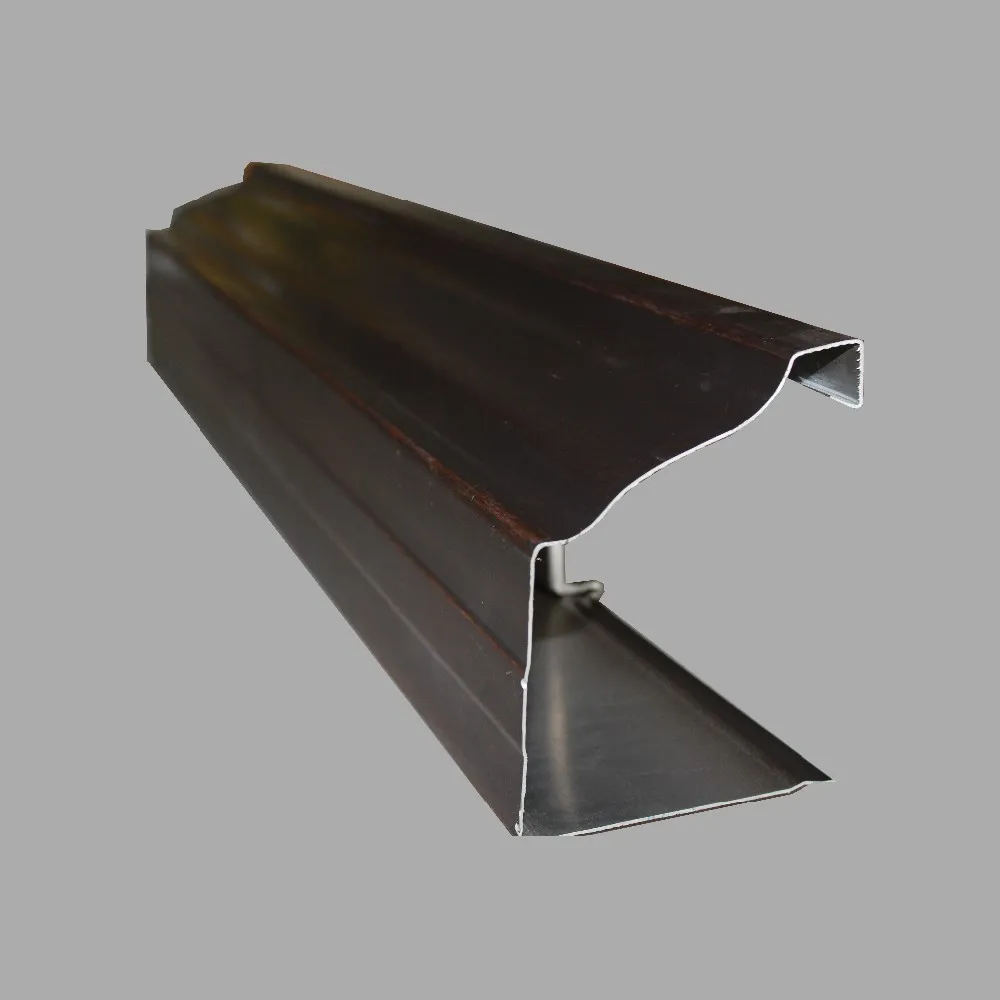

profile as following:

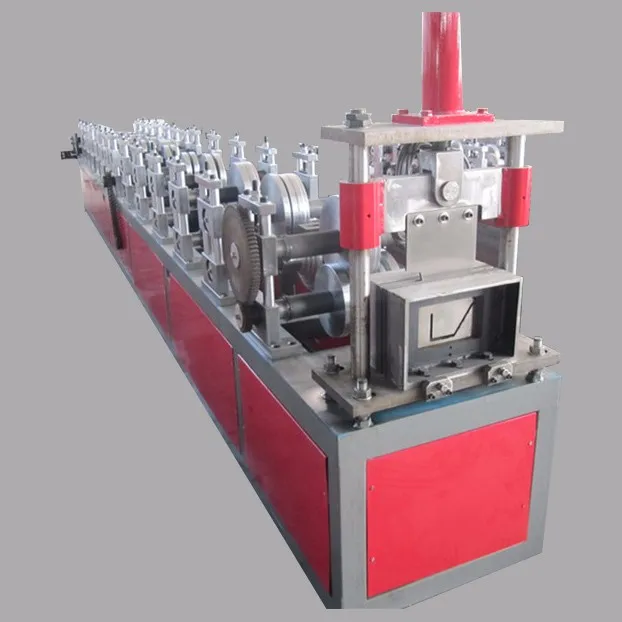

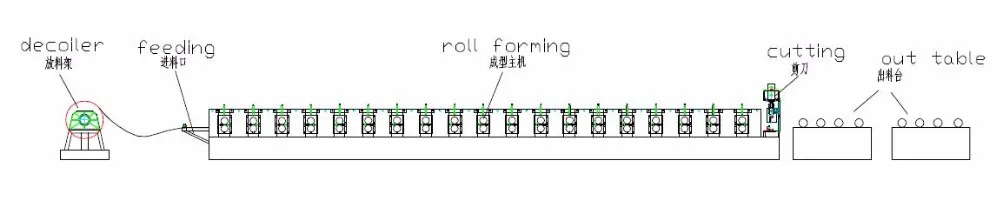

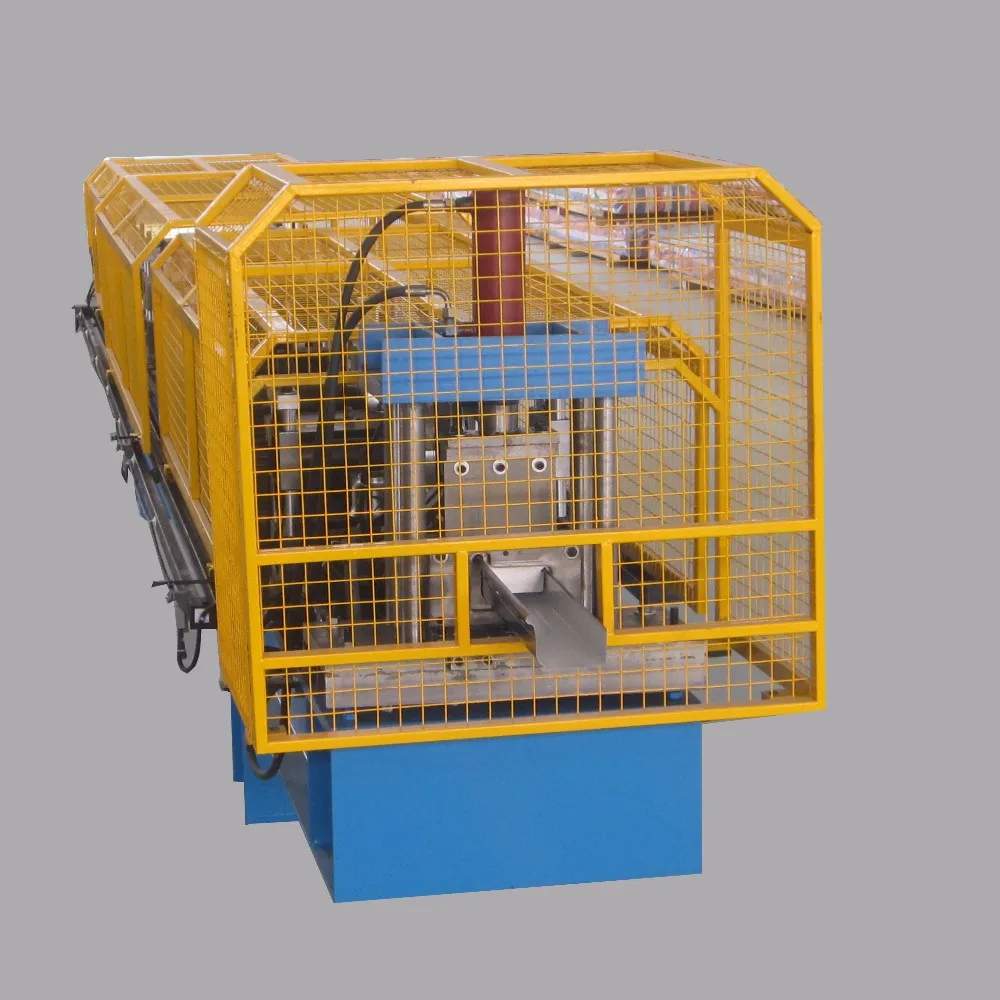

Whole machine:

Main Features

Material of the profile: GI or color steel
Thickness range: 0.3-0.8mm

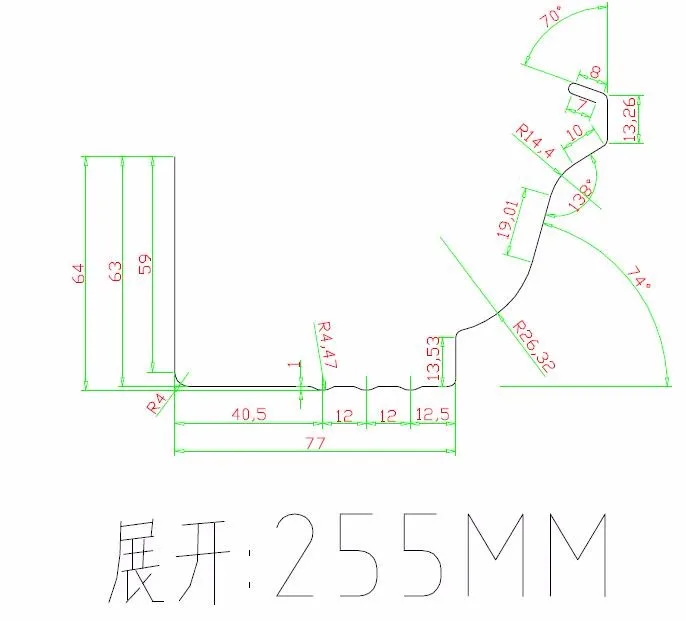

Coil width: 255mm
Height: 64±2，effective width: 77±2mm
Finished product length: from 500 mm to (at least) 12’000 mm

Detailed Images

3T hydraulic decoiler:

Coil weight (Max):3000kg
Inter diameter: 420mm-510mm
Maximal out diameter:1300mm
Oil cylinder dia:100mm
Coil width (Max.)500mm
Working speed: 0-15m/min adjustable
Main motor power: 4KW AC motor
Hydraulic power: 3kw

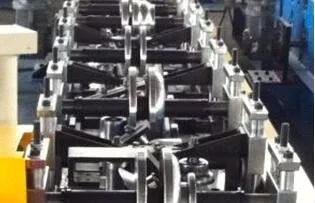

Forming section

Material of the profile: GI or color steel
Thickness range: 0.3-0.8mm
Main motor power:5.5kw, AC motor, motor inside of main machine (Brand: Guomao of China)
Machine Voltage, Frequency, Phase: 380 V, 50 Hz, 3Phase
Roll station: about 16 stations （according the final design）
Roller material:ASTM1045 chrome plated surface with chrome,CNC,
Shaft diameter: ￠65mm material: SAE1045 with quenching and tempering
Machine roll forming speed:not less than 12m/min
Transmission: by chain, one inch, Single line

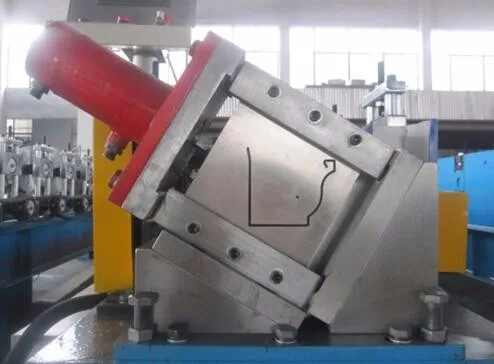

Post cutting :

Cutting after forming: Cut the sheet after roll forming to required length
Uses two hydraulic cylinders for operation shall include a flow regulator to achieve a uniform lowering knife.
Material of blade:Cr12, 58-62 HRC hardness
Cutting power by hydraulic, 5.5KW
Working pressure: 12Mpa adjustable
Tolerance of length: +/- 1.5mm for each piece end product

out table:

Frame: welding by tube
Size: about 2.0m long*0.3mwide*0.9mhigh
One out table with support roller
Supporter roller: ASTM 1045 with chrome
Diameter of rollers: 55mm
Color: Blue
Quantity: 2 units


Hydraulic station:

Hydraulic power: 5.5kw
Working pressure: 12Mp adjustable
Solenoid valve: 6 groups (one for cutting)
Hydraulic oil: 46# hydraulic oil
Quantity : 1
Color: blue

Control carbinet:

1)Programmable setting of profile length and quantity
2)Automatic stopping of the equipment after completion of the cutting programme.
3)Operating system language: English and Chinese
4)Computer used to control length & quantity. Machine will automatically cut tolength and stop when required quantity is achieved
5)PLC brand: Panasonic
6)Frequency converter brand: Yaskawa, quantity: 1
7)Touch screen: Taiwan Weinview

Package&Delivery
Our Service

Enginer to test machine for clients.

Clents learning to check the products.
