metal roof profile tiles making machine glazed tiles profile roofing roll forming machine

Feedback Ratings
  • 1-4 Sets
    $17,500.00
  • >=5 Sets
    $17,000.00
Model Number:
828
Power(W):
5.5kw
- +
available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
45 day(s) after payment received
Contact Supplier
Report Suspicious Activity
Overview
Product Hightlights
Warranty Type Production Capacity
1 Year Tile Forming Machine 8-12m/min
Specifications
Certification:
ISO9001, CE, SGS
After-sales Service Provided:
Online support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support, Engineers available to service machinery overseas
Condition:
New
Tile Type:
Colored Glaze
Use:
Roof
Place of Origin:
Hebei, China (Mainland)
Brand Name:
Zhongtuo
Voltage:
380V or as required
Dimension(L*W*H):
7.2*1.45*1.5m
Weight:
7.2ton
product name:
metal roof profile tiles making machine
the material width:
under 1250mm
Language:
English Chinese and Russian
the color of machine:
depend on your required
Feeding Material:
color steel coils, galvanized plate, or aluminum plate
Raw material:
PPGI and GI
Usage:
roof and wall
Roller material:
45#steel Chrome Plated

Packaging & Delivery

Selling Units:
Single item
Single package size:
800X165X150 cm
Single gross weight:
6500.0 kg
Lead Time :
Quantity(Set) 1 - 1 2 - 5 >5
Est. Time(day) 45 50 To be negotiated
Video Description

metal roof profile tiles making machine glazed tiles profile roofing roll forming machine

brief introduction:

1. professional design and manufacturer (9 engineers with 10years experience)

2.high technology support for all roof tiles making machine (esay operation with high accuracy)

3, quality and delivery time, both are guaranteed for our roof tiles makin machine( ISO, CE,SGS certificate)





Product Description

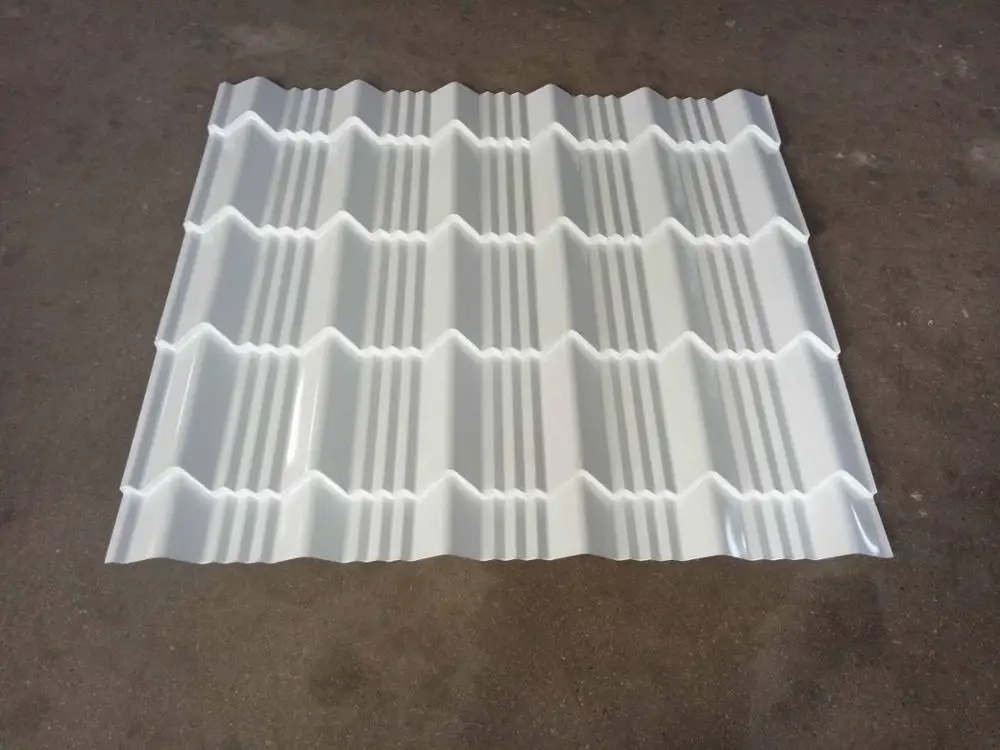

finished sheets of this roof tiles making machine:
Processing material: colored steel plate, galvanized plate, or aluminum plate

Material thickness: 0.3---0.8mm

Material hardness: 195 mpa---350 mpa

Material width: from 900 to 1450mm

Forming speed: 8-12m/min



 Uncoiler of metal roof profile tiles making machine glazed tiles profile roofing roll forming machine:

Usage:It is used to support the steel coil and uncoil it in a turnable way.

Passive uncoil pulled by roll forming system



Loading capacity:5T

Uncoiling width:1250mm

 Inner diameter: 450-550mm



Entry Beach of metal roof profile tiles making machine glazed tiles profile roofing roll forming machine





Usage:Put the raw material(steel plate) through the beach to manufacture and process,

it can guarantee that the products are neat, parallel and everything is uniformity.





 Length of the main part:about 7200*1450*1500mm

 Weight of main part:4.2T

 Voltage:380V/50HZ 3Phase

 Roller fixer:middle plate

 Frame:350H steel

 Drive mode:chain

 Material of rollers:45#steel, surface hard chromium plating.

 Material of shafts:45#steel

 Diameter of shafts: φ 70mm

 Number of rollers: 11 rollers

 Main power:3kw

 Material of mould:Cr12 quenched

 Power supply:hydraulic power



cutting device of metal roof profile tiles making machine glazed tiles profile roofing roll forming machine

It adopts the hydraulic drive and automatic location to decide the dimension and cut the target products.

Material of blades: Cr12 quenched

Power supply : hydraulic power

Components:It contains one set of blade, one hydraulic tank and one cutter machine.

Power:5.5kw



Packaging & Shipping

the machine naked in the container or packing as your required.



Payment: 30% T/T in advance and balance 70% after inspection confirmation before shipment.



Delivery: within 45 working days after receipt of deposit



Guarantee: One year, and we will provide the technical support for the whole life.
