micro beer brewery equipment 1000L for restaurant

FOB Reference Price:Get Latest Price
$49,650.00 - $54,615.00 / Sets | 1 Set/Sets mciro beer brewery equipment 1000L for restaurant (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Processing:
Fermenting Equipment
Condition:
New
Place of Origin:
Shandong, China (Mainland)
Brand Name:
SDET
Model Number:
10BBL
Processing Types:
Alcohol
Voltage:
380V/3PH/50Hz
Power(W):
0-80KW
Dimension(L*W*H):
Capacity
Weight:
100-5000kg
Certification:
CE ISO
Product Name:
mciro beer brewery equipment 1000L for restaurant
Material:
stainless steel 304/316
Capacity:
1000L
Control system:
Touch Panel
Heating method:
Steam heating
Heating way:
natural gas boiler/electric boiler
Keywords:
1000L beer brewing equipment
Function:
Brewing Beer Brewing Equipment
Application:
brewery/restaurant/factory
Name:
mciro beer brewery equipment
After-sales Service Provided:
Overseas service center available
Warranty:
5 Years
Supply Ability
Supply Ability:
11 Set/Sets per Month mciro beer brewery equipment 1000L for restaurant
Packaging & Delivery
Packaging Details
1. With export standard bubble film packaging, then for wooden case packaging for alone beer tanks and less brewery equipment.-LCL shipping.
2. If more tanks or complete set of brewery, with bubble film packaging, the for containers for FCL shipping.
3. By bulk carrier or independent containers, the size and quantity rely on the configurations and capacity.
4. Buyers requirement on packaging and shipping, tell us in advance.
5. Transportation method: By sea/Railway/Road/Air.
Port
Qingdao Port
Technical Parameter
1000l micro beer brewery equipment for restaurant
Brewery Equipment
Components
Capacity
Specification
Crushing system
Malt Miller
300kg-500kg/h
 Double rollers, Low Noise<60db

Brewhouse system
Mash tun/Lauter tank
1000l
2 vessels brewhouse can finish 4 processes, from mashing-lautering-boiling-whirlpool.
Steam heating with electric boiler.
Kettle/Whirlpool tank
1000l


Fermenting system
Fermenting tank
6*1000l/2000l
Dimple plate jacket for cooling, dry hops in the top of the tank.
Bright beer tank (Optional)
2*1000l/2000l
Carbonation port to fill CO2, make beer clear and bright.


Glycol cooling system
Glycol water tank
3000l
Used for wort cooling in plate heat exchanger.
Chiller
2*5HP/10HP
Coolsoon brand, use for chilling glycol water.
Controlling system
PID Semi-Auto
Instrument panel
Show and control the temperature tanks.
Cleaning system
Disinfection tank/Alkail tank
50L
Use for washing tanks after finishing brewing.
Voltage
Customer customized
Brewery Equipment

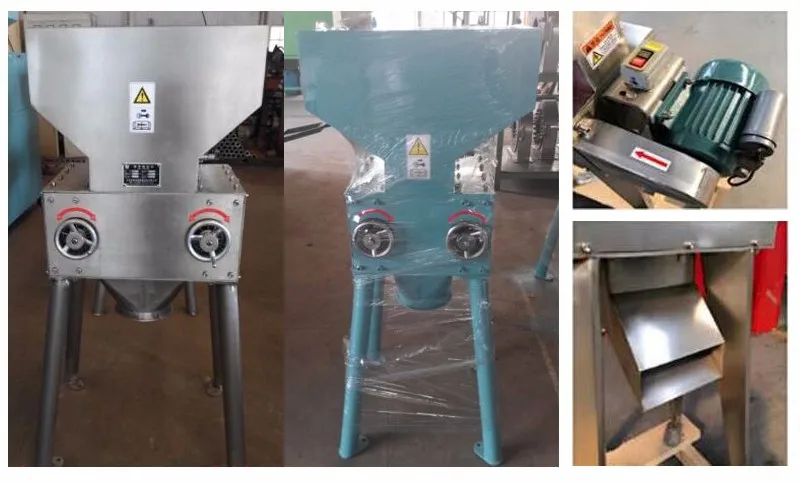

Crushing system

Function: It is used for malt milling.

Working capacity: 300-500kg/h, malt milling within 30 minute is the best choice.

Component: Malt miller, belt, belt pulley, motor, and so on. It is the first part of beer brewing equipment.

Strengths: New design roller, use excellent steel axle head and new roller material, make dynamic balance design, mill malt more uniformly and more efficiently.

Material: Carbon steel or stainless steel for optional.

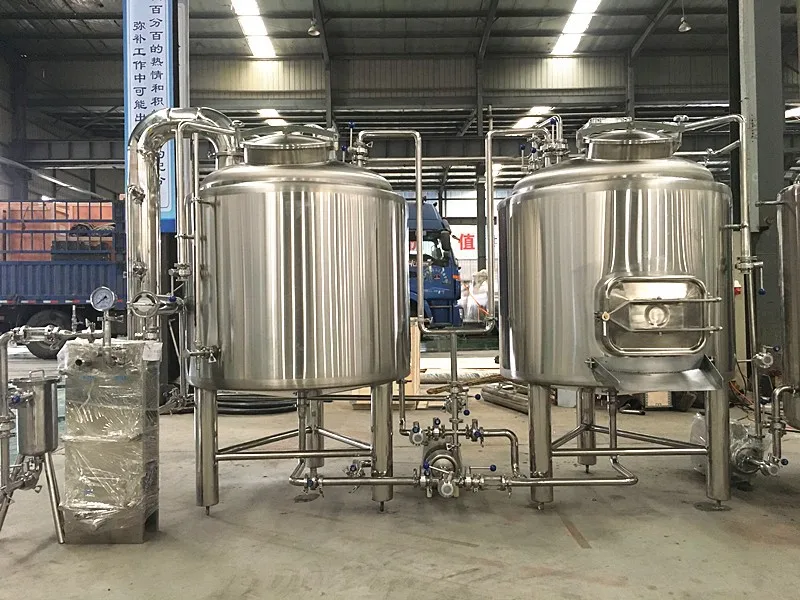

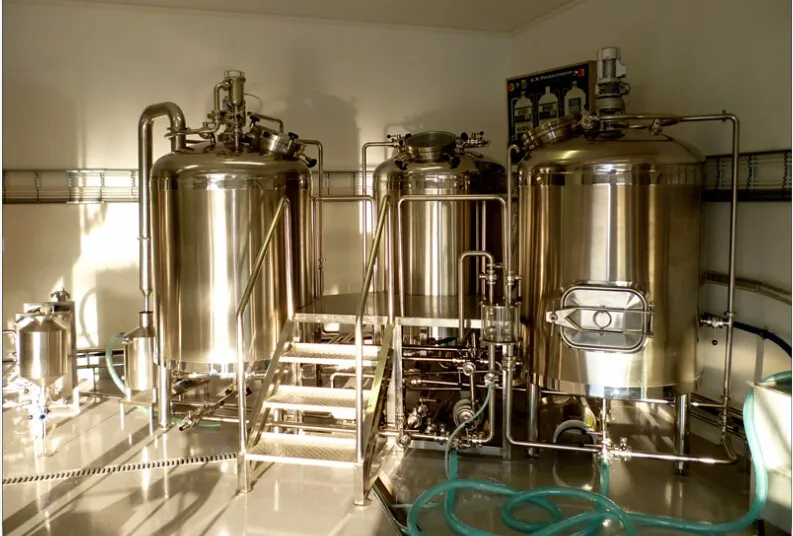

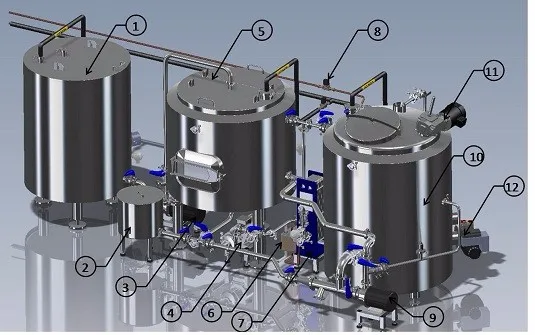

Brewhouse system

Function: It is used for finish 4 processes: mashing, lautering, boiling, and whirlpool.

Component: Mash tun/lauter tank, boiling tank/Whirlpool tank, motor, pump,manhole, hops back, It is the second part of best seller beer brewing equipment.

Capacity: 10bbl 2 vessels brewhouse (Mash tun/Lauter tank, boiling/Whirlpool tank).

Heating method: Steam heating with electric boiler, heat evenly and fast, keep beer's flavor.

Control method: PLC controller cabinet show and control motors, and pumps.

Material: Stainless steel 304.

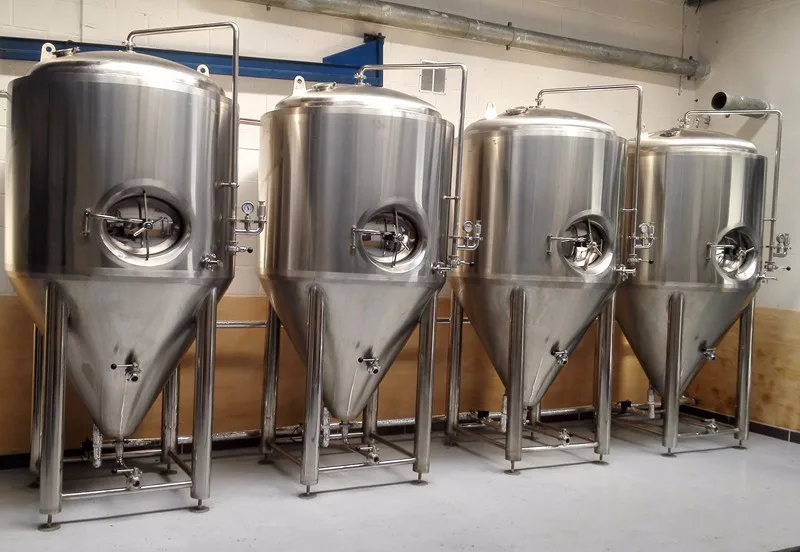

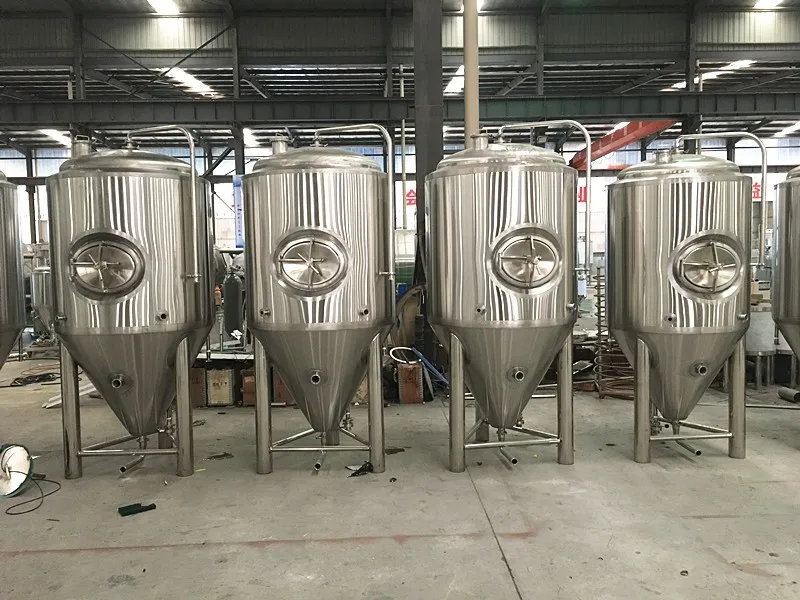

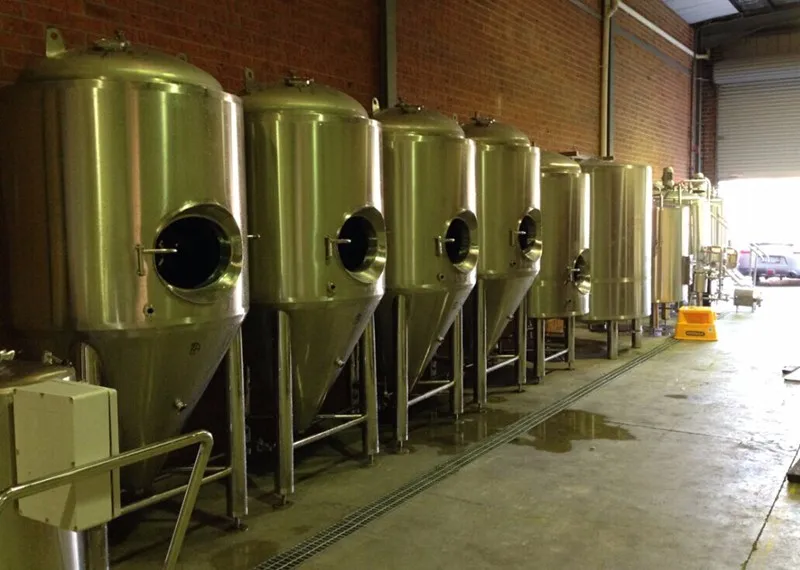

Fermenting system

Function: Used for keep wort fermentation or maturation.

Component: It is consisted of shadowless manhole, mechanical relief valve, sample valve, pressure gage, rotating racking arm, butterfly valve, solenoid valve and etc. It is the third part of beer brewing equipment for restaurant.

Capacity: 10bbl ( brew beer once a day, to fill all the beer into one tank).

20bbl ( brew beer twice a day, to fill all the beer into one tank).

Cooling method: dimple plate or glycol cooling jacket both bottom and top.

Cooling media: Complete stainless steel pipeline for cooling between glycol water tank and fermentation tank.

Design pressure is 0.3MPa; Working pressure is 0.15MPa. (standard design, MPa can be customized).

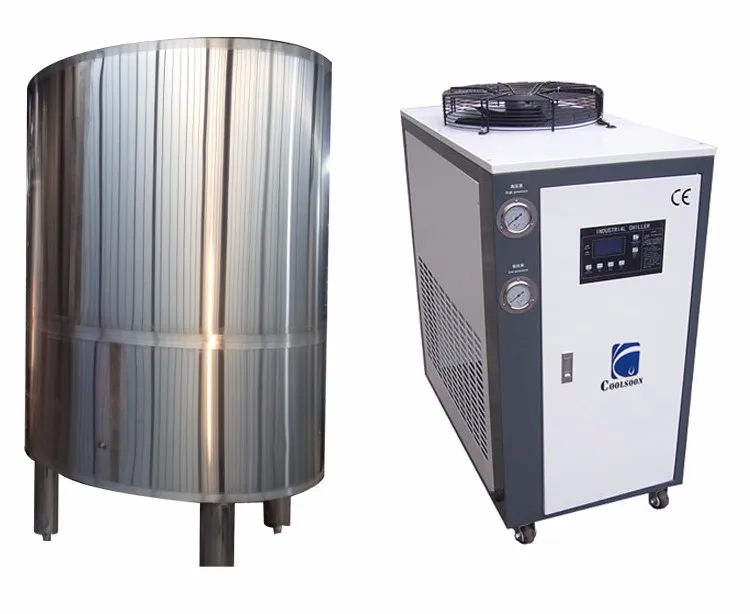

Glycol cooling system

Glycol water tank
Function: Used for cooling wort in heat exchanger when it finished the mashing in brewhouse, and cooling wort in fermentation tank in the fermenting period.
Component: Ice water tank, solenoid
valve, glycol water ump, stainless pipeline and etc.
It is the fourth part of 1000l industrial beer brewing equipment.

Capacity: 30bbl, the much volume you need, you will lessen the cooling time in the plate heat exchanger.
Cooling method: Two stage cooling (Glycol water and tap water work cooling).
Control method: Automatically by PLC controller cabinet.

COOLSOON Chiller
Function: Used for chillling glycol water, to make its temperature down.
Chiller brand: World famous Australia COOLSOON.
Component: Compressor, Water pump, Evaporator, Pressure controller, Condenser, LCD temperature controller, Expansion valve, and so on. It is the fifth part of beer brewing equipment for restaurant.

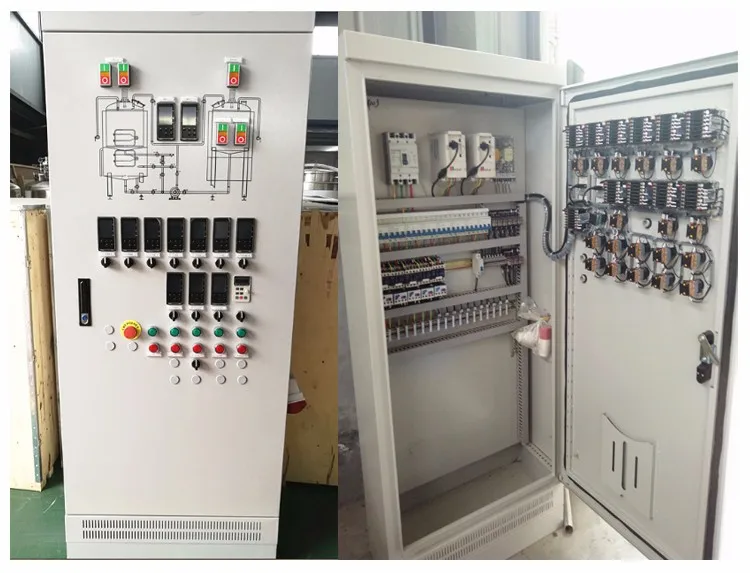

Controlling system

Function: Used for control the processes of brewing.
Component: Instrument panel, button, VFD, Intermediate relay, Switches. It is the sixth part of 1000l industrial beer brewing equipment.

Type: PID Instrument Panel, Floor type.
Electric parts: World-famous brand with CE certificated.
Purpose: Show and control the temperature of brewhouse and hot water tank.

Show and control  the temperature of fermenting tank, bright beer tank and glycol water tank.

Control chiller, motors, pumps, and solenoid valves.

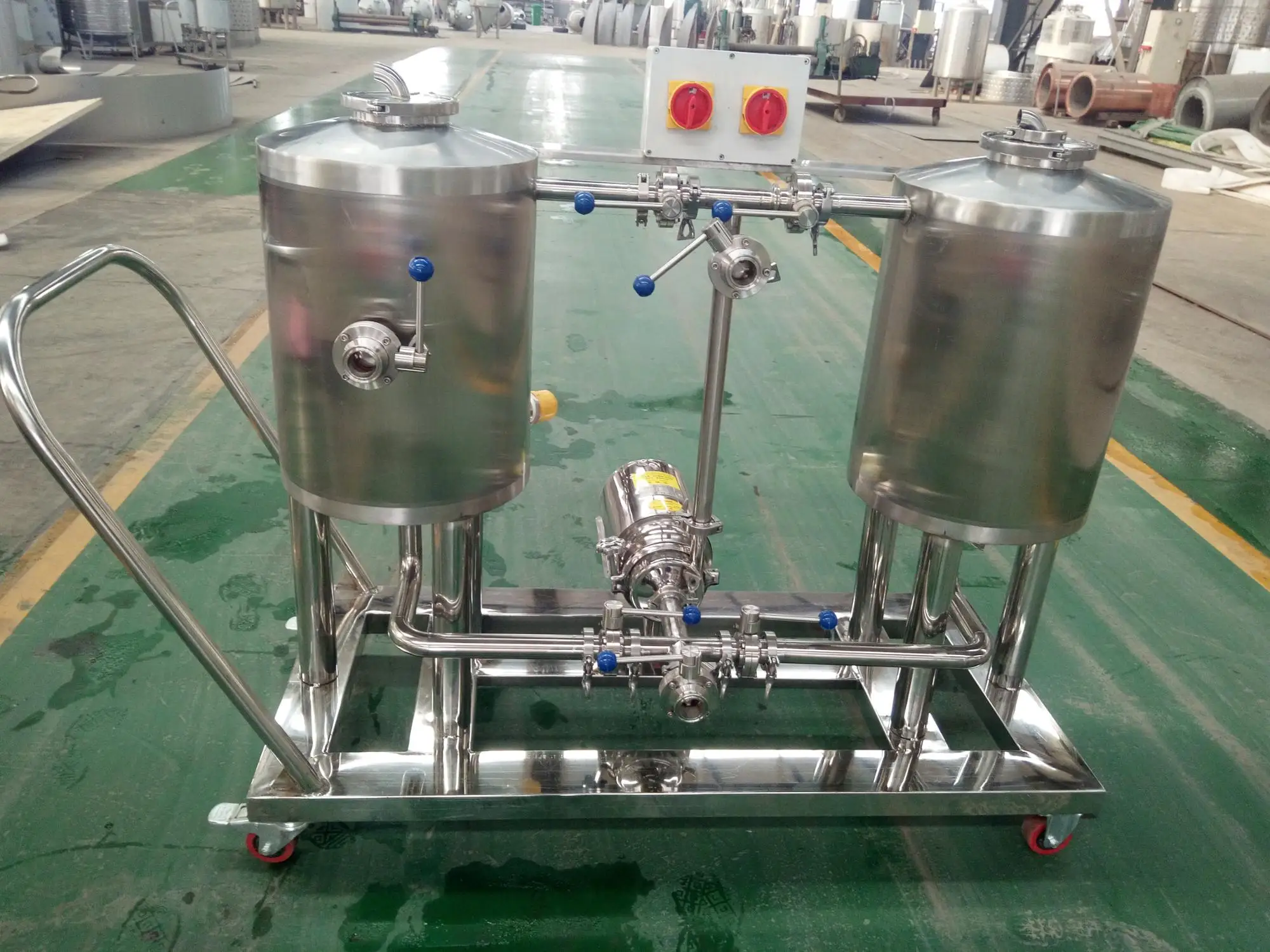

Cleaning system

Function: Used for cleaning and washing.
Component: Disinfection tank, Alkali tank (with heating element), cleaning pump and etc. It is the seventh part of beer brewing equipment.

Capacity: 1bbl ( it is the tenth of the brewhouse)
Purpose:  Equipped with wheel, easy to move and operate, washing all tanks when it finishing brewing.

Our Accessories

All accessories, auxiliaries, spare parts,and fittings are very excellent, adopted in SUS304, and it is the vital part of the best seller 1000l industrial beer brewing equipment for restaurant.

1. Motors, pumps use for brewery equipment are china famous brand.
2. Round stainless steel manhole with glass, easy for us to observe wort’s status in the mash tun.
3. Shot light: It install in the top of the mash tun, and used for lighting, and observe wort’s status.
4. VFD: The motor in the top of the lauter tank, used for stirring. It can control the plow knife/raker’s rotate speed.
5. Glasses buffer tank: It is close to the lauter tank, and it can used it for observing wort’s concentration and its color.
6. Suspension type heat exchange: stainless steel 304 material, clean and sanitation, easy to disassembled and cleaning.
7. Mechanical relief Value: clean and sanitation, It will have some pressure changes as the time went by, and easy to observe.
8. Rotaing racking arm: It port on the cone with butterfly value, and it can get the beer from different place in the fermenting tank.

Contact us

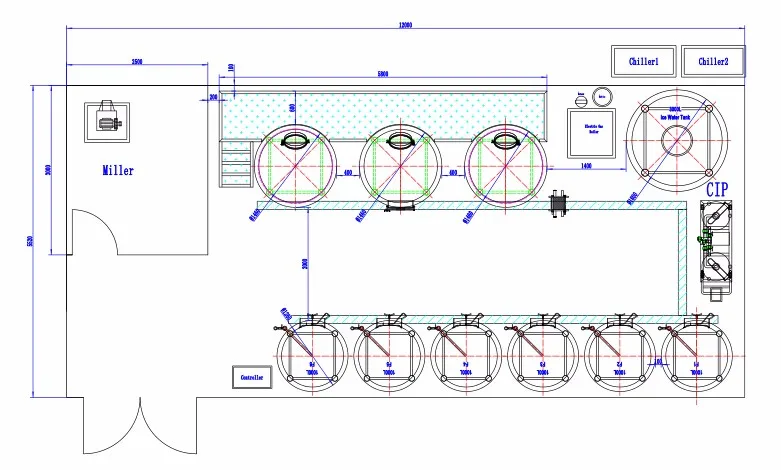

Pre-sales Service

Layout is available for you

Give us your building floor plan, or the sketch, or tell us the size (length, width, height).
Our engineer will design a layout for you according to your requirement.
Finally, send it to you to confirm.

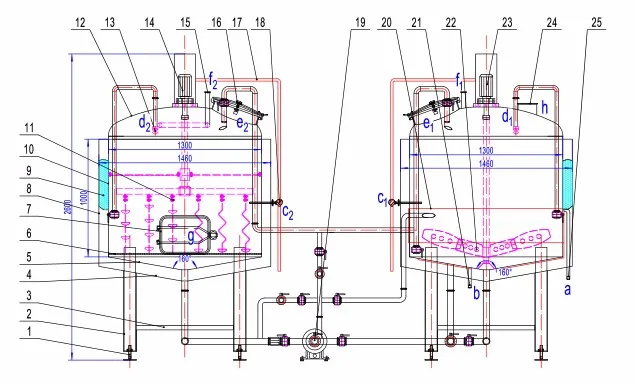

Drawing is available for you

Based on the brewery equipment design.

And based on the layout.

Our technician will design a drawing for you.

Send it to you to confirm.

3D effective sketch is avaiable for you

Give us your building floor plan, or sketch.
According to layout and drawing.
And our engineer will design a 3D effective sketch for you.
So that you will have a clear, bright thought about your brewing room.

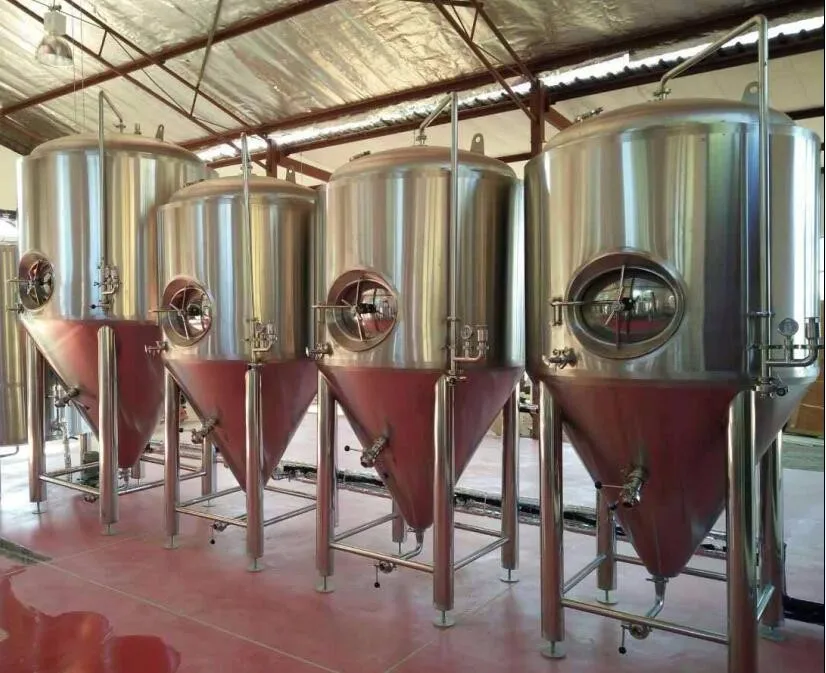

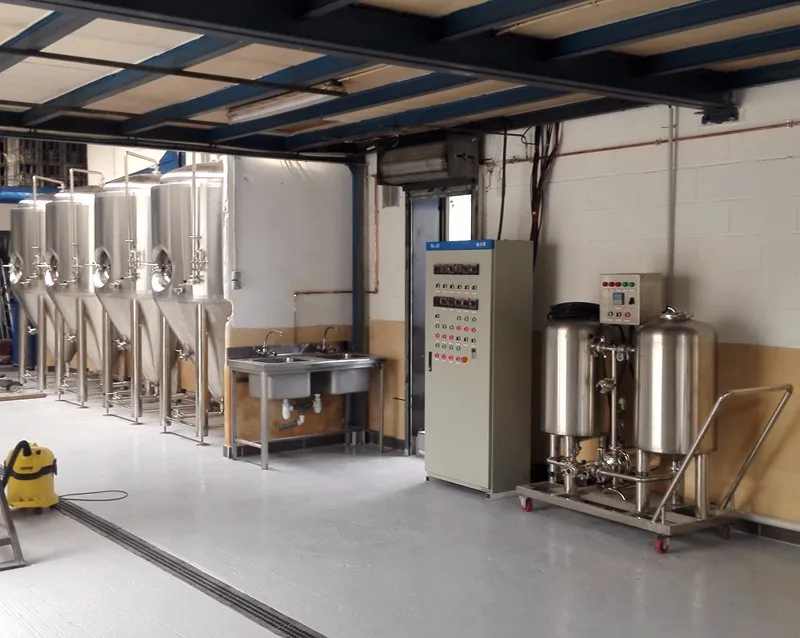

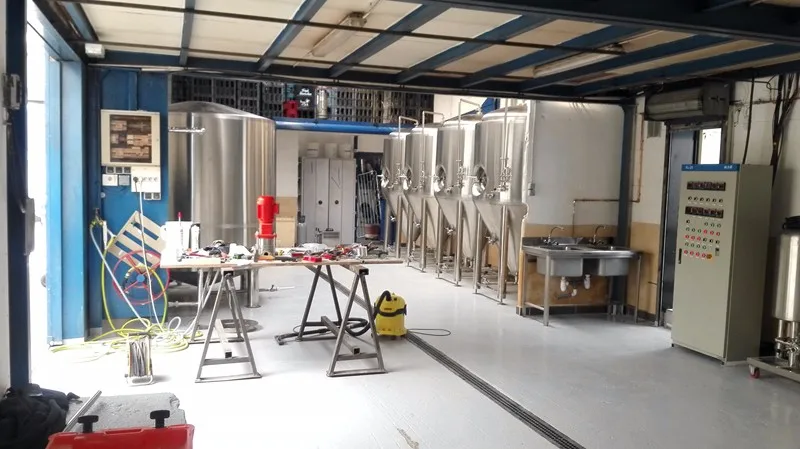

Customer Case

10bbl brewery project for France customer

10bbl 2 Vessels brewhouse, steam heating with electric boiler.

10bbl hot water tank

4*10bbl fermentation tank

2*10bbl bright beer tank

30bbl glycol water tank

2*5HP chiller PID controller cabinet

Use for middle brewery

10bbl brewery project for Romania customer

10bbl 3 Vessels brewhouse, steam heating with natural gas boiler
20bbl hot water tank
6*10bbl fermentation tank
4*10bbl bright beer tank
30bbl glycol water tank
2*5HP chiller PLC controller cabinet

Use for restaurant

10bbl brewery project for Ecuador customer

10bbl 2 Vessels brewhouse, electric heating with heating element.
15bbl hot water tank
8*10bbl fermentation tank
2*10bbl bright beer tank
30bbl glycol water tank
2*5HP chiller PID controller cabinet

Use for cartering center
Packaging&Shipping

1. With export standard bubble film packaging, then for wooden case packaging for alone beer tanks and less brewery equipment.-LCL shipping.
2. If more tanks or complete set of brewery, with bubble film packaging, the for containers for FCL shipping.
3. By bulk carrier or independent containers, the size and quantity rely on the configurations and capacity.
4. Buyers requirement on packaging and shipping, tell us in advance.
5. Transportation method: By sea/Railway/Road/Air.

Company Information

Shandong Shendong Equipment Technology Co., Ltd. is one of professional beer brewing equipment manufacturer in China with many years of special experience in exporting and producing. All our products produced by our company, which had been certified by CE/ISO/PED, you just spend little money to achieve your brewery dream, For we are wholesale beer supplies, Our products include all kinds of industrial beer brewing equipment for brewery, medium hotel beer brewing equipment for restaurant, mini 1000l beer brewing equipment for bar, our beer brewing equipment range from 50L to 5000L, and even bigger system, from beer main equipment and accessories, raw material to brew beer, beer canning vending machine, keg filling machine, bottle filling machine, can filling machine, and so on.

We have been sold a large great number of brewing equipment to Euro, and USA, and other countries. There brewing equipment are adopted stainless steel 304/316L, and have passed the ISO CE PED Certificate, and other pressure certificate. In order to make you believe our company, now, enclosed our certificate to lessen your worries.
