micro beer brewing system 200l for pub sale

FOB Reference Price:Get Latest Price
$19,500.00 - $29,500.00 / Sets | 1 Set/Sets (Min. Order)
Model Number:
200L~1000L
Lead Time:
Quantity(Sets) 1 - 80 >80
Est. Time(days) 80 Negotiable
Report Suspicious Activity
Overview
Quick Details
Processing:
Fermenting Equipment
Condition:
New
Place of Origin:
Shandong, China
Brand Name:
TIANTAI
Processing Types:
Alcohol
Voltage:
3 phase/380v/50 Hz or customized
Power(W):
15KW ~70KW
Dimension(L*W*H):
760mmx2100mm*2100mm
Weight:
Denpend on model
Certification:
CE
Warranty:
3 years
After-sales Service Provided:
Field installation, commissioning and training, Engineers available to service machinery overseas
Color Availabl:
Mirror SUS or Luxury red copper
Heating:
Electric/Steam/Direct fired
Heat Insulation:
Polyurethane or Rockwool with Thickness=80mm
Inner Polishing Precision:
0.4 Micrometer
Controlling System:
PLC, HMI or Touch Panel
Volume Design:
Properly according to the capacity request
Plants Type:
Turnkey or Customerized
OEM:
Available
Application:
Hotel beer brewery equipment
Supply Ability
Supply Ability:
100 Set/Sets per Year
Packaging & Delivery
Packaging Details
Wooden/Veneer case for LCL;
Plastic film wrapped and iron frame fixing for FCL.
Port
Qingdao
Lead Time :
Quantity(Sets) 1 - 80 >80
Est. Time(days) 80 To be negotiated
Video Description
Product Description


200L Brewpub beer brewing system

Introduction

200L Brewpub beer brewing system produced by us is a set of technological equipment for the production of "live" and filtered beer. Brew master make their beer attractive to consumers by unique brewing process and distinctive beer taste. If desired, they can be placed directly in places of consumption of beer: restaurants, pub, bars, hotels, tourist and shopping centers. Interpreter may be faced with polished brass, copper besides stainless steel. Also, the microbrewery is placed behind a glass partition that allows visitors to observe the process of making beer. This is an excellent design solution interior and a powerful marketing tool.

Most installation in restaurants, bars and hotels used microbrewery with a capacity from 200 to 1000 L. A network of restaurants uses equipment with higher capacity. Tiantai microbreweries are installing at the customer's company turn-key. To release a less than 200 L of beer per day is unprofitable, so the minimum performance of our equipment is 200L.

Specifications

Output/Brew 2HL

Brew/Week 2~6

Output/Week 4~12HL

Electric Supply 3phase/380(220, 415,440...)v/50 (60)Hz

Single Phase/ 220(110, 240...)v/50(60)Hz

Heating Source Electric/Steam

Area Request >25M2

Brewmaster 1

Note: 1hl=100liter; 1Gallon=3.7854liter; 1Barrel (BBL) =117Liter;

Configuration

Configuration


1. Malt Milling Unit

Particle adjustable rolling crusher

Flexible or steel auger for optional

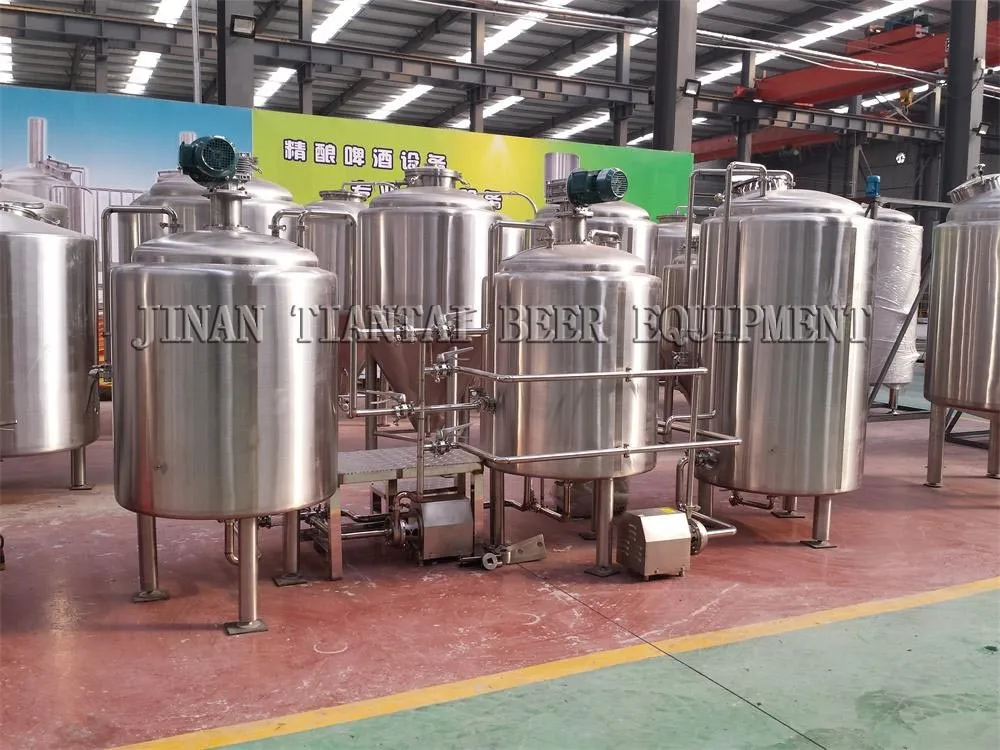

2. 200L Brewhouse Unit

Mash tun, Lauter tun, Boiling Kettle, Whirlpool tun in various combination

Hot water tank and cold water tank for optional in special combinations

Infusion or decoction brewing methods are designed exactly

Stainless steel or copper cladding are popular

Two stages or single stage heat exchanger for wort cooling

Completely stainless steel integrated work platform

Sanitary and efficiency wort pump

All pipings and fittings



3. 200L or 400L Fermentation Unit

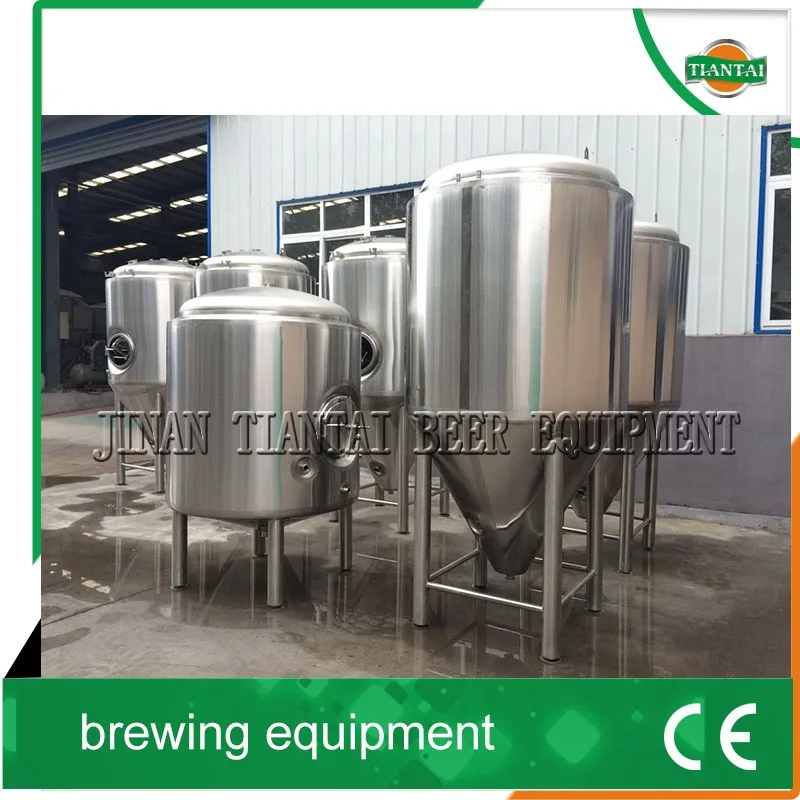

Standard stainless steel conical cylindrical fermentation tanks

Single size as brewhouse is common used in restaurant

Tanks quantity is exactly calculated by fermentation cycle for various beers

All manhole, valves, pressure gauges, fittings etc are included



4. Beer Filter Unit(optional)

In restaurant or bar, beers are always served as craft beer without filtration



5. 200L or 400L Bright Tank Unit

Standard stainless steel bright tanks for beer maturation, conditioning, service, carbonation

Single size as fermenter is common used in restaurant or bar

Tanks quantity is exactly calculated for various beers and the function

All manhole, valves, stone, gauges, fittings etc are included



6. Cooling Unit

Insulated glycol water tank with or without copper coil for glycol liquid holding and mixing

Efficiency chillers or refrigerators with fryonto supply cooling energy

Sanitary centrifugal pump for Glycol water recycle among tanks and heat exchanger

All pipes, fitting, insulation materials are included



7. Controlling Unit

Electrical controlling cabinet with temperature, on-off controlling for brewhouse

Electrical controlling cabinet with temperature, on-off controlling for cooling parts

Temperature controller, thermocouple, solenoid valves etc are included

PLC with touch screen panel for special request



8. Beer Dispense

Beer dispensing columns and faucets for directly beer service

Keg filling and rinsing machine

Manually bottling machines for self consumption



9. Other Facilities

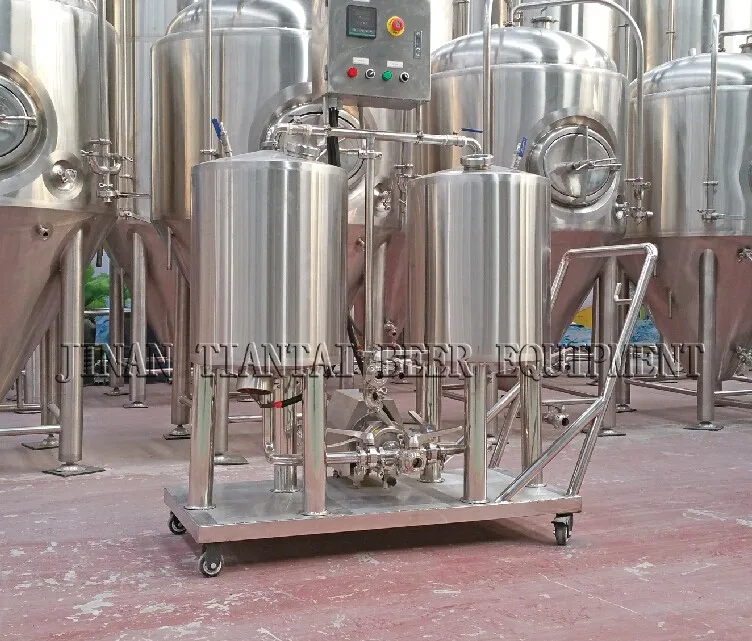

Portable CIP system for cleaning the tanks

Steam boiler for brewhouse heating

Water treatment for brew water

Oil free air compressor



Certifications
Detailed Images

Machine Parts

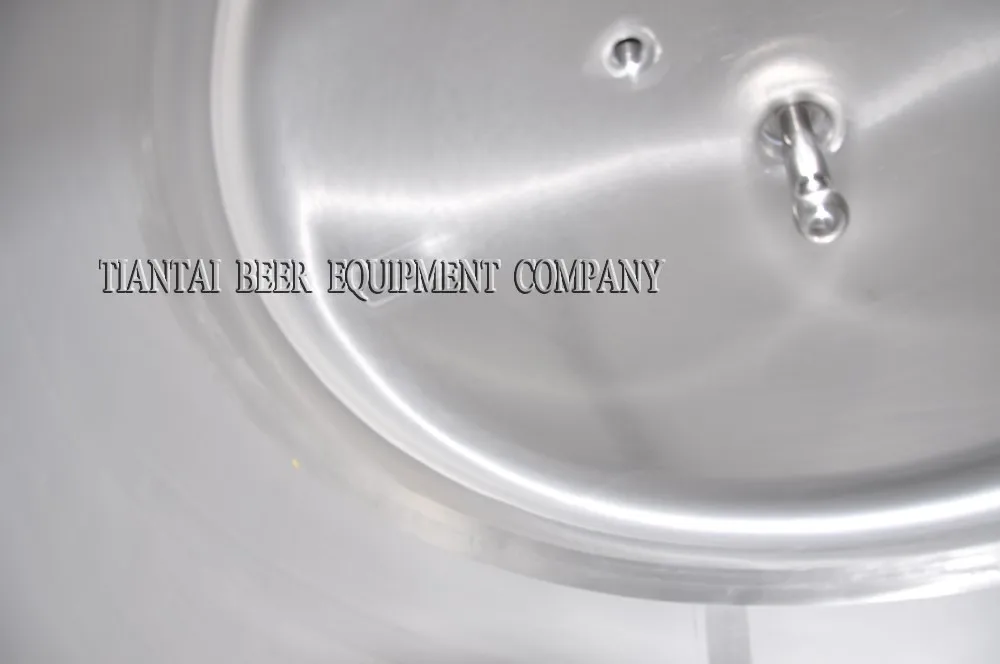

Name: Top Manhole


Main Parts

Name: Control box

With world famous brand parts like Siemens, Omron, Schneider, ABB, LS etc.

Accessories

Name: Pump
Brand: Yuanen
Original: China
With ABB or Jilong motor

Main Features

Interial finish
Acid wash and Passivition

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Layout design

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery
Packaging



Packaging Details
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
